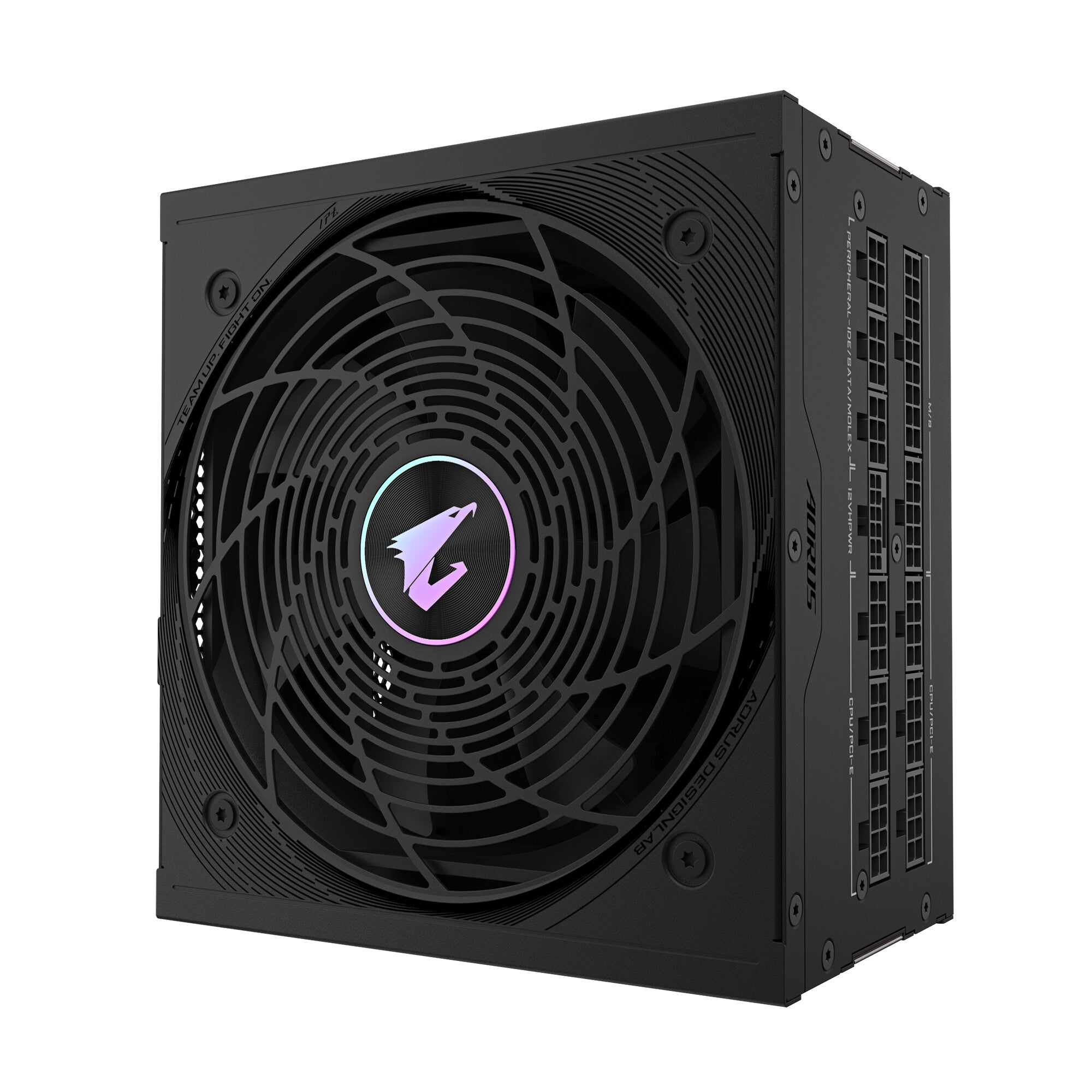

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Good signal delay range |
100 - 150 ms |
| Efficiency |
92% |
| Hold time |
16 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
83.3 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
999.6 W |
| Combined power (+3.3V) |
125 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.9 |
| Input current |
15 - 6.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| Floppy drive power connector |
2 |
| Floppy disk drive connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
6 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
65 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Ball bearing |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.73 kg |
| Package height |
120 mm |
| Package depth |
206 mm |
| Package width |
340 mm |
| Logistics data |
|---|
| Warranty period |
10 year(s) |
