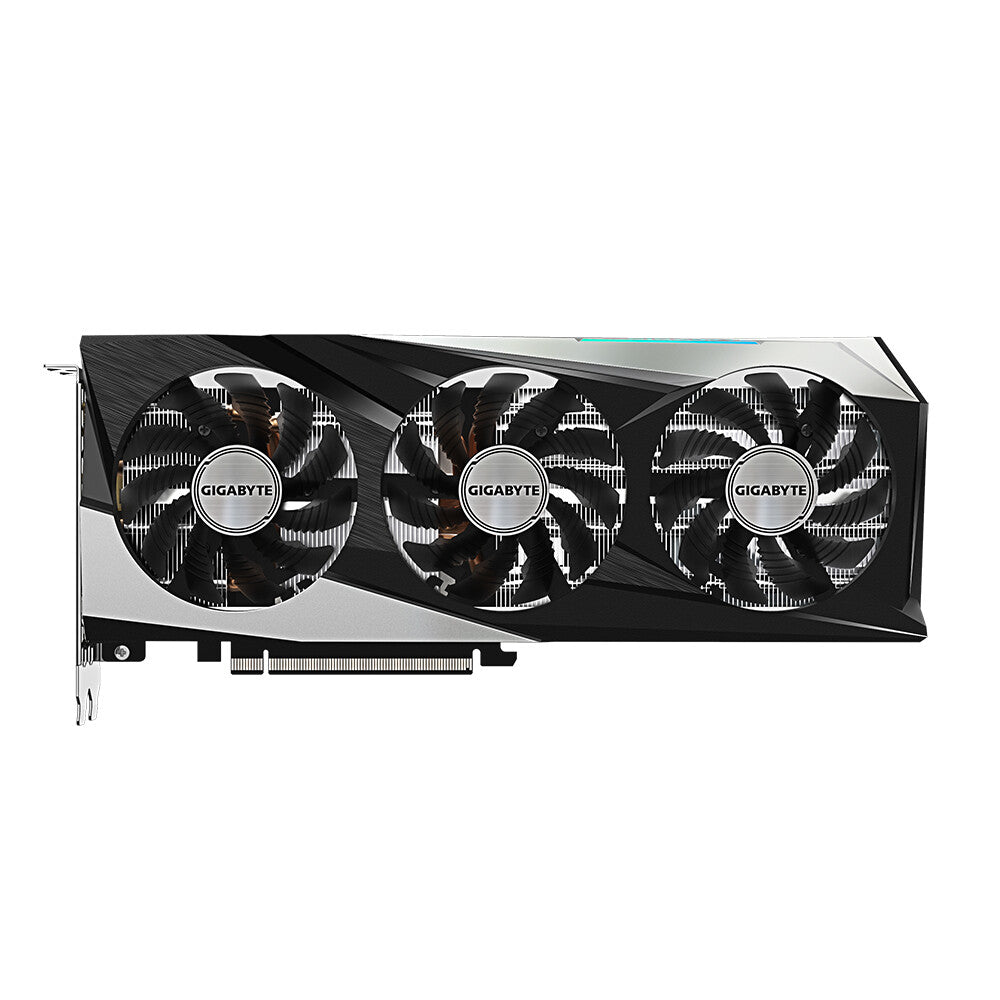

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

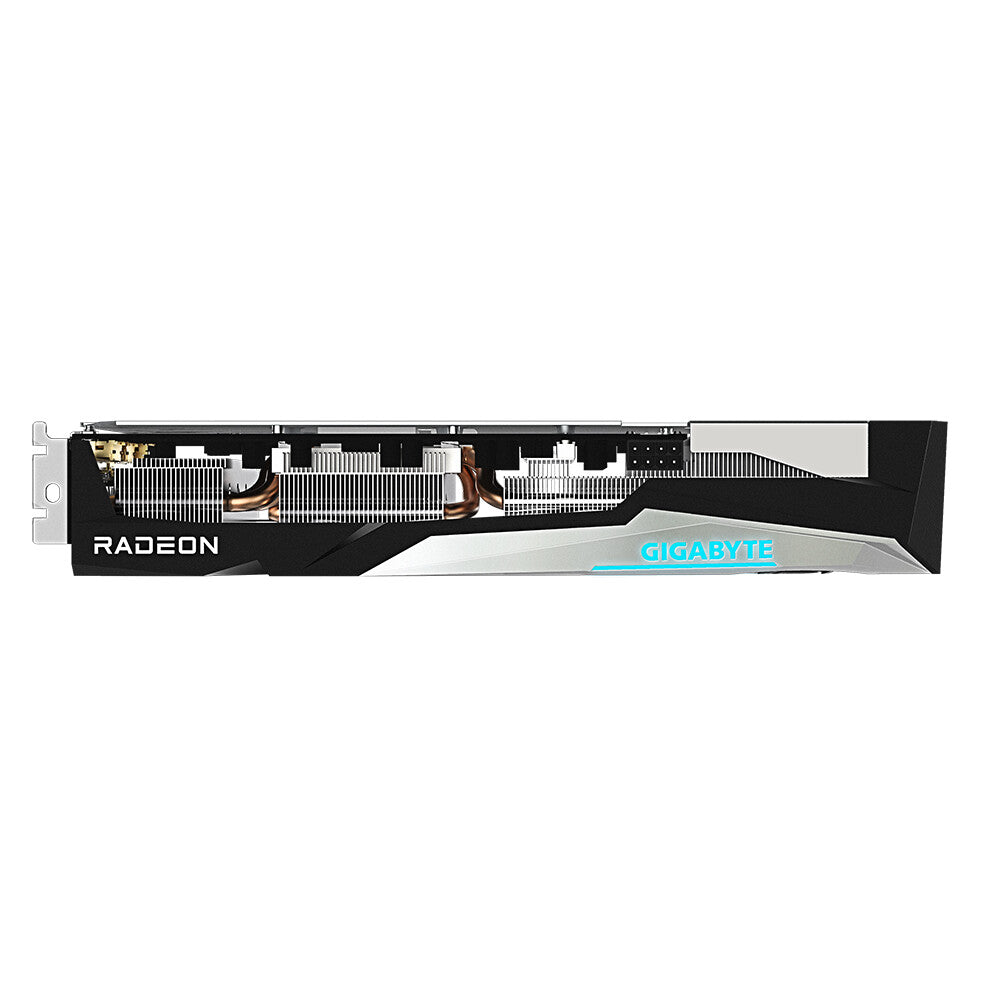

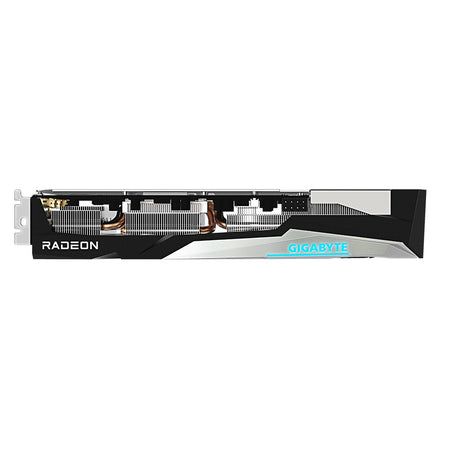

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
| Processor |
|---|
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Graphics processor family |
AMD |
| Memory |
|---|
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

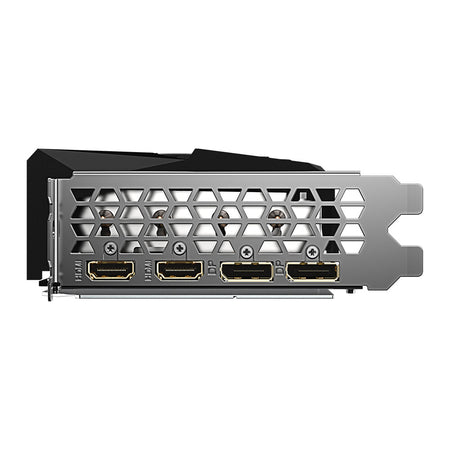

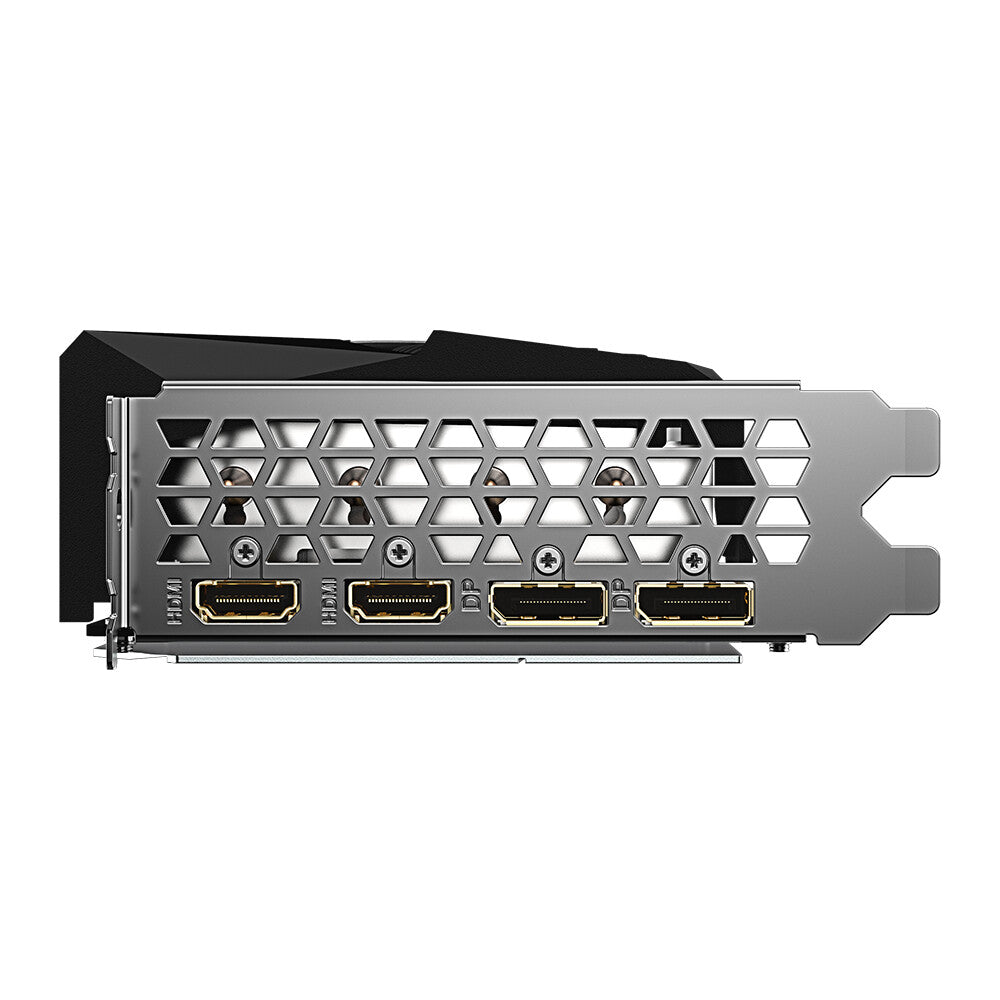

| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| USB Type-C ports quantity |
1 |
| HDMI version |
2.1a |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| AMD FreeSync |
Yes |
| Dual Link DVI |
No |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
3 fan(s) |
| Cooling technology |
GIGABYTE WINDFORCE 3X |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Weight & dimensions |
|---|
| Height |
115 mm |
| Depth |
50 mm |
| Length |
287 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| User guide |
Yes |
| General |
|---|
| Product family |
GAMING |
