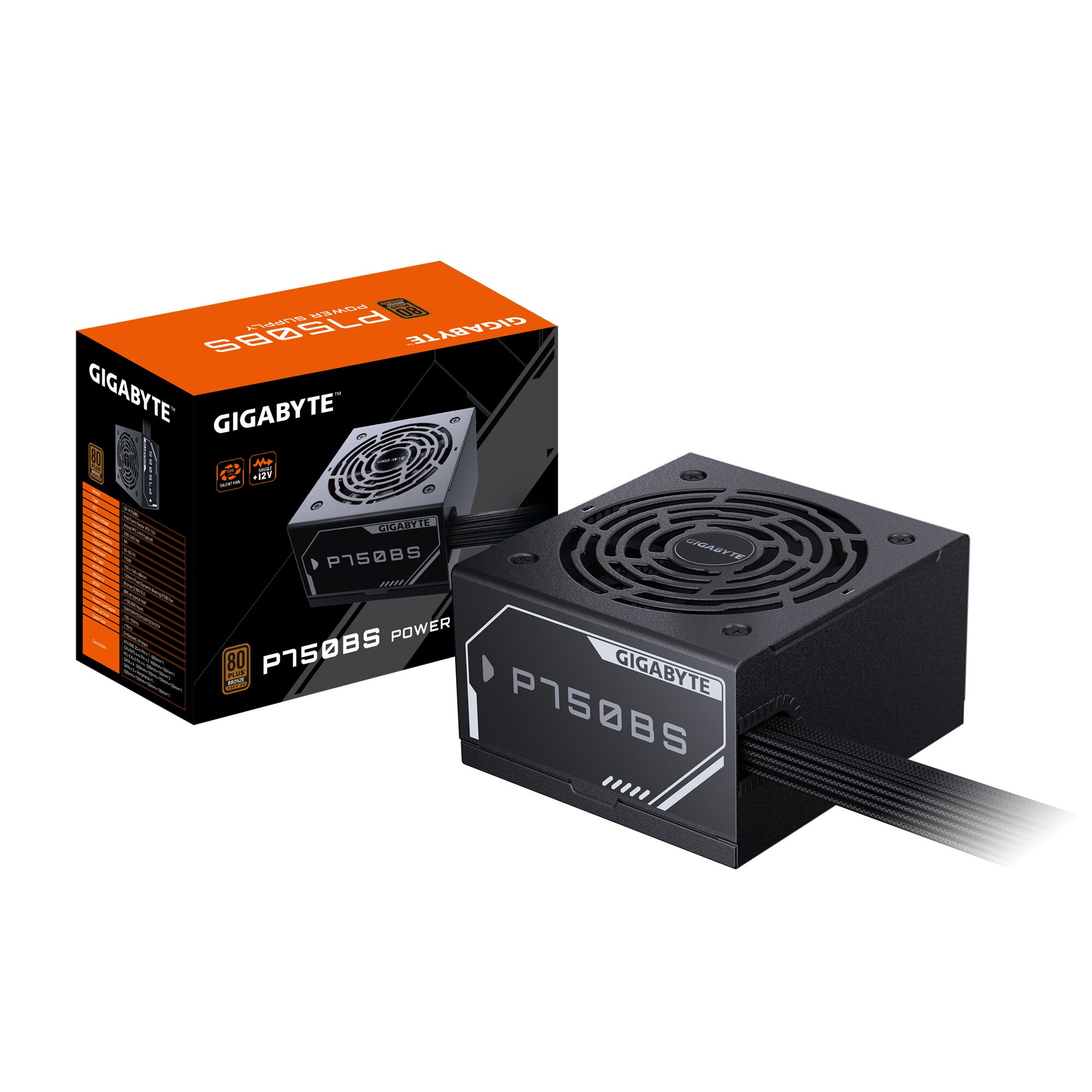

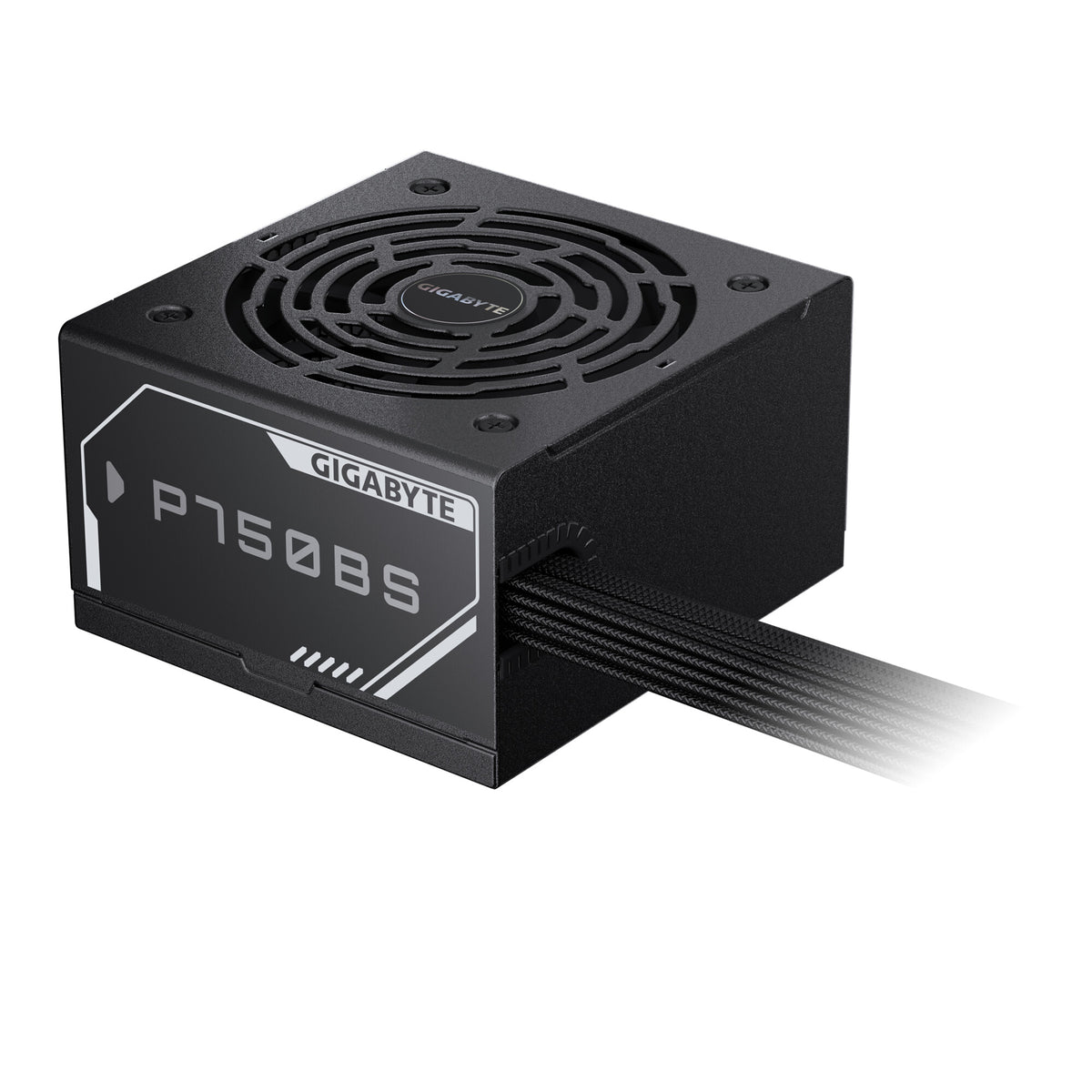

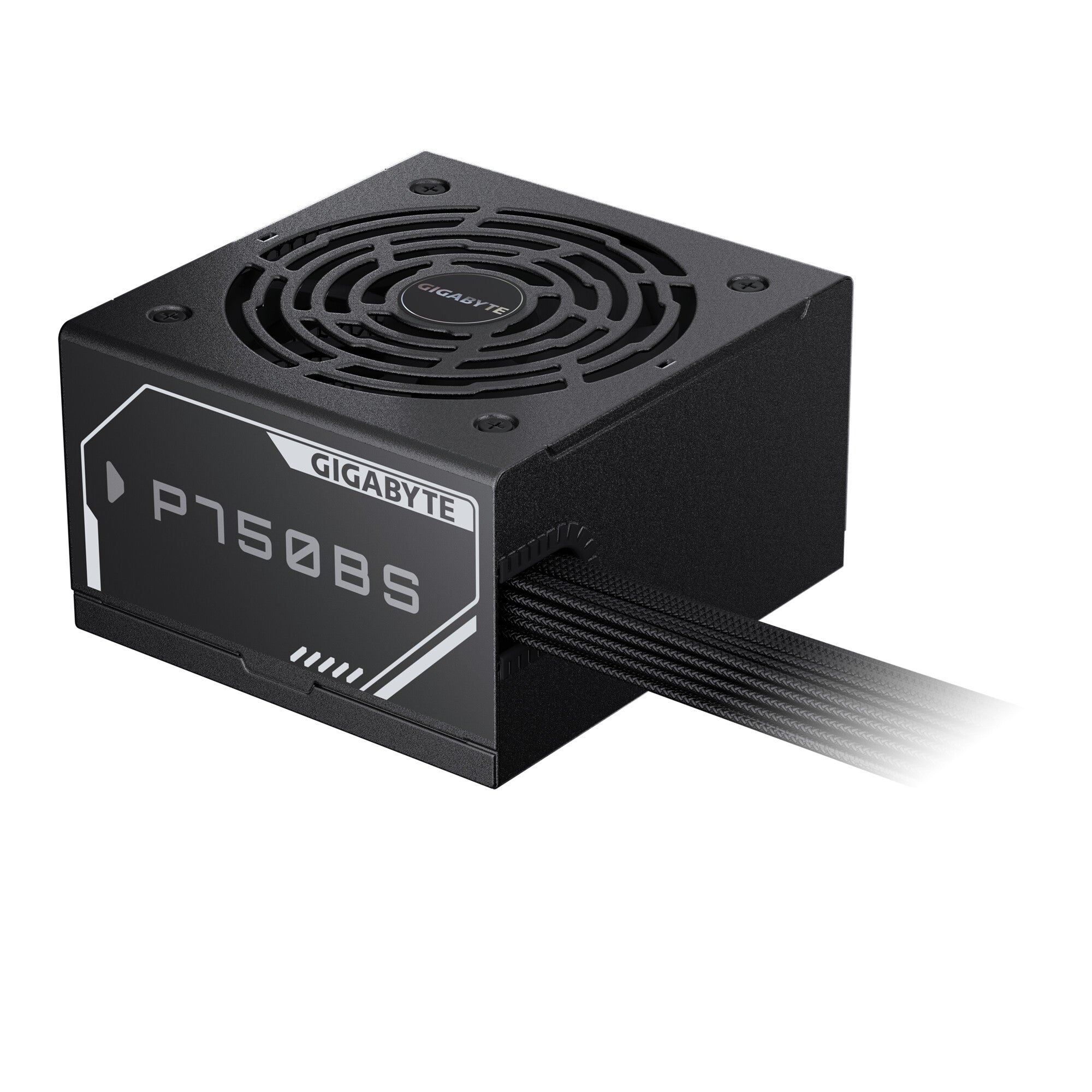

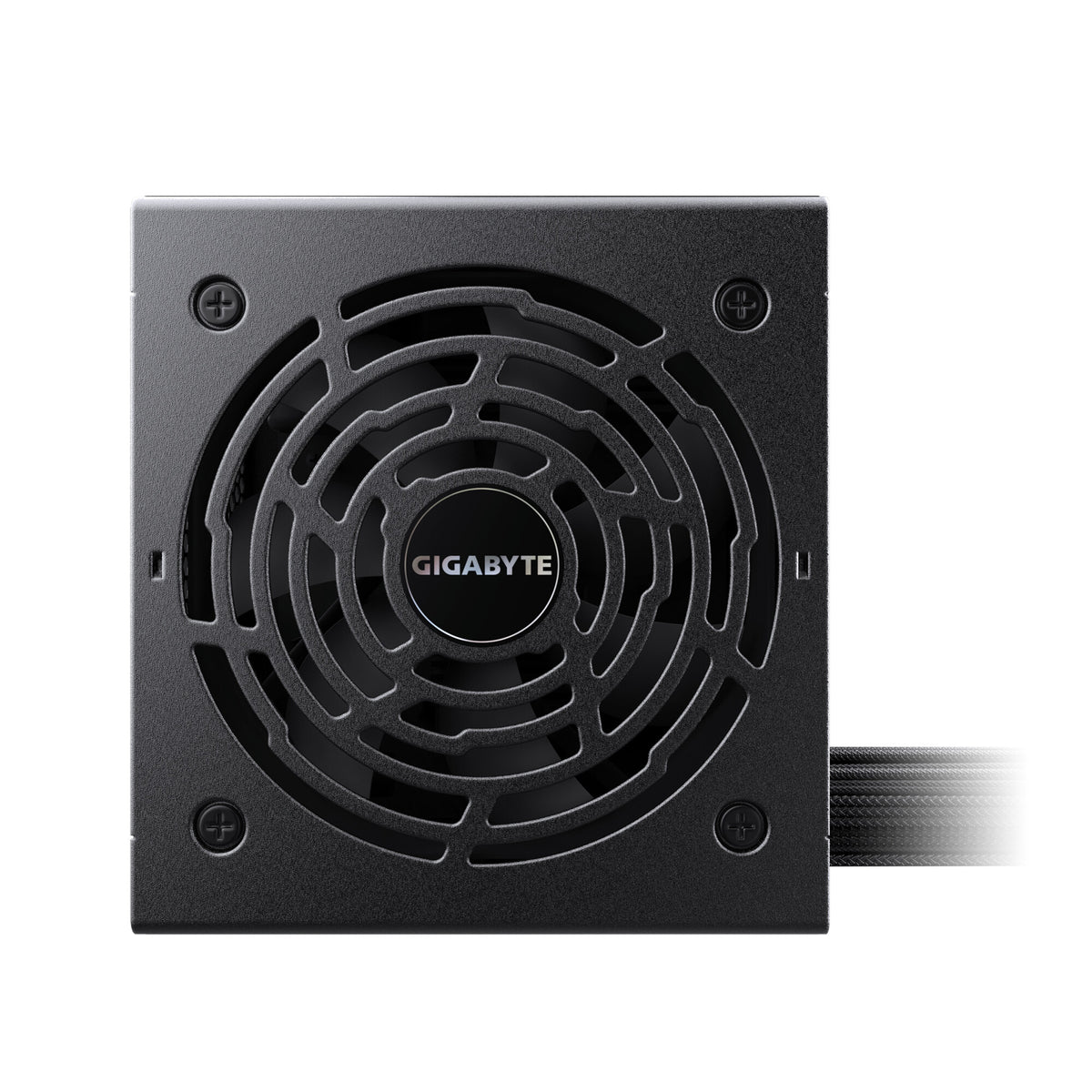

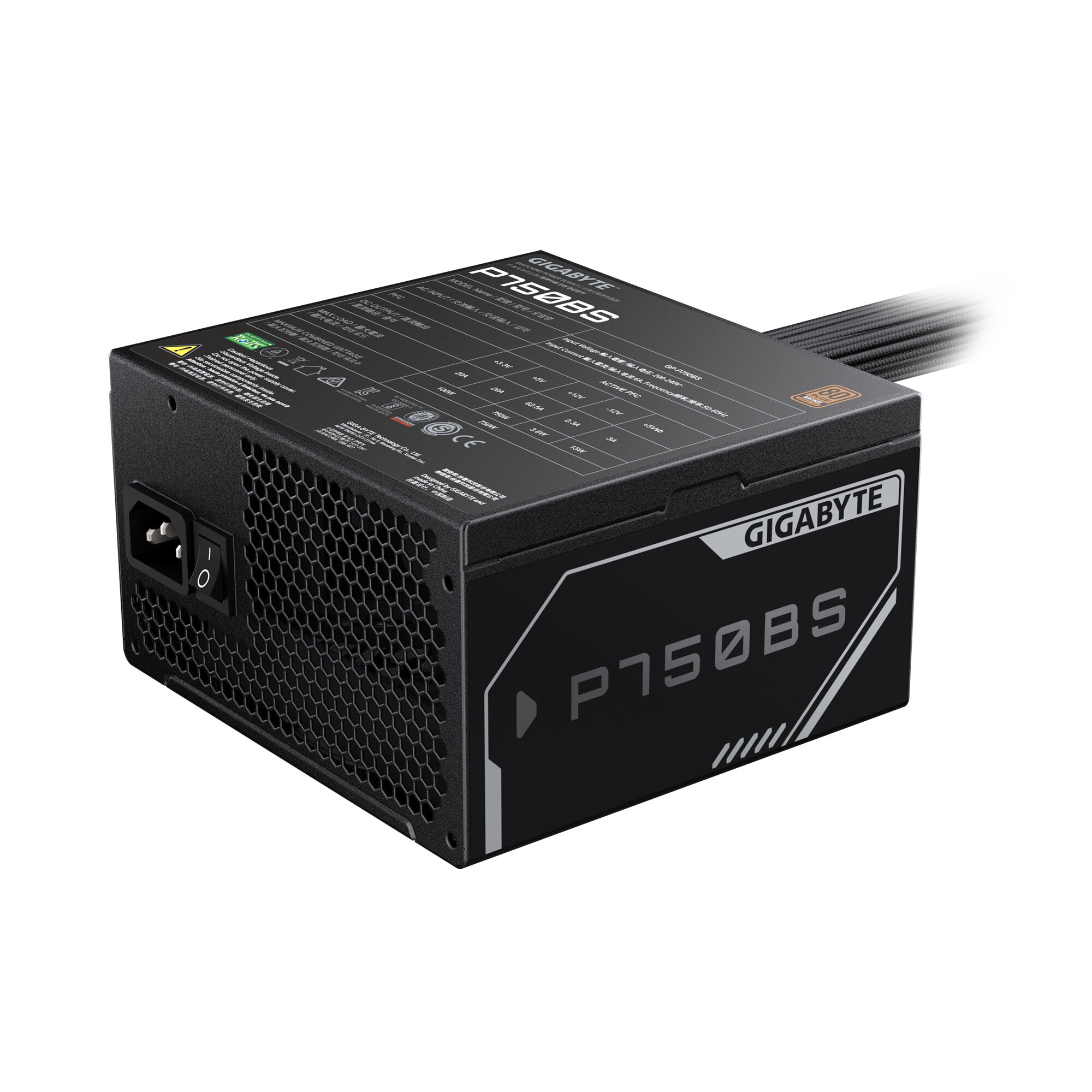

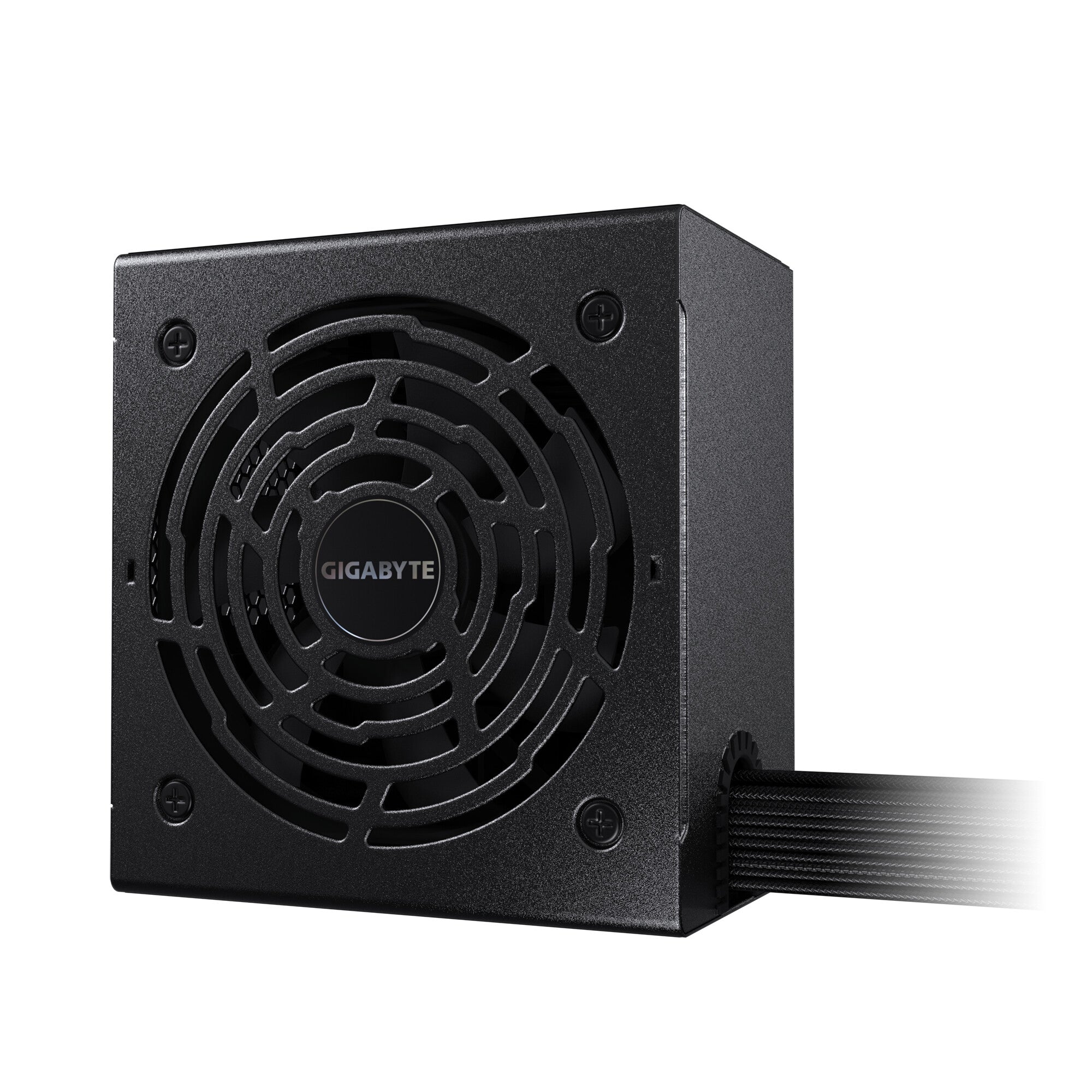

GIGABYTE P750BS Power Supply - PCIe 5.0, 80 PLUS Bronze, 120mm Fan, ATX compatible, UK Plug

SKU: GP-P750BS-UK
£58.24 inc. VAT
  • 80 PLUS Bronze certified (230V EU)
  • 120mm Silent Fluid Dynamic Bearing (FDB) fan
  • Soft-textured embossed cables
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Good signal delay range 100 - 150 ms
Efficiency 88%
Hold time 16 ms
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 62.5 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 100 W
Combined power (+12V) 750 W
Combined power (+3.3V) 100 W
Power Factor Correction (PFC) type Active
Power factor 0.9
Input current 6 A
AC input frequency 50/60 Hz
AC input voltage 200 - 240 V
Total power 750 W
Ports & interfaces
Cabling type Non-Modular
PCI Express connector Yes
Floppy drive power connector 2
Floppy disk drive connector Yes
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
Peripheral (Molex) power cable length 150,600 mm
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 150,500 mm
Number of SATA power connectors 7
Motherboard power cable length 60 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
80 PLUS certification 80 PLUS Bronze
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Fan location Top
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black
Weight & dimensions
Weight 2.22 kg
Height 86 mm
Depth 140 mm
Width 150 mm
Packaging data
Package type Box
Package weight 2.68 kg
Package height 117 mm
Package depth 206 mm
Package width 254 mm
Logistics data
Warranty period 3 year(s)
