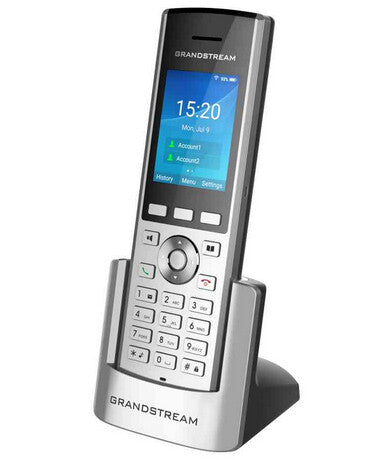

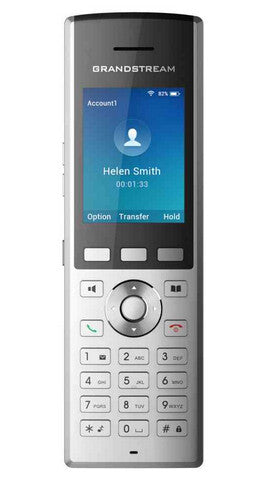

The WP820 is a portable WiFi phone designed to suit a variety of enterprises and vertical market applications, including retail, logistics, medical and security. This powerful, portable WiFi phone comes equipped with integrated dual-band 802.11a/b/g/n WiFi support, advanced antenna design and roaming support, and integrated Bluetooth for pairing with headsets and mobile devices. By adding 7.5 hour talk time and HD voice with dual-MICs, the WP820 offers a powerful combination of features, mobility and durability to suit all portable telephony needs. The GMC08, a battery charging pack for the WP820 that can charge up to 8 batteries at a time, is available seperately.
| Design |
|---|
| Product colour |
Black, Silver |
| Handset type |
Wireless handset |
| Product type |
IP Phone |
| Performance |
|---|
| Operating system version |
7.0 |
| Operating system installed |
Android |
| Phone features |
|---|
| Phonebook capacity |
500 entries |
| Vibrating alert |
Yes |
| Call waiting |
Yes |
| Call hold |
Yes |
| Conference call |
Yes |
| On-hook dialling |
Yes |
| Call history |
Yes |
| Lines quantity |
2 lines |
| Management features |
|---|
| Add new contacts from handset |
Yes |
| Volume control |
Buttons |
| Display |
|---|
| Backlight display |
Yes |
| Display resolution |
240 x 320 pixels |
| Display diagonal |
6.1 cm (2.4") |
| Display |
LCD |
| Audio |
|---|
| Number of microphones |
2 |
| Speakerphone |
Yes |
| Network |
|---|
| Supported network protocols |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Quality of Service (QoS) support |
Yes |
| Security algorithms |
256-bit AES, SRTP |
| DHCP client |
Yes |
| Networking standards |
IEEE 802.1x |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Standby time |
150 h |
| Talk time |
7.5 h |
| Power consumption (typical) |
5 W |
| AC adapter output current |
1 A |
| AC adapter output voltage |
5 V |
| AC adapter input voltage |
100 - 240 V |
| Battery |
|---|
| Battery capacity |
1500 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Weight |
161 g |
| Height |
21.8 mm |
| Depth |
52.5 mm |
| Width |
168.5 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Base station |
Yes |
| Quick start guide |
Yes |
| Charger |
Yes |
| Headset included |
Yes |
| Number of handles included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
