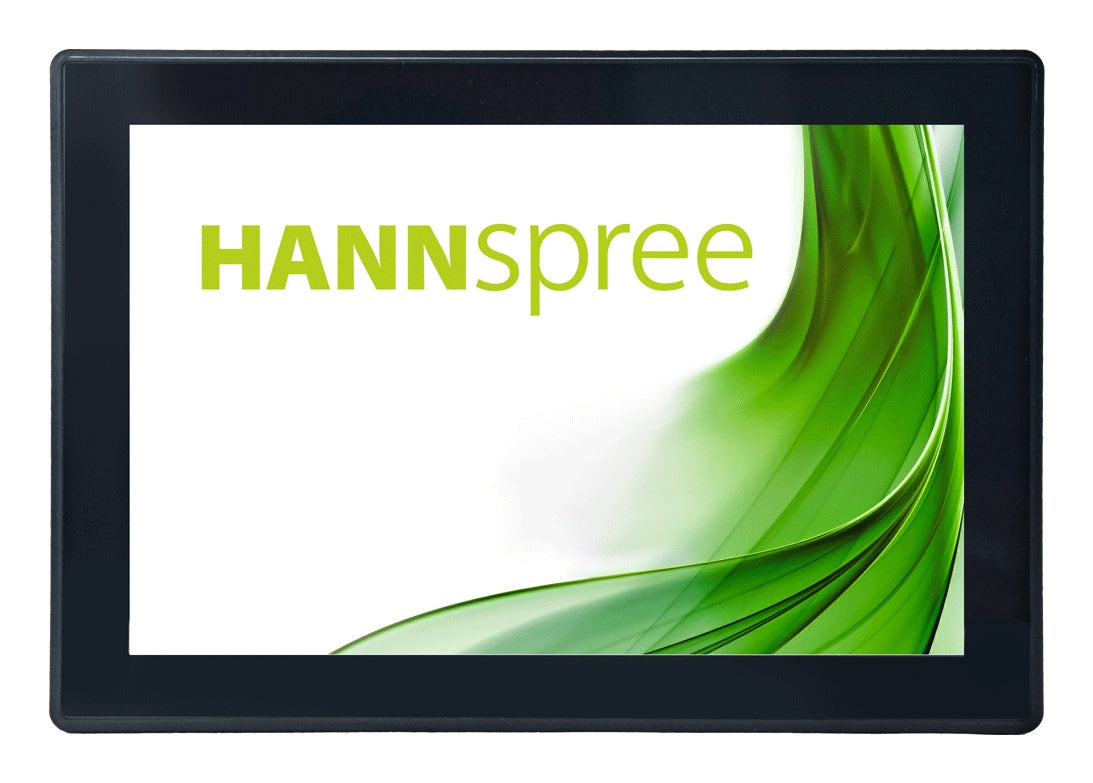

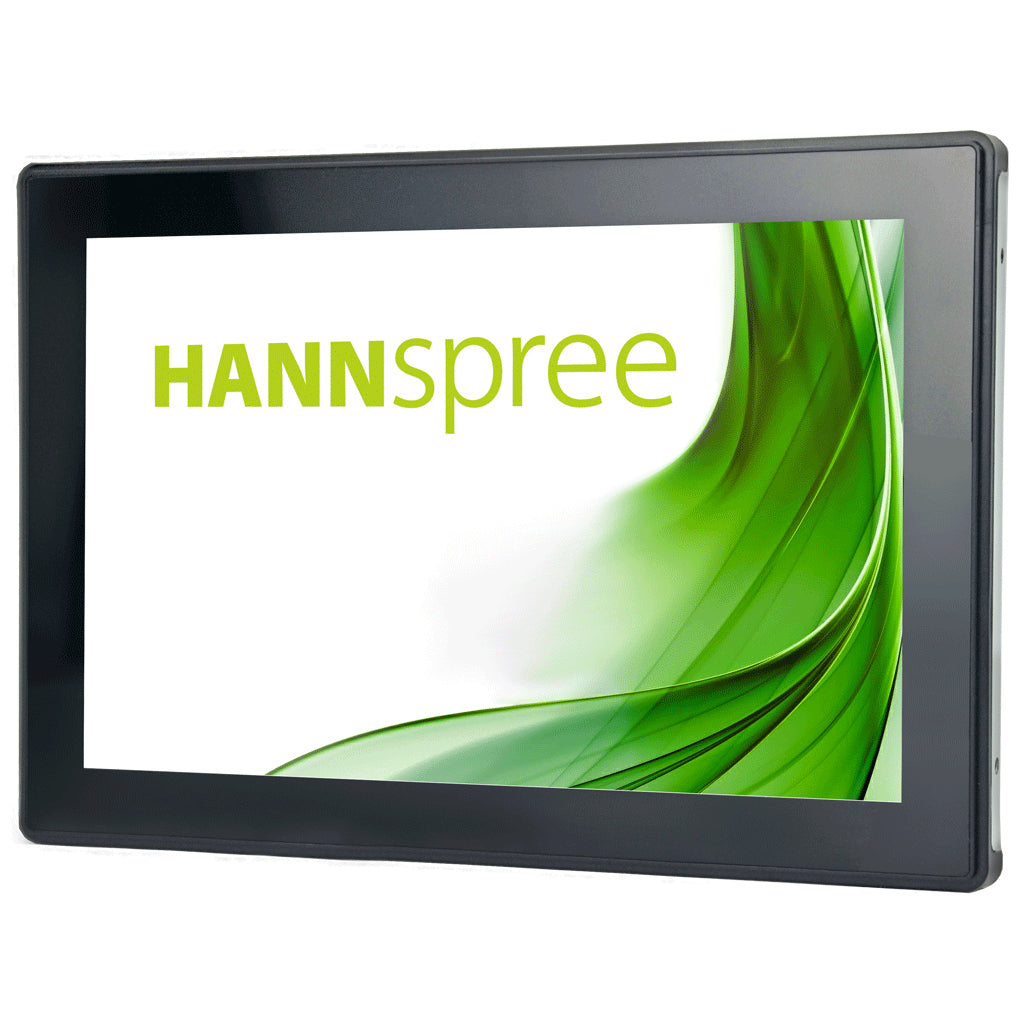

The HANNspree HO105HTB 10.1'' Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration. The HANNspree HO105HTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.
The Open Frame - An Industrial Display Solution Applications
- Gaming Casino
- Entertainment Slot Machines
- Video Lottery Machines
- Totem Kiosks
- Medicine Ticketing
- Education
- Self-Service Terminals
- Industrial Control
Projected Capacitive (PCAP) Touch Technology
Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO105HTB Monitor allows everyone to play and collaborate at the same time. The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — is optimised for use with Windows 8, 8.1 and 10, allowing you to work smarter and more efficiently. This technology delivers super-fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.
Mounting Options

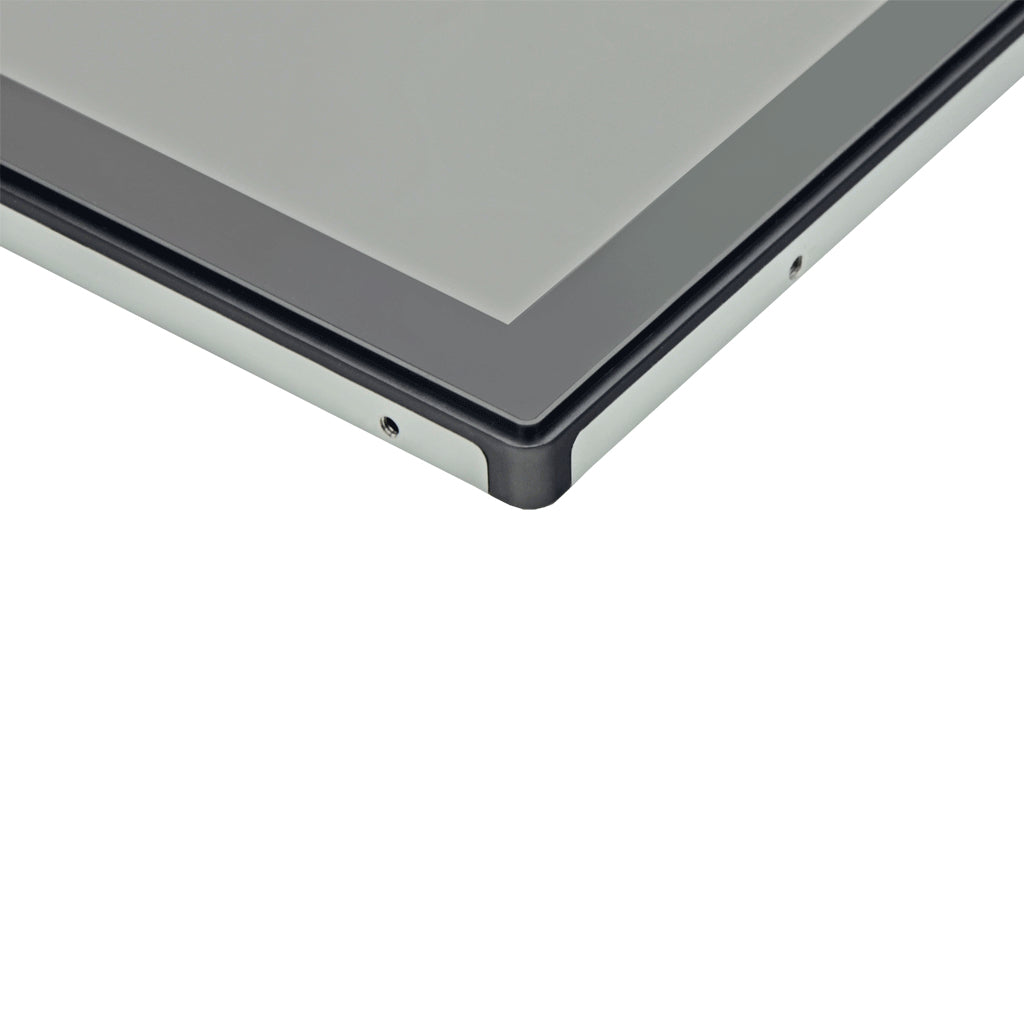

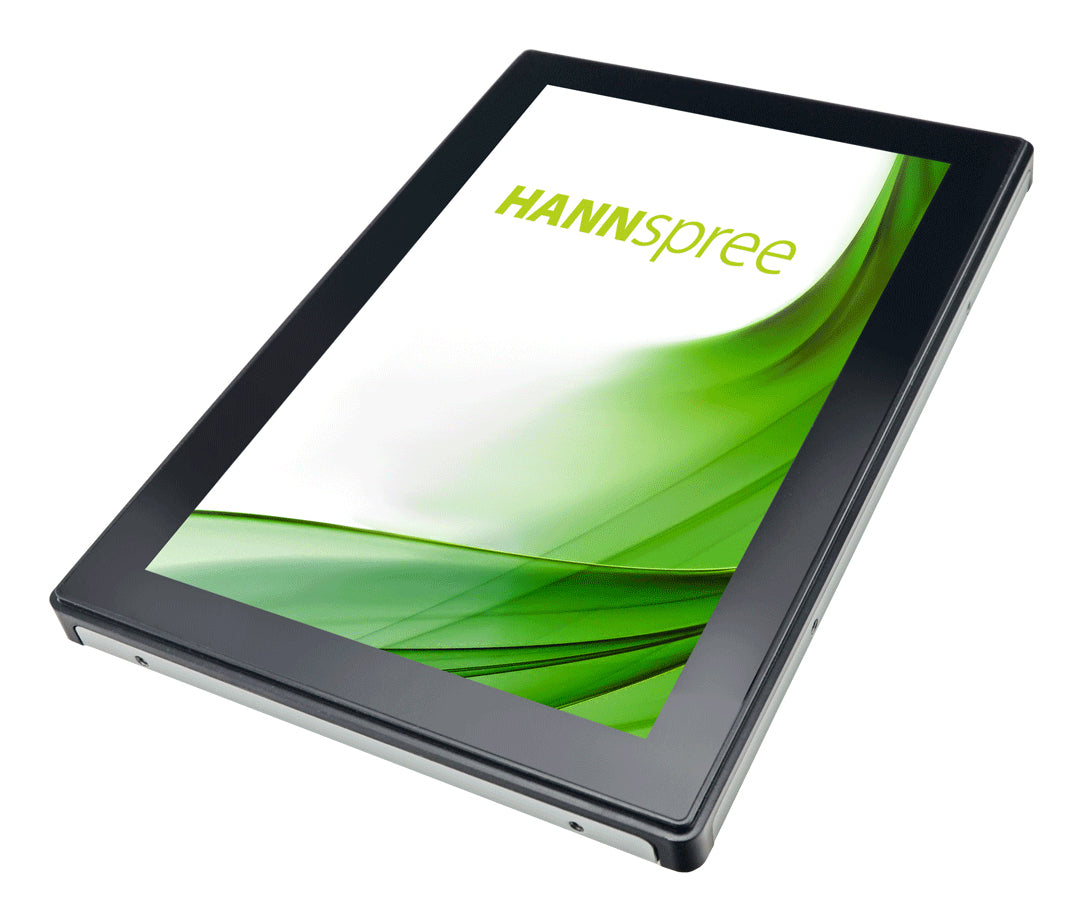

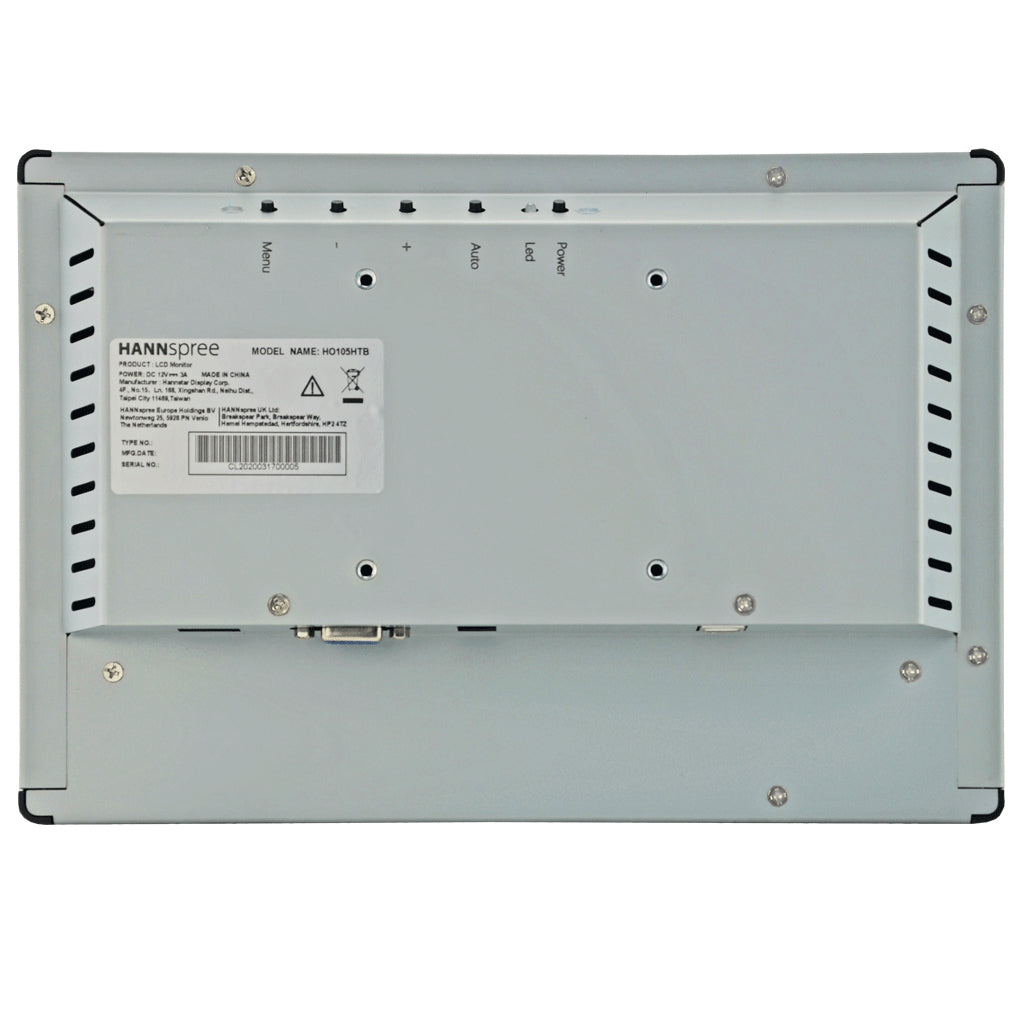

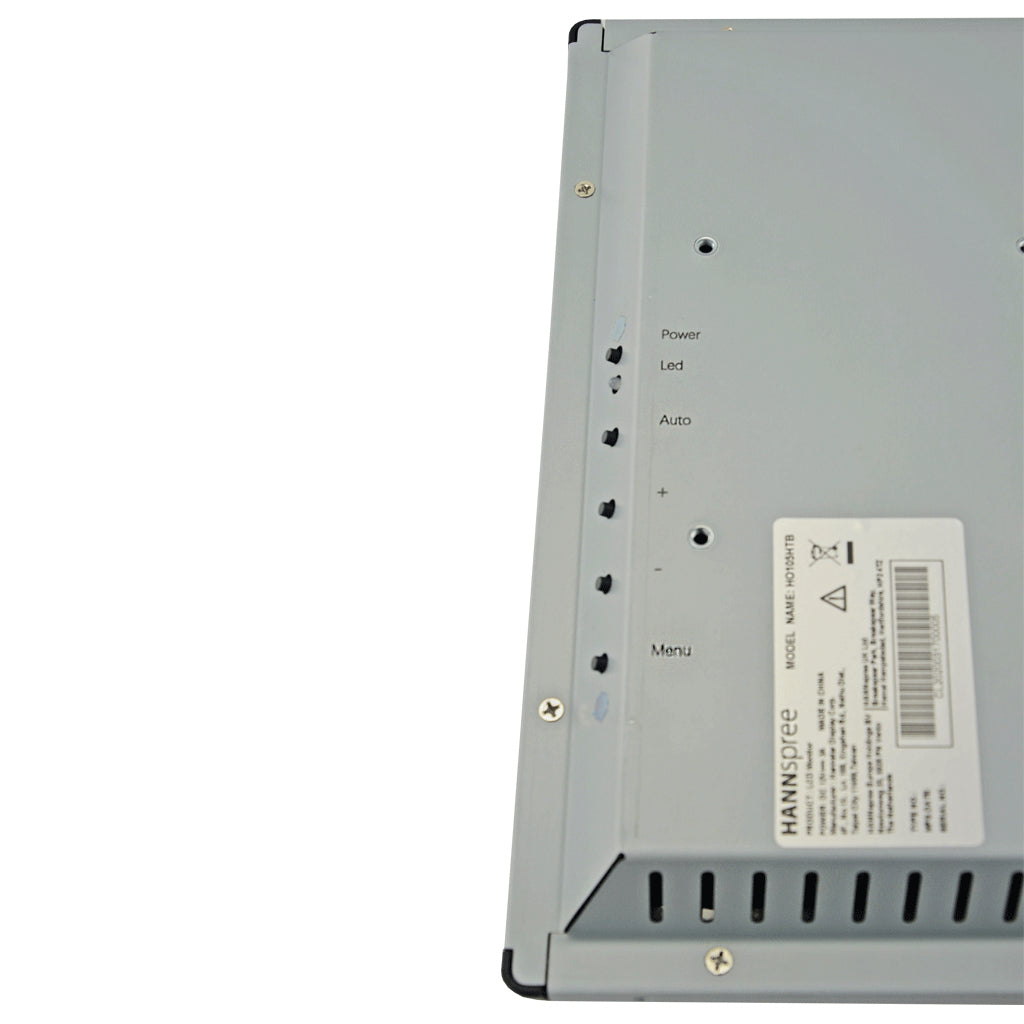

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation and flexibility for different applications.
- Supports Multiple Mounting Options

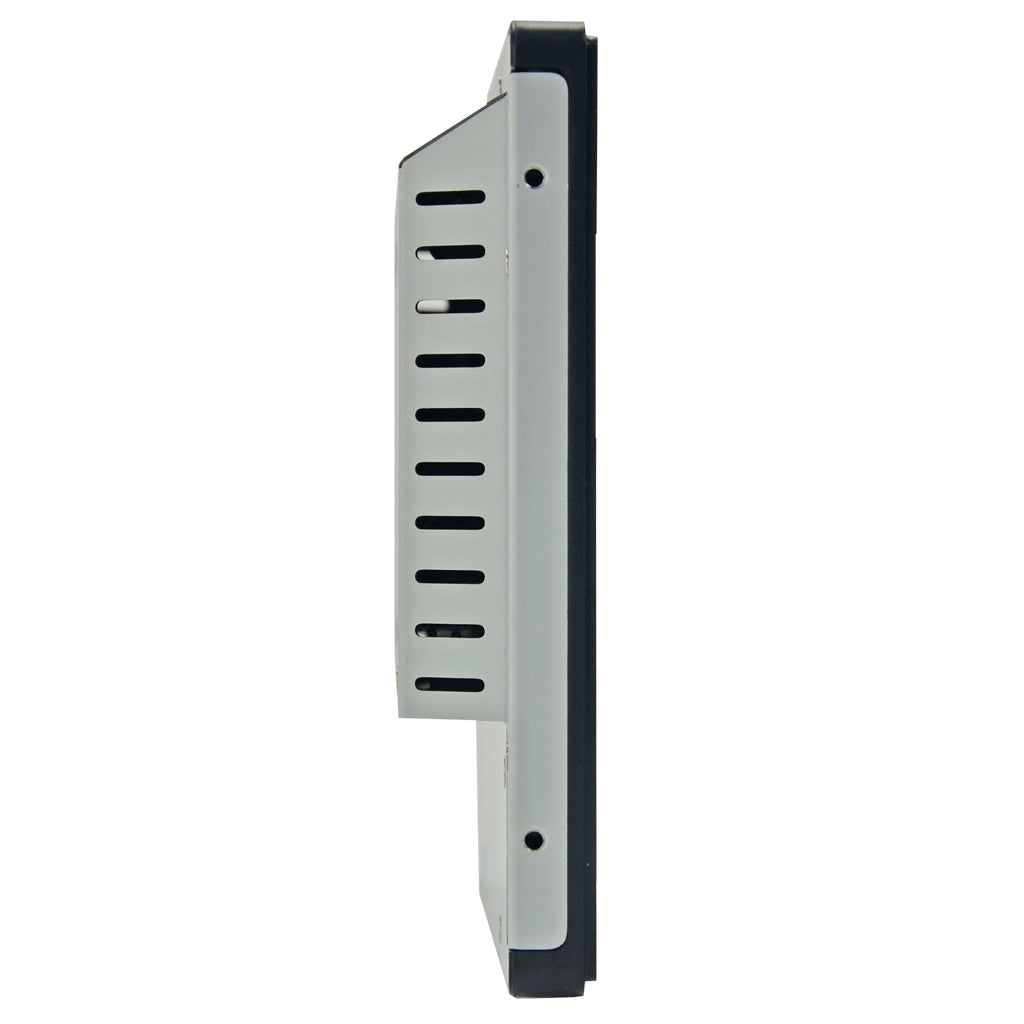

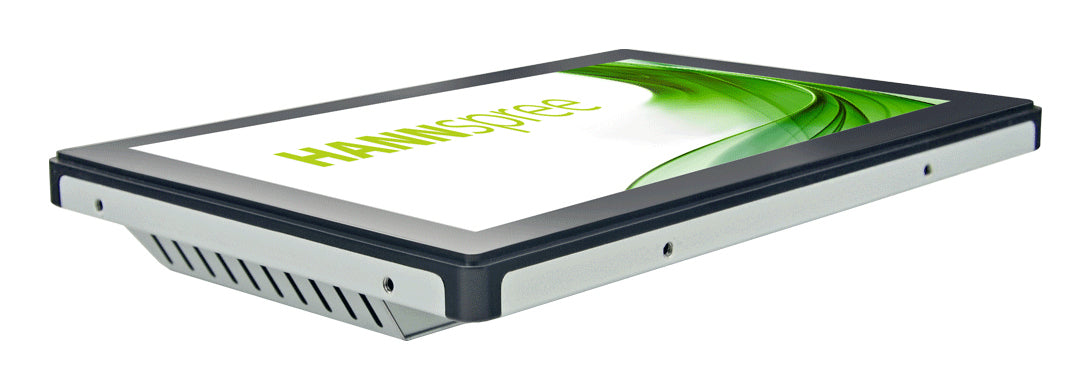

- Slim profile with narrow edges
Vivid Images, Lifelike Visuals the latest technology with 170° Wide View Angle
The Touch monitor HO105HTB features a 16:10 aspect ratio LED-backlit panel with a 170° wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved colour accuracy plus increased energy efficiency. The HO105HTB uses a 170°(H) / 170°(V) wide viewing angle panel that eliminates colour shift from almost any direction and in nearly every
Connectivity

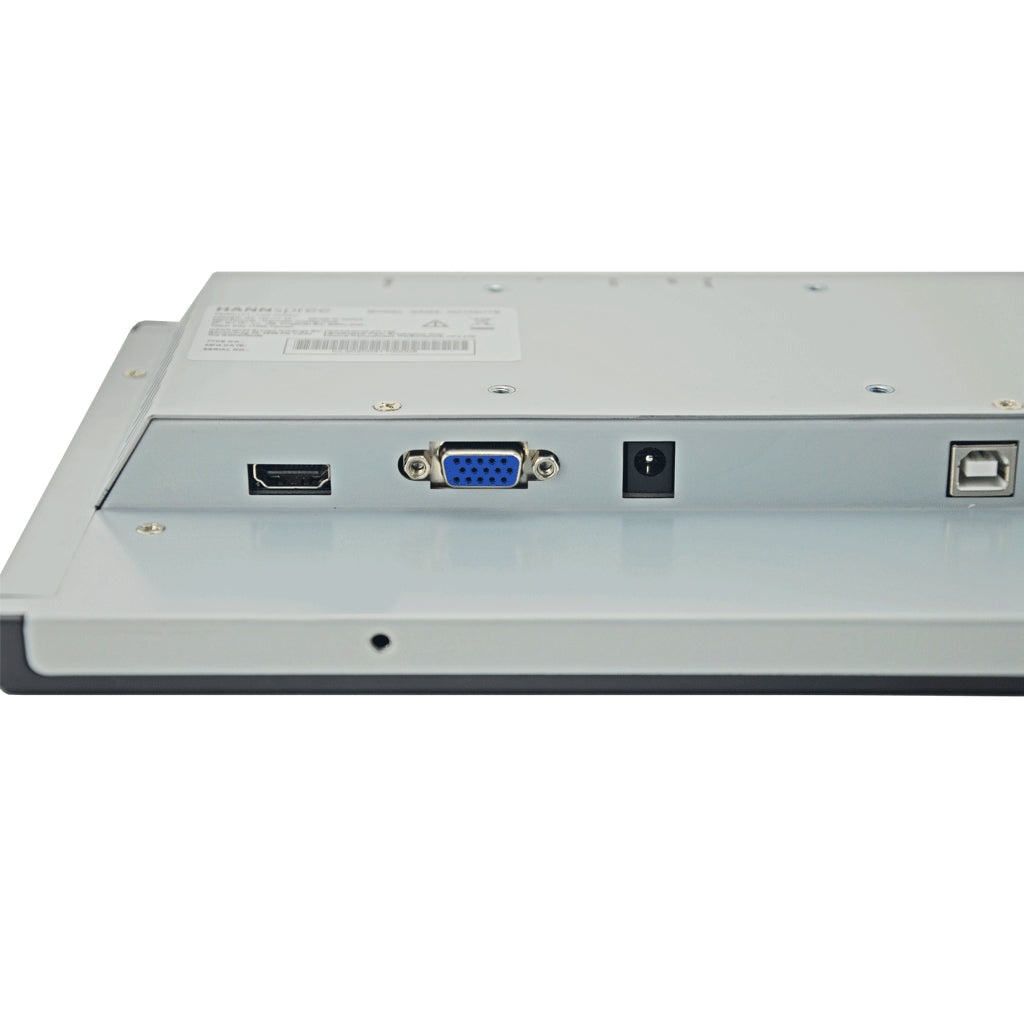

The HANNspree HO105HTB features a host of connectivity options that include HDMI and VGA. The HO105HTB Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content. Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen.
Scratch Resistant - Multi-Touchscreen with 6H Surface Hardness
6H scratch resistant surface hardness ensures durability, as well as a consistent high-quality touch experience. Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions. Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long-life solution. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
| Display |
|---|
| Horizontal scan range |
30 - 55 kHz |
| Vertical scan range |
56 - 60 Hz |
| Hardness |
≥6H |
| Panel life |
20000 h |
| Display diagonal (metric) |
25.65 cm |
| Pixel pitch |
0.1695 x 0.1695 mm |
| Display number of colours |
10.7 billion colours |
| Viewing angle, vertical |
170° |
| Viewing angle, horizontal |
170° |
| Contrast ratio (typical) |
800:1 |
| Response time |
25 ms |
| Native aspect ratio |
16:10 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| HD type |
HD |
| Display brightness |
350 cd/m² |
| Display resolution |
1280 x 800 pixels |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
25.6 cm (10.1") |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| USB connector type |
USB Type-B |
| USB ports quantity |
1 |
| USB port |
Yes |
| VGA (D-Sub) input ports |
1 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Panel mounting interface |
75 x 75 mm |
| VESA mounting |
Yes |
| Orientation |

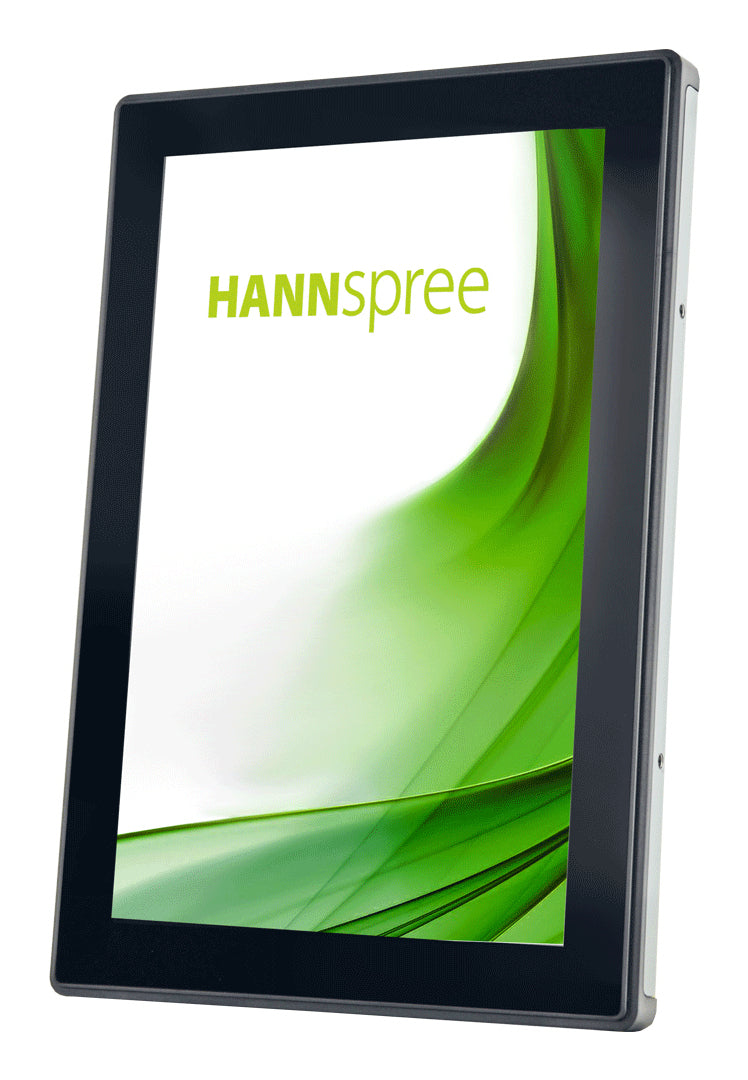

Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| International Protection (IP) code |
IP65 |
| Number of OSD languages |
9 |
| On Screen Display (OSD) |
Yes |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| External power adapter |
Yes |
| Energy consumption (SDR) per 1000 hours |
5 kWh |
| Energy efficiency class (SDR) |
C |
| Power consumption (off) |
0.2 W |
| Power consumption (standby) |
0.2 W |
| Power consumption (typical) |
5 W |
| Computer system |
|---|
| Built-in processor |
No |
| Computer system |
No |
| Weight & dimensions |
|---|
| Display weight |
1.4 kg |
| Display height |
178 mm |
| Display depth |
35.8 mm |
| Display width |
260 mm |
| Packaging data |
|---|
| Package weight |
2.2 kg |
| Package height |
237 mm |
| Package depth |
90 mm |
| Package width |
370 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, USB |
| General |
|---|
| Product family |
Open Frame |
| Other features |
|---|
| Current rating |
3 A |
| Power cord included |
Yes |
| Glass protection |
Yes |
| Number of products included |
1 pc(s) |
| Voltage |
12 V |
| Housing material |
Metal |
