- 1920 x 1080 WUXGA Resolution Full HD 1080p

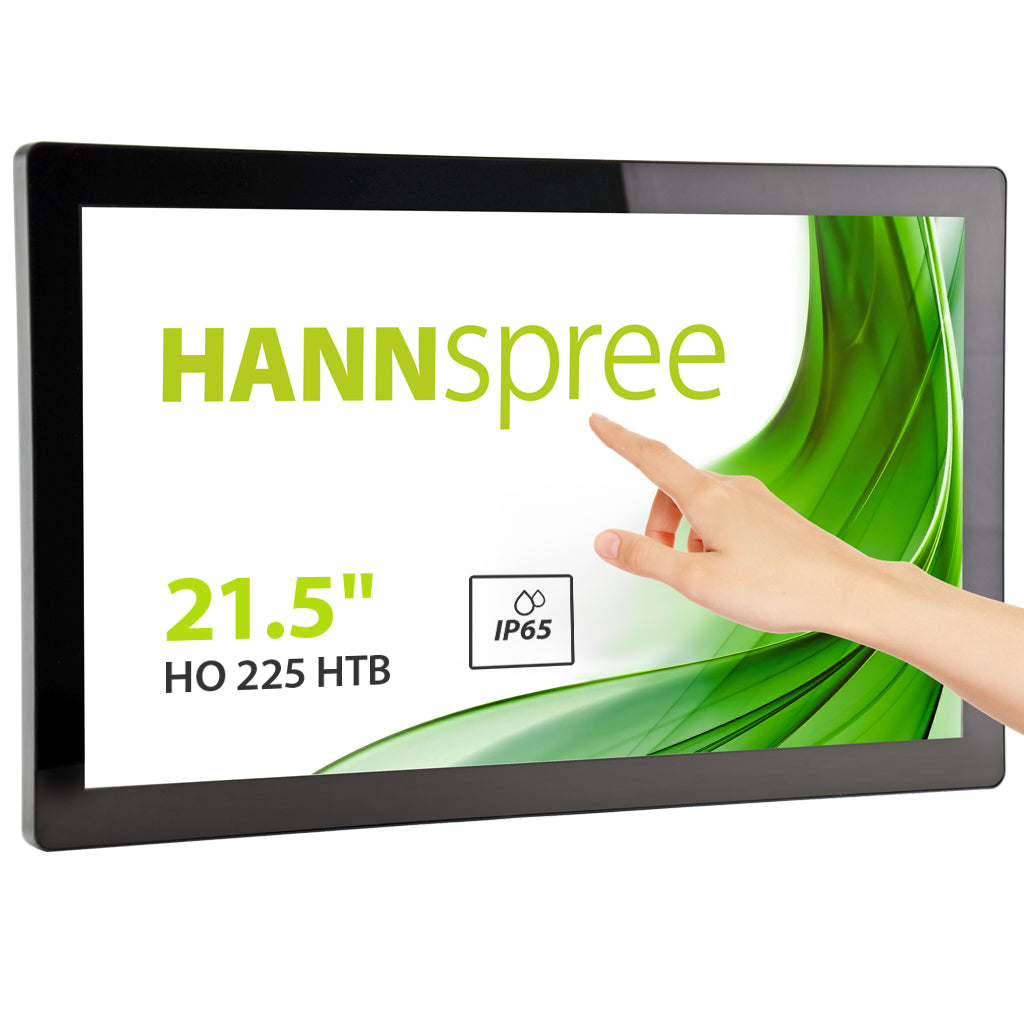

- 10-Point Touch P-Cap Technology
- 178° / 178° Ultra Wide Viewing Angle
- Tripple Input; HDMI + DVI-D + VGA
- High Contrast Ratio 3000:1
- 300cd/m2 High Brightness
- 24/7 Operating
- 50000 Hours Backlight Lifetime
- 12 Volt External Power Supply
- Multiple Mounting Options
- 7H Toughened Hard Panel Surface
- Low Power Consumption & Multi-Video Modes

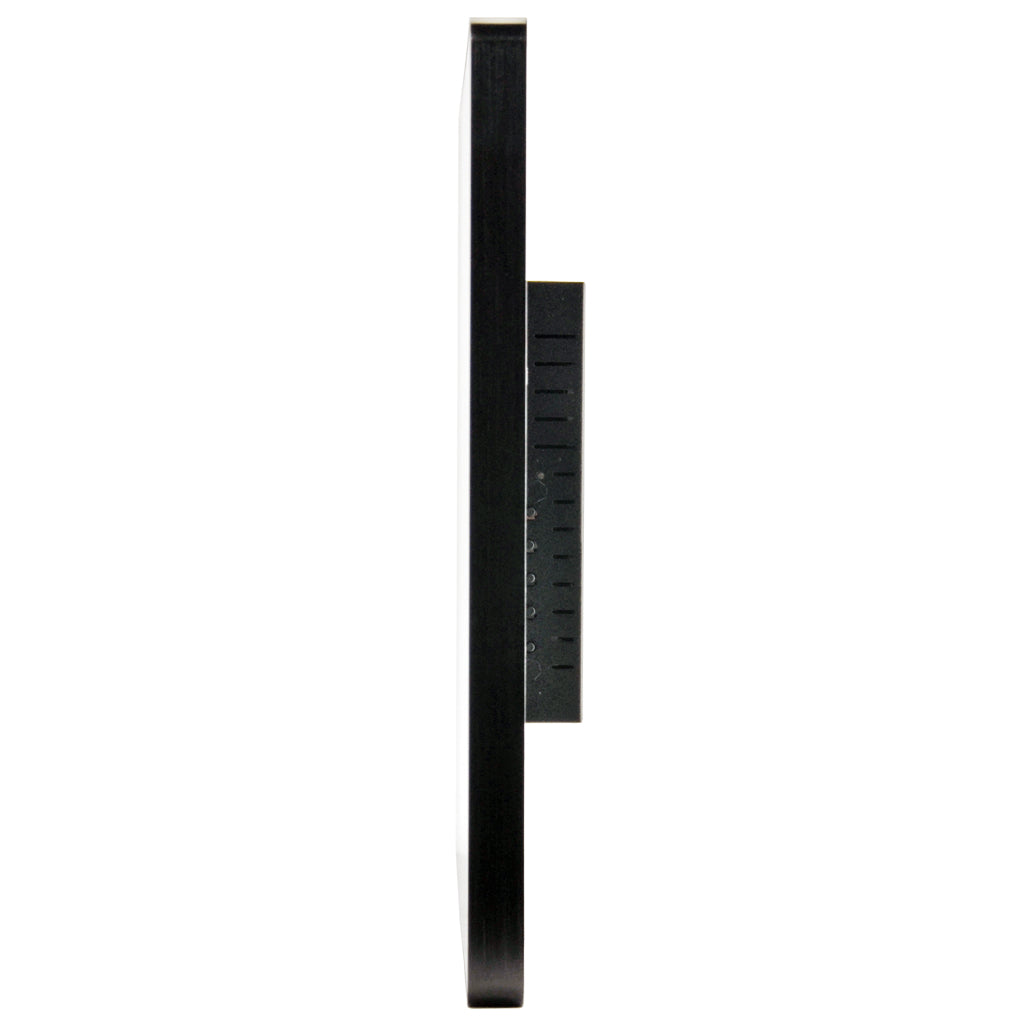

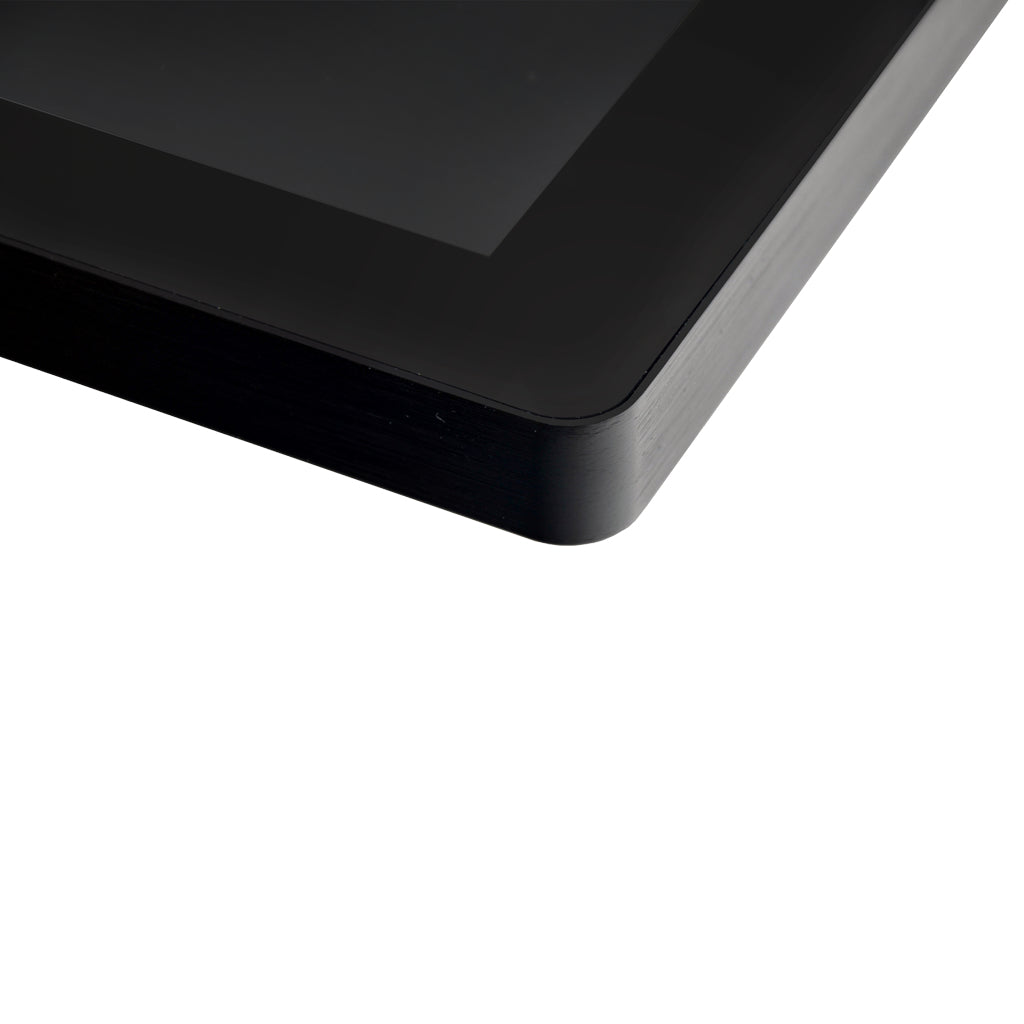

- Slim Profile with Narrow Edges

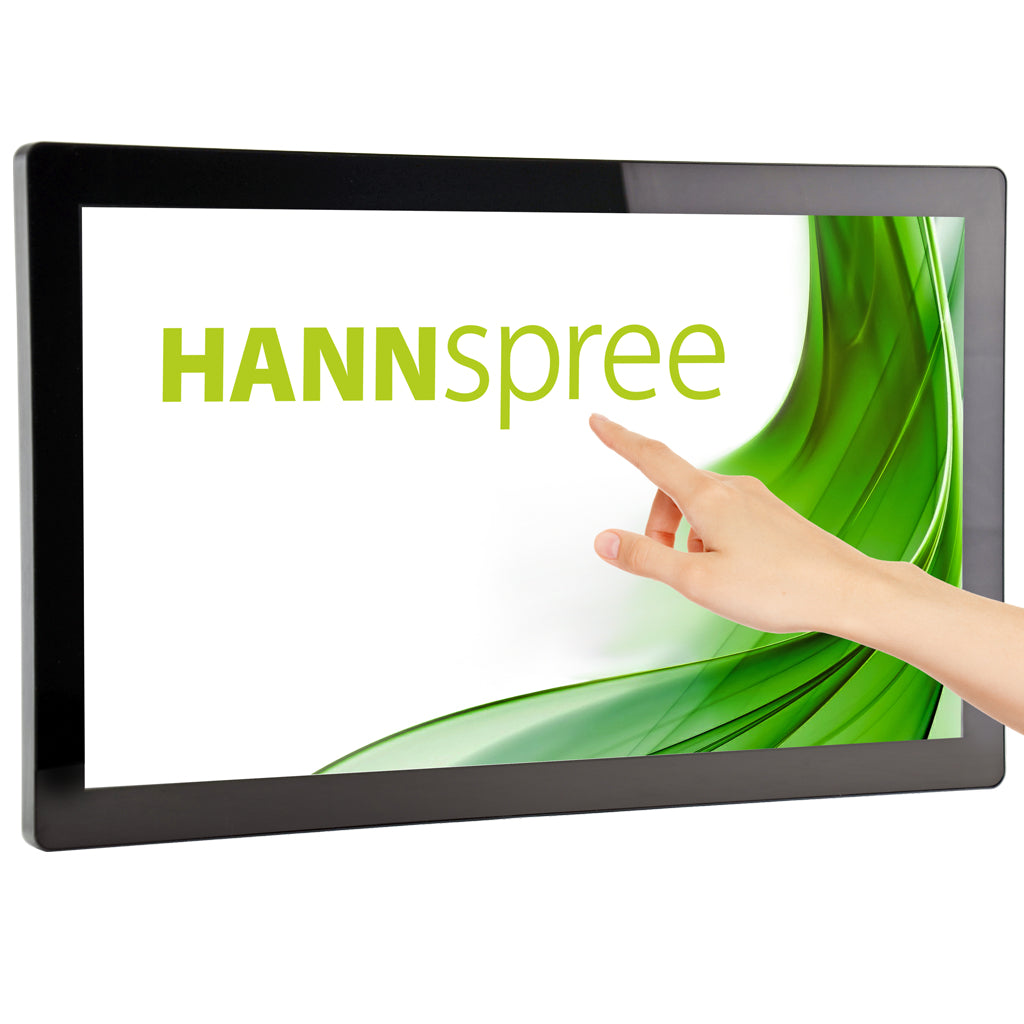

Open Frame solutions for the amusement and entertainment sectors in a variety of sizes.
With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, "one stop solution" for project requirements. We already supply Open Frame solutions for a number of large gaming tenders
across Europe.
Choose from standard or touch screen high performance displays ranging from 19" up to 27" and the right aspect ratio to best fit your application.
Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

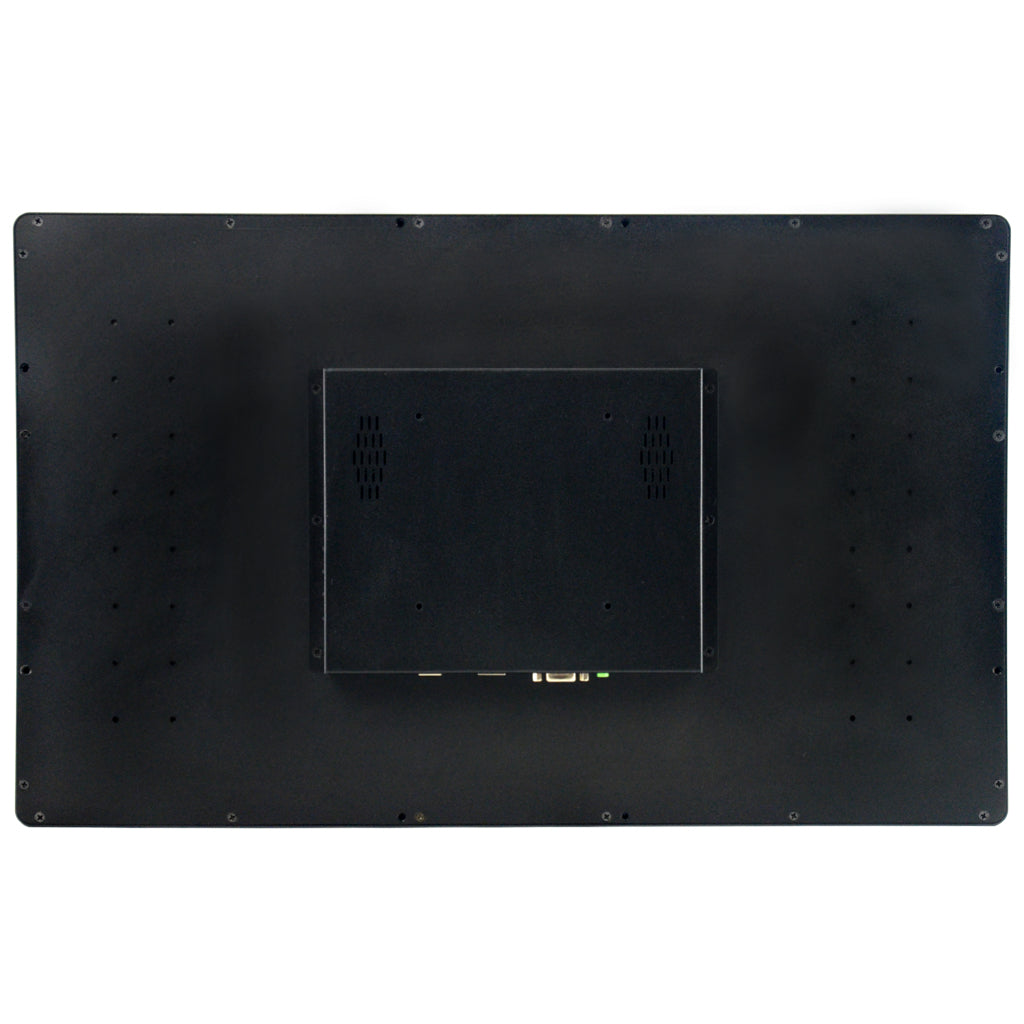

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.
| Display |
|---|
| Horizontal scan range |
31.5 - 80 kHz |
| Vertical scan range |
60 - 75 Hz |
| Hardness |
6H |
| Transparency |
85% |
| Panel life |
30000 h |
| Display diagonal (metric) |
54.6 cm |
| Active display area (W x H) |
476 x 268 mm |
| Pixel pitch |
0.24795 x 0.24795 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
10000000:1 |
| Contrast ratio (typical) |
3000:1 |
| Response time |
18 ms |
| Native aspect ratio |
16:9 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LED |
| Display diagonal |
54.6 cm (21.5") |

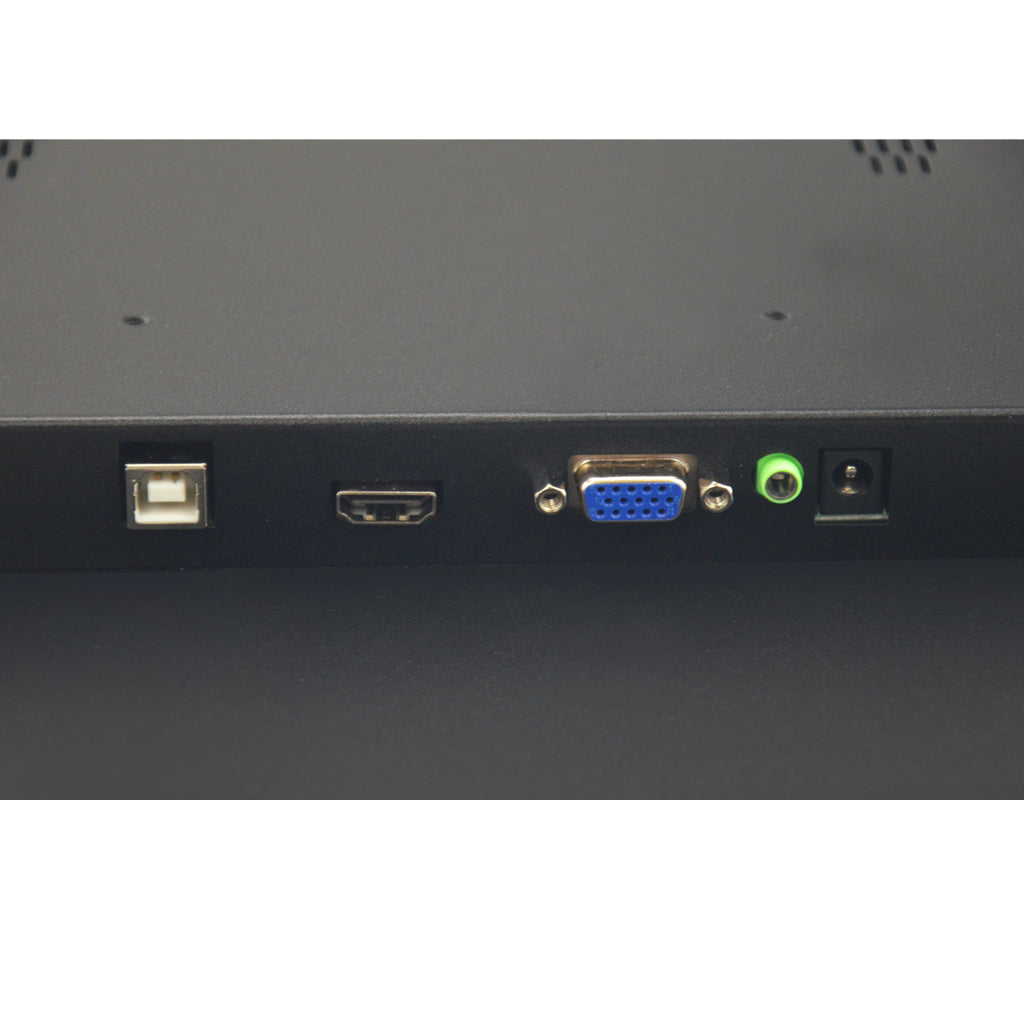

| Ports & interfaces |
|---|
| PC Audio in |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| USB ports quantity |
1 |
| USB port |
Yes |
| VGA (D-Sub) input ports |
1 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
3 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Totem design |
| Performance |
|---|
| International Protection (IP) code |
IP65 |
| HDCP |
No |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
8 |
| On Screen Display (OSD) |
Yes |
| TV tuner integrated |
No |
| Power |
|---|
| Energy efficiency scale |
A to G |
| External power adapter |
Yes |
| Energy consumption (SDR) per 1000 hours |
20 kWh |
| Energy efficiency class (SDR) |
F |
| Power consumption (off) |
0.15 W |
| Power consumption (standby) |
0.16 W |
| Power consumption (typical) |
13.94 W |
| Computer system |
|---|
| Built-in processor |
No |
| Computer system |
No |
| Weight & dimensions |
|---|
| Display weight |
5.1 kg |
| Display height |
324.6 mm |
| Display depth |
44 mm |
| Display width |
526.8 mm |
| Packaging data |
|---|
| Package weight |
6.3 kg |
| Package height |
415 mm |
| Package depth |
88 mm |
| Package width |
603 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, USB |
| Warranty card |
Yes |
| Certificates |
|---|
| Certification |
CE |
| General |
|---|
| Product family |
Open Frame |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Technical details |
|---|
| Sustainability certificates |
RoHS |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Glass protection |
Yes |
| Quick start guide |
Yes |
