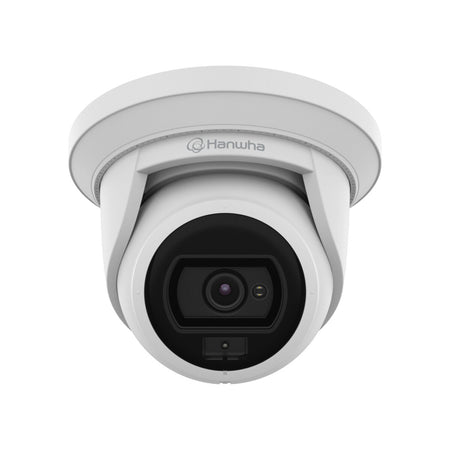

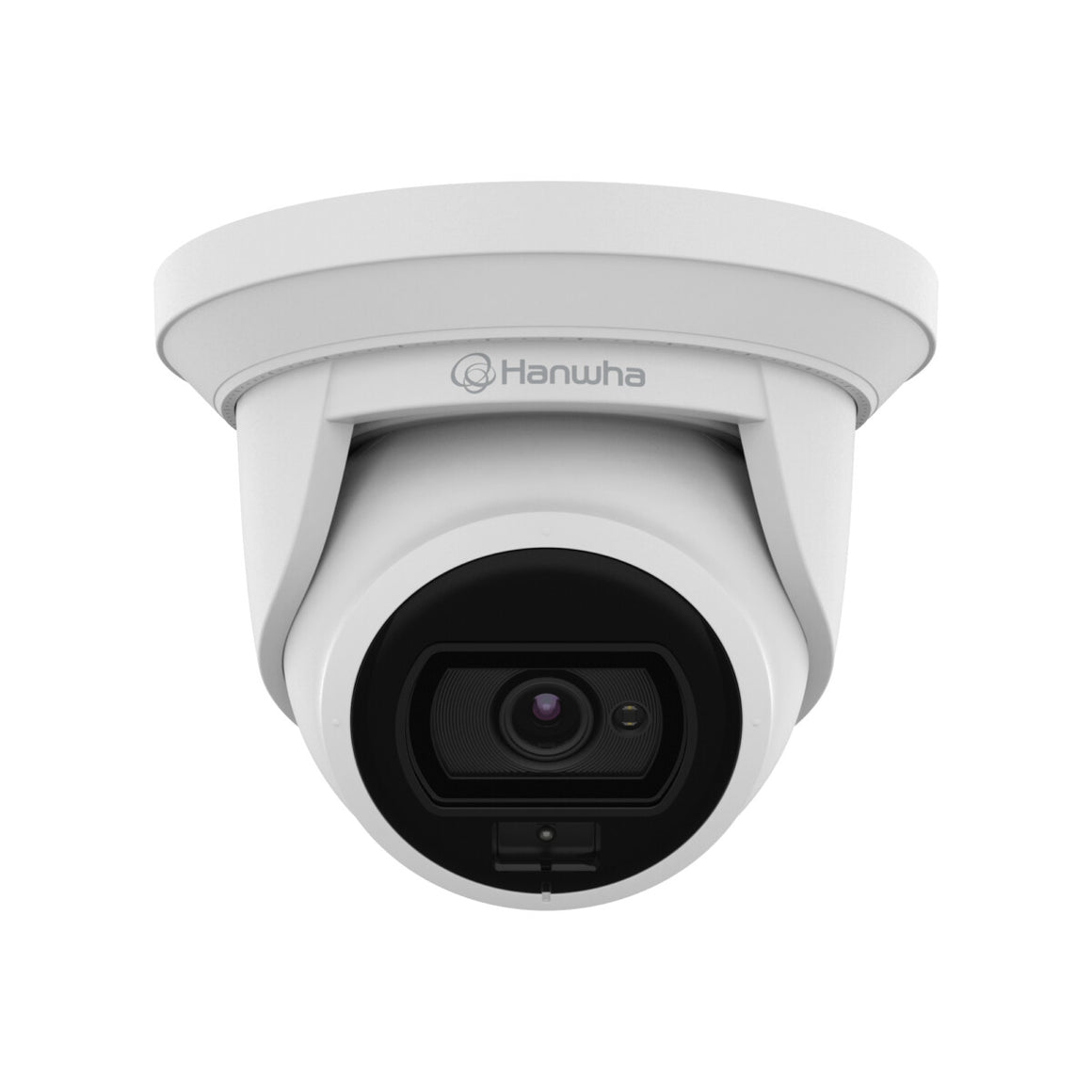

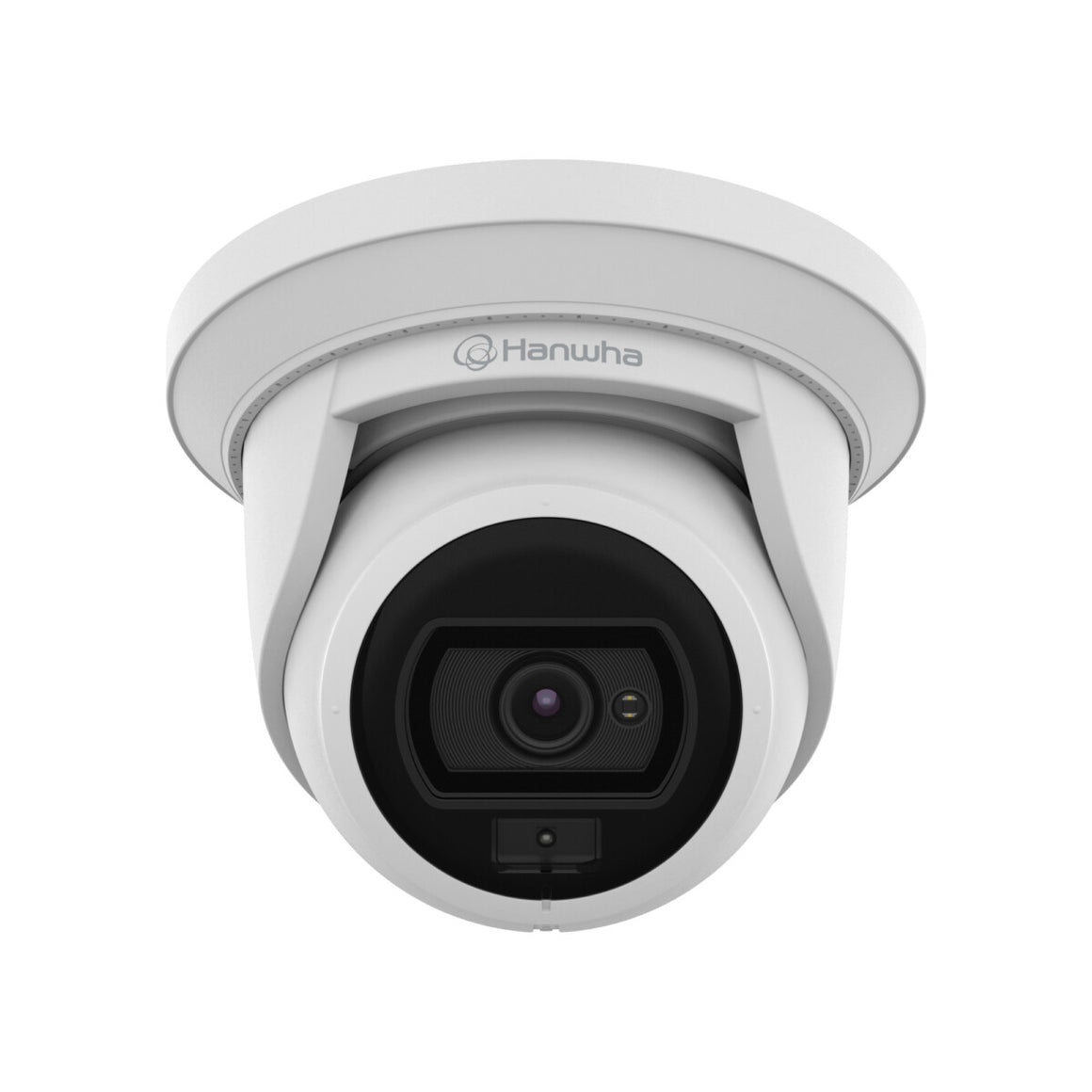

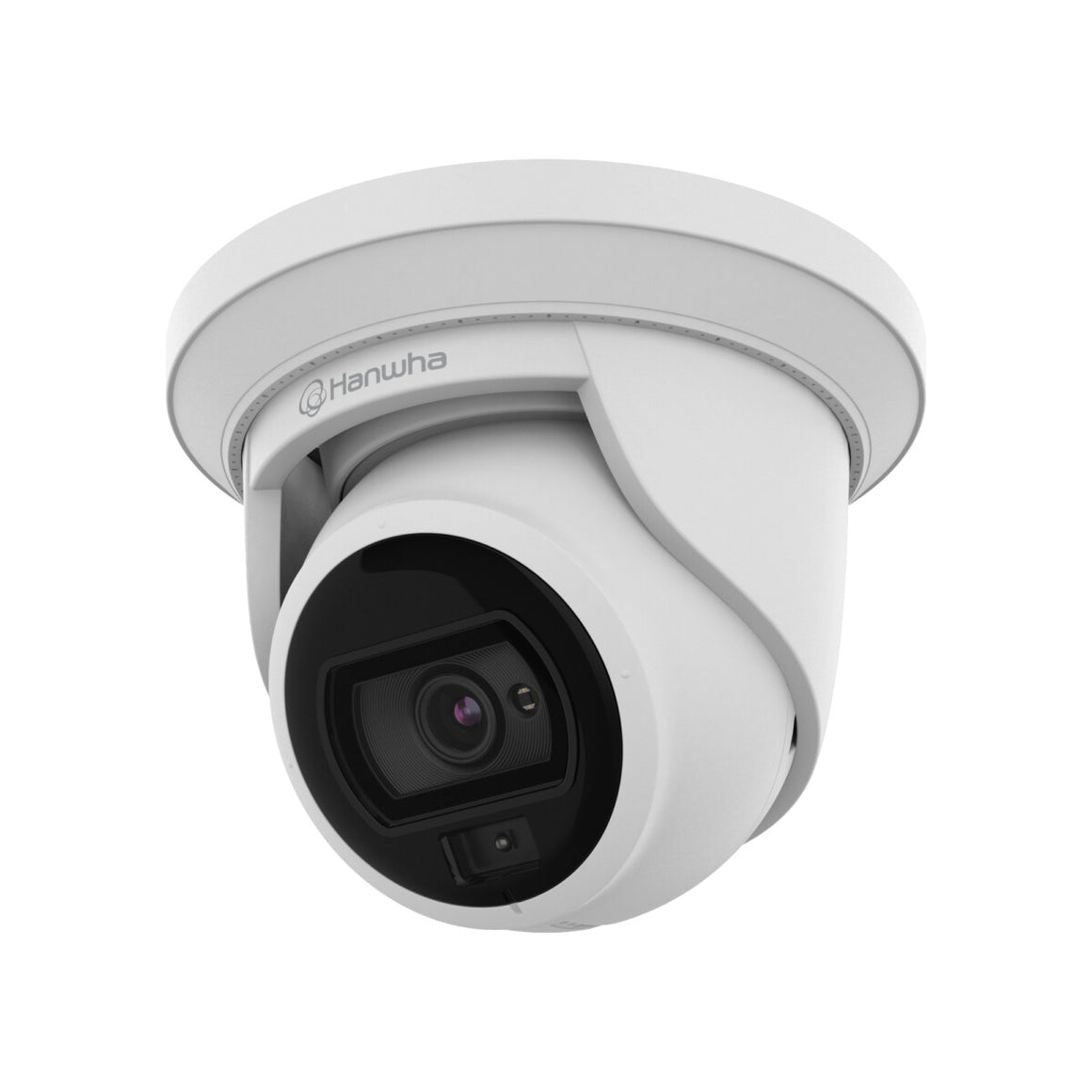

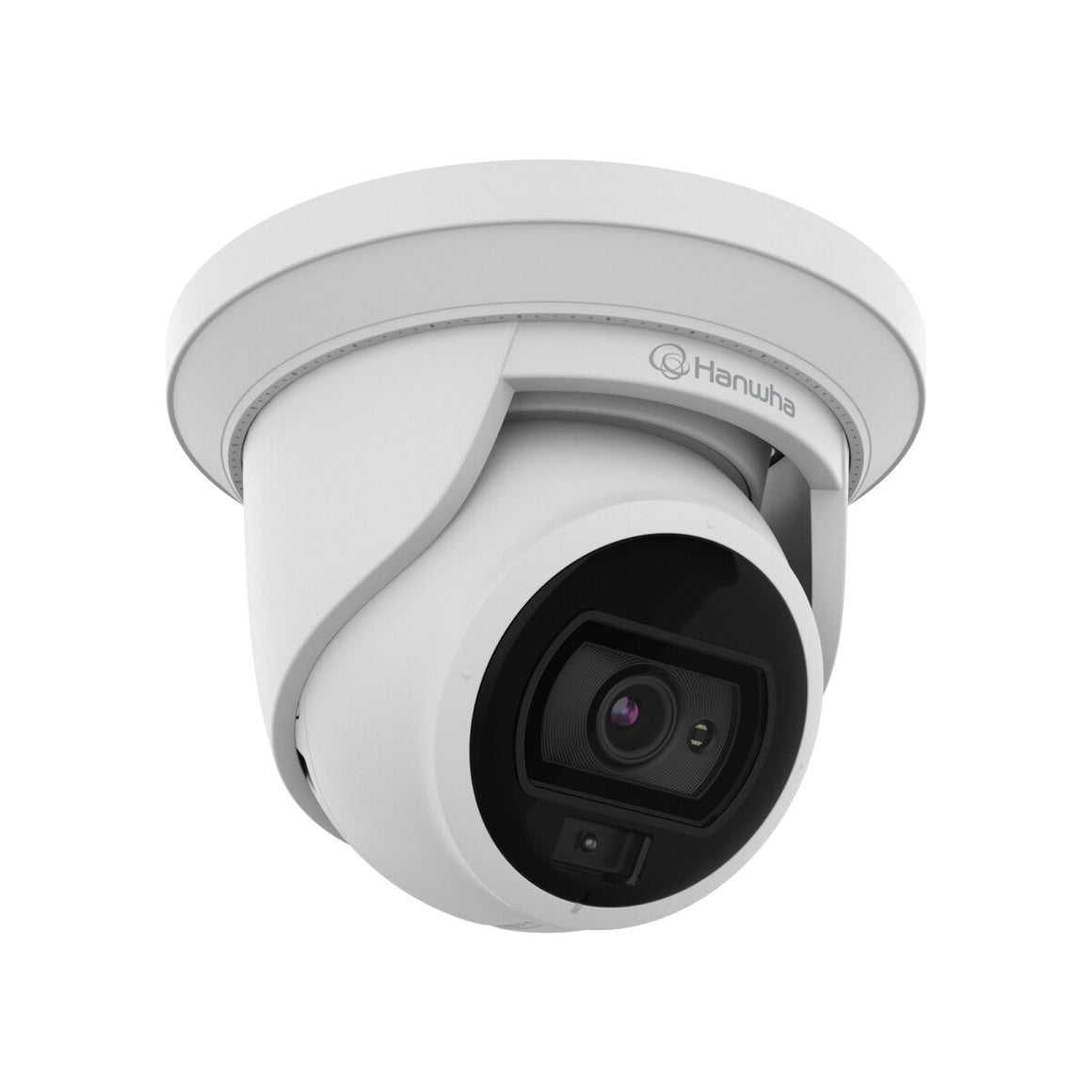

Hanwha ANE-L7012L security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
Regular price
£176.30
- 4 megapixel (2560 x 1440) resolution
- Color : 0.05Lux (F1.2, 1/30sec)
- Built-in 3mm fixed lens
- White light viewable length 20m
- Light alarm support
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 128GB), PoE
- Hallway view, LDC, WiseStream II support
- IP67, IK10 support
| Performance | |
|---|---|
| Certification | EMC:FCC 47 CFR 15 Subpart B Class AICES-3(A)/NMB-3(A)CE/UKCA- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3Safety:UL 62368-1, CAN/CSA C22.2 NO. 62368-1IEC/EN 62471Environment:IEC/EN 63000IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 |
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Turret |
| Camera | |
|---|---|
| Camera shutter speed | 1/5~1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 350° |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, diagonal | 113° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, horizontal | 97° |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.2 |
| Identify distance | 4.5 m |
| Fixed focus | Yes |
| Focal length range | 3 mm |
| Recognize distance | 9.1 m |
| Observe distance | 18.1 m |
| Detect distance | 45.3 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Night vision | Yes |
| Video | |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction (SSNR) |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Anti-flicker | Yes |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, HTTPS, MSCHAPv2 |
| Network access storage (NAS) | Yes |
| Alert notification type | |
| Power | |
|---|---|
| Power consumption (max) | 7.6 W |
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Diameter | 12.5 cm |
| Height | 87.4 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
