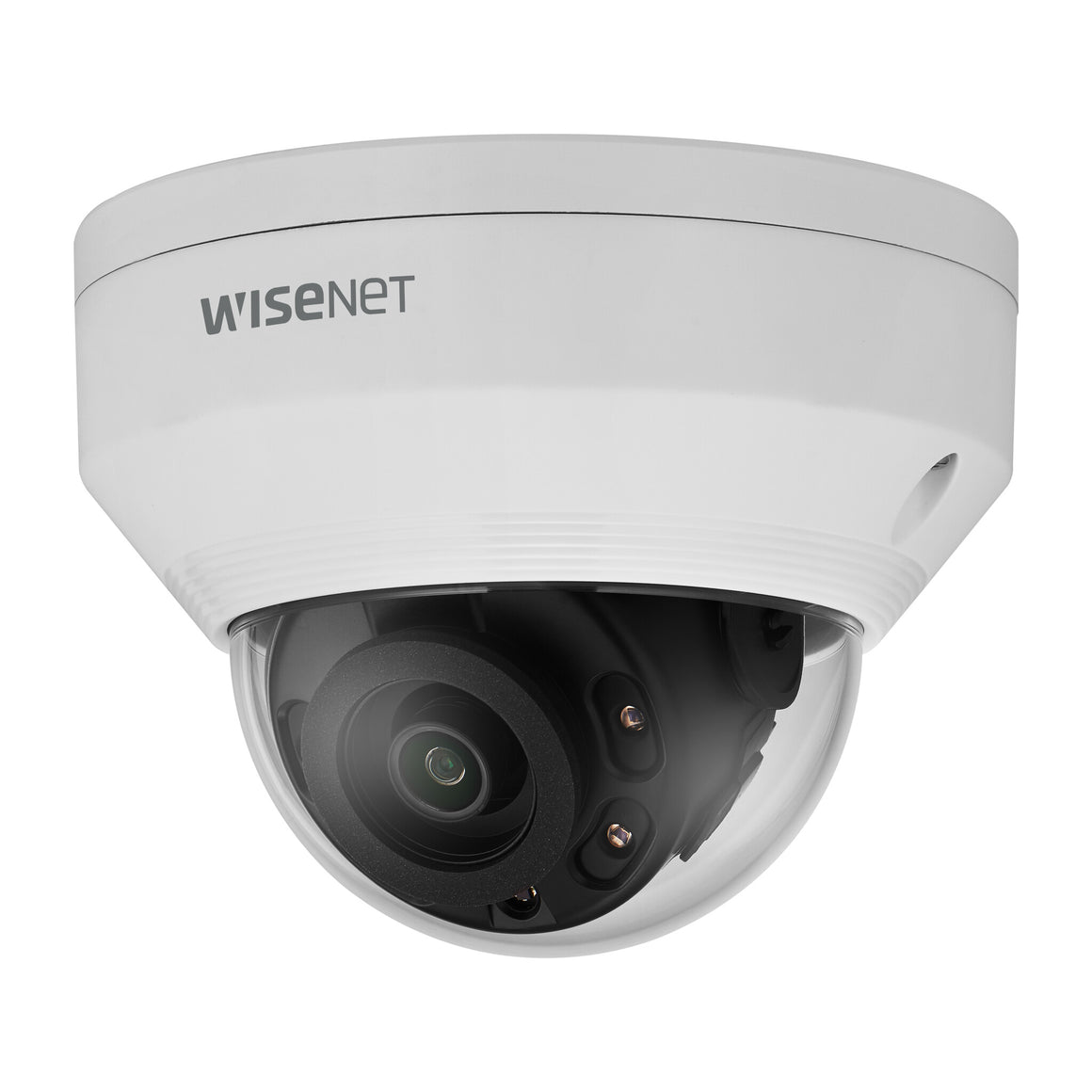

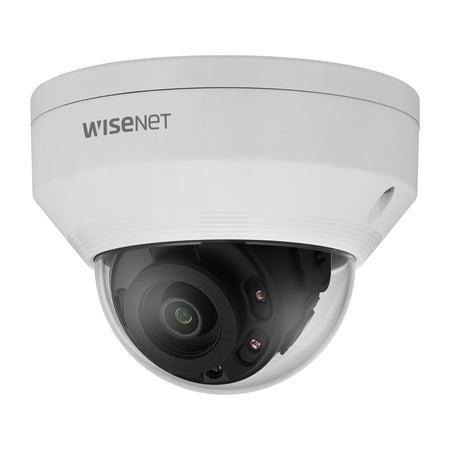

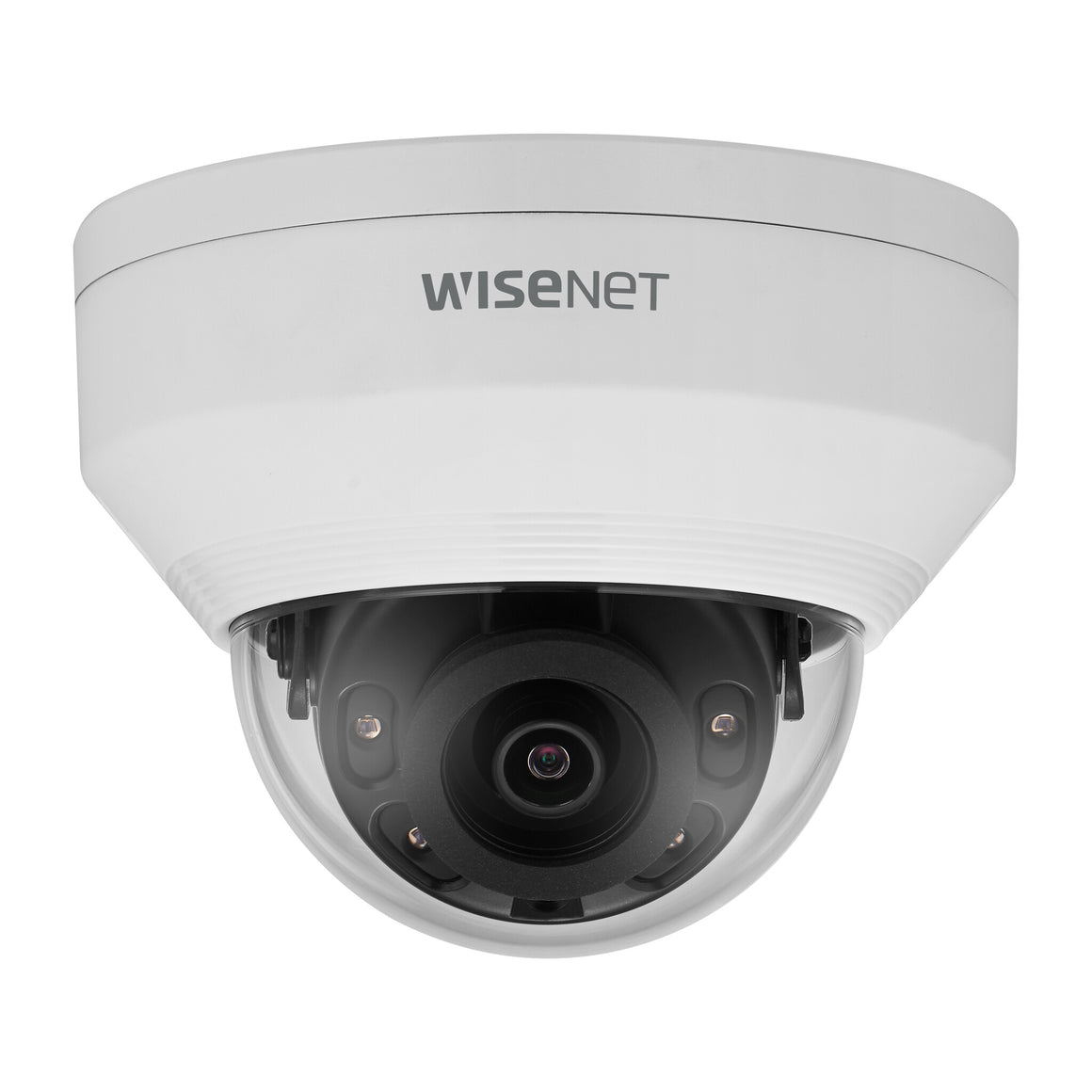

Hanwha ANV-L7012R security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling
Regular price
£130.38
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3mm lens with 107.5° HFoV
- IR viewable length: 20m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot
- IP66, IK10
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Dynamic range | 120 dB |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Plastic |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/5 ~ 1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 350° |
| Tilt angle range | 0 - 67° |
| Lens viewing angle, diagonal | 115° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, horizontal | 99° |
| Angle of rotation | 355° |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 1.1 m |
| Fixed focal length | 3 mm |
| Minimum aperture number | 1.6 |
| Recognize distance | 8.9 m |
| Observe distance | 17.7 m |
| Detect distance | 44.3 m |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
| Video | |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Security | |
|---|---|
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2 |
| Power | |
|---|---|
| Power consumption (max) | 7.5 W |
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Diameter | 12 cm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
