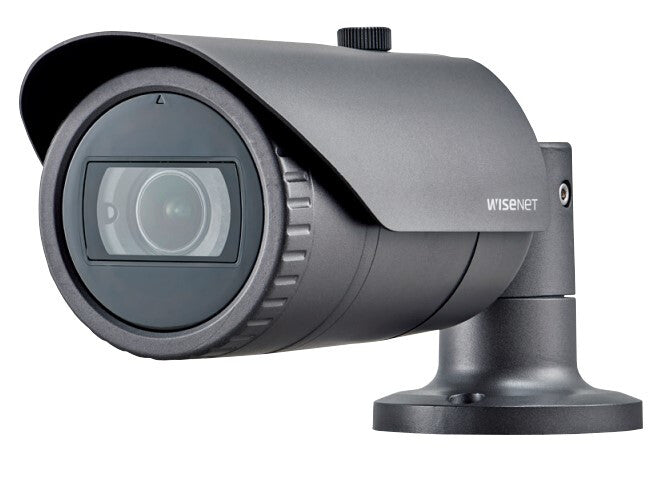

Wisenet HD+ 2MP, full HD(1080p), 30fps IR outdoor bullet camera, AHD/TVI/CVI/CVBS, manual vari-focal Lens (3.1x) (3.2~10mm), 120dB true WDR, true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10
| Performance |
|---|
| Number of languages |
16 |
| Languages support |
Czech, Danish, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, SER, Turkish |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Maximum operating distance |
500 m |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
CCTV security camera |
| Design |
|---|
| Fog proof |
Yes |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium |
| Product colour |
Grey |
| Mounting type |
Ceiling/Wall/Desk |
| Form factor |
Bullet |
| Camera |
|---|
| Camera shutter speed |
1 - 1/12000 s |
| Camera shutter type |
Electronic |
| White balance |
ATW, AWC, Indoor, Manual, Outdoor |
| Lens viewing angle, diagonal |
128.4° |
| Lens viewing angle, vertical |
55.4° |
| Lens viewing angle, horizontal |
110.2° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Number of effective pixels (H x V) |
1945 x 1097 pixels |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Lens system |
|---|
| Maximum aperture number |
1.6 |
| Focus |
Manual |
| Focal length range |
3.2 - 10 mm |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Highlight Compensation (HLC) |
Yes |
| Full HD |
Yes |
| Privacy masking |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction |
Yes |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Security |
|---|
| Video motion detection |
Yes |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
6 W |
| Power source type |
AC, DC |
| Weight & dimensions |
|---|
| Diameter |
7.8 cm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Lens mount interface |
Board mount |
| Colour |
Yes |
