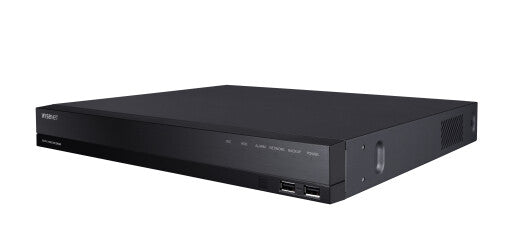

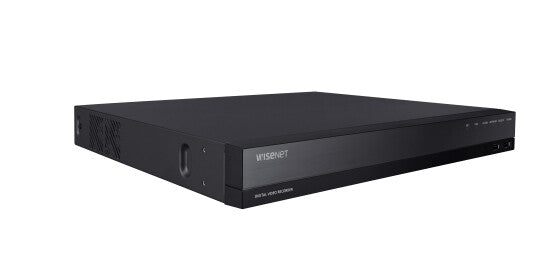

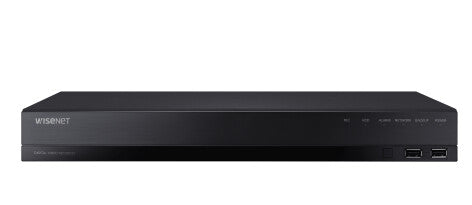

Hanwha HRX-1634 digital video recorder (DVR) Black
Regular price
£384.29
Price history
Price changes in the past 30 days
| November 26, 2025 | £384.29 GBP |
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18CH(Analog Maximum 16CH and Network Maximum 18CH), up to 8MP
- H.265, H.264, MJPEG
- 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
- Coaxial control
- Smart search(only Network camera)
- Up to 2 SATA HDDs(6TB/HDD)
- HDMI/VGA Dual monitor (Expand mode)
- P2P service(QR code connect)
| Performance | |
|---|---|
| Compatible operating systems | iOS, Android |
| Certification | UL, CE, FCC, KC, UKCA |
| Playback resolutions supported | : 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Analog signal format system | NTSC, PAL |
| Audio system | 2-way |
| Channels quantity | 18 channels |
| Playback modes | Backup selection, Hold, Normal, Pause, Slow |
| Graphical user interface (GUI) | Yes |
| Pause function | Yes |
| Event logging | Yes |
| Signal strength indication | Yes |
| Languages support | Simplified Chinese, Czech, Danish, German, Dutch, English, Estonian, Finnish, French, Greek, HRV, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Swedish, Thai, Turkish |
| Plug and Play | Yes |
| LED indicators | Yes |
| Audio input channels | 2.0 channels |
| Maximum frame rate | 480 fps |
| Network connection type | 10/100/1000BASE-T |
| USB connectivity | Yes |
| Remote viewing | Yes |
| Multi-display supported | Yes |
| Motion sensor | Yes |
| Product colour | Black |
| PTZ control | Yes |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video capturing speed (PAL) | 12 fps |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed | 30 fps |
| Backup function | Yes |
| Internal | No |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum video resolution | 3840 x 2160 pixels |
| Ports & interfaces | |
|---|---|
| Audio (L/R) out | 1 |
| RS-485 ports | 1 |
| eSATA ports quantity | 2 |
| Video RCA outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| HDMI ports quantity | 1 |
| BNC input ports | 1 |
| BNC output ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Video input channels | 16 channels |
| Network | |
|---|---|
| Number of users | 3 user(s) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Hard drive | |
|---|---|
| Maximum HDD capacity | 12 TB |
| HDD interface | SATA II |
| Number of HDDs supported | 2 |
| Power | |
|---|---|
| Power consumption (max) | 40 W |
| DC voltage | 12 V |
| Power supply type | DC |
| Weight & dimensions | |
|---|---|
| Weight | 4.5 kg |
| Height | 44 mm |
| Depth | 320 mm |
| Width | 370 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
