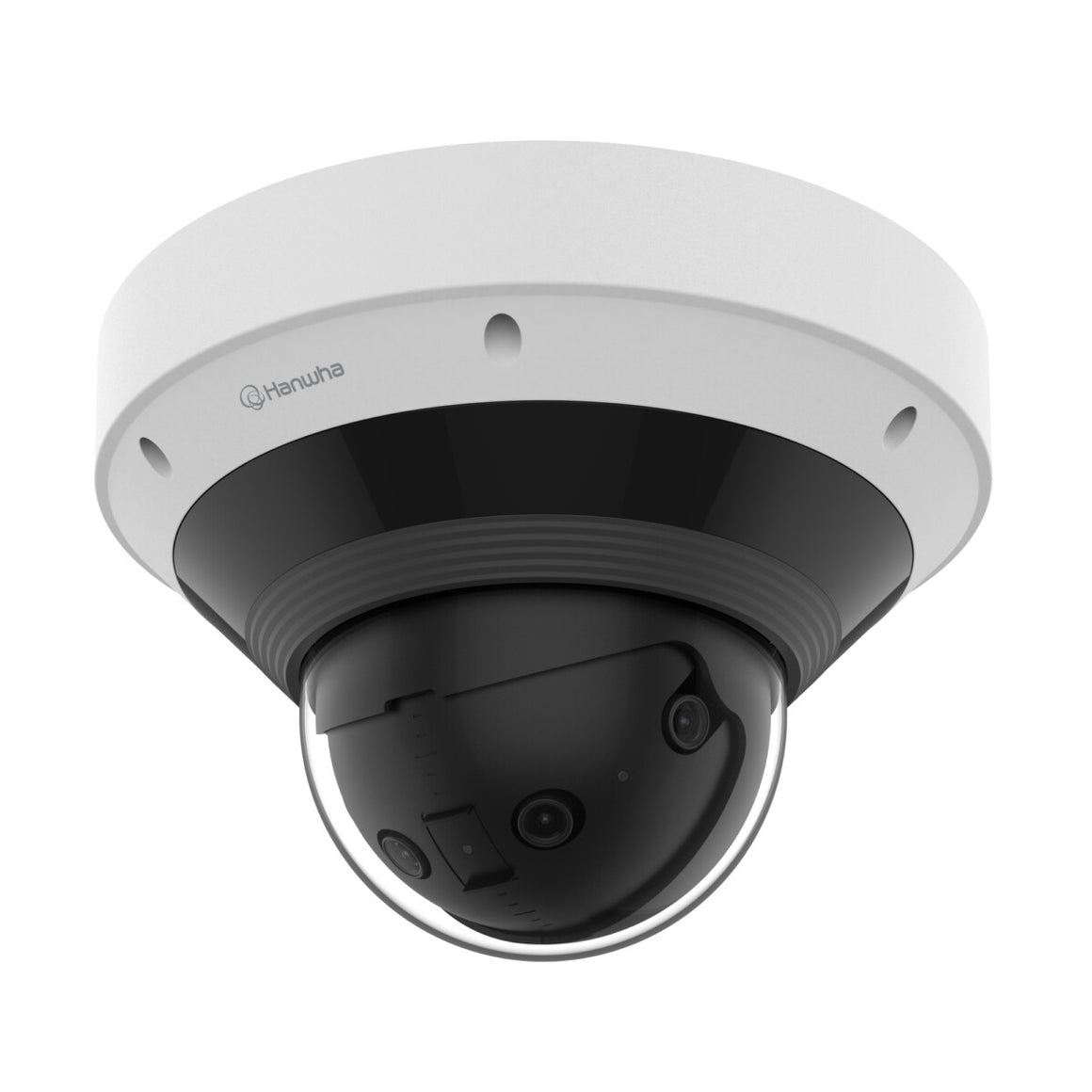

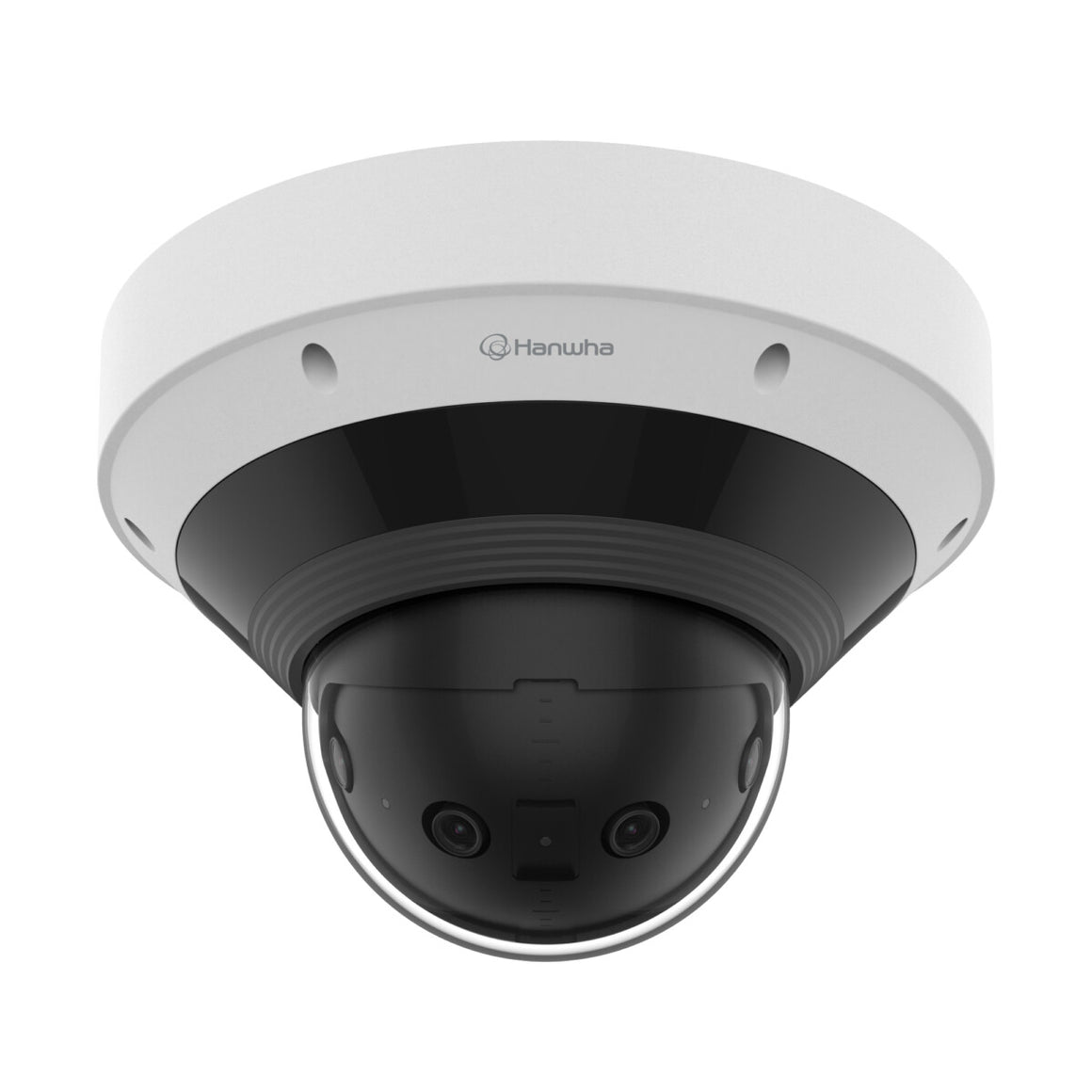

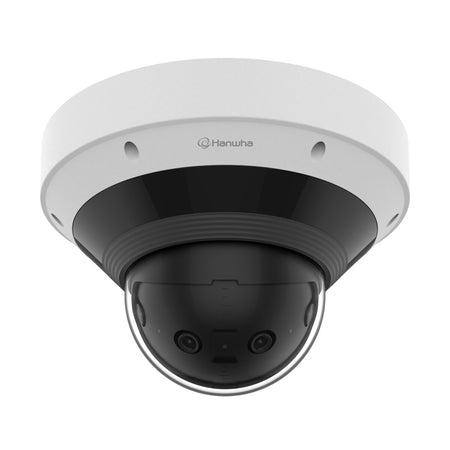

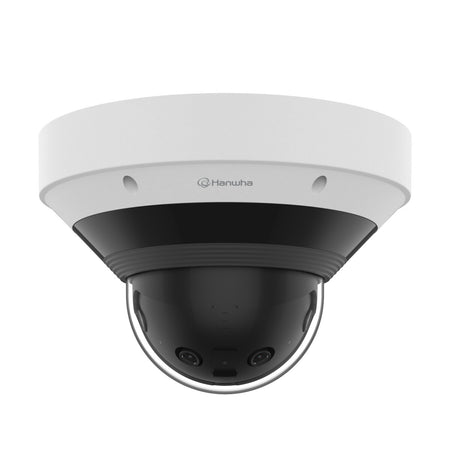

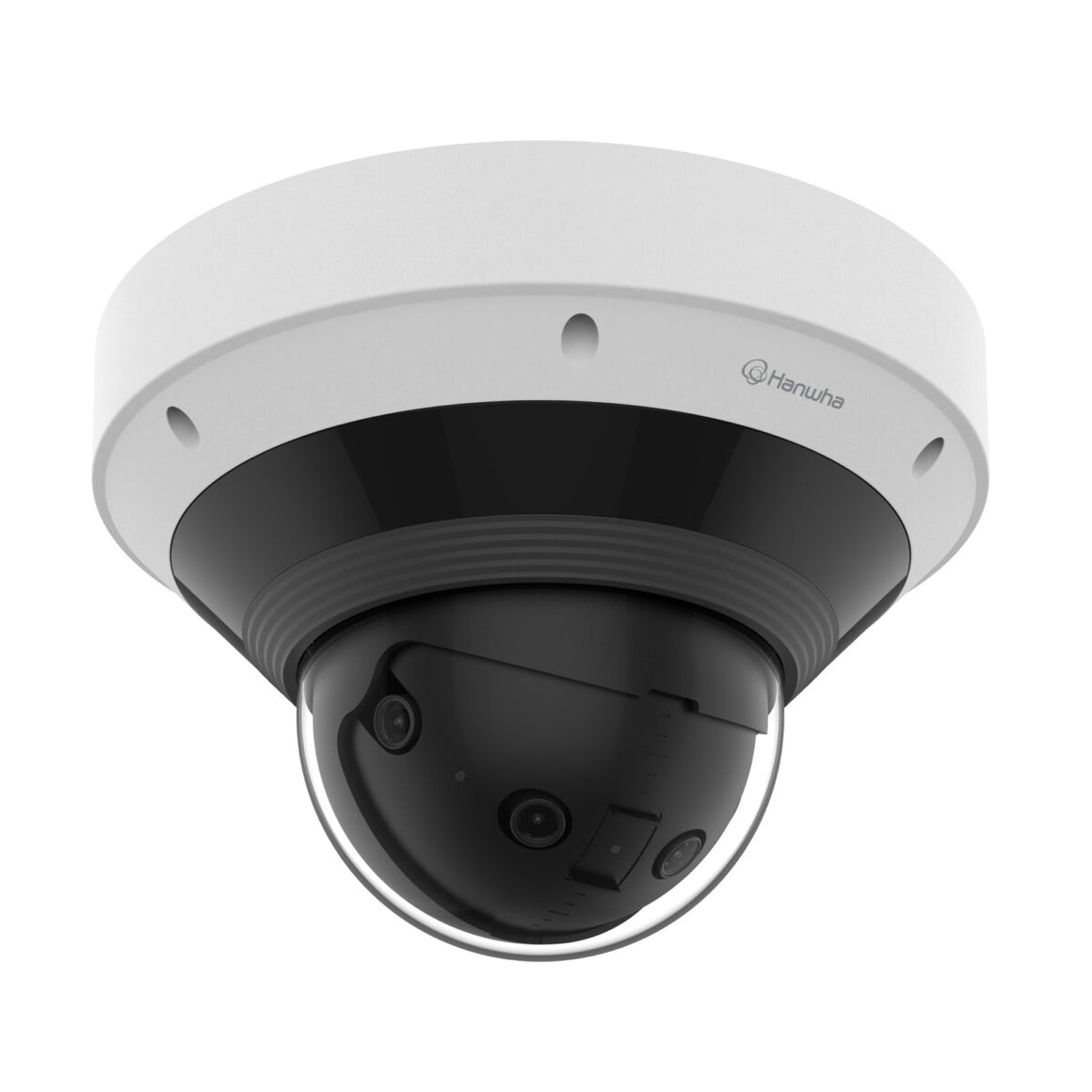

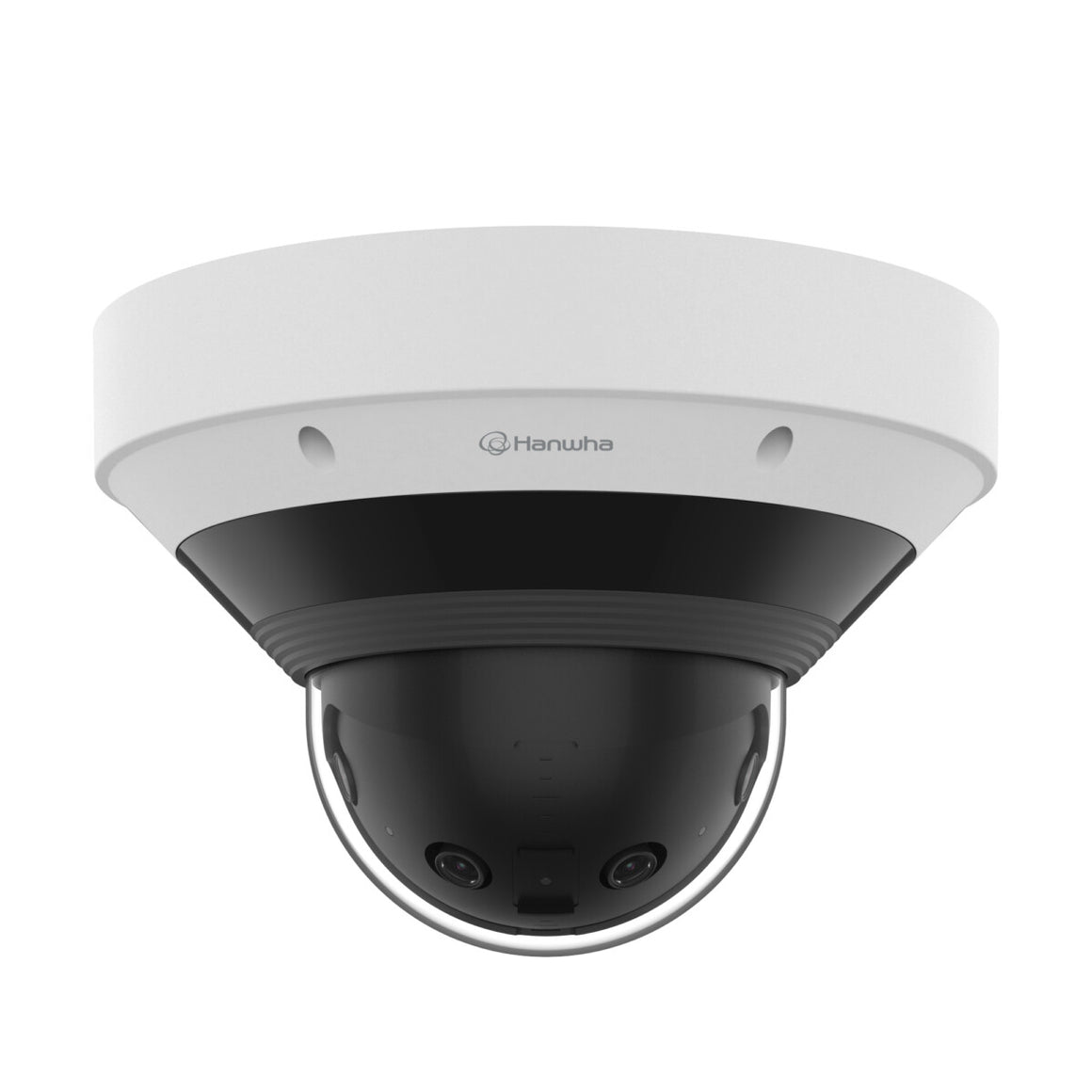

Hanwha PNM-C9022RV security camera Dome IP security camera Indoor & outdoor 5120 x 1568 pixels Ceiling
Regular price
£1,303.84
- Max. 8MP panoramic stitching image
- IR viewable length Maximum 20m (65.6ft), WiseIR
- H.265/H.264/MJPEG Max. 20fps
- H.265, H.264, MJPEG codec
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
- Analytics events based on AI engine : Object classification(Person/Vehicle)
- Analytics events : Defocus detection, Motion detection, Tampering, Audio detection
- Sound classification, Virtual area(Appear/Disappear)
- IP66, IK10, NEMA 250 type 4X
| Performance | |
|---|---|
| Certification | EMC:FCC 47 CFR 15 Subpart B Class AICES-3(A)/NMB-3(A)CE/UKCA- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3VCCI CISPR 32 Class ARCM AS/NZS CISPR 32 Class AKS C 9832 Class A , KS C 9835Safety:UL 62368-1, CAN/CSA C22.2 NO. 62368-1IEC/EN 62471Environment:IEC/EN 63000IEC/EN 60529 IP66, IEC/EN 62262 IK10NEMA 250 type 4X |
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 2~1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 65° |
| Lens viewing angle, vertical | 60° |
| Lens viewing angle, horizontal | 209° |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 2 |
| Identify distance | 5.2 m |
| Fixed focus | Yes |
| Focal length range | 2.8 mm |
| Recognize distance | 10.4 m |
| Observe distance | 20.9 m |
| Detect distance | 52.2 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision | Yes |
| Video | |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction V (SSNR V), WiseNR Ⅱ |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 20 fps |
| Supported graphics resolutions | 1280 x 392, 2560 x 784, 3648 x 1152, 5120 x 1568 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 8 MP |
| Maximum resolution | 5120 x 1568 pixels |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| Anti-flicker | Yes |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, HTTPS, MSCHAPv2 |
| Network access storage (NAS) | Yes |
| Alert notification type | |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 11.3 W |
| Power source type | DC, PoE |
| Weight & dimensions | |
|---|---|
| Diameter | 25.3 cm |
| Height | 170 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
