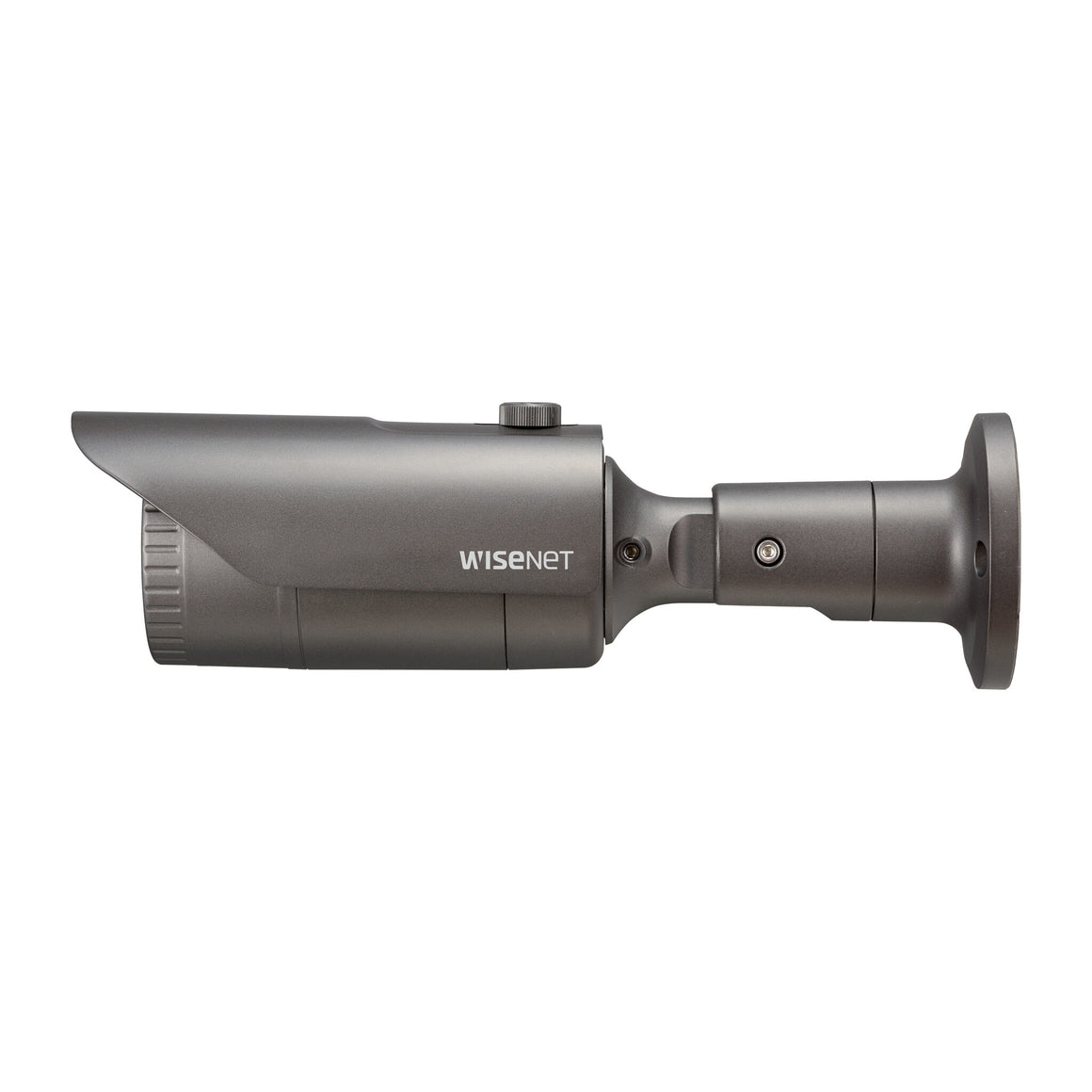

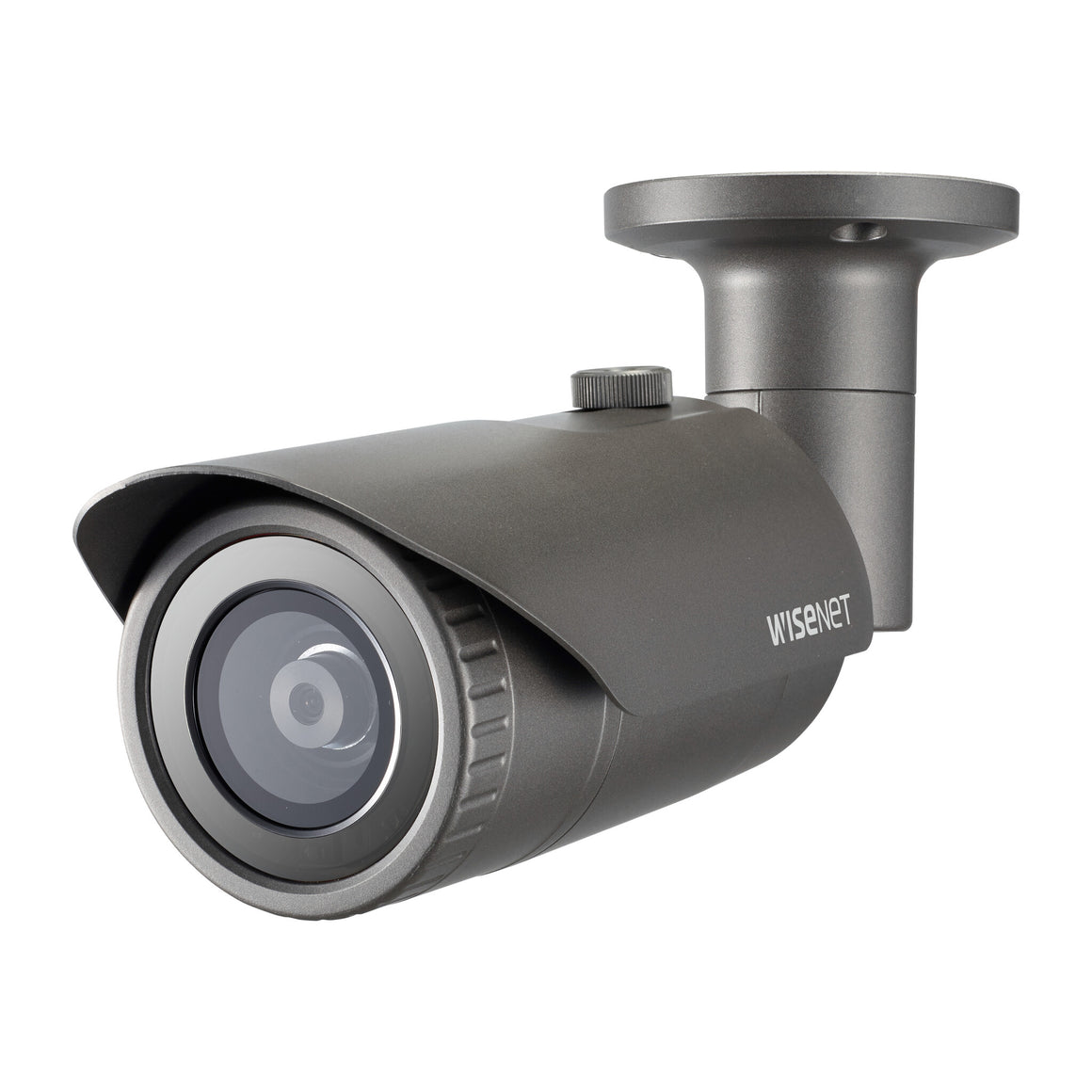

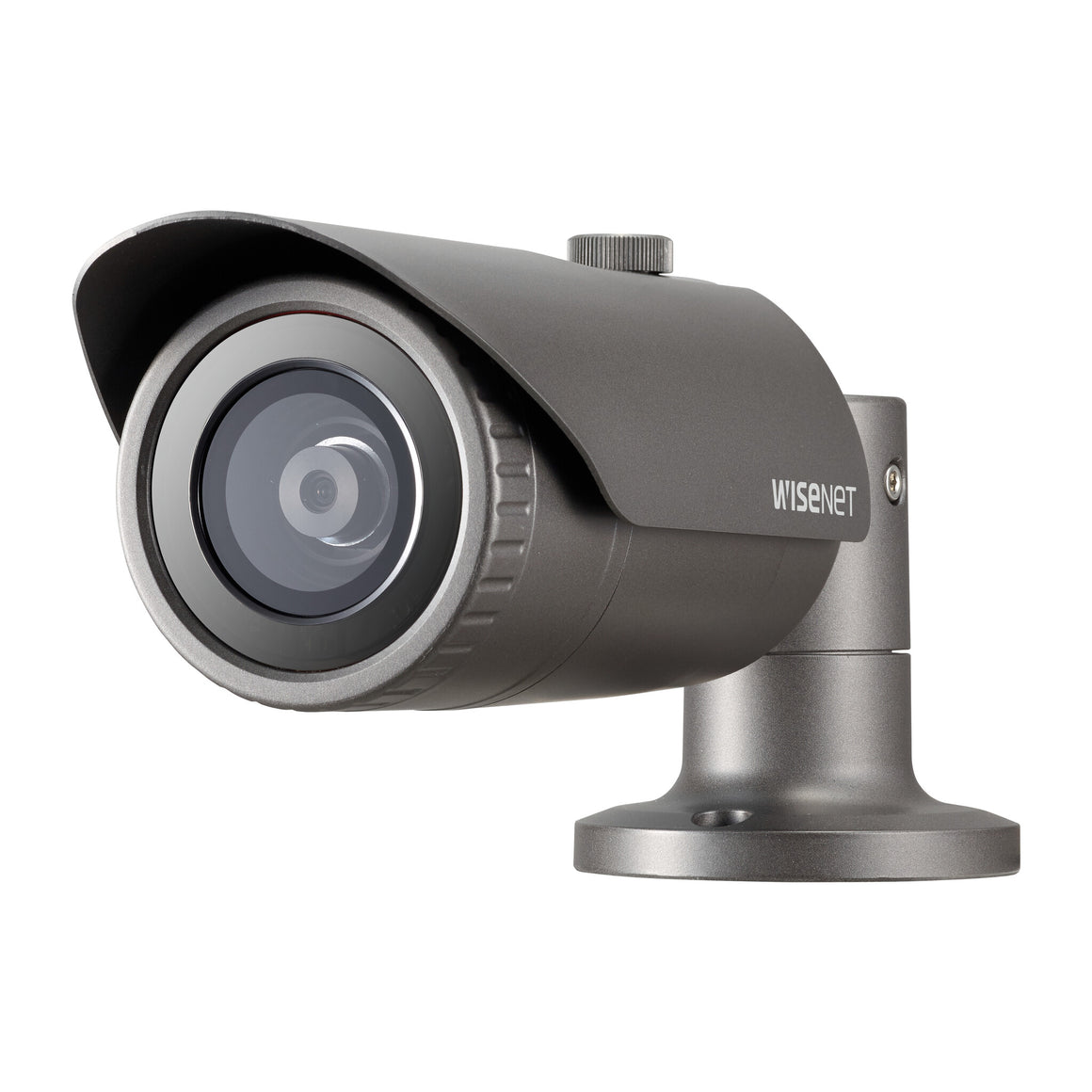

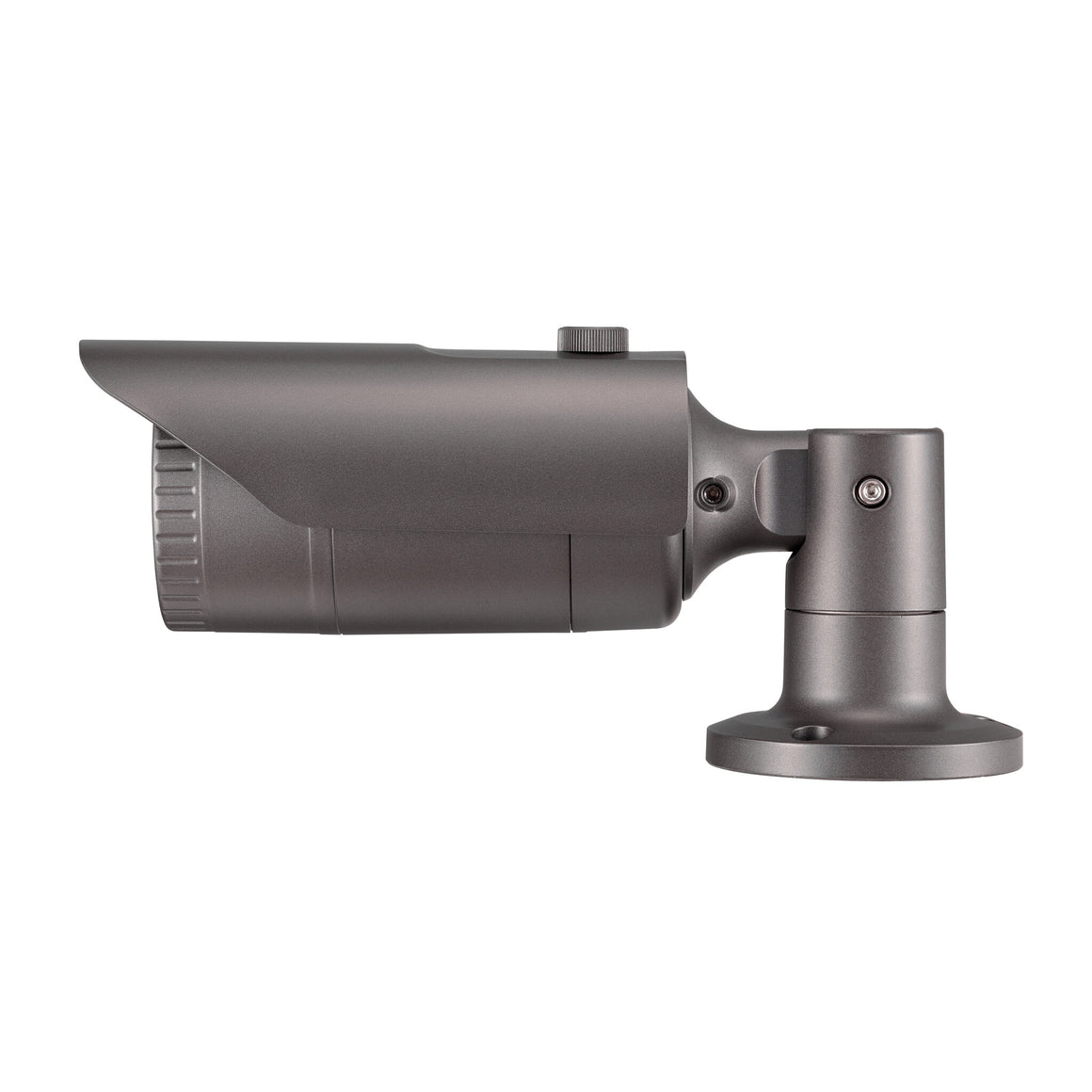

QNO-7012R
4MP IR Bullet Camera
| Performance |
|---|
| Dynamic range |
120 dB |
| Alarm input/output |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium |
| Product colour |
Grey |
| Mounting type |
Ceiling |
| Form factor |
Bullet |
| Camera |
|---|
| Number of Privacy masking areas |
6 |
| Camera shutter speed |
1/5 - 1/12000 s |
| Camera shutter type |
Electronic |
| White balance |
ATW, AWC, Indoor, Manual, Outdoor |
| Lens viewing angle, diagonal |
122° |
| Lens viewing angle, vertical |
59.7° |
| Lens viewing angle, horizontal |
107.5° |
| Minimum illumination |
0.15 lx |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Closest focusing distance |
0.5 m |
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
2 |
| Identify distance |
3.8 m |
| Fixed focus |
Yes |
| Recognize distance |
7.5 m |
| Observe distance |
15 m |
| Detect distance |
37.5 m |
| Number of lenses |
1 |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Bit rate control |
Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Gain control type |
Manual |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video formats supported |
H.264, H.265, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2560 x 1440 pixels |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Anti-flicker |
Yes |
| Security algorithms |
EAP-LEAP, EAP-TLS |
| Alert notification type |
E-mail |
| Power |
|---|
| Power consumption (max) |
9.1 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Height |
77.6 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
