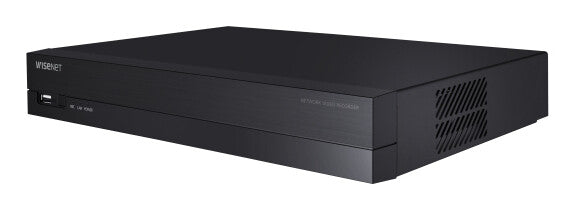

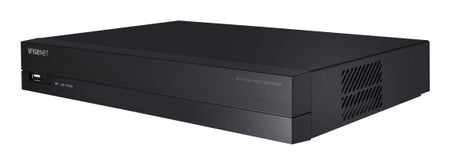

QRN-430S
- Up to 4CH 8MP resolution
- H.265, H.264, MJPEG codec
- 40Mbps network camera recording
- Plug & play with 4 PoE ports
- 1 HDD (Up to 6TB)
- HDMI output
- P2P service (QR code) for easy mobile app connection
| Performance |
|---|
| Recording modes |
Event, Schedule |
| Playback modes |
Reverse, Slow play |
| Throughput data rate |
50 Mbit/s |
| Input bandwidth |
40 Mbit/s |
| Syslog |
Yes |
| Output bandwidth |
32 Mbit/s |
| Maximum frame rate |
240 fps |
| PTZ control |
Yes |
| Video formats supported |
H.264, H.265, M-JPEG |
| Audio formats supported |
AAC, G.711, G.726 |
| Number of users |
4 user(s) |
| Supported resolutions |
1920 x 1080, 1280 x 720 |
| Maximum resolution |
3840 x 2160 pixels |
| Video recording modes |
720p, 1080p, 2160p |
| Number of simultaneously playbacked channels |
32 channels |
| Video input channels |
4 channels |
| Hard drive |
|---|
| HDD interface |
SATA |
| Maximum storage capacity |
6 TB |
| Number of HDDs supported |
1 |

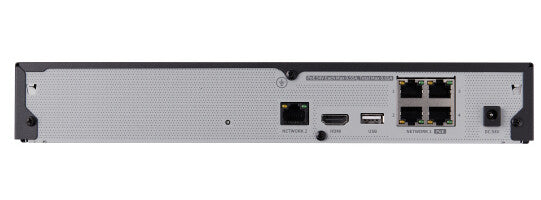

| Ports & interfaces |
|---|
| Supported network protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
2 |
| HDMI output |
Yes |
| HDMI ports quantity |
1 |
| Ethernet WAN |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Product colour |
Black |
| Power |
|---|
| Total Power over Ethernet (PoE) budget |
35 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Power consumption (max) |
52 W |
| System requirements |
|---|
| Browser supported |
Google Chrome, Microsoft Edge, Mac Safari |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur |
| Windows operating systems supported |
Windows 10 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
1.03 kg |
| Height |
47.6 mm |
| Depth |
208.4 mm |
| Width |
300 mm |
