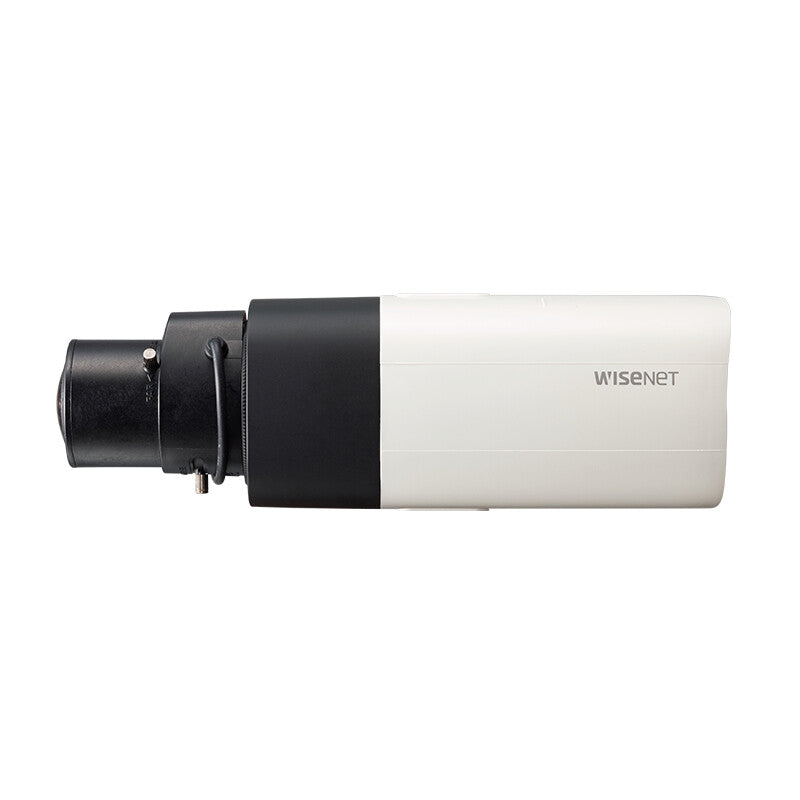

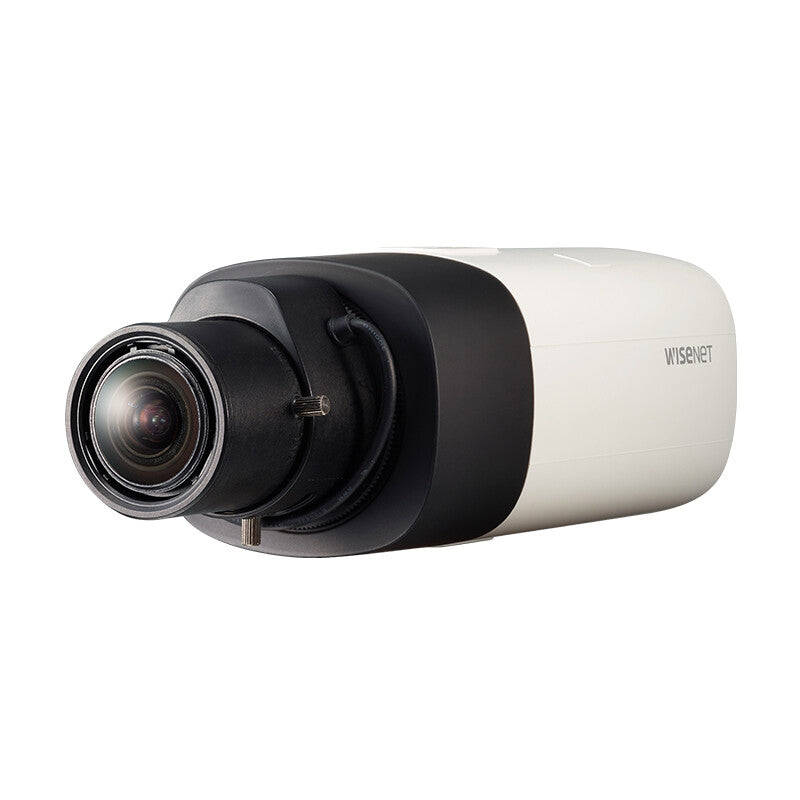

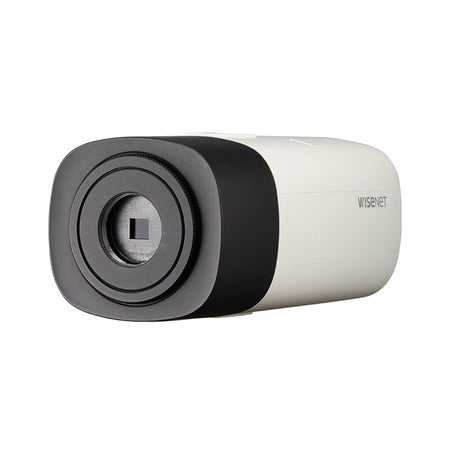

Wisenet X powered by Wisenet 5 network box camera, 5MP @30fps WDR off/on, Simple focus, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS using a Gyro sensor, 12VDC/24VAC/PoE
| Performance |
|---|
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
|---|
| Fog proof |
Yes |
| Housing material |
Plastic |
| Product colour |
Black, Ivory |
| Form factor |
Box |
| Camera |
|---|
| Camera shutter speed |
2 - 1/12000 s |
| Camera shutter type |
Electronic |
| White balance |
ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp |
| Minimum illumination |
0.007 lx |
| Image sensor |
|---|
| Number of effective pixels (H x V) |
2616 x 1976 pixels |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Sensor type |
CMOS |
| Lens system |
|---|
| Digital zoom |
24x |
| Zoom capability |
Yes |
| Video |
|---|
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920 |
| Video compression formats |
H.264, H.265, M-JPEG, MPEG4 |
| Maximum resolution |
2560 x 1920 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
8.5 W |
| Power source type |
PoE |
| System requirements |
|---|
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac compatibility |
Yes |
| Weight & dimensions |
|---|
| Height |
66.6 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Output impedance |
75 Ω |
| Lens mount interface |
C/CS mount |
| Maximum output level |
1 Vpp |
| Other features |
|---|
| USB connectivity |
Yes |
