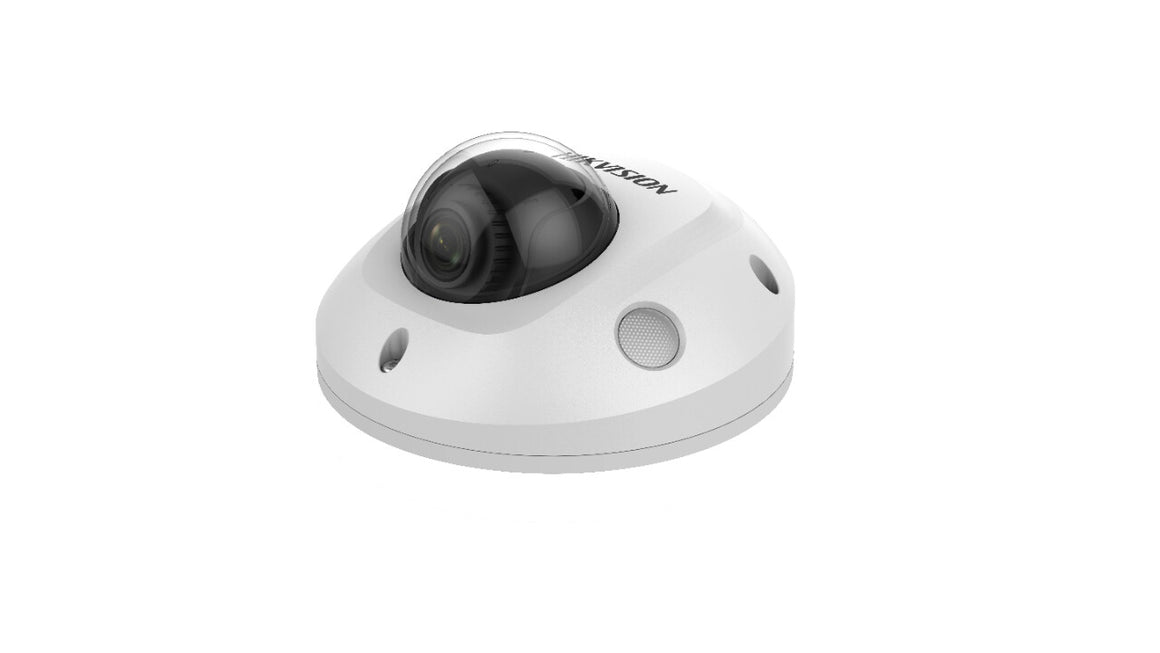

Hikvision DS-2CD2543G2-IWS Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall
Regular price
£165.25
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- S: audio and alarm interface available
- W: Realizing Wi-Fi connection and easy installation
- Water and dust resistant (IP67) and vandal resistant (IK08)
| Performance | |
|---|---|
| Number of languages | 33 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired & Wireless |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK08 |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/3 - 1/100000 s |
| Pan range | -30 - 30° |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, diagonal | 123.8° |
| Lens viewing angle, vertical | 55.9° |
| Lens viewing angle, horizontal | 104.3° |
| Angle of rotation | 360° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Recognize distance | 13 m |
| Observe distance | 25 m |
| Detect distance | 64 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2688 x 1520 pixels |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power source type | DC, PoE |
| Weight & dimensions | |
|---|---|
| Diameter | 11 cm |
| Height | 57.4 mm |
| Packaging data | |
|---|---|
| Package weight | 615 g |
| Package height | 108 mm |
| Package depth | 134 mm |
| Package width | 134 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
