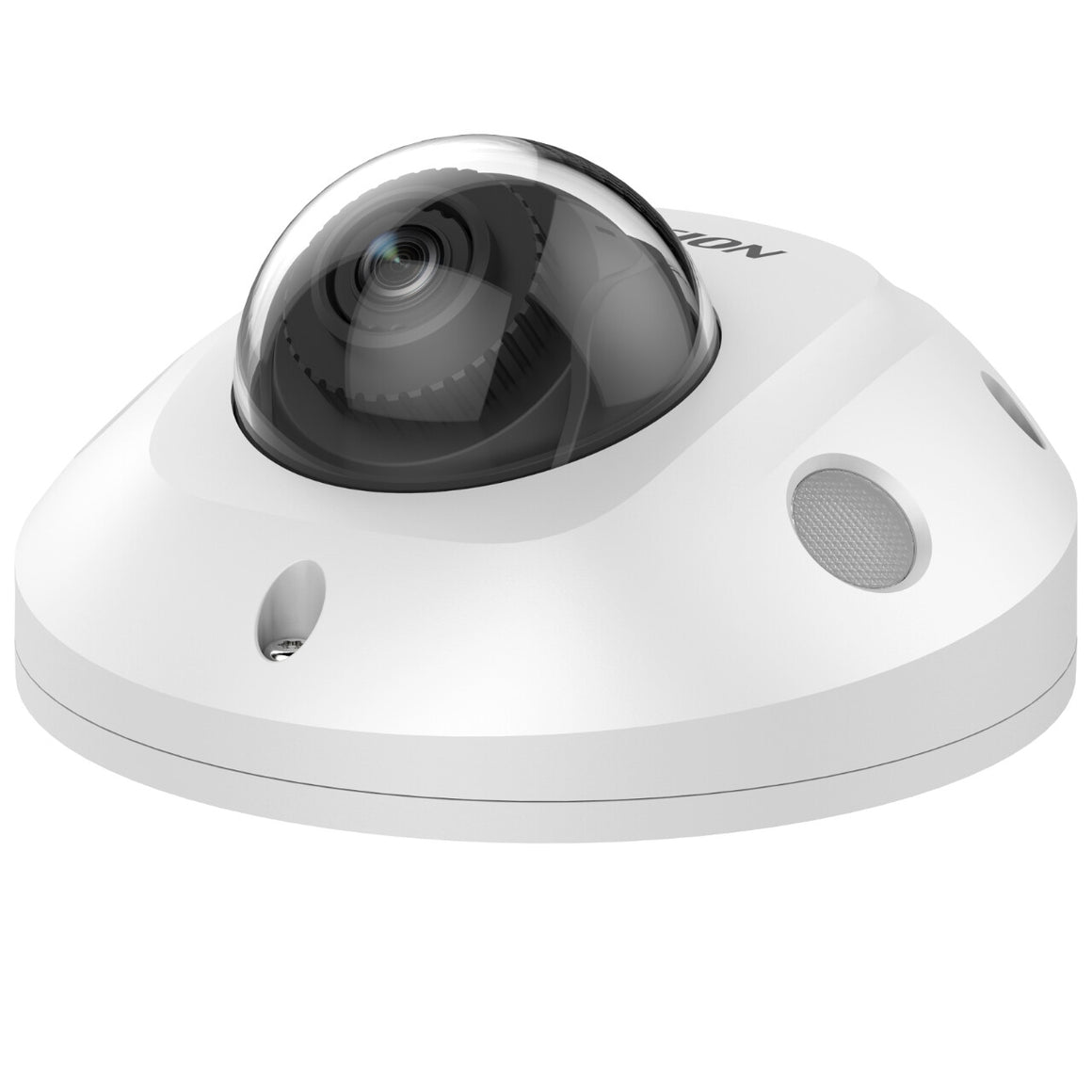

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
| Performance |
|---|
| Number of languages |
33 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK08 |
| International Protection (IP) code |
IP67 |
| Housing material |
Aluminium |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
-30 - 30° |
| Tilt angle range |
0 - 75° |
| Lens viewing angle, diagonal |
122.5° |
| Lens viewing angle, vertical |
55.2° |
| Lens viewing angle, horizontal |
102.7° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
1.4 |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Bit rate |
32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Anti-flicker |
Yes |
| Heartbeat |
Yes |
| Password protection |
Yes |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
6 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Diameter |
11 cm |
| Height |
57.4 mm |
| Packaging data |
|---|
| Package weight |
620 g |
| Package height |
108 mm |
| Package depth |
134 mm |
| Package width |
134 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
