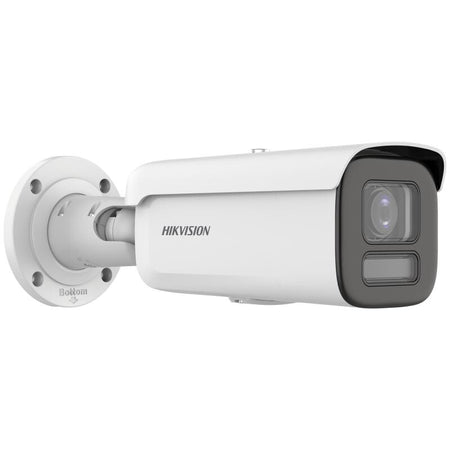

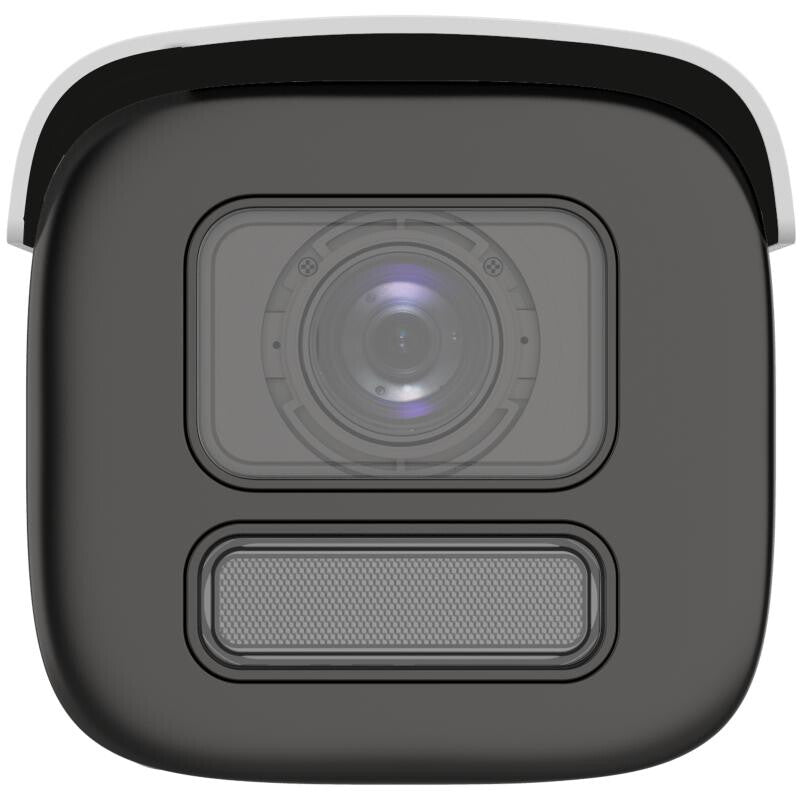

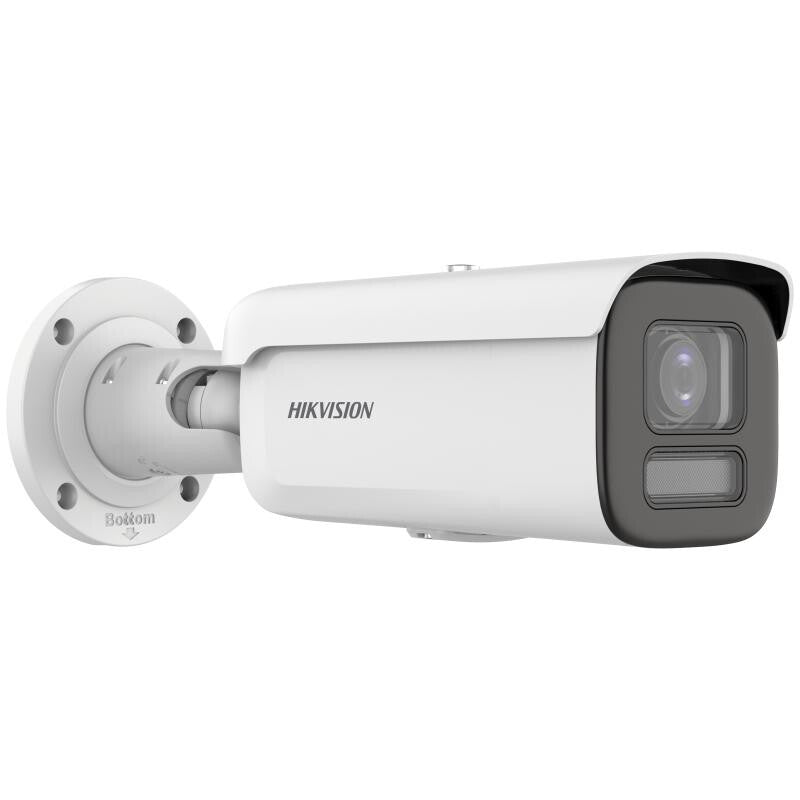

4 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera
| Performance |
|---|
| Number of languages |
33 |
| Languages support |
Multi |
| Dynamic range |
130 dB |
| Built-in light |
Yes |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10 |
| International Protection (IP) code |
IP67 |
| Protection features |
Dust resistant, Water resistant |
| Housing material |
Metal |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
|---|
| Number of Privacy masking areas |
4 |
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
0 - 355° |
| Tilt angle range |
0 - 90° |
| Lens viewing angle, diagonal |
141.3 - 48.1° |
| Lens viewing angle, vertical |
59.3 - 23.6° |
| Lens viewing angle, horizontal |
114.6 - 41.8° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (wide) |
60 m |
| Detect distance (tele) |
149 m |
| Observe distance (wide) |
23.8 m |
| Observe distance (tele) |
59.1 m |
| Recognize distance (wide) |
12 m |
| Recognize distance (tele) |
29.8 m |
| Identify distance (wide) |
6 m |
| Identify distance (tele) |
14.9 m |
| Maximum aperture number |
1.2 |
| Focal length range |
2.8 - 12 mm |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
60 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Bit rate |
32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Audit log |
Yes |
| Pixel counter |
Yes |
| Heartbeat |
Yes |
| Automatic Network Replenishment (ANR) |
Yes |
| Security algorithms |
EAP-LEAP, EAP-MD5, EAP-TLS |
| Network access storage (NAS) |
Yes |
| Digital watermark |
Yes |
| Privacy protection |
Yes |
| Human and vehicle targets classification |
Yes |
| Password protection |
Yes |
| Alarm output channels |
1 |
| Alarm input channels |
1 |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
14.5 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Height |
95.7 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CB, CE, KC, RoHS |
| Packaging data |
|---|
| Package weight |
1.64 kg |
| Package height |
180 mm |
| Package depth |
190 mm |
| Package width |
386 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Iris |
Yes |
