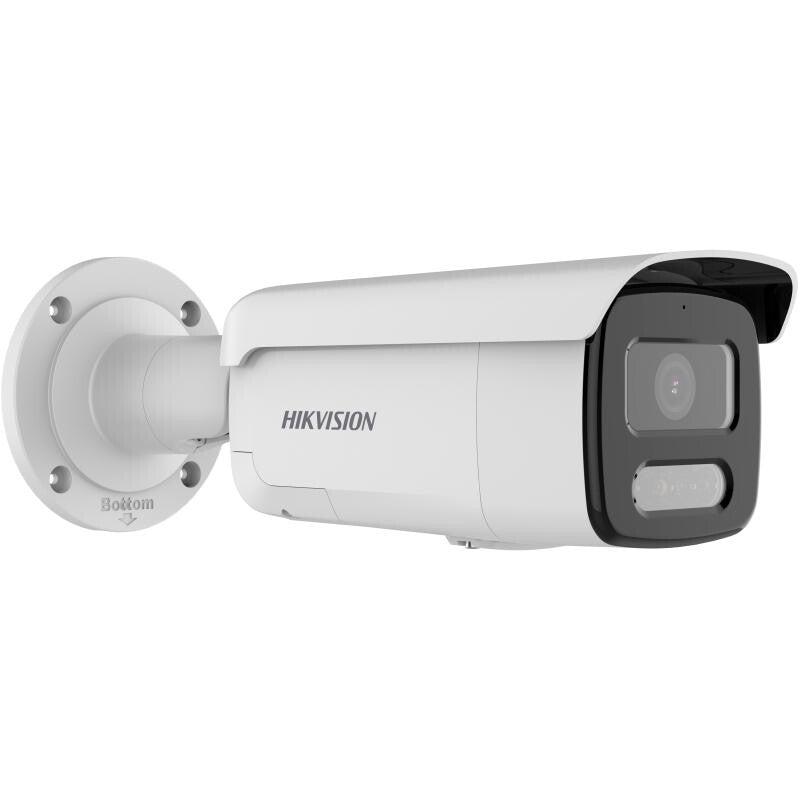

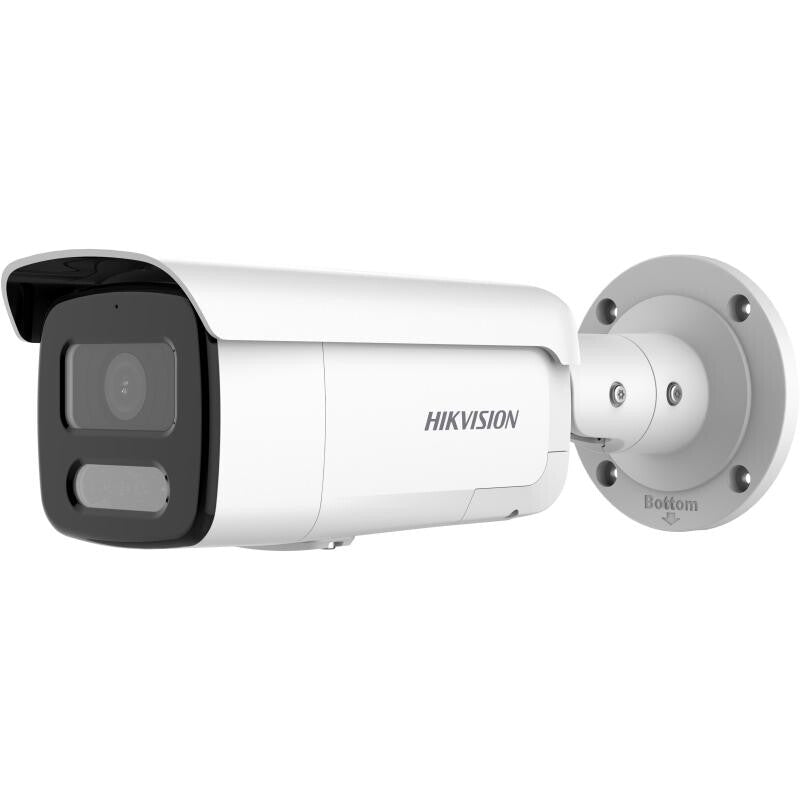

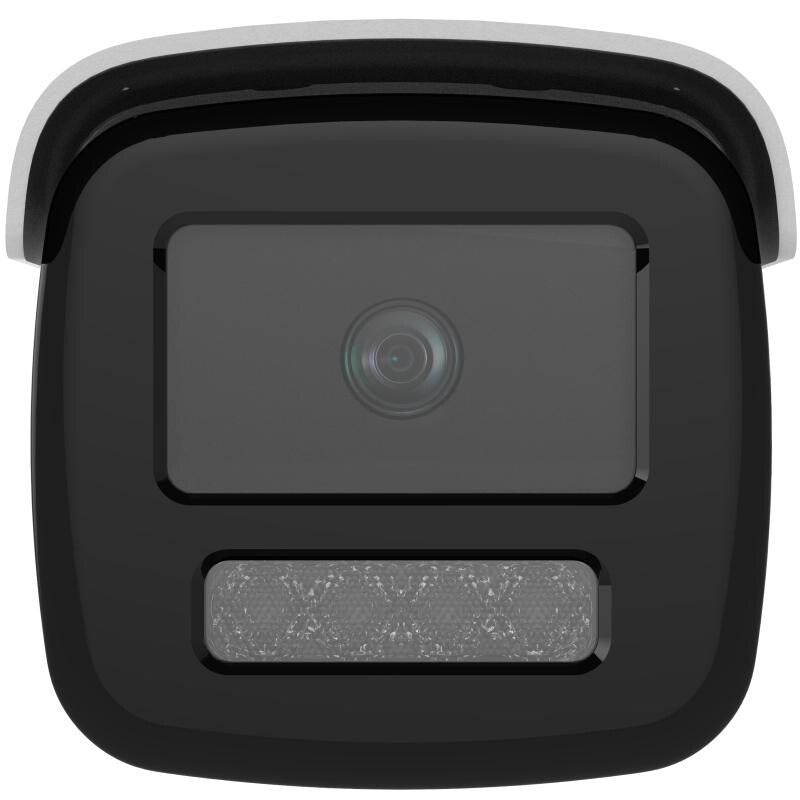

8 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera
Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.
By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
| Performance |
|---|
| Number of languages |
33 |
| Languages support |
Multi |
| Dynamic range |
130 dB |
| Built-in light |
Yes |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| International Protection (IP) code |
IP67 |
| Protection features |
Dust resistant, Water resistant |
| Housing material |
Metal |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
|---|
| Number of Privacy masking areas |
4 |
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
0 - 360° |
| Tilt angle range |
0 - 90° |
| Lens viewing angle, diagonal |
128.2° |
| Lens viewing angle, vertical |
54.8° |
| Lens viewing angle, horizontal |
105.1° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
1 |
| Identify distance |
8 m |
| Fixed focus |
Yes |
| Recognize distance |
17 m |
| Observe distance |
35 m |
| Detect distance |
89 m |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
850 nm |
| LED type |
IR/White |
| Night vision distance |
60 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Bit rate |
32 Kbps - 16 Mbps |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160 |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Audit log |
Yes |
| Pixel counter |
Yes |
| Heartbeat |
Yes |
| Flash log |
Yes |
| Automatic Network Replenishment (ANR) |
Yes |
| Security algorithms |
EAP-LEAP, EAP-MD5, EAP-TLS |
| Network access storage (NAS) |
Yes |
| Digital watermark |
Yes |
| Privacy protection |
Yes |
| Human and vehicle targets classification |
Yes |
| Password protection |
Yes |
| Alarm output channels |
1 |
| Alarm input channels |
1 |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
10.5 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Height |
91.2 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CB, CE, KC, RoHS |
| Packaging data |
|---|
| Package weight |
1.92 kg |
| Package height |
155 mm |
| Package depth |
156 mm |
| Package width |
386 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Output impedance |
100 Ω |
| Lens mount interface |
M16 |
| Iris |
Yes |
