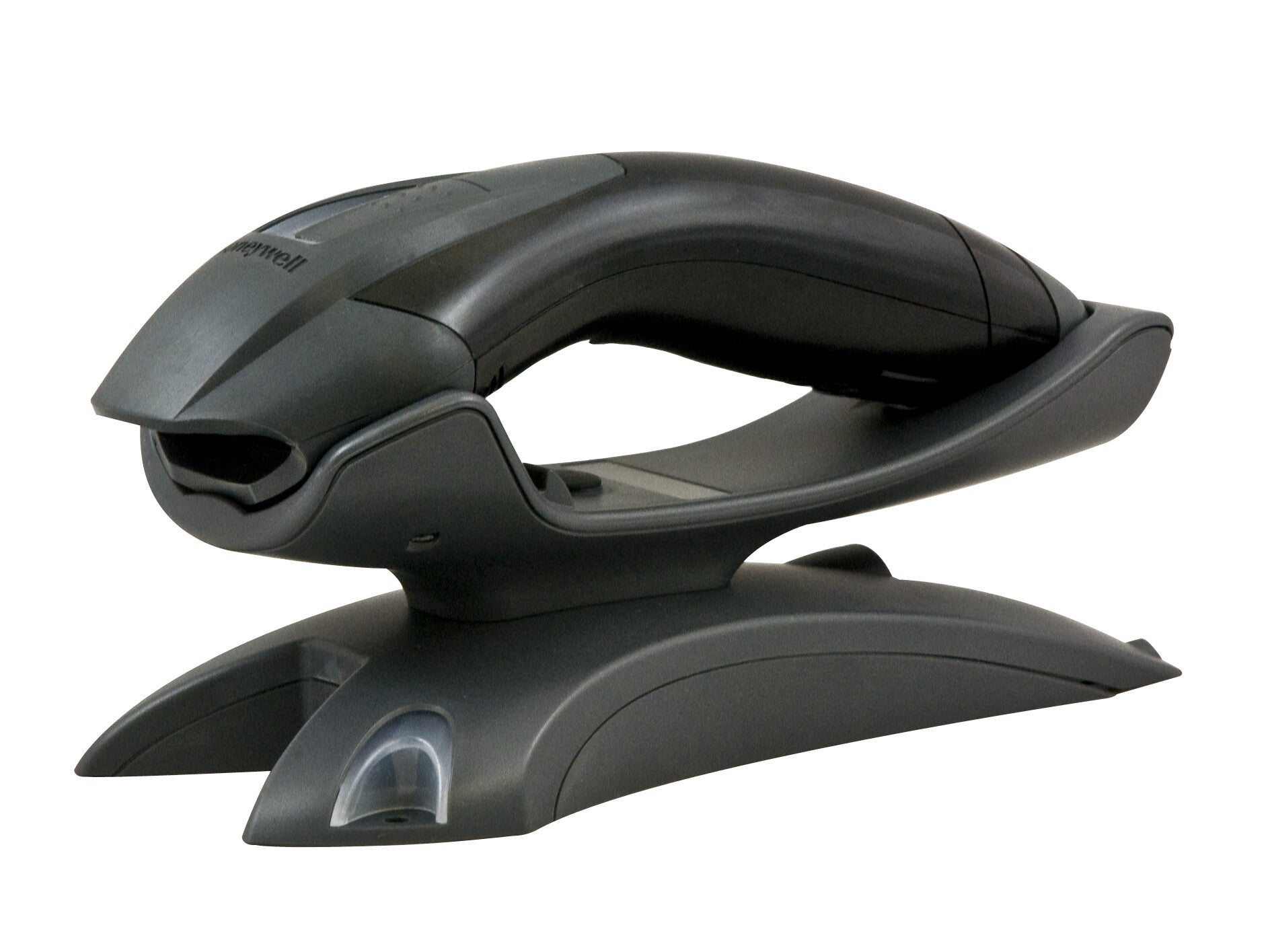

Voyager 1202g Features and Benefits
Bluetooth® Wireless Technology:
Facilitates scanning of all standard 1D bar codes 10 meters (33 feet) or more away from the base, depending on the user’s environment
Long Battery Life and Tool-Free Battery Removal:
The user-preferred Lithium ion battery provides 12 hours or more of use, depending on scanning volume, and the field-replaceable battery can be exchanged quickly and easily, without the use of tools
Automatic Interface Configuration:
Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration
Excellent Poor Quality Code Reading:
Increases throughput and reduces the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or smudged
Paging Functionality:
Simply press the button on the base to locate your lost scanner; Voyager 1202g responds with a series of beeps and blinking lights on its indicator panel
Remote MasterMind™ Ready:
Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices.
| Scanning |
| Pitch reading angle |
60 - 60° |
| Sensor type |
Laser |
| Scanner type |
1D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Operating frequency |
2.4 - 2.5 MHz |
| Bluetooth version |
2.1+EDR |
| Wireless range |
10 m |
| Data transfer rate |
3 Mbit/s |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
| Input voltage |
5 V |
| Charging time |
4 h |
| Battery life |
12 h |
| Number of reads per charge |
45000 |
| Battery capacity |
1800 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Base weight |
185 g |
| Base dimensions (WxDxH) |
200 x 67 x 97 mm |
| Weight |
180 g |
| Height |
92 mm |
| Depth |
180 mm |
| Width |
66 mm |
| Packaging data |
| Charging base |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-5 - 35 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| General |
| Product family |
Voyager |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
