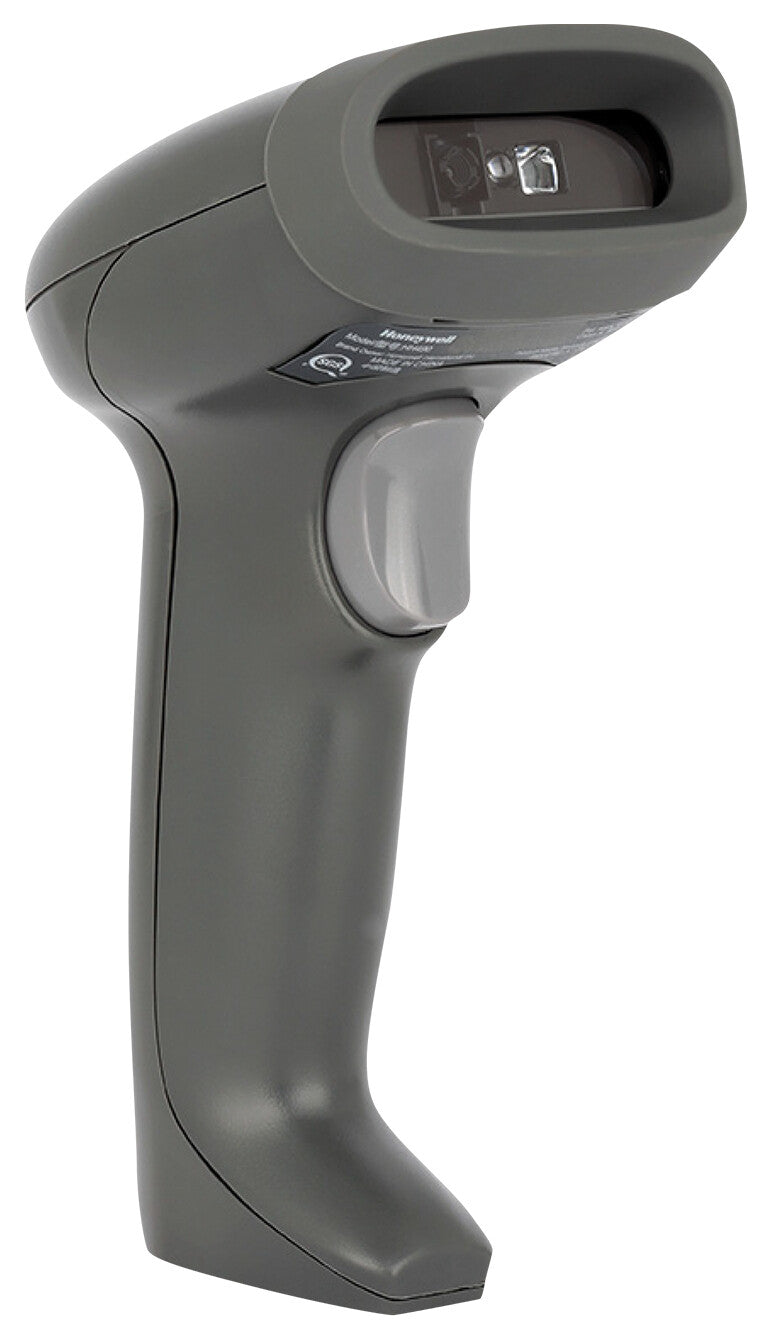

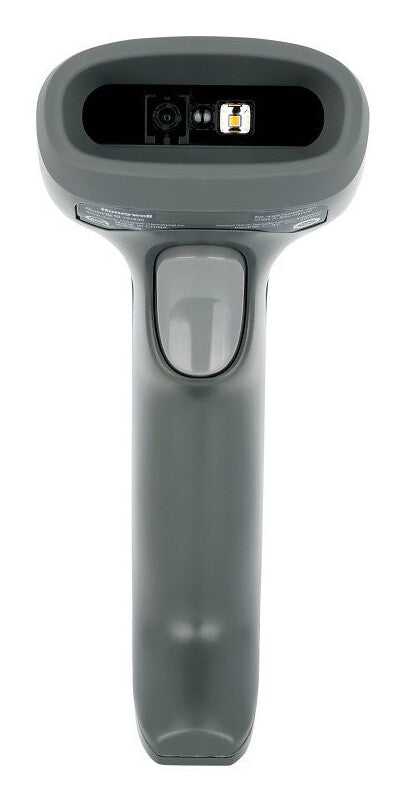

Voyager 1350g is featuring an ideal balance of performance, ergonomics and price, It is a cost-effective solution for a wide variety of data capture applications. Voyager 1350G can be used in government departments for personnel registration, hotel registrations, theater ticket checking, and even hospitals and schools that need a quick and fast scan, for hospitality and admission purposes.
Voyager 1350g supports all popular 1D and 2D barcodes, as well as image capture capability. Incorporating latest technology from Honeywell, Voyager 1350G is easy to install and configure, the user being able to quickly select configurations and personalize the scanning experience. Voyager 1350G is compatible with Honeywell’s advanced EZConfig and support all common POS drivers, being ready to adapt to different applications and requirements.
| Scanning |
|---|
| Yaw reading angle |
-65 - 65° |
| Pitch reading angle |
-60 - 60° |
| Tilt reading angle |
-180 - 180° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Read rate (max) |
75 reads/s |
| Working distance |
43 cm |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Code 39, UPC-A |
| 2D (matrix & stacked) barcodes supported |
Code 39, Data Matrix, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Standard interfaces |
RS-232, USB |
| Connectivity technology |
Wired |
| Performance |
|---|
| Print contrast |
25% |
| Protection features |
Drop proof |
| International Protection (IP) code |
IP40 |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
5 V |
| Power consumption (standby) |
0.55 W |
| Power consumption (typical) |
2 W |
| Power source type |
USB |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Height |
154 mm |
| Depth |
72.5 mm |
| Width |
125 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| General |
|---|
| Product family |
Voyager |
