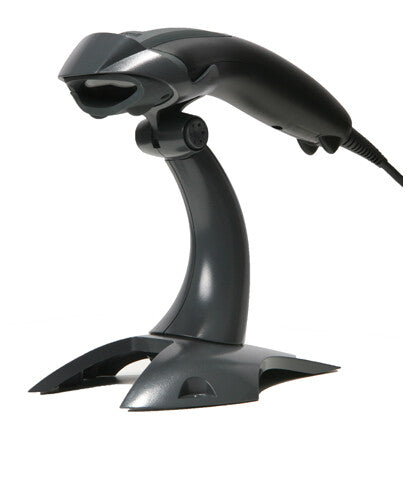

Voyager 1400g
Bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.
Reliable Data Collection: Offers omnidirectional reading of virtually all linear bar codes and the most widely used bar codes, including poor quality and mobile bar codes.
Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices.
Future Proof: Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device.
Flexible Licensing Solution: Meets diverse scanning requirements by offering models with basic functionality—purchase software licenses to enable additional functionality as the need arises.
| Scanning |
|---|
| Optical sensor resolution |
640 pixels |
| Pitch reading angle |
0 - 60° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| 2D (matrix & stacked) barcodes supported |
PDF417 |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
|---|
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
|---|
| Power consumption |
400 mA |
| Input voltage |
4 - 5.5 V |
| Power consumption (standby) |
0.45 W |
| Weight & dimensions |
|---|
| Weight |
119 g |
| Height |
43 mm |
| Depth |
180 mm |
| Width |
66 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
