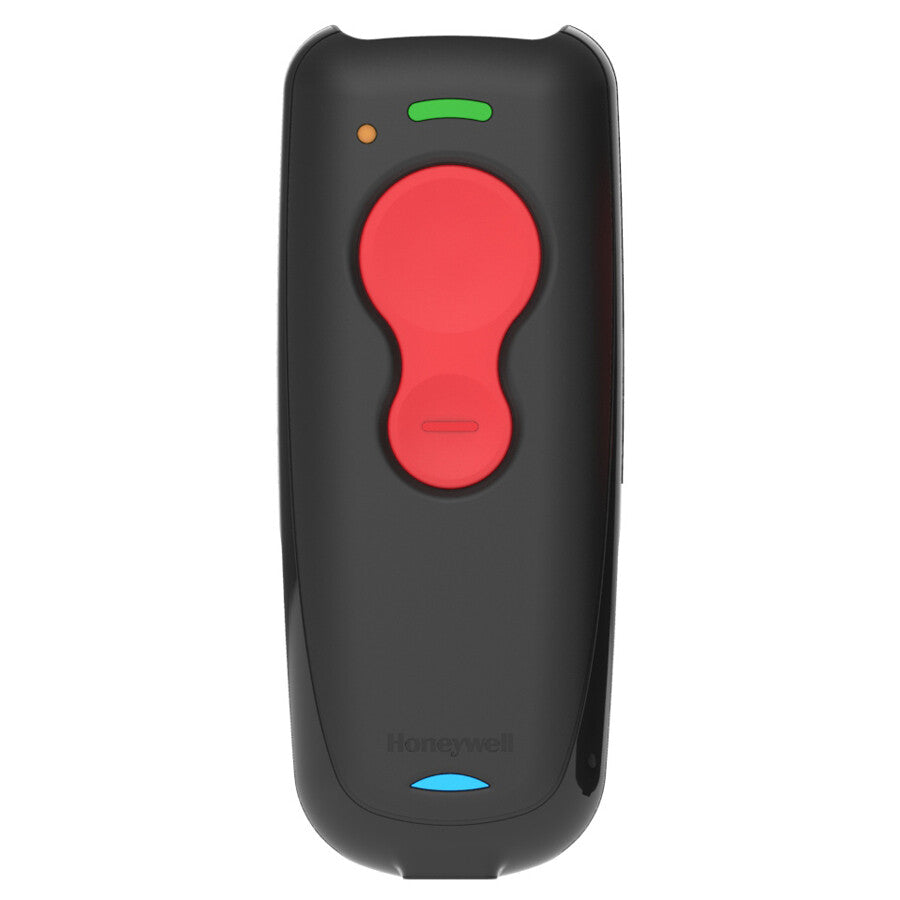

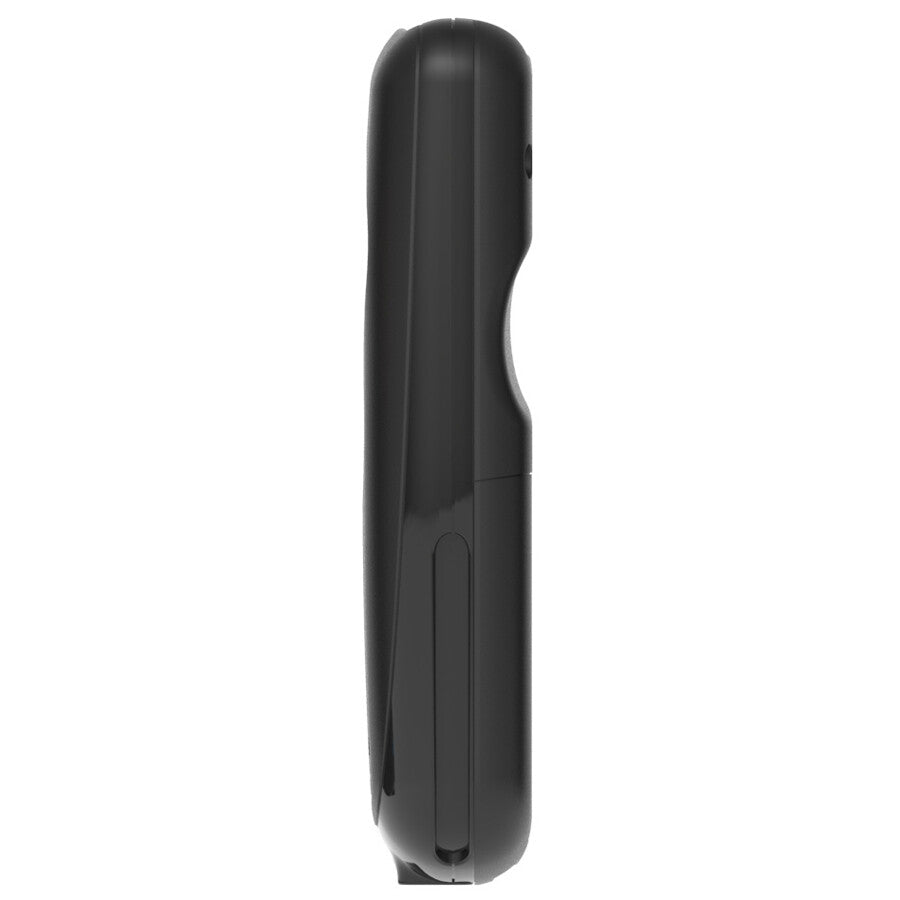

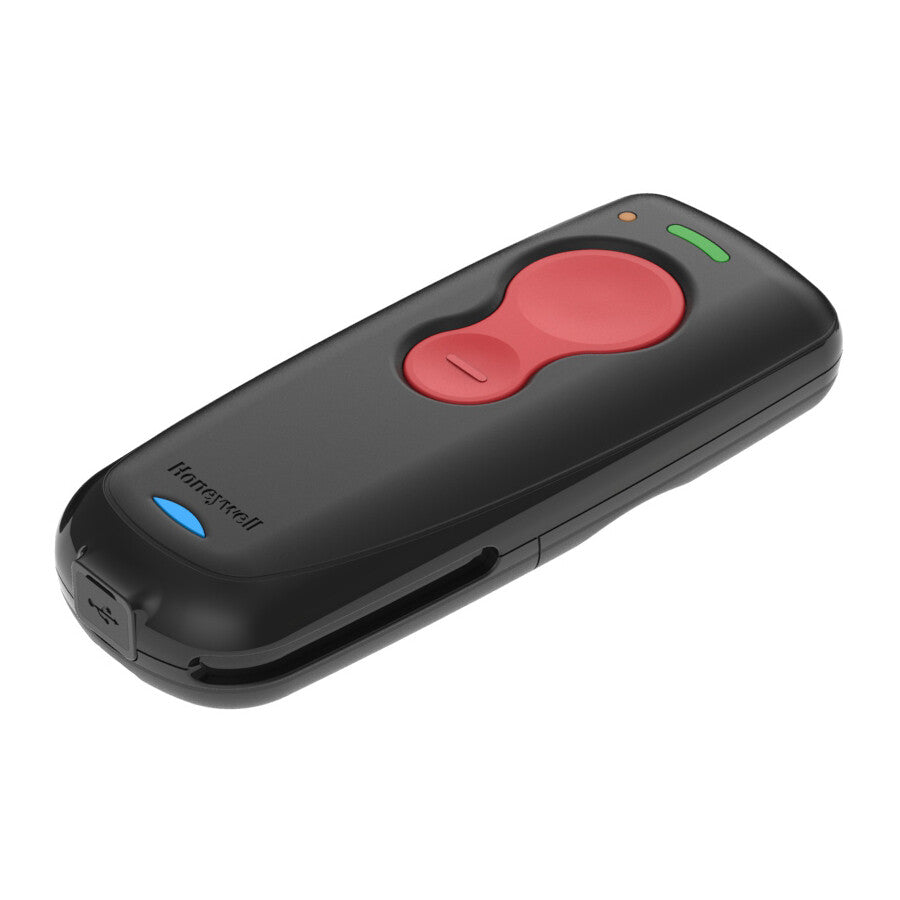

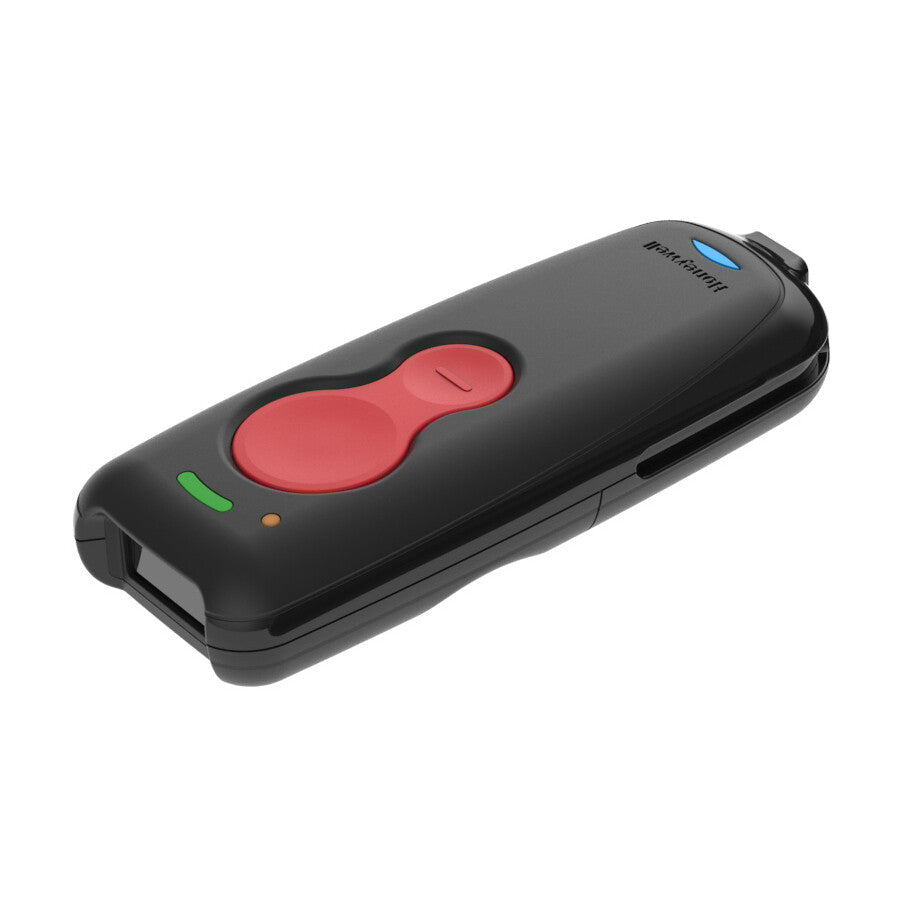

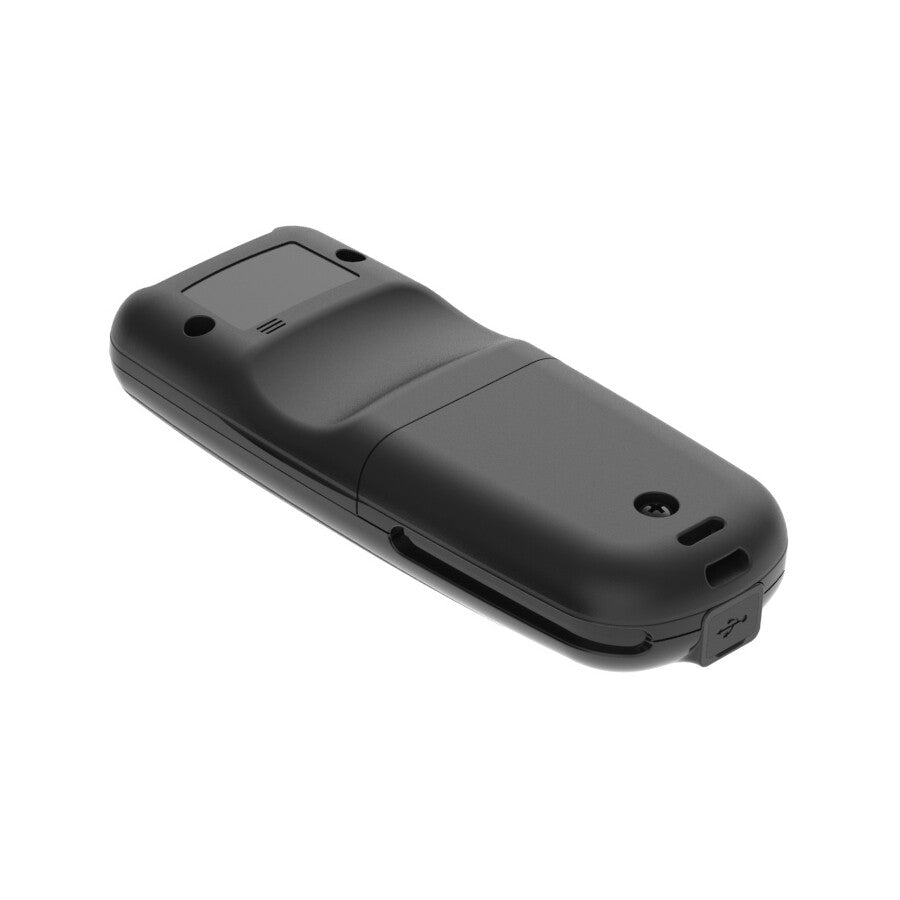

Looking for the perfect scanning companion for your tablet-based retail point-of-sale and field service applications? The affordable Voyager™ 1602g wireless scanner is the one. It packs high-performance area-imaging technology into an elegant and pocketable form factor that makes scanning easy and – dare we say – fun.
Full-Size Performance
Features the same performance area-imaging engine found in our full-size scanners, so you can scan virtually all 1D and 2D barcodes with ease.
A Mobile Marketing Enabler
Lets you scan barcodes off smartphone screens – mobile coupons, e-tickets, digital wallets, and digital loyalty cards.
Ergonomically Designed
Contoured and elegant design, over-sized scan button, and light weight make scanning fun.
Efficient Wireless Performance
Bluetooth® wireless technology provides freedom of movement up to 10 m (33 ft) from host device.
User-Replaceable Battery
Rated for more than 2,250 scans on a single charge; rechargeable over standard microUSB.
| Scanning |
|---|
| Optical sensor resolution |
640 pixels |
| Motion tolerance (cm/s) |
10 |
| Pitch reading angle |
-60 - 60° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| PC connection |
USB 2.0 |
| Operating frequency |
2400 - 2500 MHz |
| Bluetooth version |
2.1+EDR |
| Wireless range |
10 m |
| Data transfer rate |
1 Mbit/s |
| USB 2.0 ports quantity |
1 |
| USB version |
2.0 |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wireless |
| Performance |
|---|
| Programming function |
Yes |
| LED indicators |
Yes |
| Keys quantity |
2 keys |
| International Protection (IP) code |
IP42 |
| Housing material |
Plastic |
| Product colour |
Black |
| Power |
|---|
| Charging time |
3 h |
| Battery life |
12 h |
| Number of reads per charge |
2250 |
| Battery voltage |
3.7 V |
| Battery capacity |
750 mAh |
| Number of batteries supported |
1 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Weight |
100 g |
| Height |
120 mm |
| Depth |
22 mm |
| Width |
48 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
| Other features |
|---|
| Mobile operating systems supported |
Android, Windows Mobile, iOS |
| Windows operating systems supported |
Yes |
