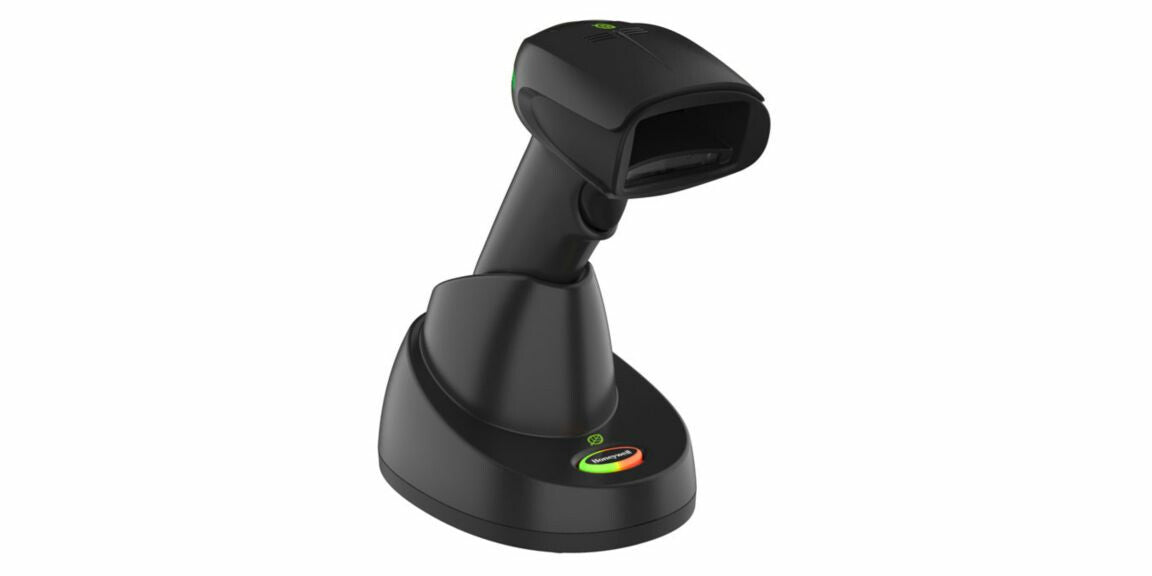

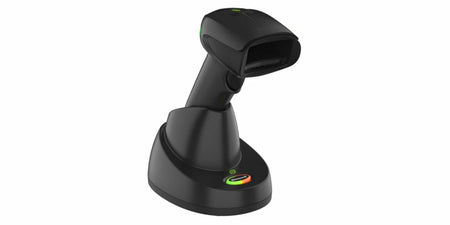

The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner is Honeywell’s latest barcode scanner powered by supercapacitors – eliminating the battery for a green, environmentally friendly scanner. This powerhouse solution is capable of scanning over 450 barcodes on a single charge, and can be recharged in less than 60 seconds via a powered USB port.
The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner incorporates the latest in battery-free technology, offering the freedom of Bluetooth® low-energy wireless technology without the maintenance hassles or long recharge time associated with traditional batteries. Like all other Xenon scanners, the Xenon XP 1952g-bf scanner delivers aggressive barcode scanning performance – even on poor-quality or damaged barcodes.An integrated Bluetooth low-energy Class 2 radio gives users complete freedom of movement up to 10 meters (33 feet) from the base in a typical work environment. For added convenience, a paging system on the base activates auditory signals that help to locate a misplaced scanner. By eliminating the trip-hazard of tethered cables, the Xenon XP 1952g-bf scanner can provide a safer and more productive environment.The scanner’s wireless technology completely eliminates the battery, replacing it with supercapacitors capable of achieving a full charge in less than two minutes via the USB port (under 30 seconds when using a powered USB port or external wall adapter) and typically providing at least 450 scans on UPC/EAN codes without recharging. This makes the Xenon XP 1952g-bf scanner ideal for applications centered around POS, workstations, and counters – for example, as the secondary scanner to a bioptic (in-counter) scanner, or in support of shipping and receiving functions at warehouses. With no battery, a common maintenance hassle is removed and the scanner is lighter and more environmentally friendly.Built on the proven Xenon platform, the Xenon XP 1952g-bf scanner offers high-performance linear barcode scanning and the convenience of wireless – all without a battery.
| Scanning |
|---|
| Yaw reading angle |
-65 - 65° |
| Pitch reading angle |
-45 - 45° |
| Tilt reading angle |
-360 - 360° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Linear (1D) barcodes supported |
Code 128, Code 39, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Data Matrix, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Cable length |
3 m |
| Operating frequency |
2400 MHz |
| Bluetooth version |
4.2 |
| Wireless range |
10 m |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| Print contrast |
15% |
| Buzzer |
Yes |
| LED indicators |
Yes |
| Protection features |
Bump resistant, Drop proof |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
|---|
| Charging time |
0.25 h |
| Number of reads per charge |
490 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Presentation base dimensions (WxDxH) |
132 x 102 x 81 mm |
| Weight |
195 g |
| Height |
160 mm |
| Depth |
104 mm |
| Width |
71 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| General |
|---|
| Product family |
Xenon |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
