Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
|---|
| Secure printing |
Yes |
| Watermark printing |
Yes |
| Booklet printing function |
Yes |
| Print margins (top, bottom, right, left) |
5 mm |
| Time to first page (colour, normal) |
25.3 s |
| Time to first page (black, normal) |
12.4 s |
| Warm-up time |
38 s |
| Print speed (colour, normal quality, A4/US Letter) |
4 ppm |
| Print speed (black, normal quality, A4/US Letter) |
18 ppm |
| Print resolution black |
600 x 600 DPI |
| Print resolution colour |
600 x 600 DPI |
| Maximum resolution |
600 x 600 DPI |
| Duplex printing mode |
Manual |
| Duplex printing |
Yes |
| Print technology |
Laser |
| Features |
|---|
| HP segment |
Small medium business |
| Replacement cartridges |
HP 117A Black Original Laser Toner Cartridge (1,000 pages) W2070A; HP 117A Cyan Original Laser Toner Cartridge (700 pages) W2071A; HP 117A Yellow Original Laser Toner Cartridge (700 pages) W2072A; HP 117A Magenta Original Laser Toner Cartridge (700 pages) W2073A |
| Country of origin |
China |
| Page description languages |
SPL |
| Number of print cartridges |
4 |
| Printing colours |
Black, Cyan, Magenta, Yellow |
| Recommended duty cycle |
100 - 500 pages per month |
| Maximum duty cycle |
20000 pages per month |
| Input & output capacity |
|---|
| Maximum output capacity |
50 sheets |
| Maximum input capacity |
150 sheets |
| Maximum number of input trays |
1 |

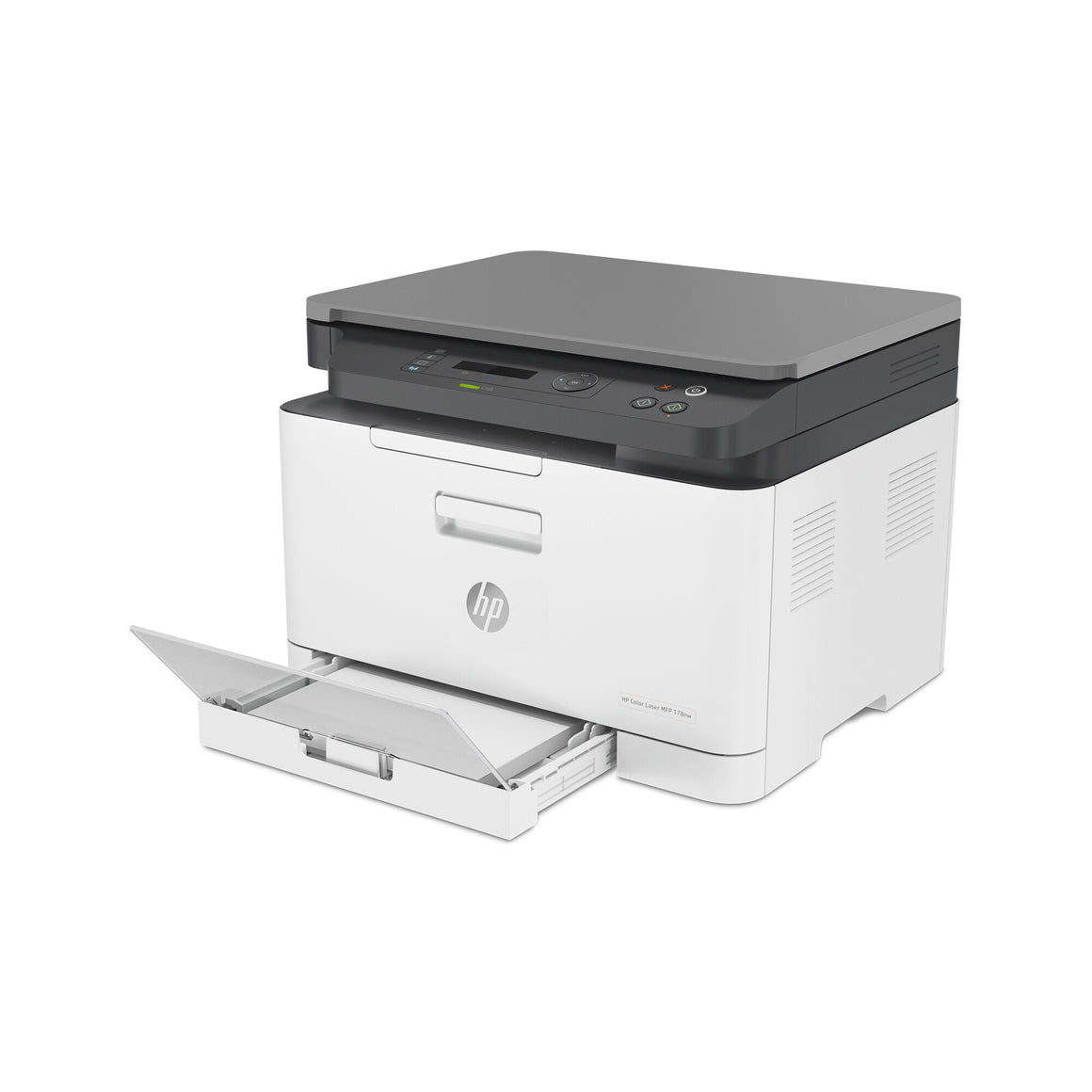

| Paper input type |
Paper tray |
| Paper tray 1 input capacity |
150 sheets |
| Total output capacity |
50 sheets |
| Total input capacity |
150 sheets |
| Total number of input trays |
1 |
| Paper handling |
|---|
| Paper tray media weight |
60 - 220 g/m² |
| Custom media length |
148.5 - 356 mm |
| Custom media width |
76 - 216 mm |
| JIS B-series sizes (B0...B9) |
B5 |
| Non-ISO print media sizes |
Oficio |
| ISO A-series sizes (A0...A9) |
A4, A5, A6 |
| Paper tray media types |
Bond paper, Glossy paper, Heavy paper, Labels, Plain paper, Recycled paper, Thick paper |
| Maximum print size |
216 x 356 mm |
| Maximum ISO A-series paper size |
A4 |

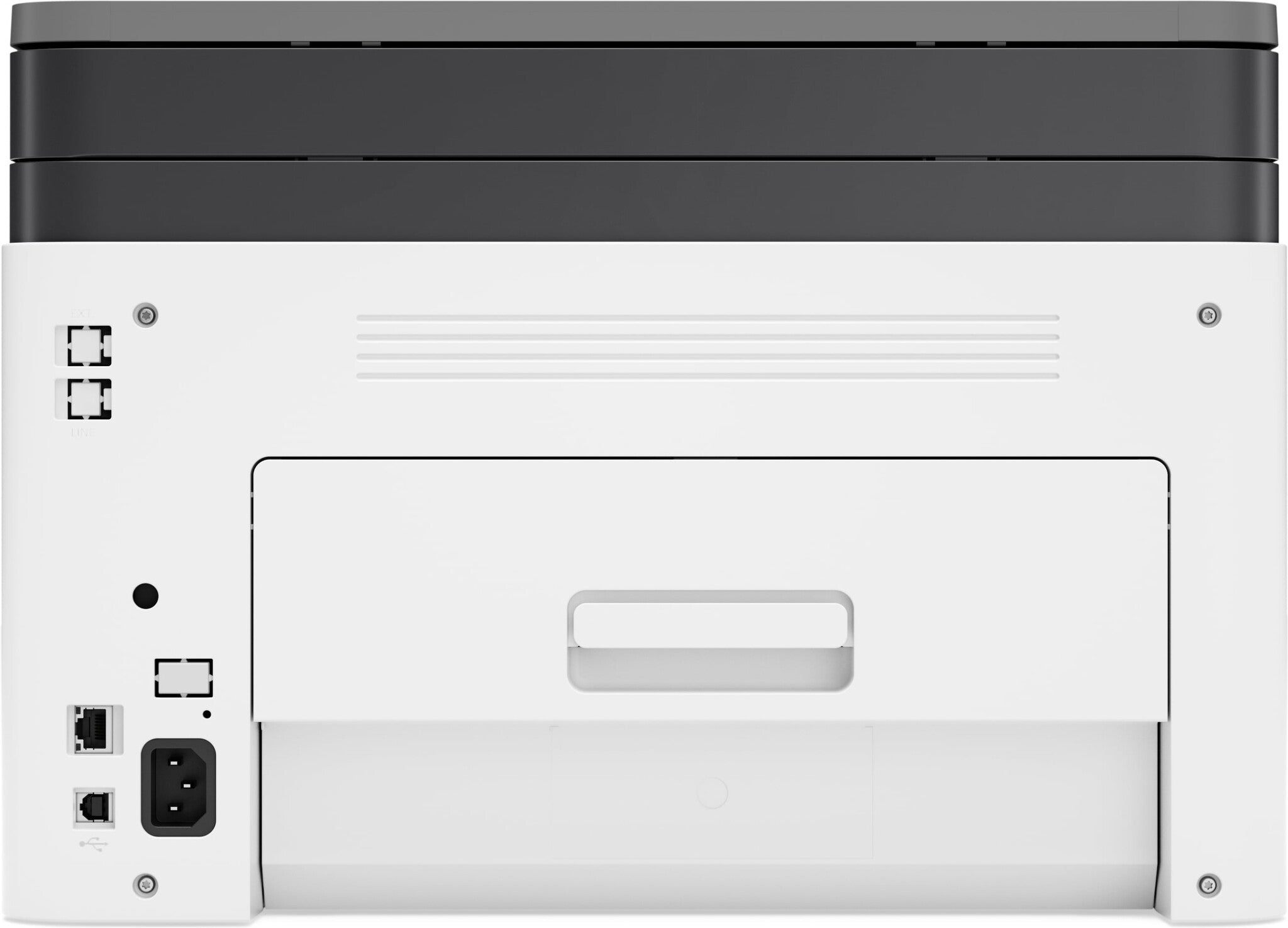

| Ports & interfaces |
|---|
| USB port |
Yes |
| Direct printing |
Yes |
| Standard interfaces |
USB 2.0 |
| Network |
|---|
| Mobile printing technologies |
Apple AirPrint, Google Cloud Print, Mopria Print Service |
| Security algorithms |
IPSec, SNMPv2 |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi Direct |
Yes |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Performance |
|---|
| Sound power level (printing) |
6.5 dB |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Maximum internal memory |
128 MB |
| Internal memory |
128 MB |
| Design |
|---|
| Certification |
EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN55024: 2010, EN 55032: 2012/AC: 2013, 47 CFR Part 15, Subpart B I ANSI C63.4-2009, ICES-003 Issue 5, KN32, KN35, GB/T 9254-2008, GB17625.1-2012, CISPR22: 2008, CISPR32: 2012, CNS 13438 (Other EMC approvals as required by individual countries.) |

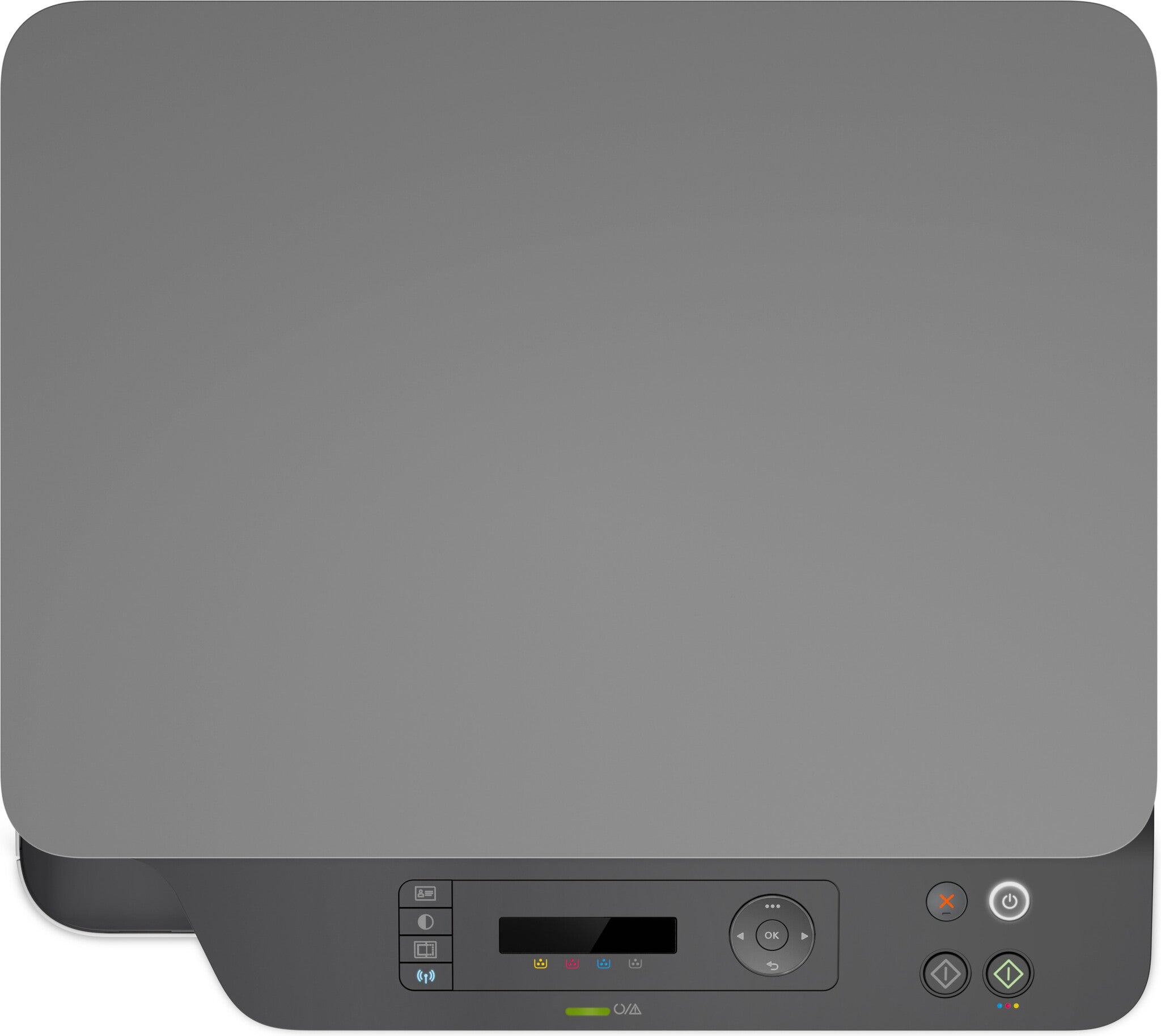

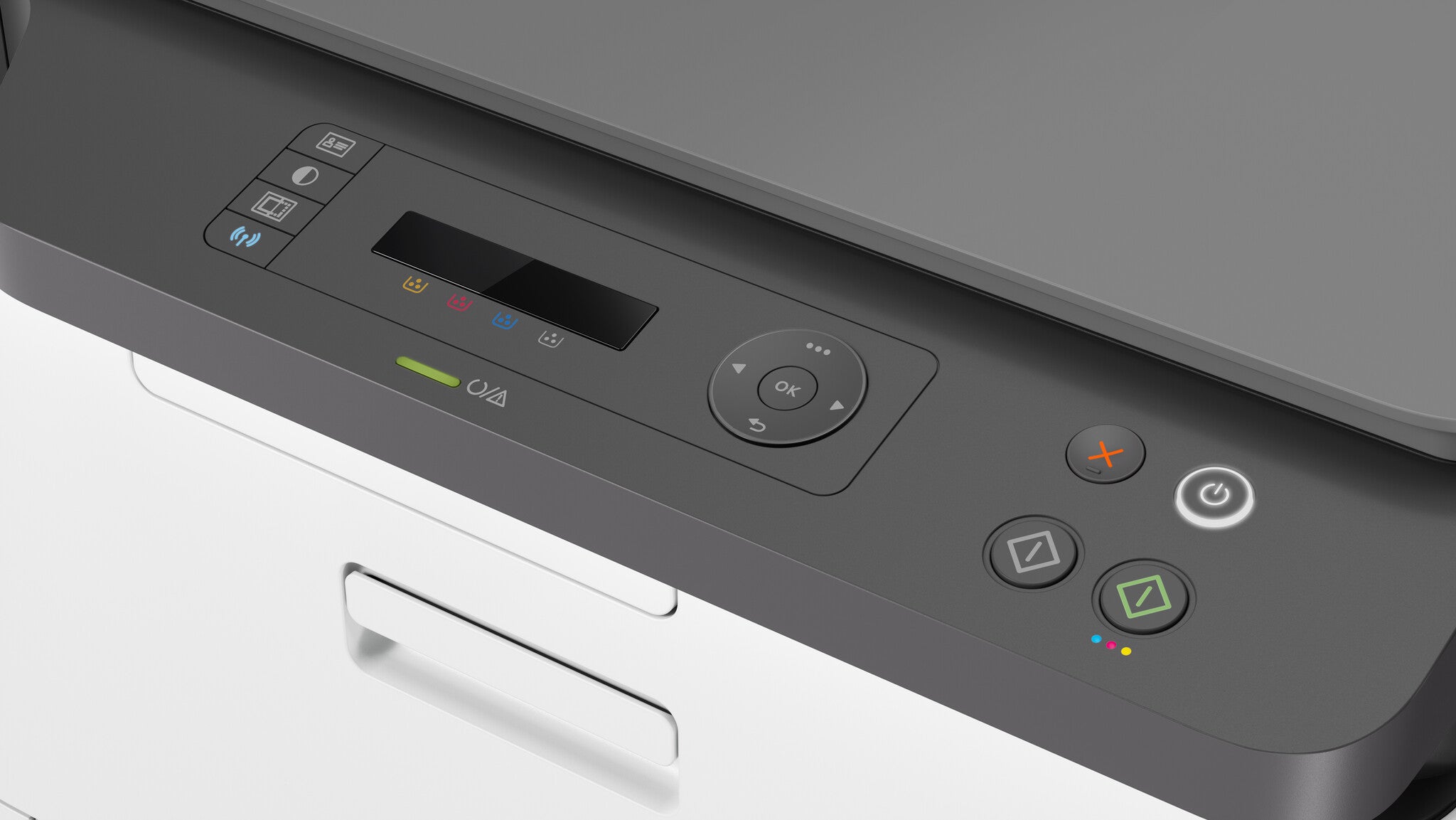

| Control type |
Buttons |
| Display number of lines |
2 lines |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Grey, White |
| Market positioning |
Home & office |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
110 - 240 V |
| Energy Star Typical Electricity Consumption (TEC) |
1.093 kWh/week |
| Power consumption (off) |
0.2 W |
| Power consumption (PowerSave) |
0.2 W |
| Power consumption (ready) |
38 W |
| Power consumption (printing) |
300 W |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.11 El Capitan |
| Windows operating systems supported |
Windows 8, Windows 11 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 40 °C |
| Operating temperature (T-T) |
10 - 30 °C |
| Sustainability |
|---|
| Sustainable technologies and materials |
Mercury free |
| Doesn't contain |
Mercury |
| Carbon footprint |
|---|
| Total carbon emissions, w/o use phase (kg of CO2e) |
26 |
| Carbon emissions, end-of-life (kg of CO2e) |
19 |
| Carbon emissions, logistics (kg of CO2e) |
5 |
| Carbon emissions, manufacturing (kg of CO2e) |
108 |
| Total carbon footprint (kg of CO2e) |
160 |
| Weight & dimensions |
|---|
| Pallet dimensions (W x D x H) |
1014 x 944 x 2390 mm |
| Weight |
12.9 kg |

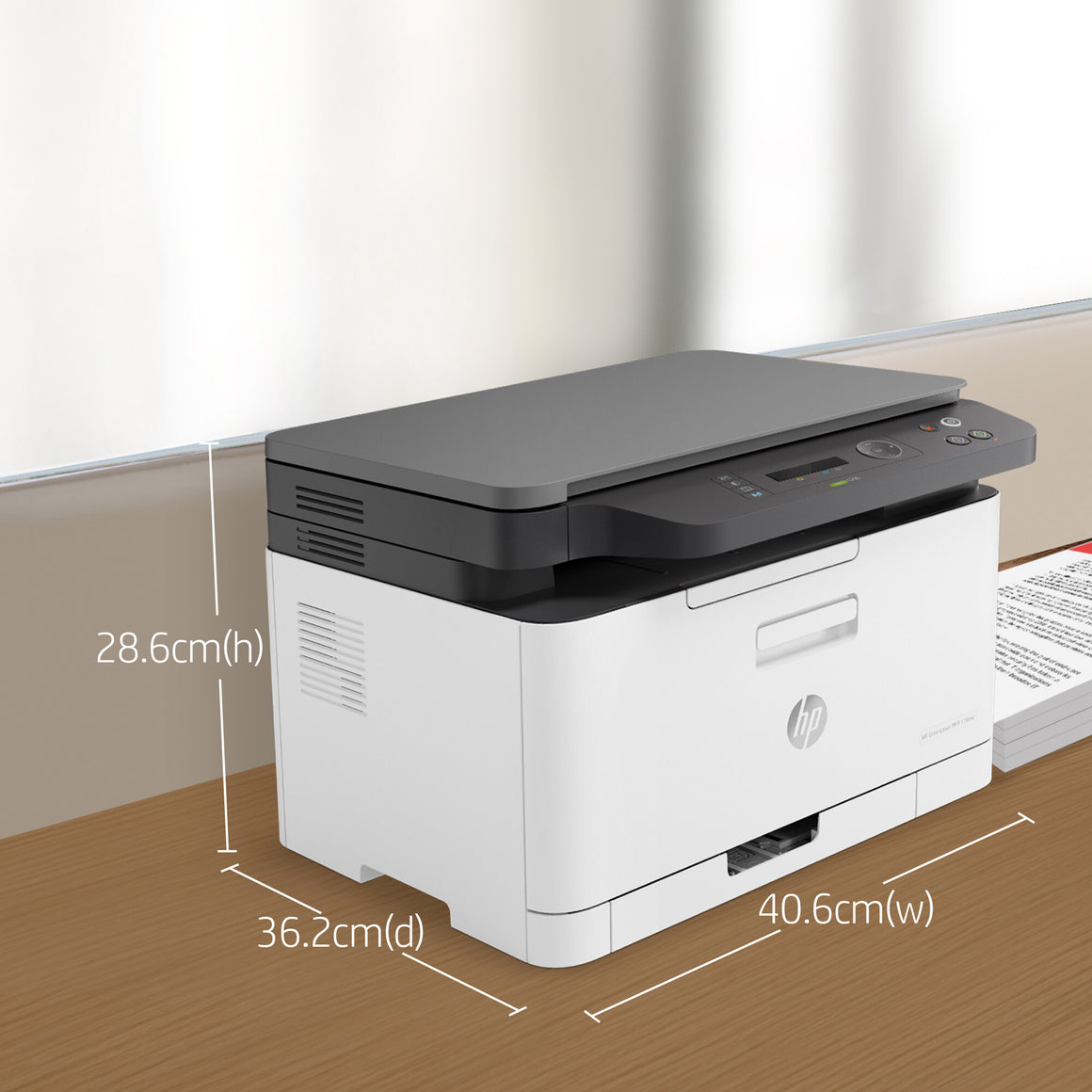

| Height |
288.7 mm |
| Depth |
363 mm |
| Width |
406 mm |
| Packaging data |
|---|
| Package weight |
16.1 kg |
| Package height |
398 mm |
| Package depth |
4660 mm |
| Package width |
5010 mm |
| Packaging content |
|---|
| Bundled software |
Common Installer, V3 Print Driver with Lite SM, TWAIN/WIA Driver, HP MFP Scan, OCR program |
| Cables included |
AC, USB |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Warranty card |
Yes |
| Included cartridge capacity (CMY) |
500 pages |
| Included cartridge capacity (black) |
700 pages |
| Cartridge(s) included |
Yes |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) with options |
(ABT) 193015507203; (ABY) 193015507210; (ACQ) 193015507241; (B13) 193905621613; (B19) 193015507258; (BAZ) 193015507265 |
| HP GTIN (EAN/UPC) |
193015507203, 193015507210, 193015507241, 193905621613, 193015507258, 193015507265 |
| HP dynamic security |
Yes |
| HP Auto-On/Auto-Off |
Yes |
| Technical details |
|---|
| Master (outer) cases per pallet layer |
4 pc(s) |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/gb-en/product/setup-user-guides/hp-color-laser-mfp-170-printer-series/model/24494366?sku=4ZB96A ; http://h10032.www1.hp.com/ctg/Manual/c06266695.pdf ; http://h10032.www1.hp.com/ctg/Manual/c06270941.pdf |
| Logistics data |
|---|
| Products per pallet |
24 pc(s) |
| Layers per pallet |
6 pc(s) |
| Master (outer) cases per pallet |
24 pc(s) |
| Pallet gross weight |
395 kg |
| Harmonized System (HS) code |
84433100 |
| Other features |
|---|
| Manufacturer warranty |
One-year limited hardware warranty; For more info please visit us at https://www.support.hp.com |
| Printing |
Colour printing |
| Copier resize |
25 - 400% |
| Greyscale levels |
256 |
| Maximum number of copies |
999 copies |
| Copy speed (black, normal quality, A4) |
14 cpm |
| Copy speed (colour, normal quality, A4) |
4 cpm |

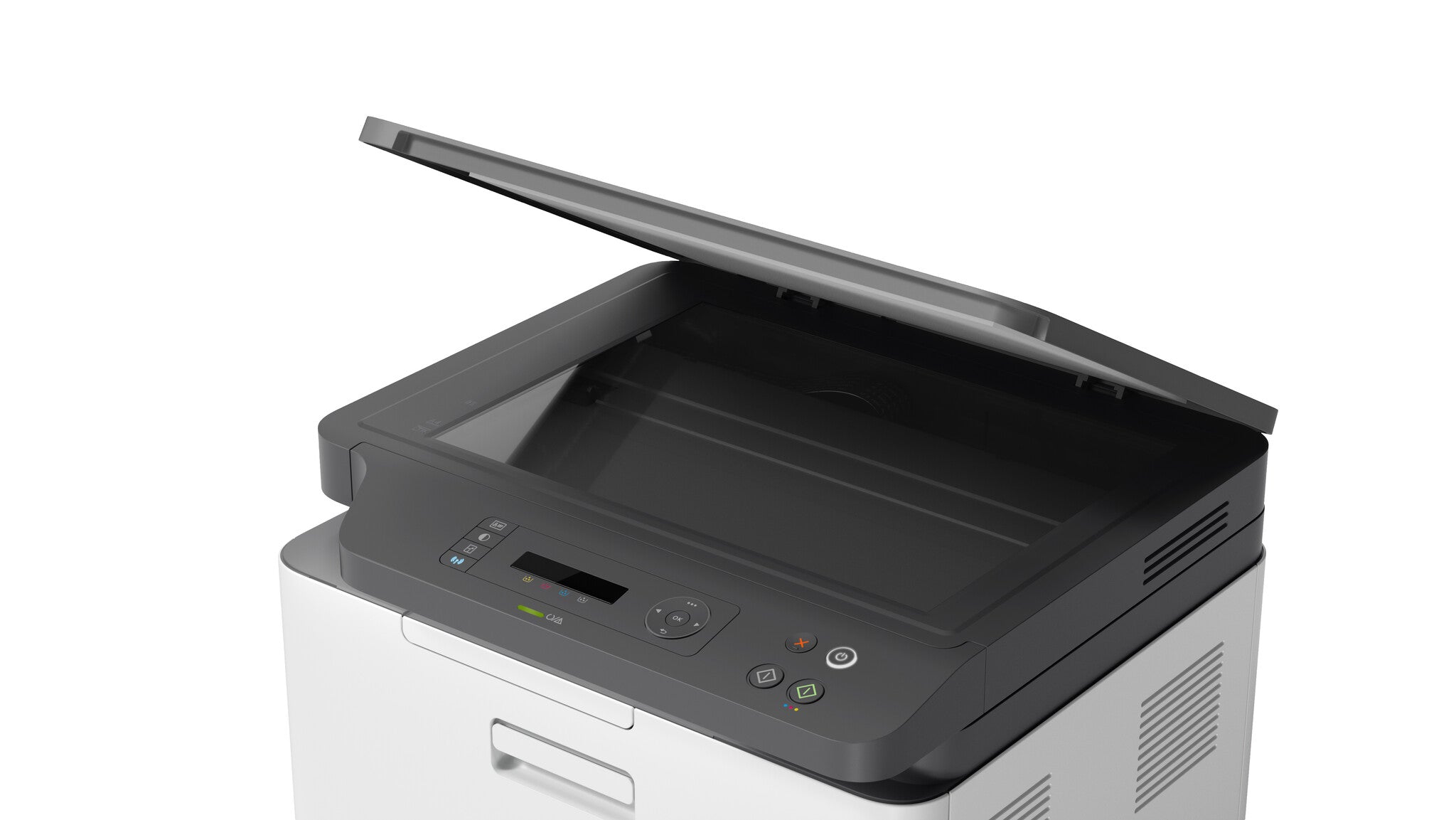

| Maximum scan area |
216 x 297 mm |
| Time to first copy (black, normal) |
12.6 s |
| Time to first copy (colour, normal) |
32.1 s |
| Maximum scan resolution |
19200 x 19200 DPI |
| Optical scanning resolution |
600 x 600 DPI |
| Recommended system requirements |
Windows 10 or newer, Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher, 1 GB RAM, 16 GB HDD |
| All-In-One-multitasking |
Yes |
