Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
|---|
| Print head |
1 |
| Printing colours |
Cyan, Matte black, Magenta, Yellow |
| Page description languages |
HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Number of print cartridges |
4 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Inkjet |
| Copying |
|---|
| Copier resize |
50 - 400% |
| Maximum number of copies |
99 copies |
| Maximum copy resolution |
600 x 600 DPI |
| Copying |
Colour copying |
| Scanning |
|---|
| Maximum scan length |
2.77 m |
| Maximum media thickness |
0.8 mm |
| Maximum scan width |
61 cm |
| Accuracy |
0.1% |
| Scan to |
Cloud, E-mail, USB |
| Scan technology |
CIS |
| Maximum scan resolution |
600 x 600 DPI |
| Optical scanning resolution |
600 x 600 DPI |
| Scanning |
Colour scanning |
| Paper handling |
|---|
| Custom media sizes |
Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm |
| Print margin cut-sheet |
5 x 5 x 5 x 5 |

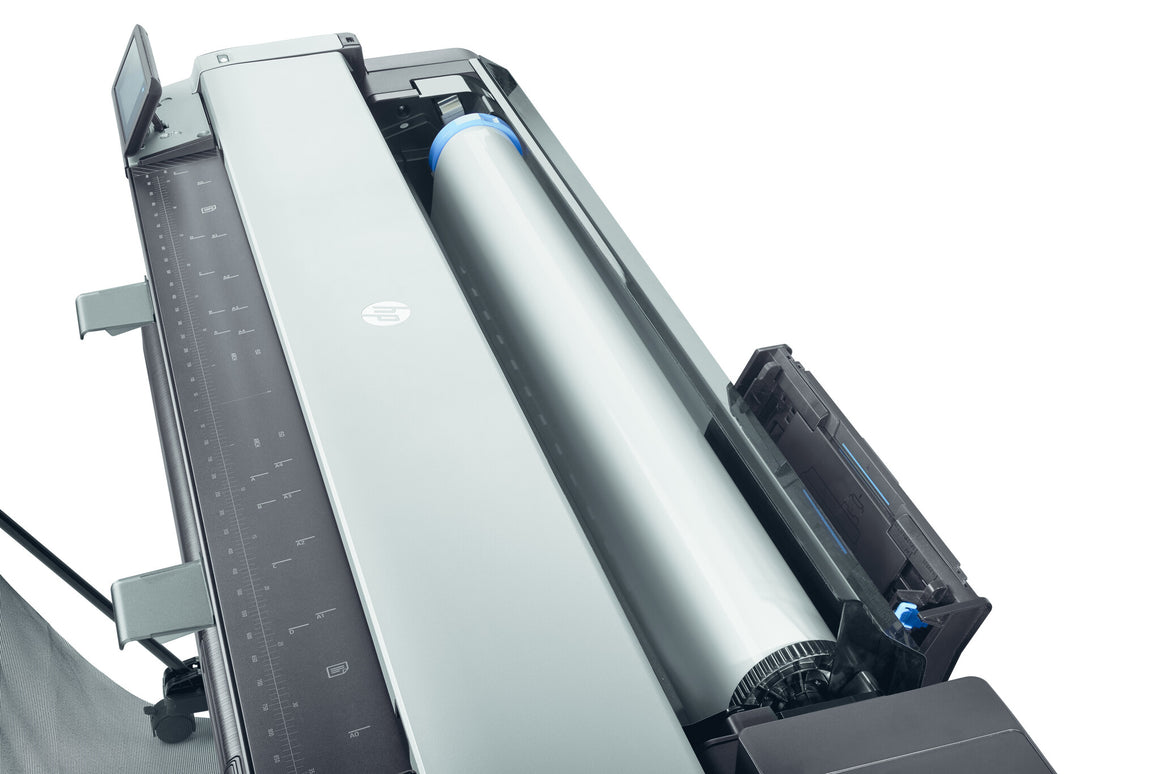

| Maximum roll diameter |
10 cm |
| Media thickness |
0.8 mm |
| Cut sheets |
Yes |
| Borderless printing media sizes |
A3, A4 |
| ISO A-series sizes (A0...A9) |
A1, A2, A3, A4 |
| Paper tray media types |
Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Recycled paper, Matte paper, Heavy paper, Satin paper |
| Maximum print size |
610 x 1897 mm |
| Ports & interfaces |
|---|
| Mobile printing technologies |
HP ePrint, Apple AirPrint |
| Wi-Fi Direct |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Direct printing |
Yes |
| USB connector |
USB Type-A |
| USB port |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Performance |
|---|
| HP segment |
Business |
| Certification |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Country of origin |
China, Thailand |
| Sound pressure level (printing) |
48 dB |
| Sound power level (standby) |
16 dB |
| Maximum internal memory |
1024 MB |
| Internal memory |
1024 MB |
| Product colour |
Black, Silver |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) |
194850951664 |
| HP dynamic security |
Yes |
| HP ePrint |
Yes |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.2 W |
| Power consumption (typical) |
35 W |
| Power consumption (off) |
0.2 W |
| Power consumption (sleep) |
3.5 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 40 °C |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
Forest Stewardship Council (FSC) |
| Sustainable technologies and materials |
Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered |

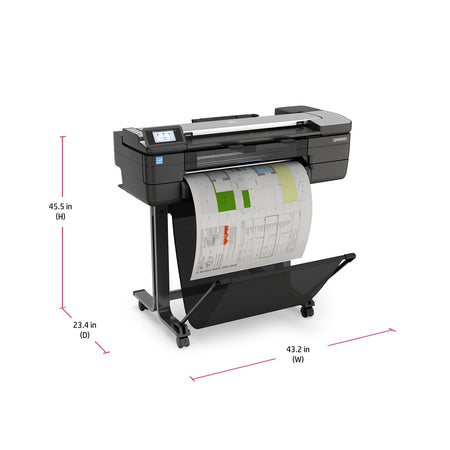

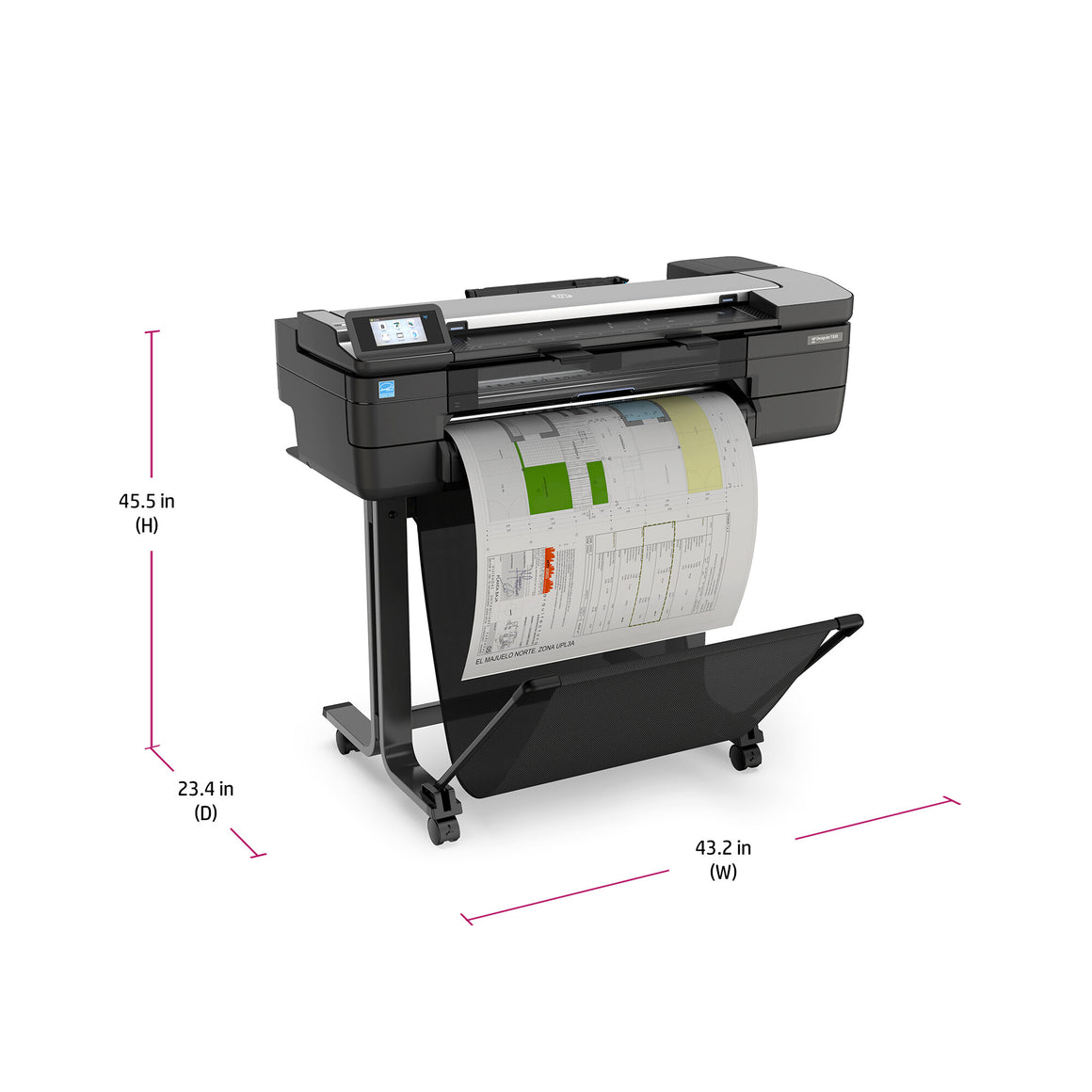

| Weight & dimensions |
|---|
| Weight |
46.7 kg |
| Height |
1155 mm |
| Depth |
605 mm |
| Width |
1098 mm |
| Packaging data |
|---|
| Cartridge(s) included |
Yes |
| General |
|---|
| Product family |
Designjet |
| Other features |
|---|
| UNSPSC-code |
43212110 |
| Maximum internal memory |
1 GB |
| All-In-One-multitasking |
Yes |
| Electromagnetic compatibility |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Technical details |
|---|
| Box contents |

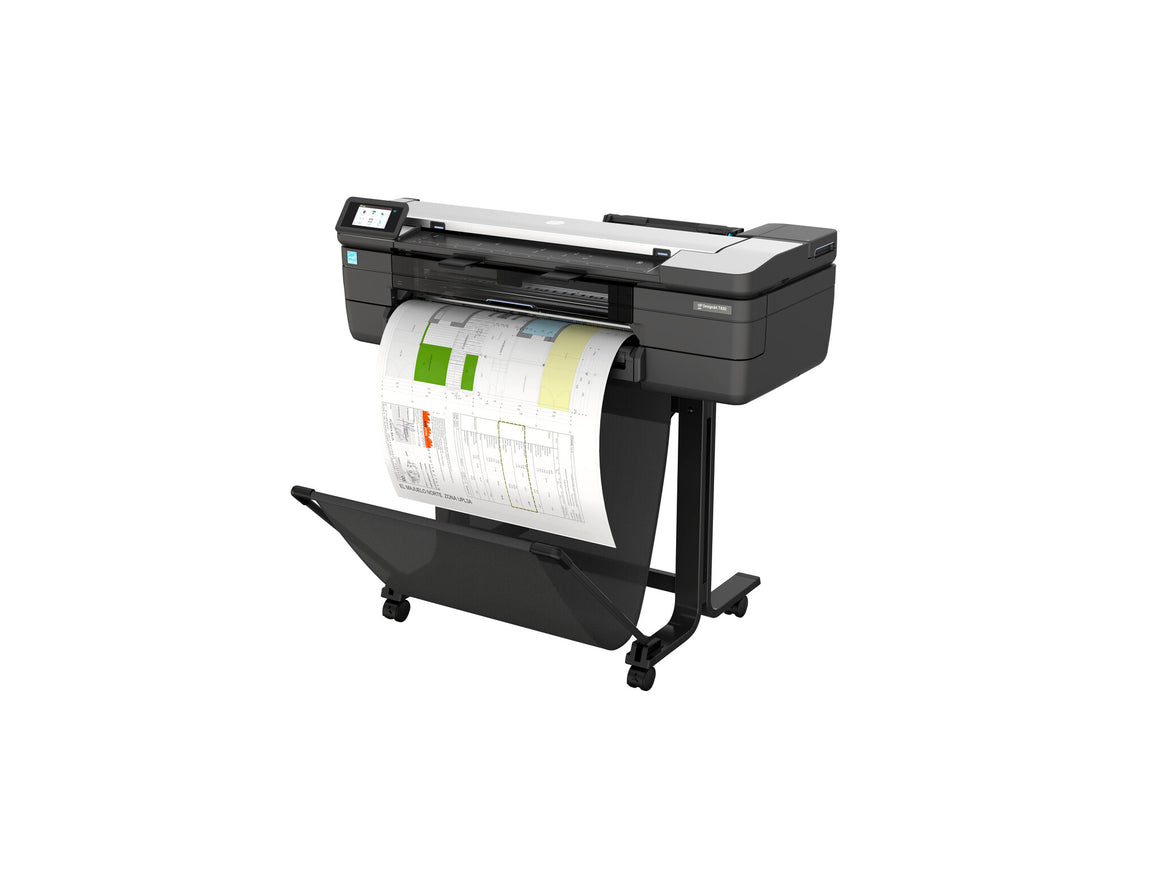

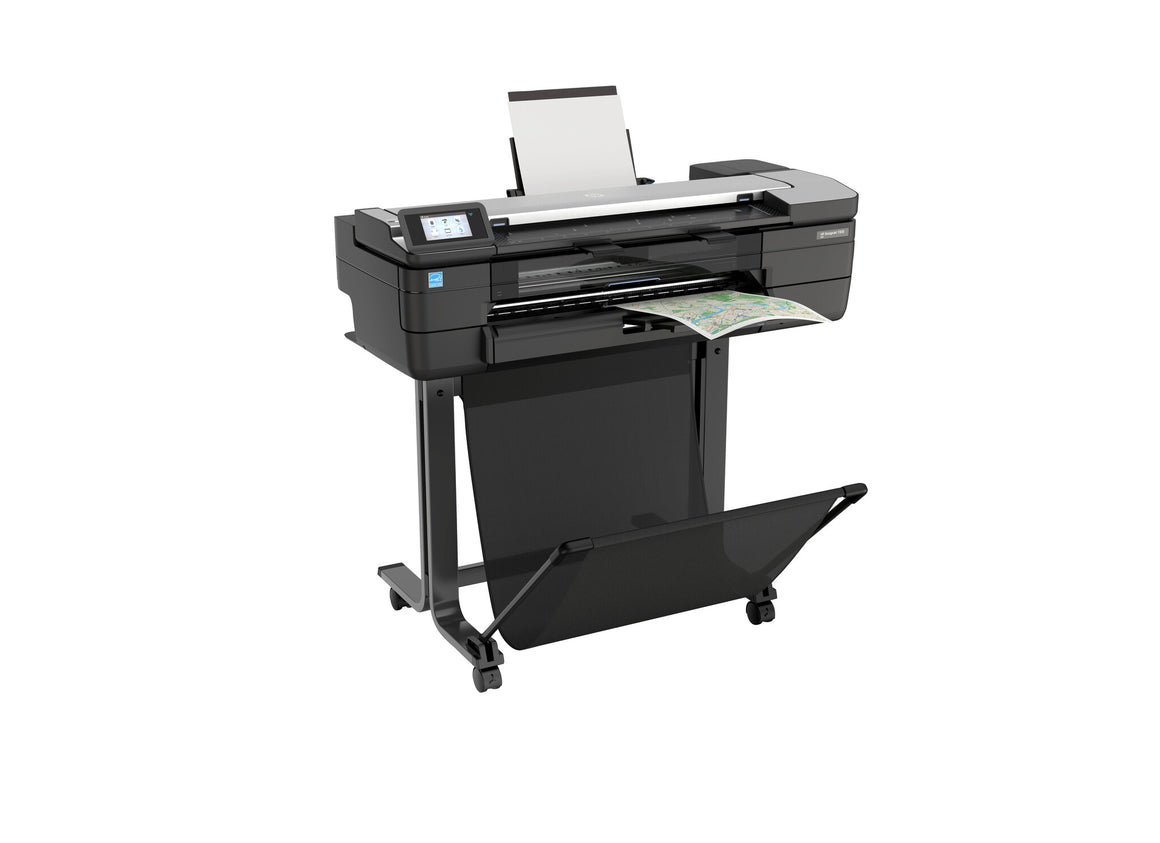

HP DesignJet T830 24-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/gb-en/product/setup-user-guides/hp-designjet-t830-multifunction-printer-series/model/17142335?sku=F9A28D ; https://h10032.www1.hp.com/ctg/Manual/c04905853.pdf |
