Supercharge your workflow

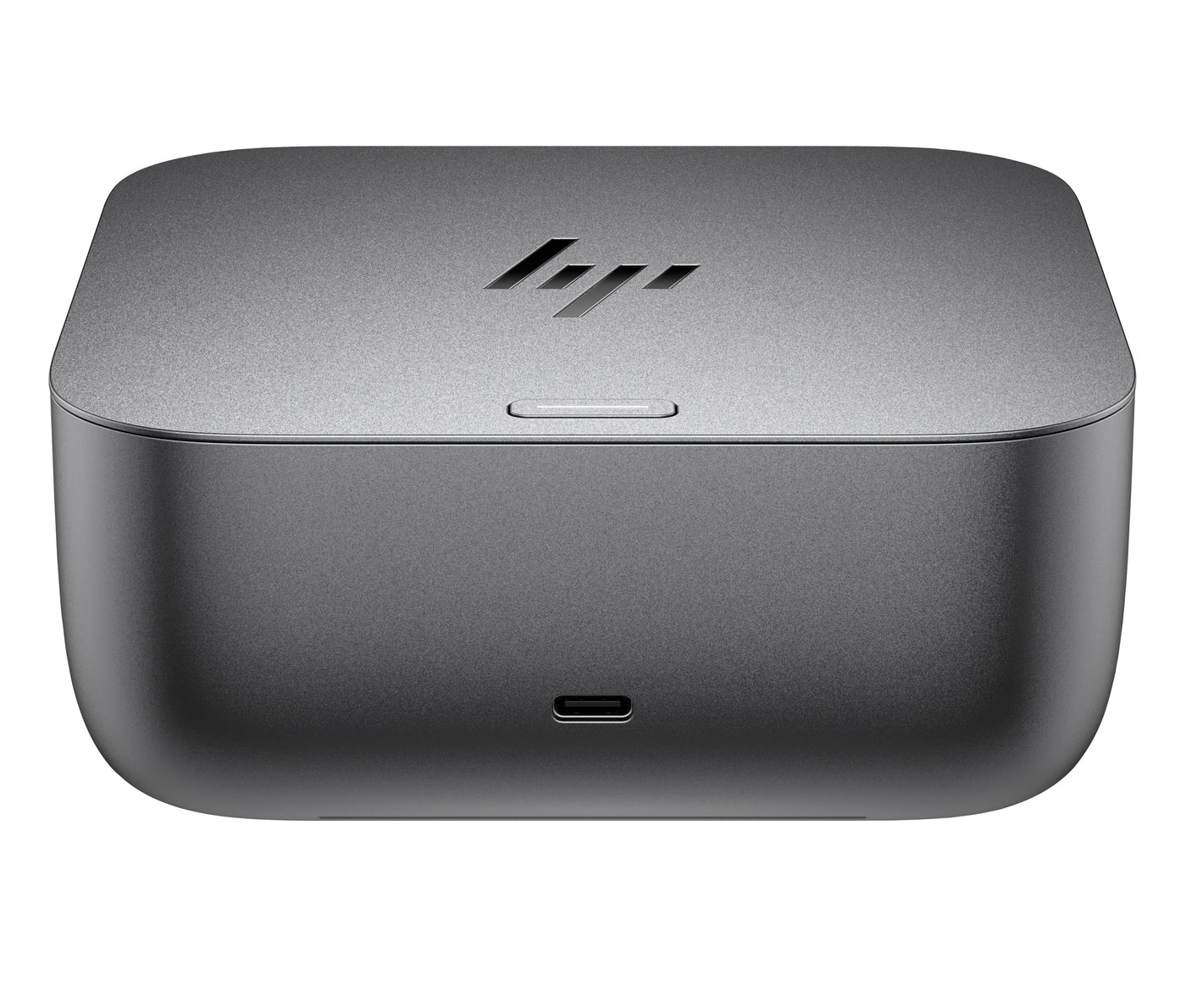

Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 180W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.
Key features
- Find true momentum with uninterrupted connections to your devices. HP Quick Connect<sup>[1]</sup> wakes your devices before you even take a seat. Stay in your flow all day with up to 180W<sup>[3]</sup> of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology<sup>[2]</sup> and all the ports you need to connect your setup.
- Cloud manageability with Poly Lens<sup>[4]</sup> unlocks hands-off manageability from anywhere. Administer automatic firmware updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.
- Prevent potential threats with HP Wolf Security<sup>[5]</sup>, interlacing HP Sure Start<sup>[6]</sup> and Zero Trust Framework to provide complete end-to-end security. Work and rest easy knowing everything from the dock to the cloud is protected.
- Thoughtfully designed with longevity in mind. Durably crafted<sup>[7]</sup> with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Consciously wrapped in plastic-free packaging<sup>[8]</sup>.
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
3 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
180 W |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Thunderbolt 4 ports quantity |
1 |
| Microphone in |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Performance |
|---|
| Card reader integrated |
No |
| HD type |
8K Ultra HD |
| Maximum refresh rate |
360 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Nano |
| Product colour |
Grey |
| LED indicators |
Power |
| Country of origin |
China, Thailand, Mexico |
| Compatibility |
Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| HP segment |
Business |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
MacOS |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
-15 - 3048 m |
| Non-operating altitude |
-15 - 12192 m |
| Sustainability |
|---|
| Sustainable technologies and materials |
35% post-consumer recycled plastic |
| Weight & dimensions |
|---|
| Width |
121 mm |
| Depth |
121 mm |
| Height |
49.5 mm |
| Weight |
790 g |
| Packaging data |
|---|
| Package width |
396 mm |
| Package depth |
171 mm |
| Package height |
95 mm |
| Package weight |
1.14 kg |
| Packaging content |
|---|
| Warranty card |
Yes |
| Cables included |
AC |
| Carbon footprint |
|---|
| Total carbon footprint (kg of CO2e) |
10 |
| Carbon emissions, manufacturing (kg of CO2e) |
7 |
| Carbon emissions, logistics (kg of CO2e) |
0.3 |
| Carbon emissions, end-of-life (kg of CO2e) |
0.1 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
2 |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) with options |
(ABB) 198415314925; (ABU) 198415314994 |
| HP GTIN (EAN/UPC) |
198415314925, 198415314994 |
| Technical details |
|---|
| Box contents |
HP Thunderbolt 4 Ultra 180W G6 Dock; 230 W power adapter; Thunderbolt™ 4 cable (1 m); Power cord; Product notice; Warranty card |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Other features |
|---|
| Compatible operating systems |
Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Pallet dimensions (W x D x H) (imperial) |
1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51") |
| Pallet dimensions (W x D x H) |
1200 x 1000 x 140 mm |
| UNSPSC-code |
43211602 |
| Bundled software |
Poly Lens with automatic firmware updates |
| Special features |
Intel vPro support |
