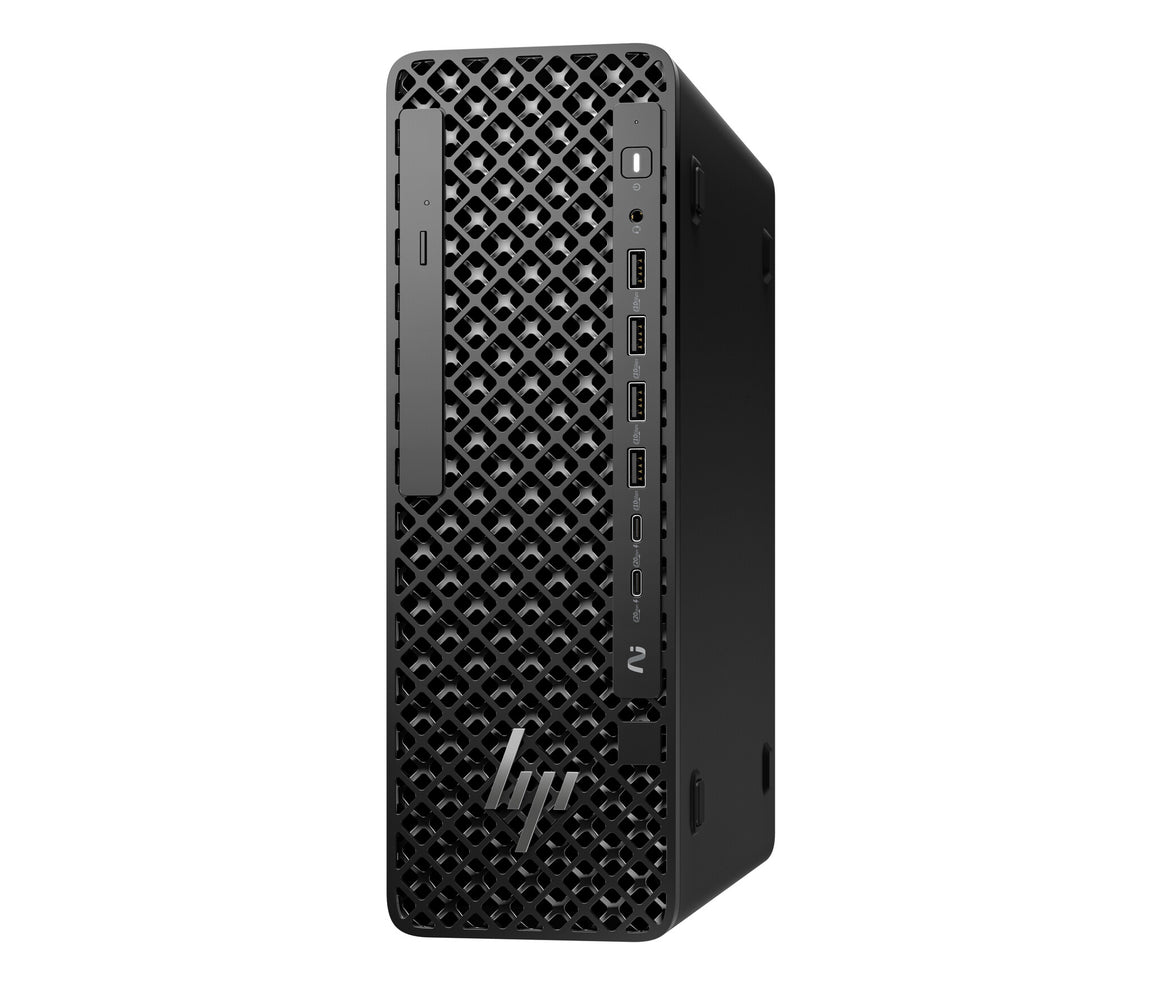

Tower power at a third of the size.
Re-engineered to get all the power of a full-size tower at a fraction of the size. The Z2 SFF AI workstation delivers high performance for intensive workflows—from 3D design to real time ray tracing—now and in the future. When demands change, you have the impressive ability to upgrade and expand.
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
182 W |
| Processor cache type |
Smart Cache |
| Processor cache |
30 MB |
| Efficient-core base frequency |
1.8 GHz |
| Performance-core base frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
20 |
| Processor cores |
20 |
| Processor model |
265 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
8 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
33 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Non-ECC |
Yes |
| Memory clock speed |
5600 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.4 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product type |
Workstation |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) |
199485051994 |
| HP segment |
Business |
| HP Artificial Intelligence |
AI PC, AI Workstation |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
400 W |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainable technologies and materials |
Low halogen; 10% ITE-derived closed loop plastic; 80 Plus® Platinum power supplies available; Product Carbon Footprint; Contains at least 20% post-industrial recycled steel; At least 25% ocean-bound plastic in system fans; System has a QR code enabled experience where the user has access to a product portal – beginning December 2025, this is complete with product feature highlights, sustainability information, getting started guides, and direct setup and support options; New Energy Consumption dashboard available to customers providing timely carbon usage including recommended actions users can take to decrease carbon footprint |
| Weight & dimensions |
|---|
| Package weight |
6.5 kg |
| Package height |
394 mm |
| Package depth |
200 mm |
| Package width |
499 mm |
| Weight |
4 kg |
| Height |
303 mm |
| Depth |
308 mm |
| Width |
100 mm |
| Packaging content |
|---|
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Display included |
No |
| General |
|---|
| Product family |
Z2 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8471500000 |
| Other features |
|---|
| Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Support service included |
HP 3y Onsite Low End Workstation HW Supp. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf |
