Pro-power. Today and tomorrow
Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multi-threaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Processor cache type |
L3 |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Memory clock speed |
4800 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA T1000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
3 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x4 (Gen 3.x) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Product type |
Workstation |
| Software |
|---|
| Bundled software |
HP Wolf Pro Security Edition (3 years) |
| Pre-installed software |
HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Intel® Turbo Boost Technology |
Yes |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) |
198415924674 |
| HP segment |
Business |
| HP Artificial Intelligence |
AI Workstation |
| HP Management tools |
HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) |
| HP Security tools |
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Support Assistant |
Yes |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
450 W |
| Certificates |
|---|
| Low halogen |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO |
| Sustainable technologies and materials |
80 Plus® Gold power supplies available; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker |

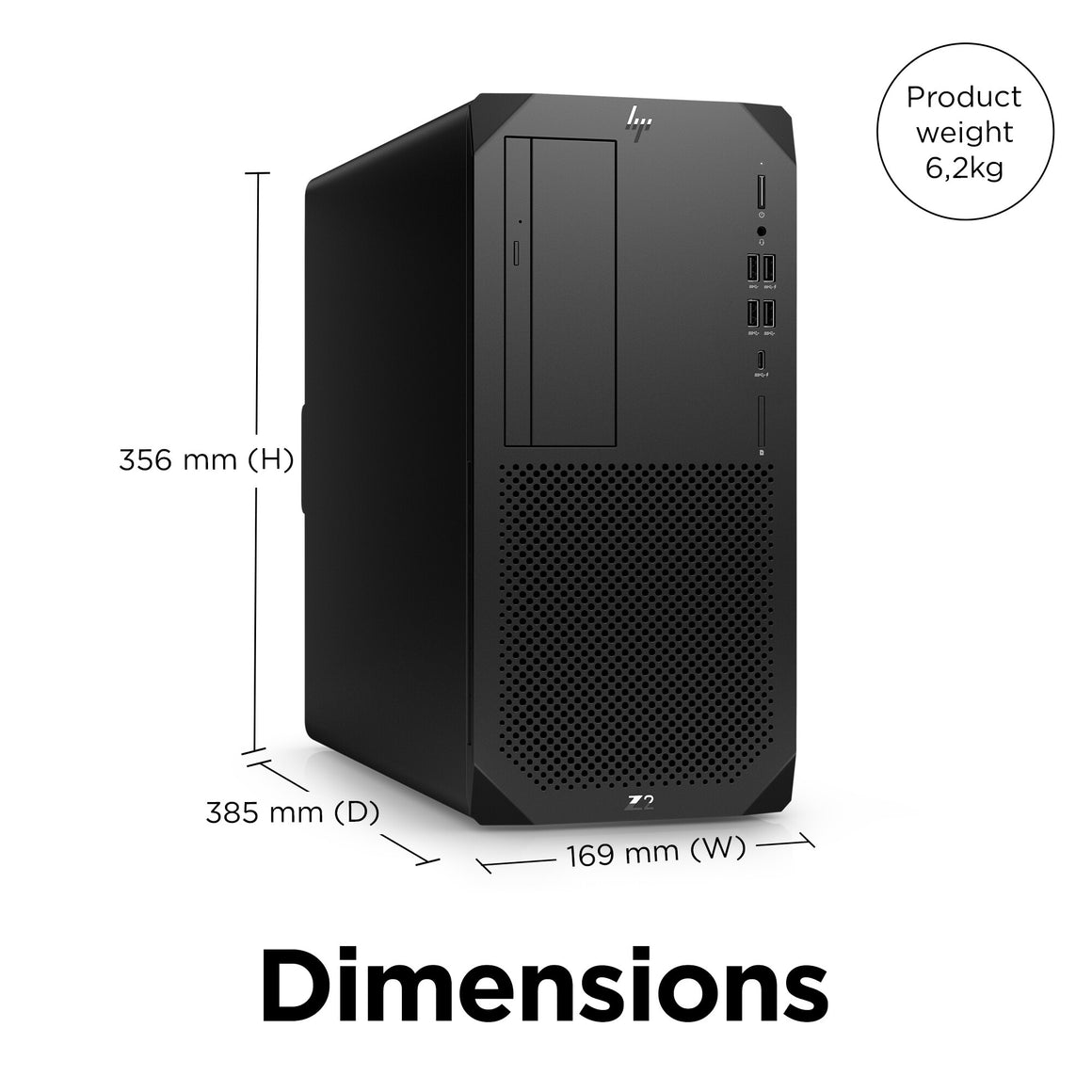

| Weight & dimensions |
|---|
| Package height |
490 mm |
| Package depth |
295 mm |
| Package width |
518 mm |
| Weight |
7.2 kg |
| Height |
356 mm |
| Depth |
169 mm |
| Width |
356 mm |
| Packaging content |
|---|
| Input device model |
HP 125 Wired Mouse |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Display included |
No |
| General |
|---|
| Product family |
Z2 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8471500000 |
| Carbon footprint |
|---|
| Total carbon footprint (kg of CO2e) |
360 |
| Carbon emissions, manufacturing (kg of CO2e) |
222 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
135 |
| Carbon emissions, logistics (kg of CO2e) |
3 |
| Carbon emissions, end-of-life (kg of CO2e) |
2 |
| Technical details |
|---|
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://h10032.www1.hp.com/ctg/Manual/c08154349.pdf |
| Other features |
|---|
| UNSPSC-code |
43211515 |
| Manufacturer warranty |
3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Support service included |
HP 3 Years Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf |
