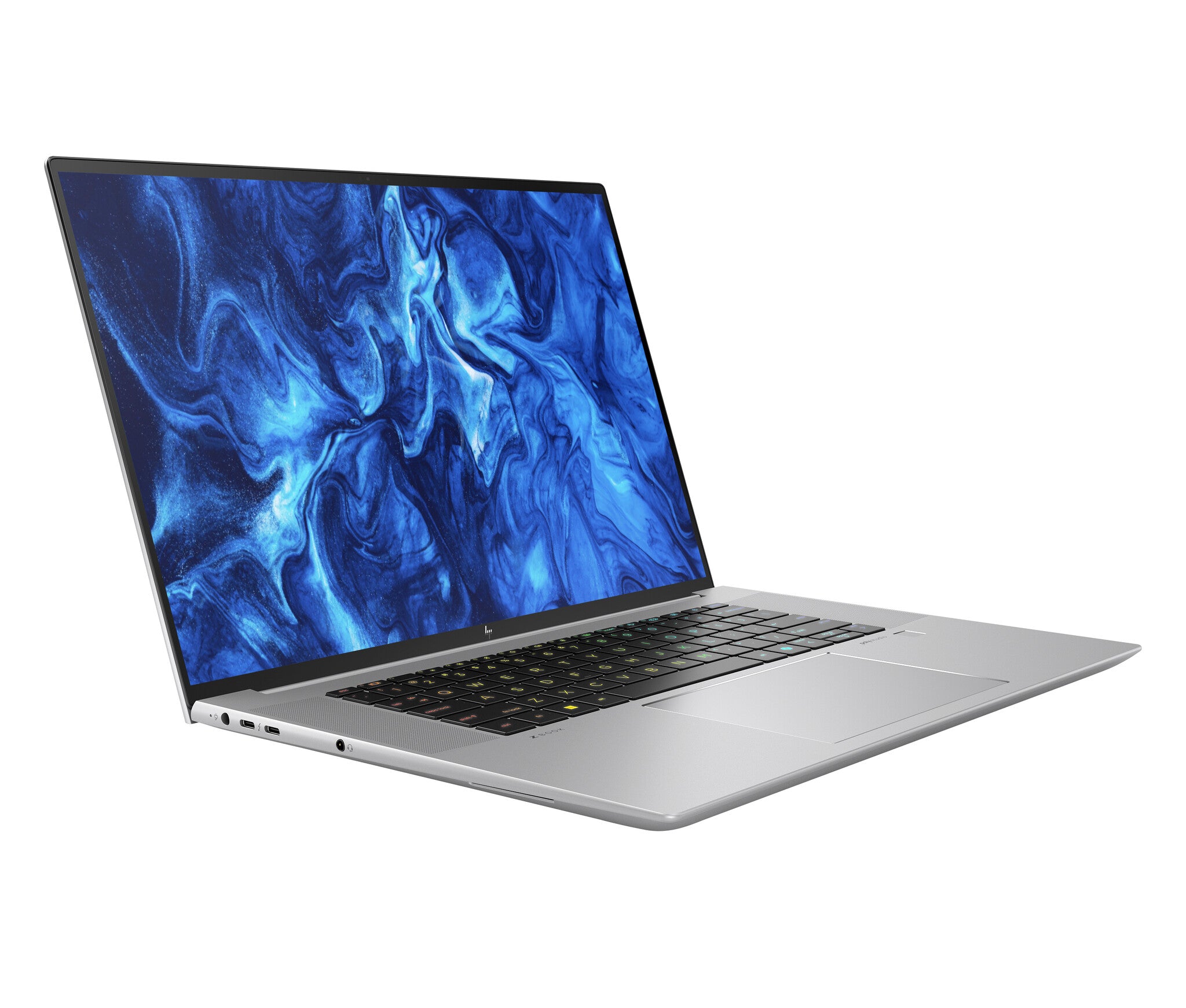

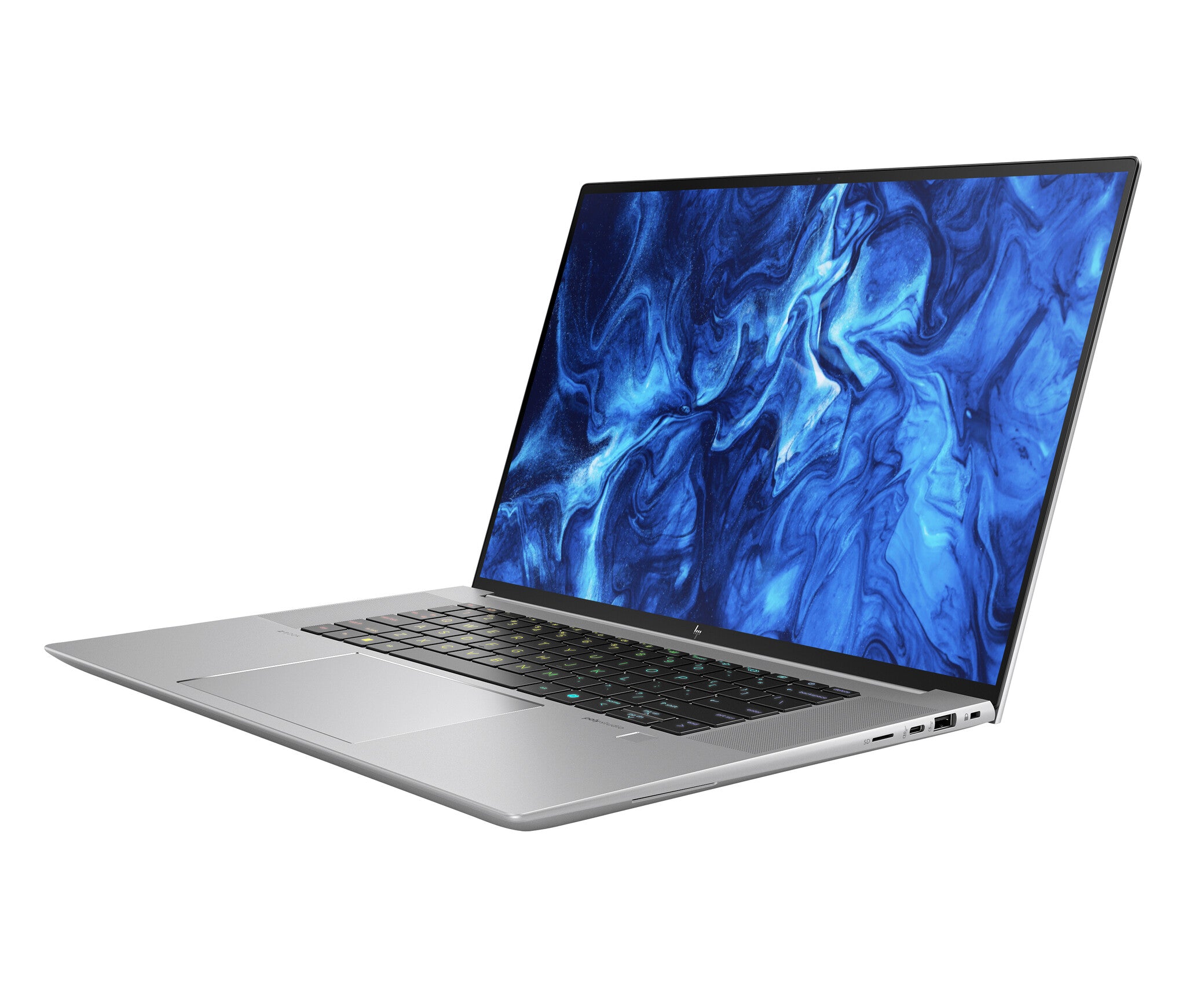

Powerfully immersive. Perfectly sized

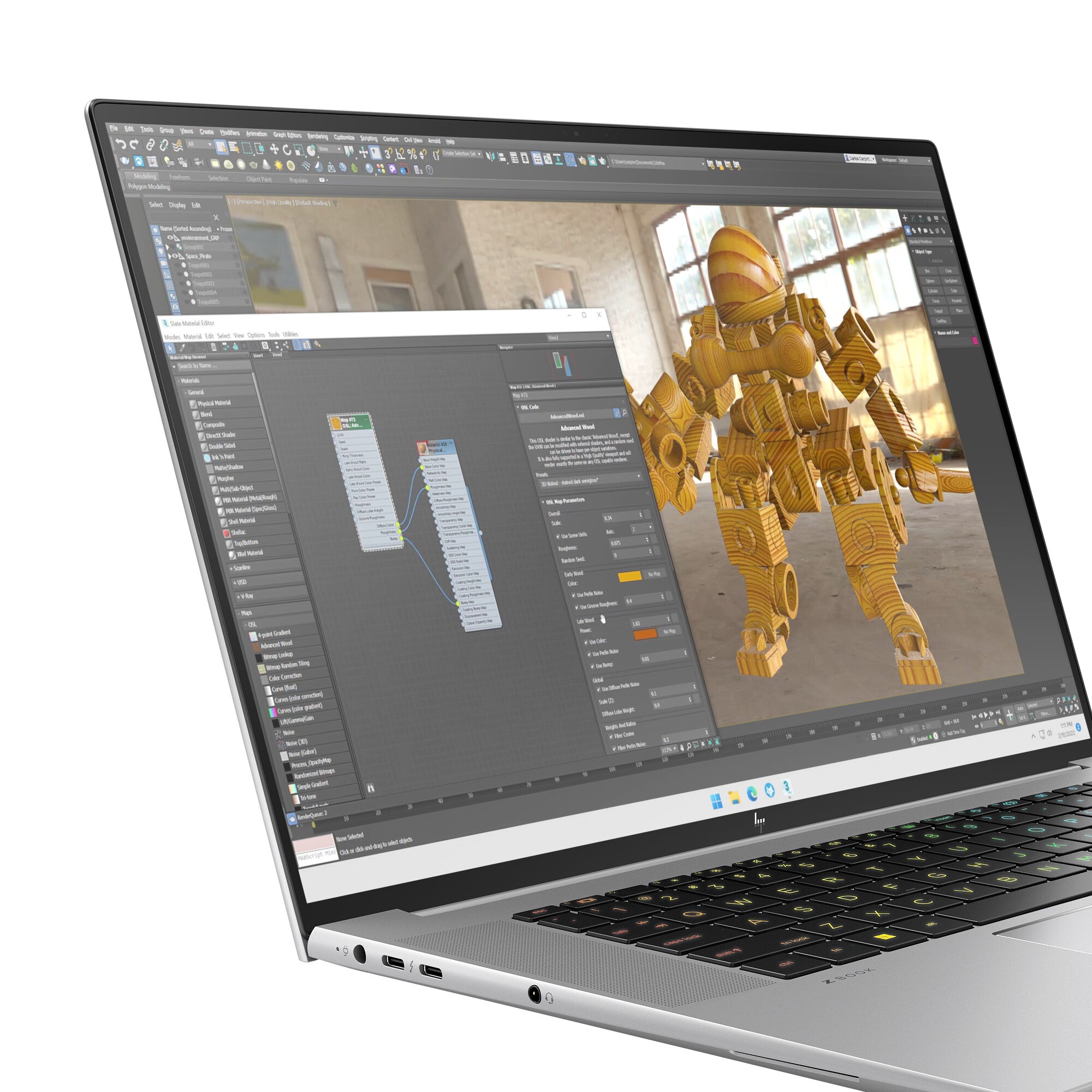

Be ready when inspiration strikes. Packed with professional performance in an incredibly sleek PC that comfortably fits in your bag, the ZBook Studio is engineered to get you in the zone and help you stay focused. Now you can build complex assemblies, render in real-time or visualize data—from anywhere.
| Design |
|---|
| Original brand name |
HP |
| Introduction year |
2024 |
| Market positioning |
Performance |
| Form factor |
Clamshell |
| Product type |
Mobile workstation |

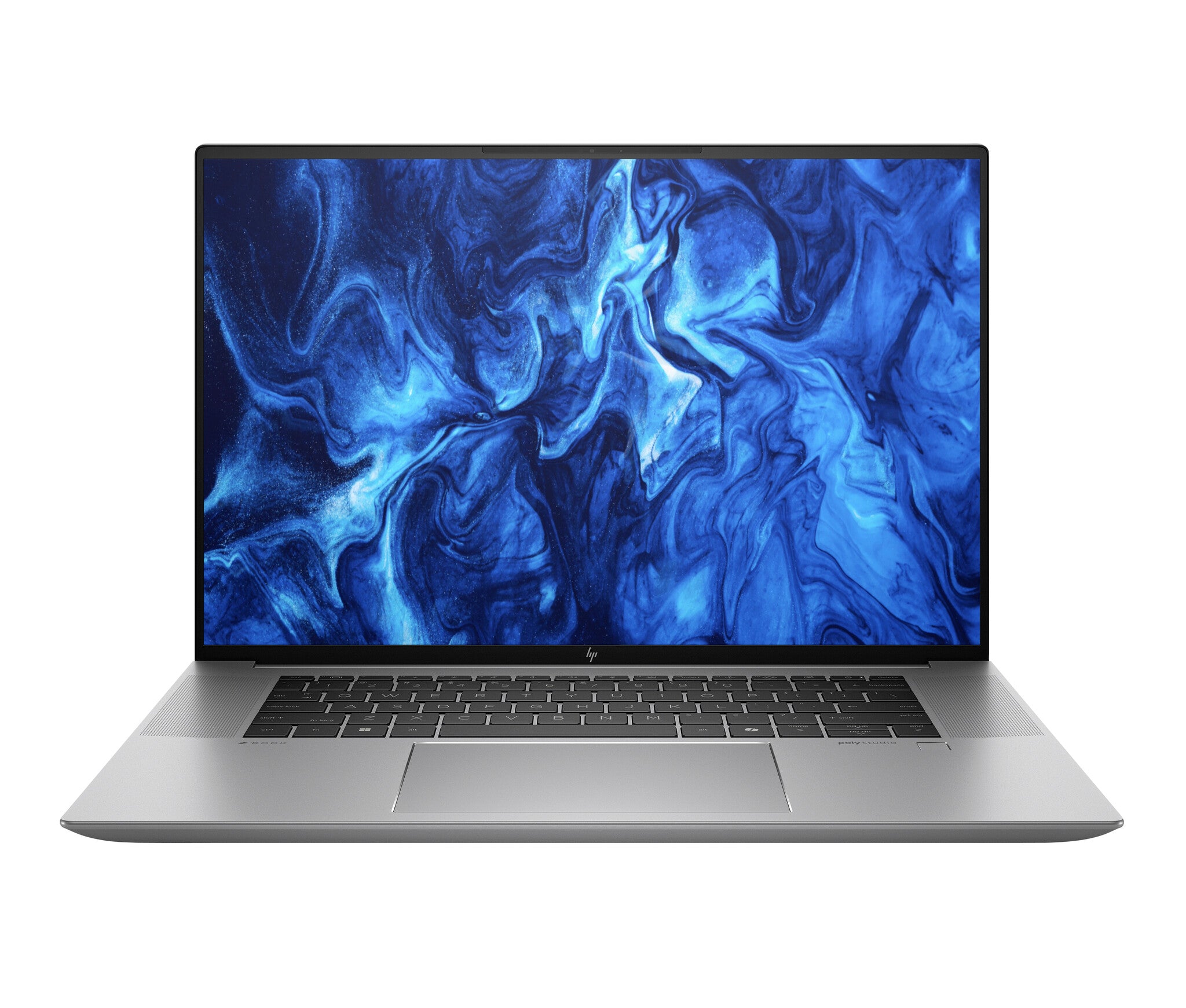

| Display |
|---|
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display diagonal (metric) |
40.6 cm |
| Display brightness |
400 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
|---|
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache type |
L3 |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Maximum frequency NPU |
1.4 GHz |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
|---|
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD memory type |
TLC |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
6 GB |
| Discrete graphics card model |
NVIDIA RTX 1000 Ada |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
|---|
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |

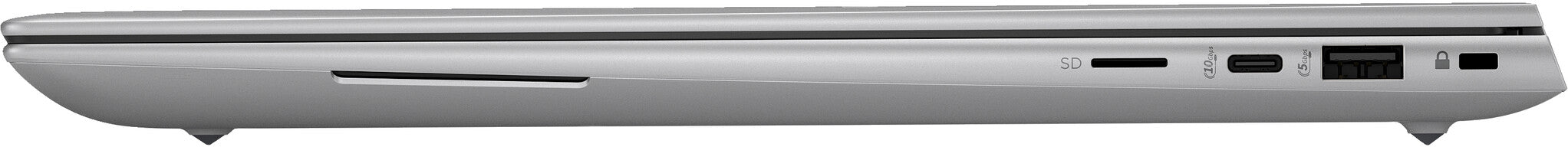

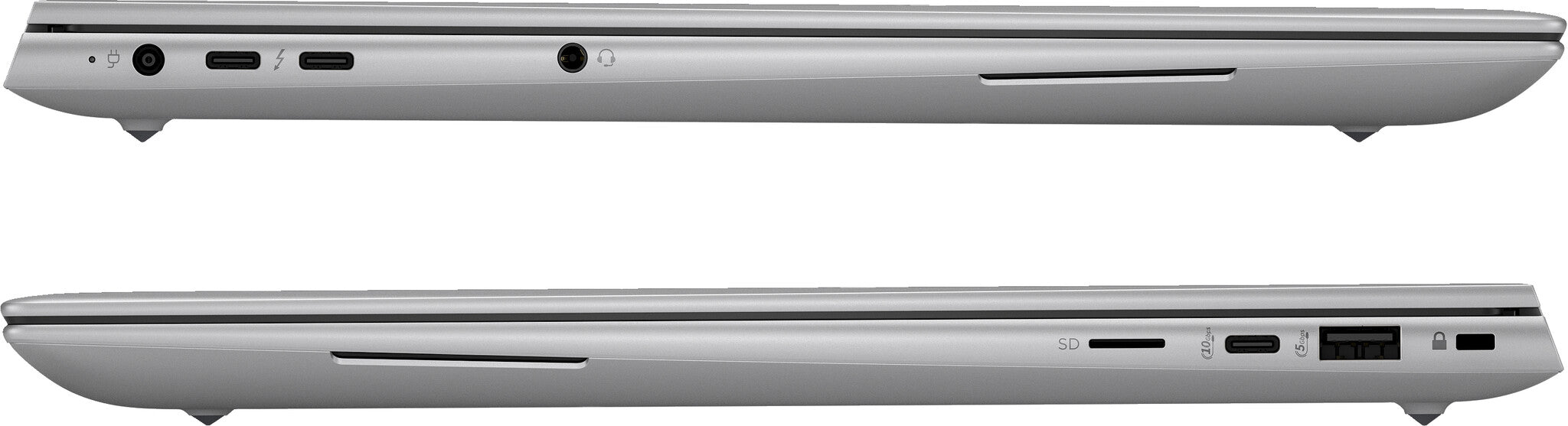

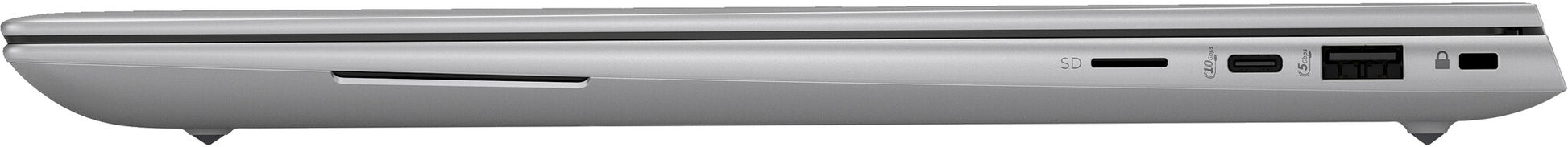

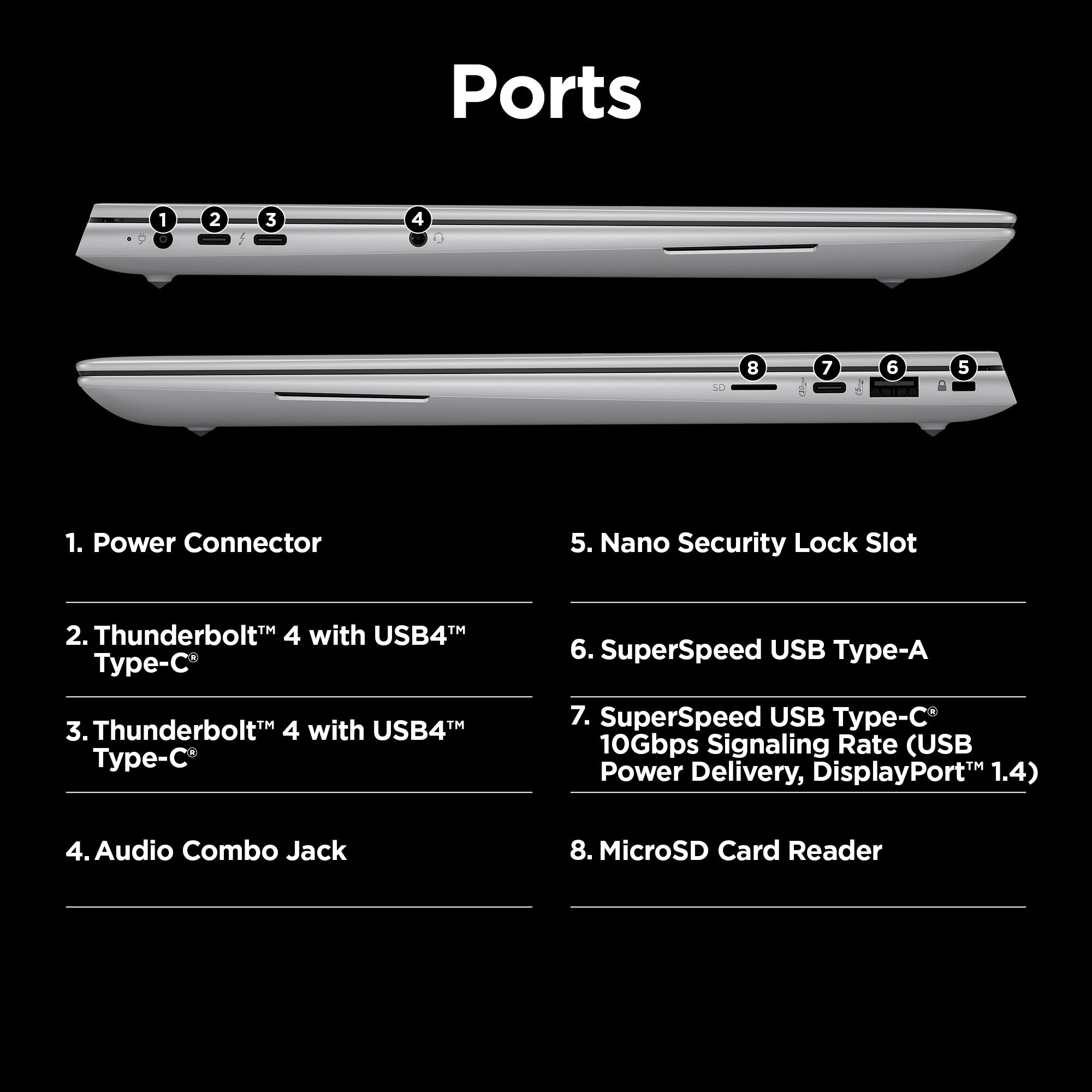

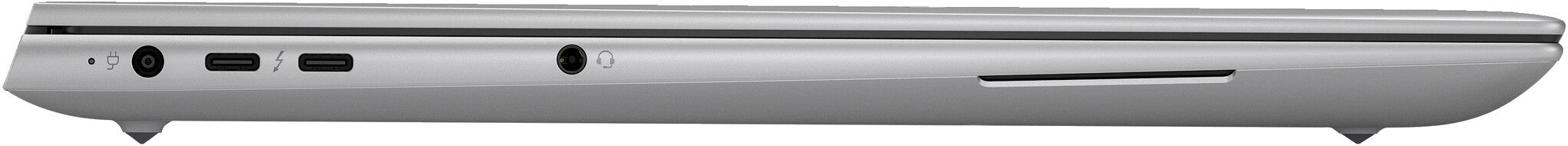

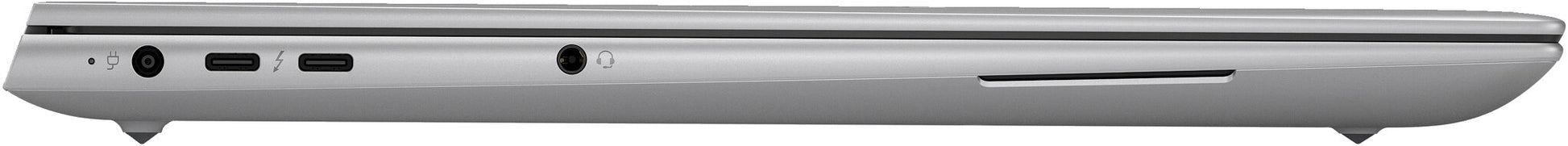

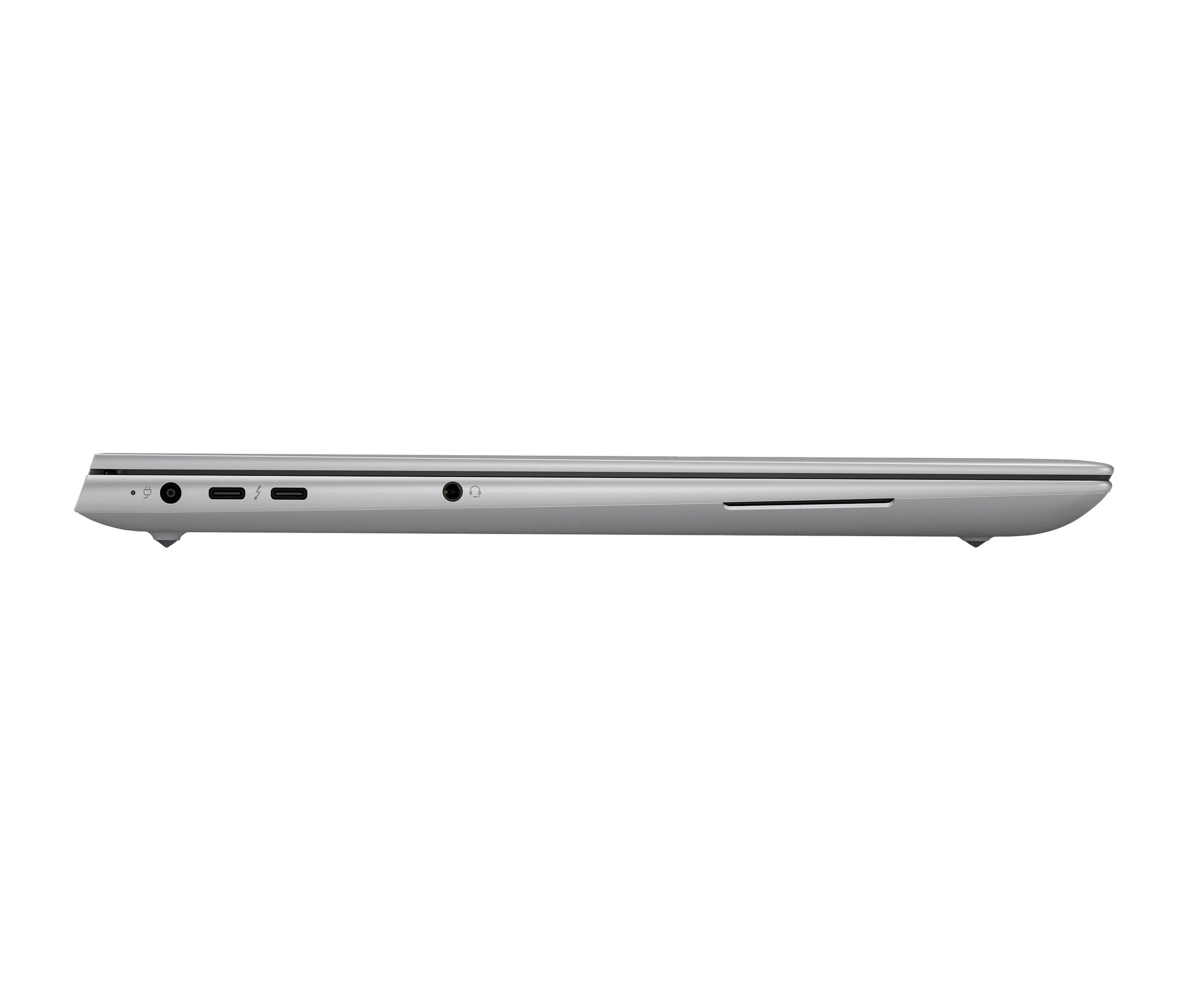

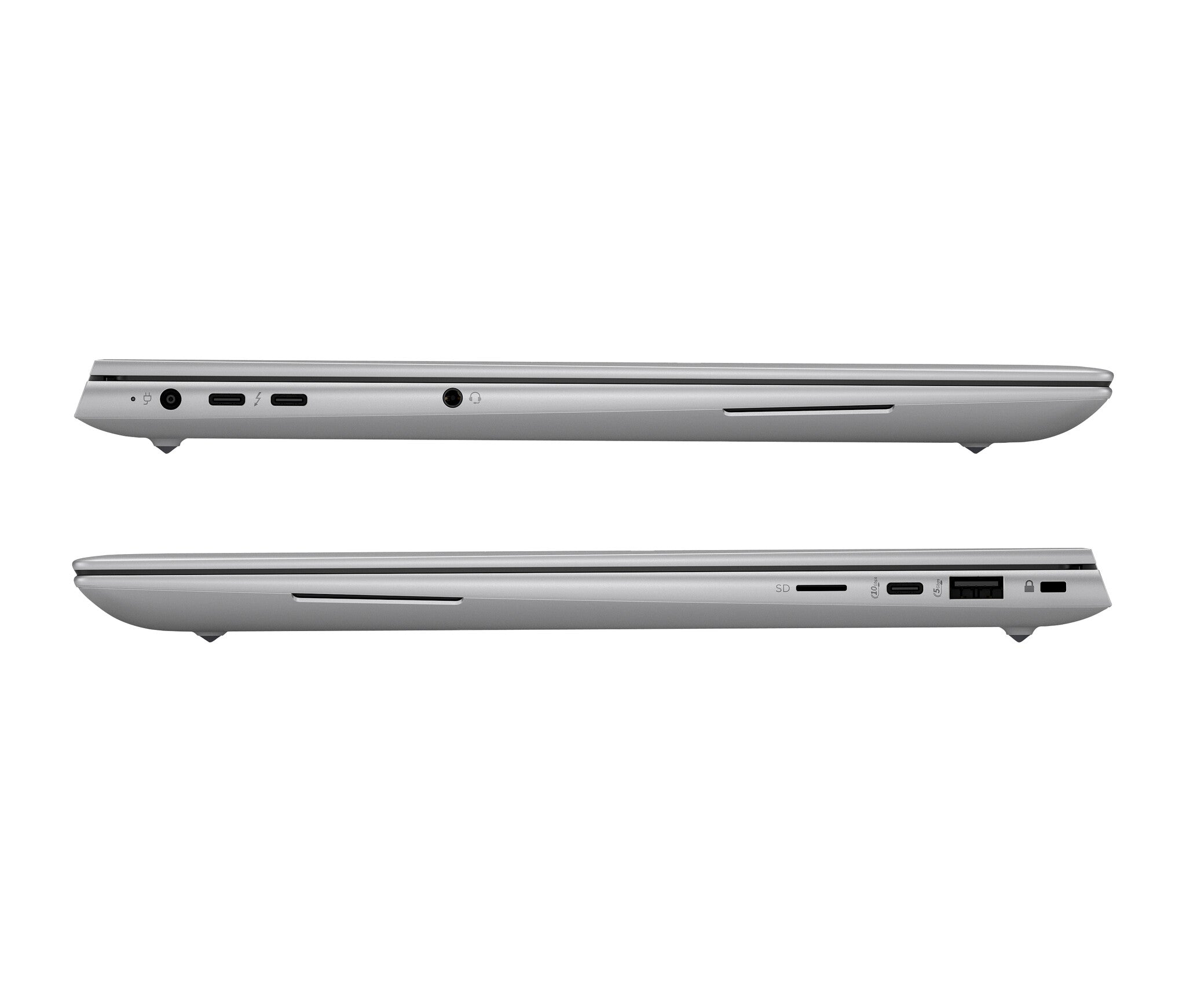

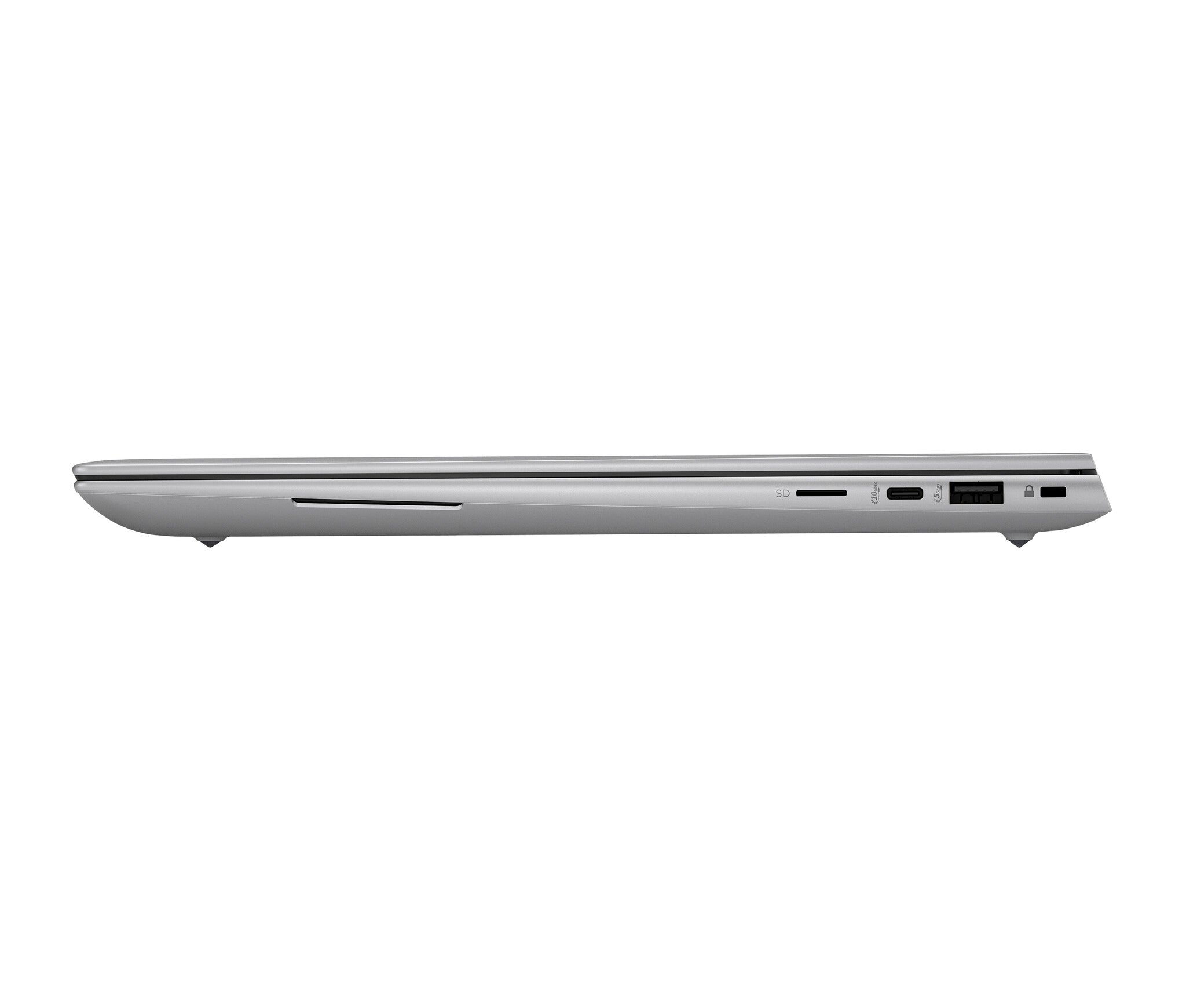

| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Keyboard |
|---|
| Keyboard special features |
Spill-resistant |
| Input device model |
HP Premium Quiet Keyboard |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Pointing device |
Clickpad |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) |
198828255037 |
| HP segment |
Business |
| HP speaker type |
HP Dual Speakers |
| Battery |
|---|
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery capacity |
86 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
150 W |
| Security |
|---|
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Fingerprint reader |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainable technologies and materials |
Low Halogen |
| Sustainability certificates |
TCO |

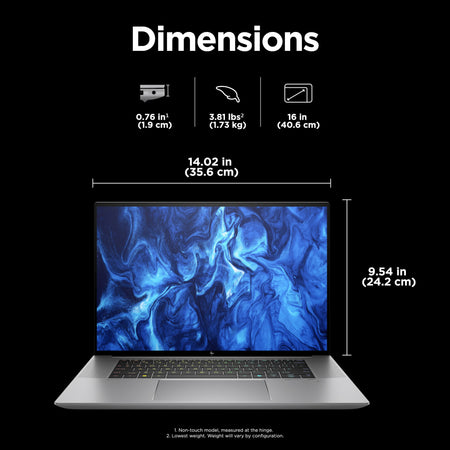

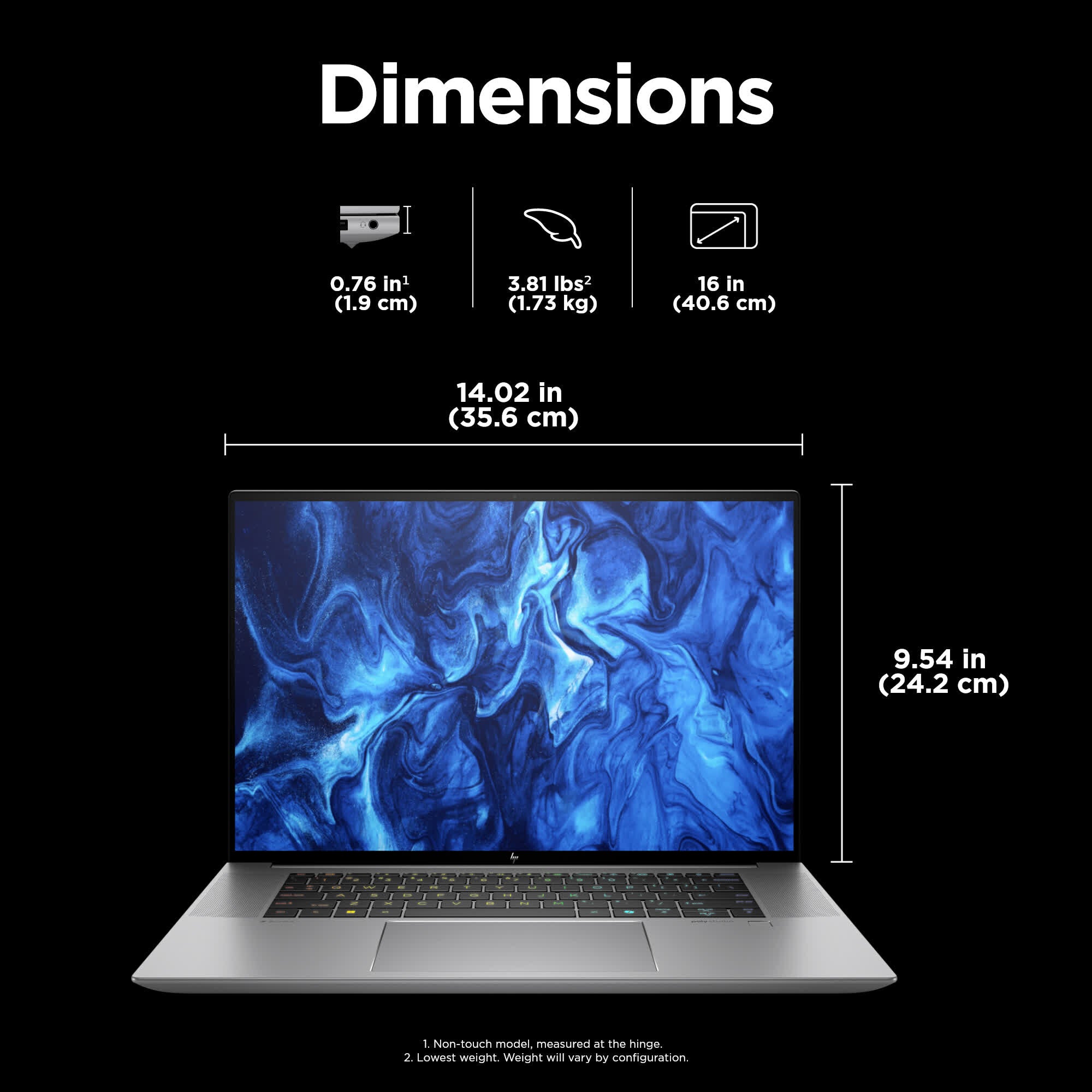

| Weight & dimensions |
|---|
| Height |
19 mm |
| Depth |
242 mm |
| Width |
356 mm |
| Weight |
1.73 kg |
| Packaging data |
|---|
| Package height |
345 mm |
| Package depth |
69 mm |
| Package width |
552 mm |
| General |
|---|
| Product family |
ZBook Studio |
| Other features |
|---|
| Manufacturer warranty |
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
