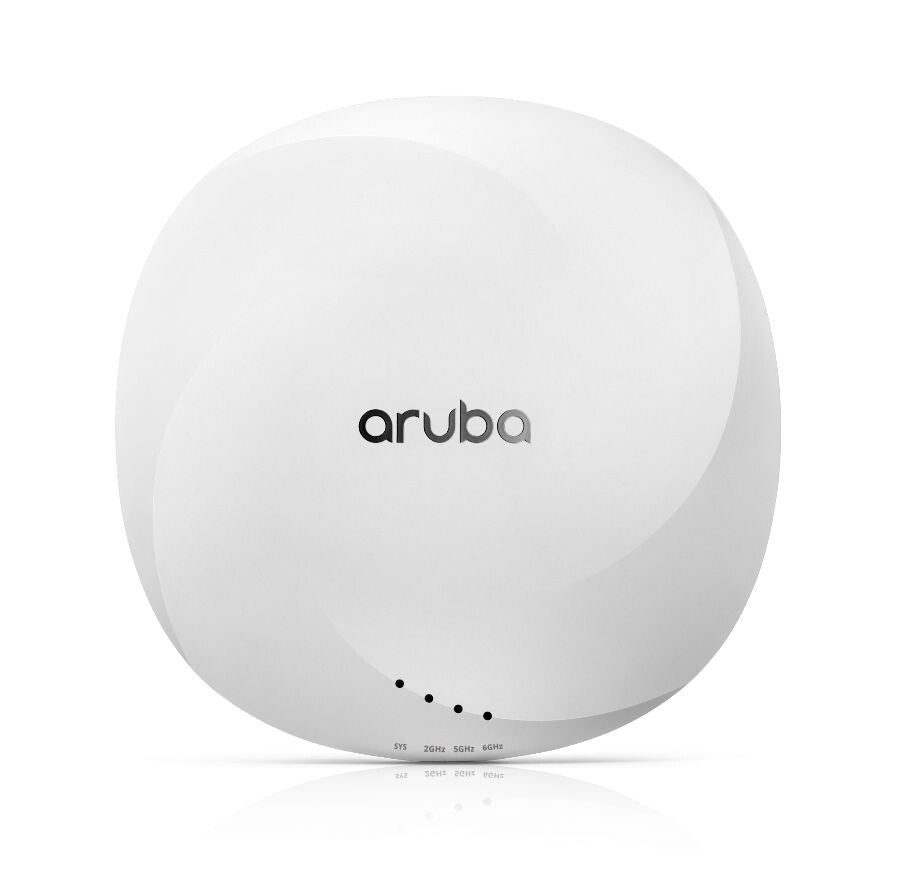

For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.
Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used
with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.
| Features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| MIMO |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate (6 GHz) |
2400 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate |
2400 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3, WPA3-SAE |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Product colour |
White |
| Placement |
Ceiling |
| Antenna |
|---|
| Antenna gain level (max) |
6 dBi |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Aruba Networking |
| Certificates |
|---|
| Certification |
FCC/ISEDCE MarkedRED Directive 2014/53/EUEMC Directive 2014/30/EULow Voltage Directive 2014/35/EUUL/IEC/EN 60950IEC/EN 62368-1EN 60601-1-1, EN60601-1-2 |
| Weight & dimensions |
|---|
| Weight |
520 g |
| Height |
39 mm |
| Depth |
160 mm |
| Width |
160 mm |
| Packaging data |
|---|
| Package weight |
800 g |
| Package height |
66 mm |
| Package depth |
194 mm |
| Package width |
212 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
