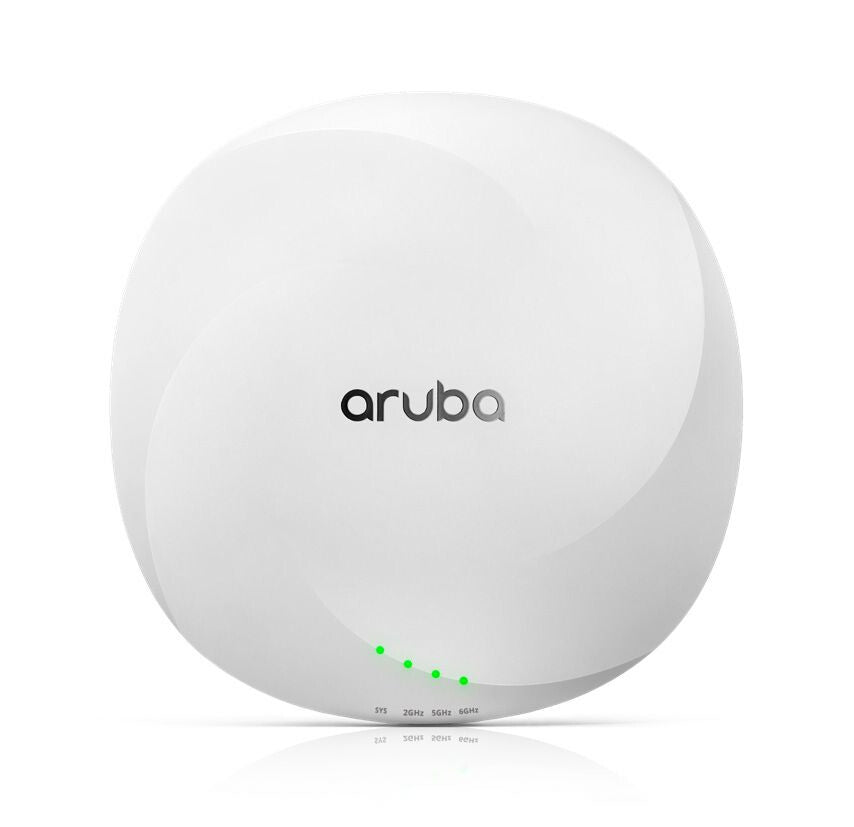

For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled – so you can meet growing demand due to bandwidth-hungry
video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity
| Features |
|---|
| GPS (satellite) |
Yes |
| GLONASS |
Yes |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MIMO |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az |
| Frequency band |
2.4/5/6 GHz |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate |
2400 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |
| Placement |
Ceiling |
| Antenna |
|---|
| Antenna gain level (max) |
7 dBi |
| Antenna features |
Integrated antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Aruba Networking |
| Weight & dimensions |
|---|
| Weight |
1.3 kg |
| Height |
51 mm |
| Depth |
220 mm |
| Width |
220 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
