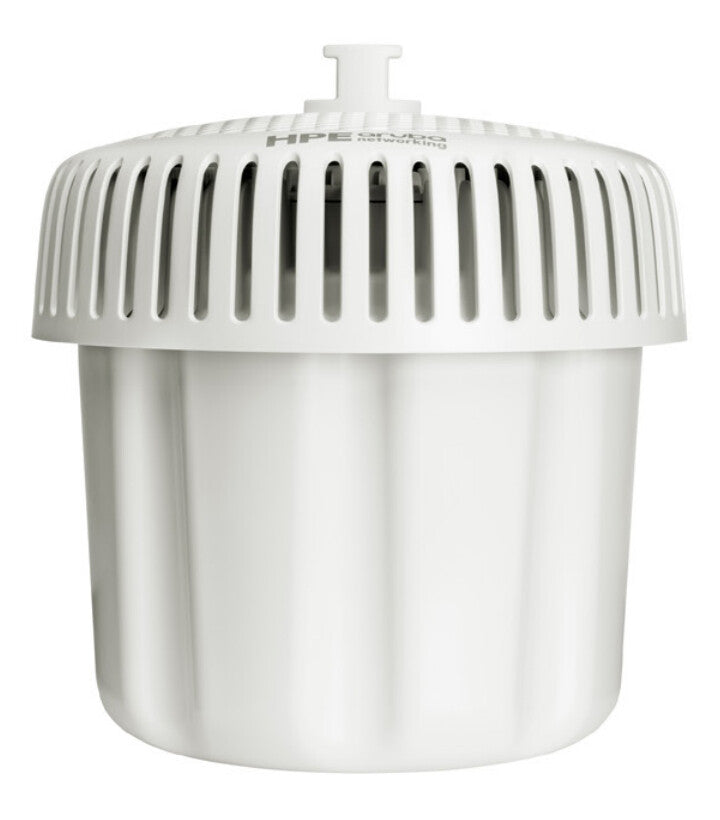

The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 series deliver more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments. The 670 Series access points are weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points (APs) provide high-performance outdoor connectivity you can depend on, delivering up to 3.9 Gbps maximum aggregate data rate with a tri-radio 2x2:2 MIMO access point (AP). This series includes the 670EX models that are designed for the most extreme, hazardous locations.
What is new supporting point:
Delivers up to 3.9 Gbps maximum aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth [1] and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5 GbE port and 1 GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas
Self-locating with embedded GPS receiver and will operates as Standard Power (SP) device
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
| Features |
|---|
| BeamForming |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Bluetooth version |
4.2 + 5.0 |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11ax |
| Maximum data transfer rate (6 GHz) |
2400 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
287 Mbit/s |
| Maximum data transfer rate |
3900 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
45.5 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Reset button |
Yes |
| International Protection (IP) code |
IP66, IP67 |
| Product colour |
White |
| Placement |
Pole, Wall |
| Antenna |
|---|
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Aruba Networking |
| Certificates |
|---|
| Certification |
None |
| Compliance certificates |
Low Voltage Directive (LVD) |
| Weight & dimensions |
|---|
| Weight |
4 kg |
| Height |
312 mm |
| Depth |
288 mm |
| Width |
290 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
5 - 100% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 100% |
