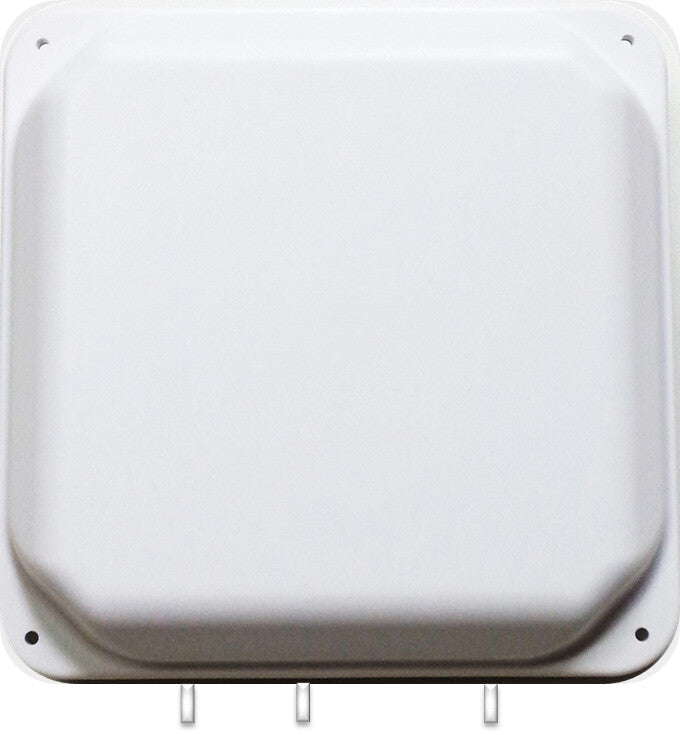

AP-ANT-38 is a multipolarized antenna with 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.
| Performance |
|---|
| Horizontal beam width |
60° |
| Vertical beam width |
60° |
| Impedance |
50 Ω |
| Antenna gain (2.4 GHz) |
7.5 dBi |
| Antenna gain (5 GHz) |
7.5 dBi |
| Frequency band |
2.4-2.5/4.9-6.0 GHz |
| Antenna gain level (max) |
7.5 dBi |
| Features |
|---|
| Mounting |
Wall |
| Purpose |
Indoor & outdoor |
| Housing material |
Aluminium, Plastic |
| Product colour |
White |
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Polarization |
Vertical polarization |
| Antenna connector type |
RP-SMA |
| Connector gender |
Male |
| Antenna type |
Sector antenna |
| Power |
|---|
| Power consumption (max) |
6 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-45 - 65 °C |
| Weight & dimensions |
|---|
| Diameter |
54.8 cm |
| Height |
34.5 mm |
| Depth |
197.5 mm |
| Width |
197.5 mm |
| General |
|---|
| Product family |
Aruba Networking |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
