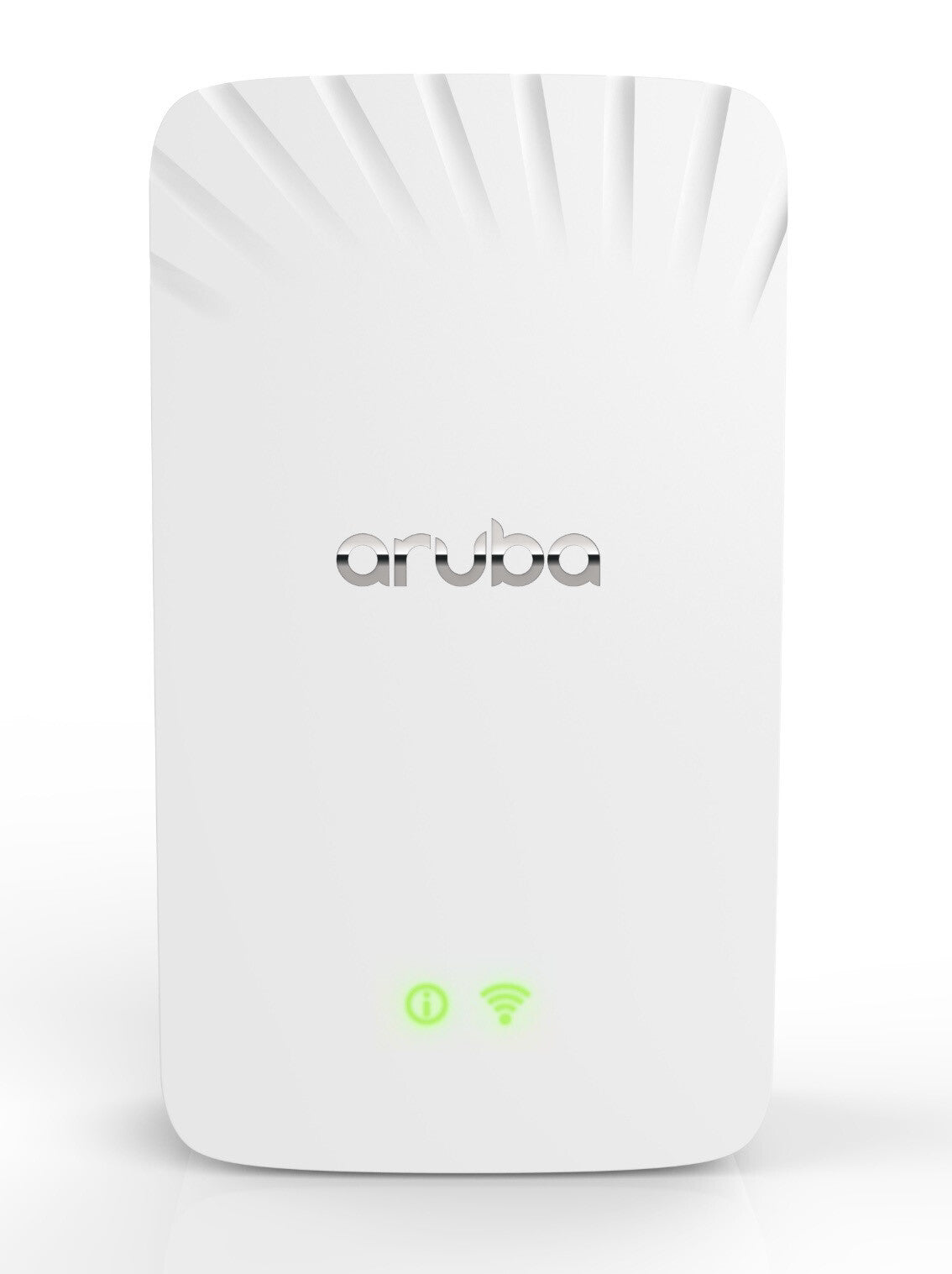

The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
| Features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Spread spectrum method |
DSSS, OFDM, OFDMA |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Auto MDI/MDI-X |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
287 Mbit/s |
| Maximum data transfer rate |
1487 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA2, WPA3 |
| Ports & interfaces |
|---|
| USB connector type |
Micro-USB B |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (typical) |
10 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |
| Placement |
Table, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
5.6 dBi |
| Antennas quantity |
2 |
| Antenna features |
Integrated antenna |
| Antenna direction type |
Semi-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Aruba Networking |
| Weight & dimensions |
|---|
| Weight |
290 g |
| Height |
150 mm |
| Depth |
40 mm |
| Width |
86 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 93% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 93% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
