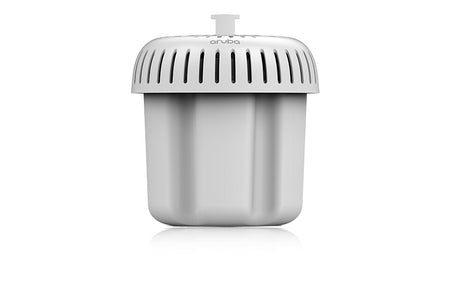

The Aruba 570 series outdoor access points, with Wi-Fi 6 (802.11ax) technology, deliver the highest performance in outdoor and harsh weather environments such as parking lots, stadiums, and other public venues.
The 570 series is purpose-built to withstand extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.
Innovations include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
| Features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Spread spectrum method |
DSSS, OFDM, OFDMA |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Auto MDI/MDI-X |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
575 Mbit/s |
| Maximum data transfer rate |
5375 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
32 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |
| Placement |
Pole, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
5 dBi |
| Antenna features |
Integrated antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Aruba Networking |
| Weight & dimensions |
|---|
| Weight |
2.5 kg |
| Height |
270 mm |
| Depth |
240 mm |
| Width |
240 mm |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
5 - 93% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
