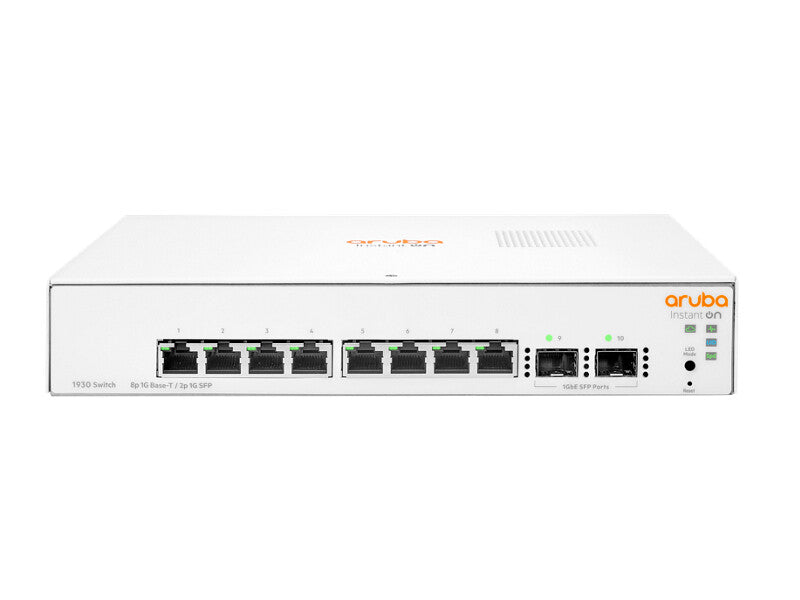

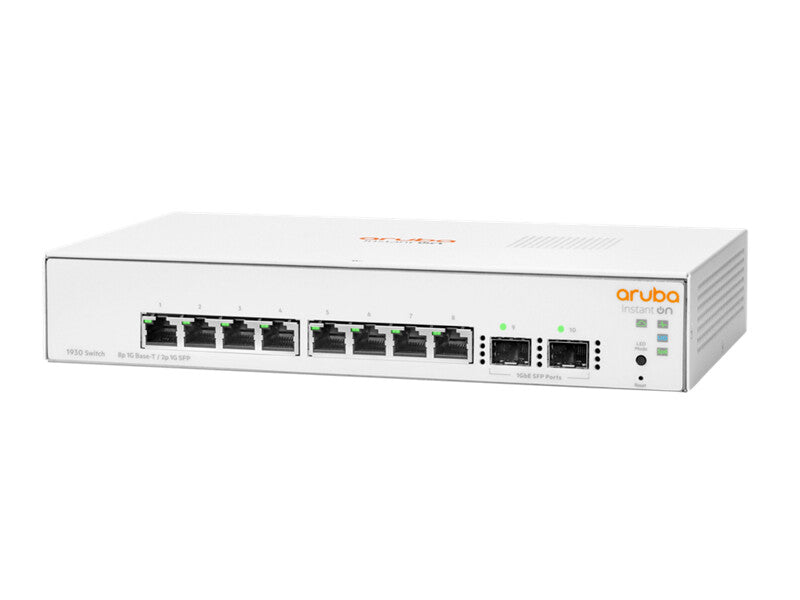

DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports.
| Management features |
|---|
| System event log |
Yes |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Number of VLANs |
4093 |
| VLAN support |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Active link detection |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Auto-sensing |
Yes |
| Routing entries |
32 |
| IP routing |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3ab, IEEE 802.3u |
| Data transmission |
|---|
| Throughput |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Product colour |
White |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Flash memory |
256 MB |
| Internal memory |
512 MB |
| Memory type |
SDRAM / Flash |
| Processor frequency |
800 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
|---|
| Power consumption (max) |
11 W |
| Input current |
0.2 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Weight |
1.16 kg |
| Height |
43.9 mm |
| Depth |
159.5 mm |
| Width |
254 mm |
| General |
|---|
| Product family |
Aruba Networking |
