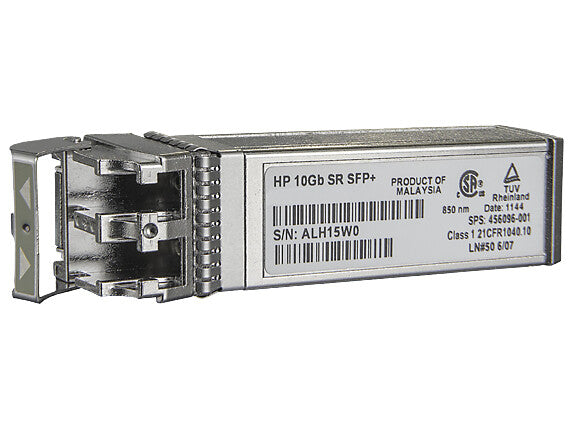

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber.
What's new
- SFP+ form factor
- 10G Ethernet transmission speed
- 400m transmissions on OM4 multi-mode cable
- 300m transmissions on OM3 multi-mode cable
- 850nm wavelength
| Performance |
|---|
| Auto MDI/MDI-X |
Yes |
| Duplex system |
Full |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Cabling technology |
10GBASE-SR |
| Wavelength |
850 nm |
| Maximum transfer distance |
400 m |
| SFP transceiver standard |
SR |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Compatible products |
HP BladeSystem c-Class |
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| Power |
|---|
| Power consumption (typical) |
0.8 W |
| Certificates |
|---|
| Certification |
MSA |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 85% |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
20 g |
| Height |
11.9 mm |
| Depth |
13.8 mm |
| Width |
55.7 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
