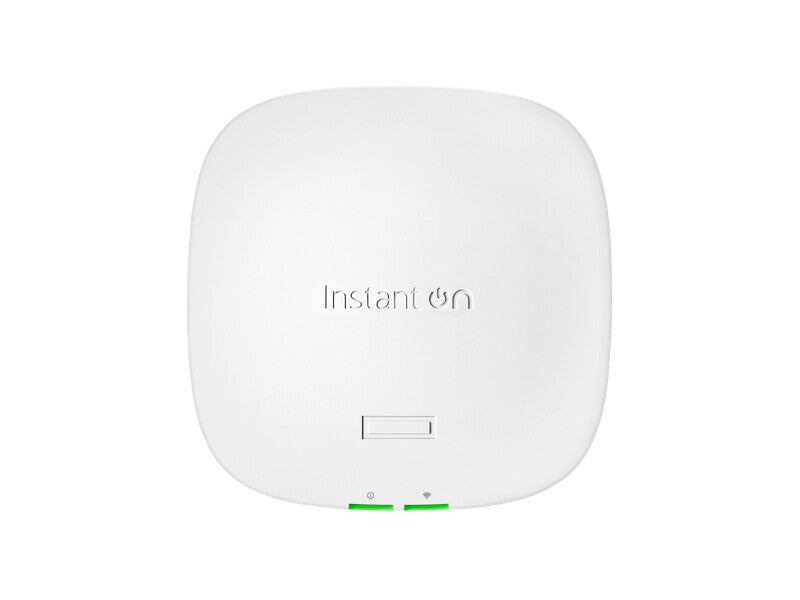

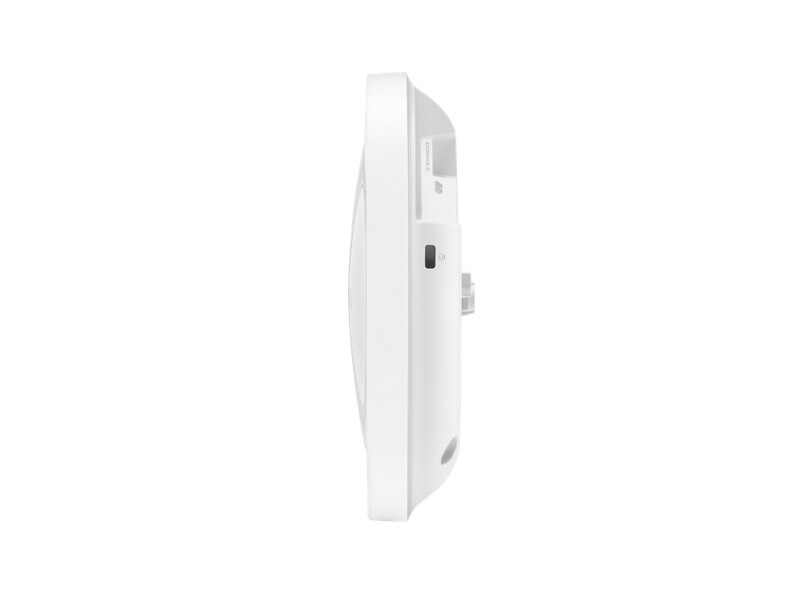

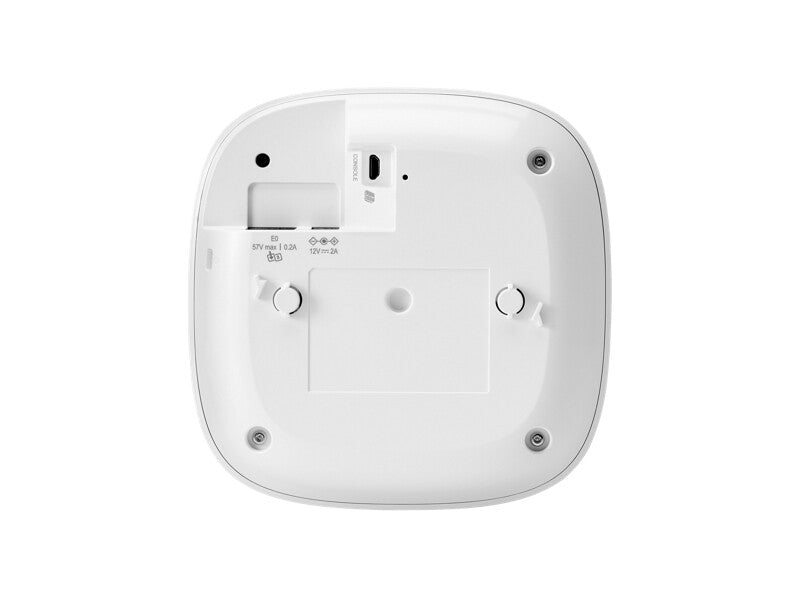

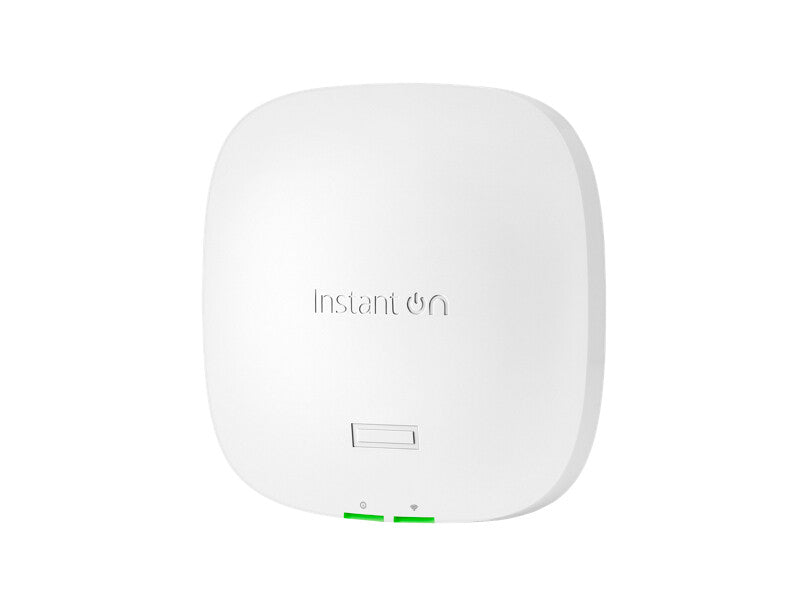

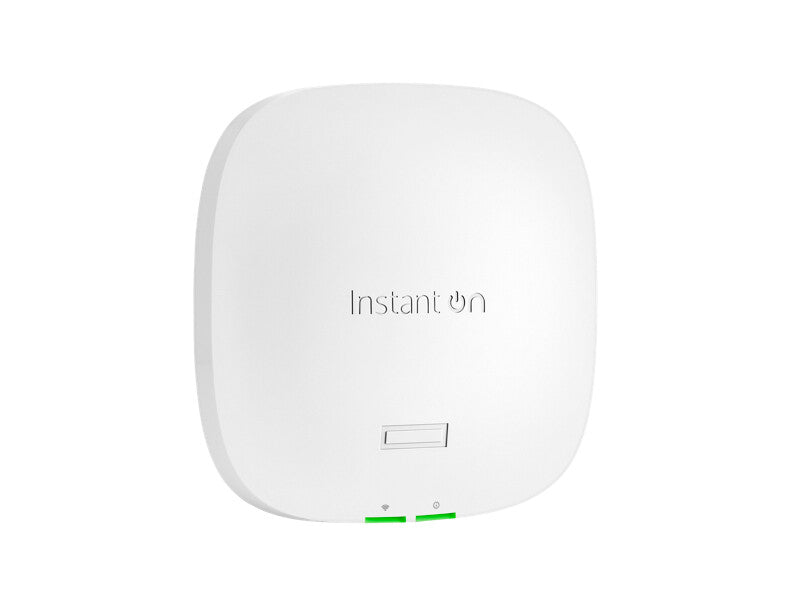

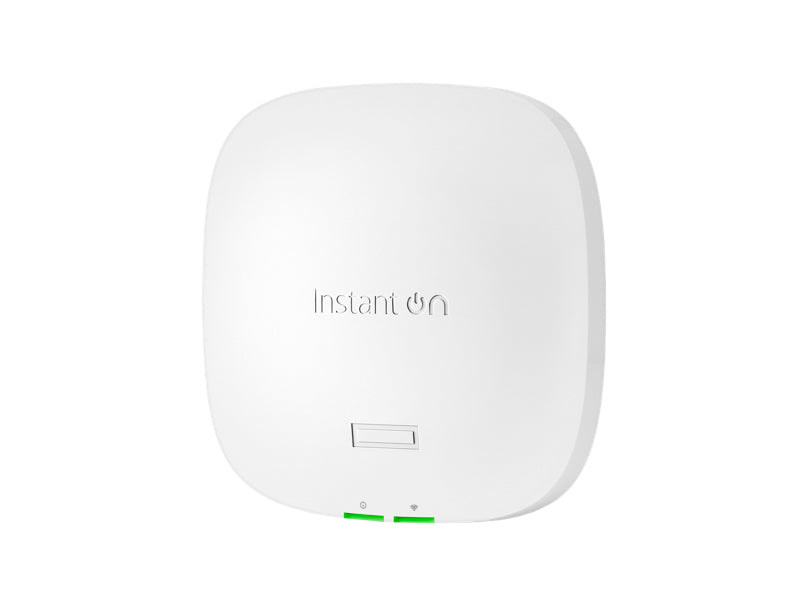

The HPE Networking Instant On Access Point AP21 is a dual radio indoor access point designed to bring connectivity to small spaces. This Wi-Fi CERTIFIED™ 6 access point offers modern WI-Fi standards in a small footprint to enhance the connectivity of your network for up to 50 devices. The dual-band radios offer suitable range for a 1500 sq ft space at an affordable price with the same features as other more costly access points. The HPE Networking Instant On AP21 can also be used with Smart Mesh with any other Instant On access point to extend your network coverage without needing to run new cables—HPE Networking Instant On AP21, small yet mighty coverage for your growing wireless needs.
| Features |
|---|
| MIMO |
Yes |
| Number of users |
50 user(s) |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11ax, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
OWE, WPA2, WPA3 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
10.9 W |
| DC voltage range |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Reset, Status |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
4.8 dBi |
| Antennas quantity |
2 |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
255 g |
| Height |
145 mm |
| Depth |
51 mm |
| Width |
145 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
