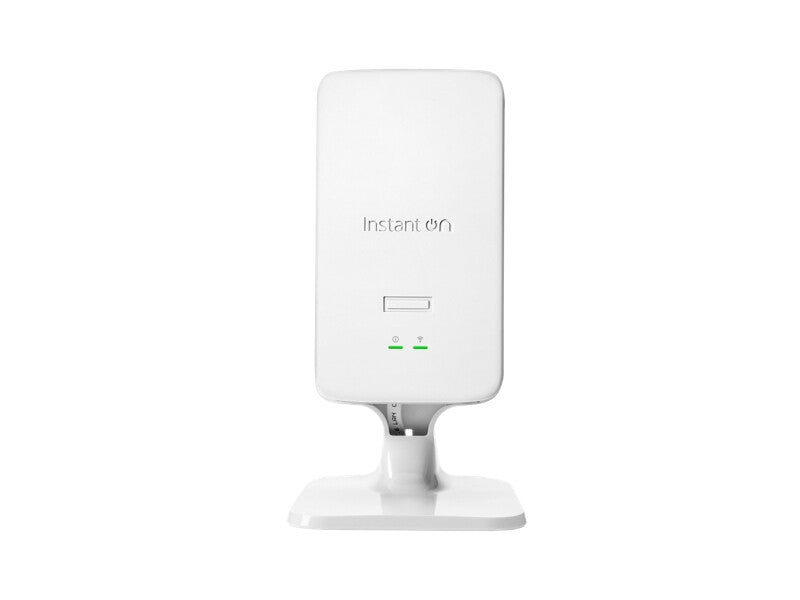

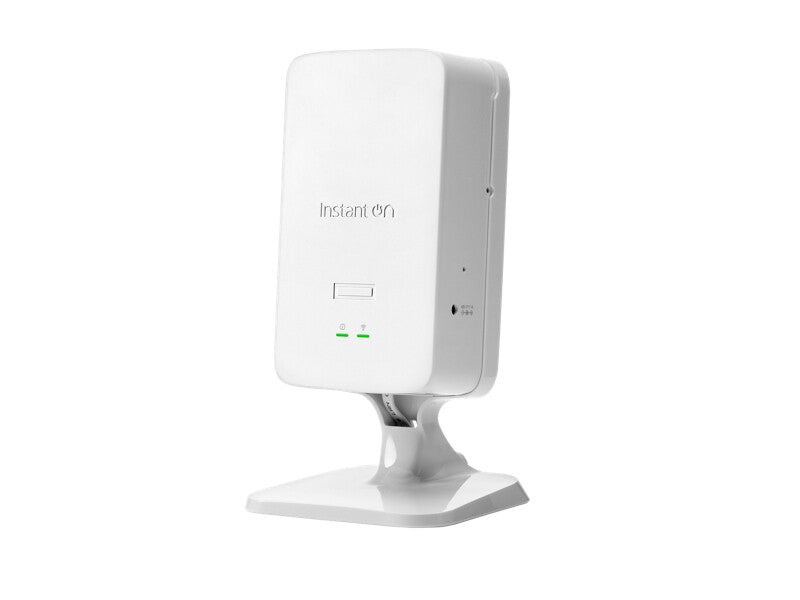

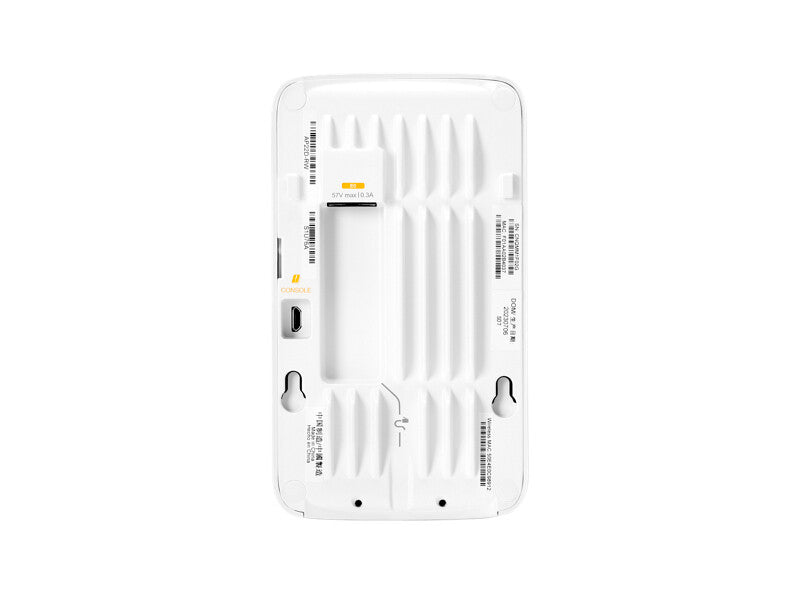

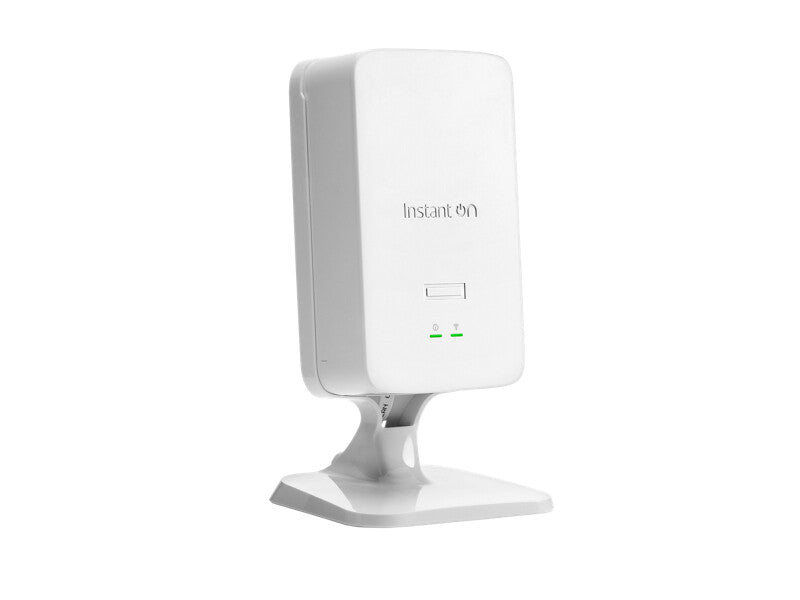

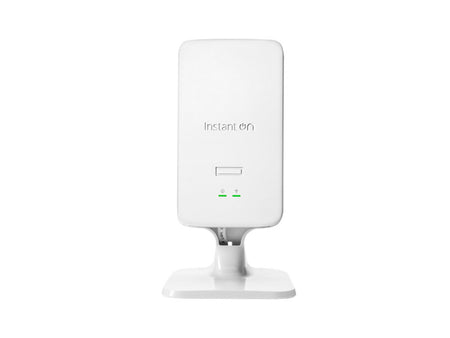

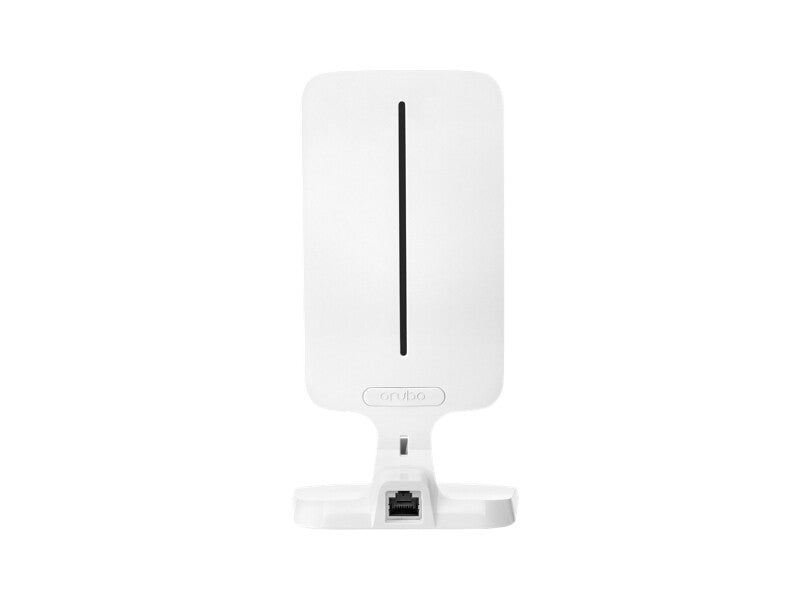

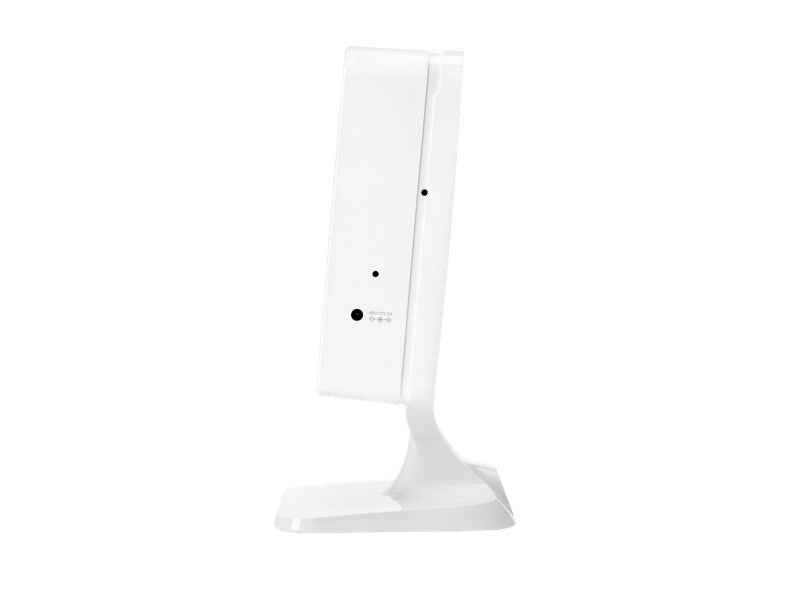

The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi Certified 6 access point that provides reliable wired and wireless connectivity over a 2.5GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE(802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7Gbps.
Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set POE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.
| Features |
|---|
| MIMO |
Yes |
| Number of users |
75 user(s) |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11ax, IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
OWE, WPA2, WPA3 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
5 |
| Power |
|---|
| Power consumption (max) |
51 W |
| Power consumption (typical) |
50 W |
| DC voltage range |
48 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Product colour |
White |
| Placement |
Desk, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
5.4 dBi |
| Antennas quantity |
2 |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
360 g |
| Height |
150 mm |
| Depth |
47 mm |
| Width |
86 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
