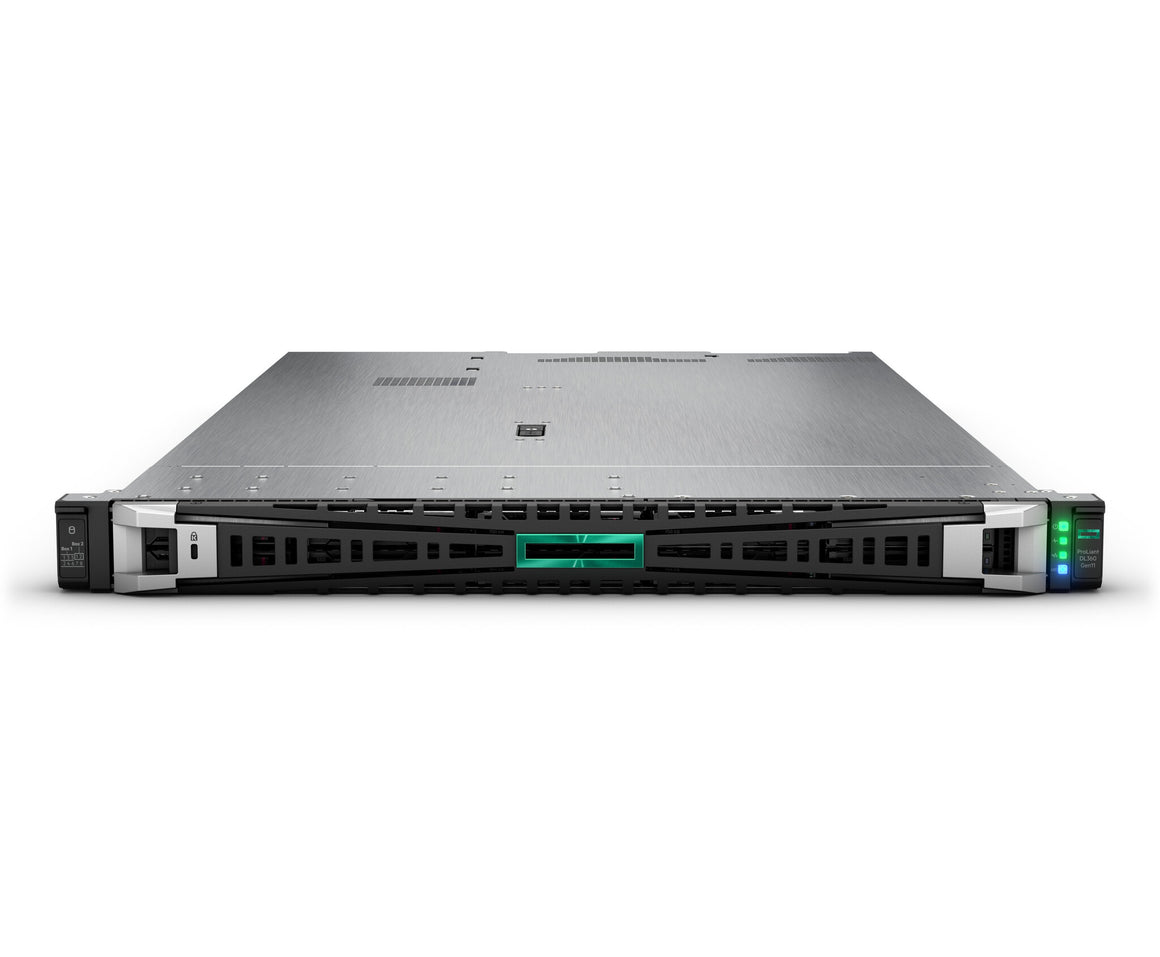

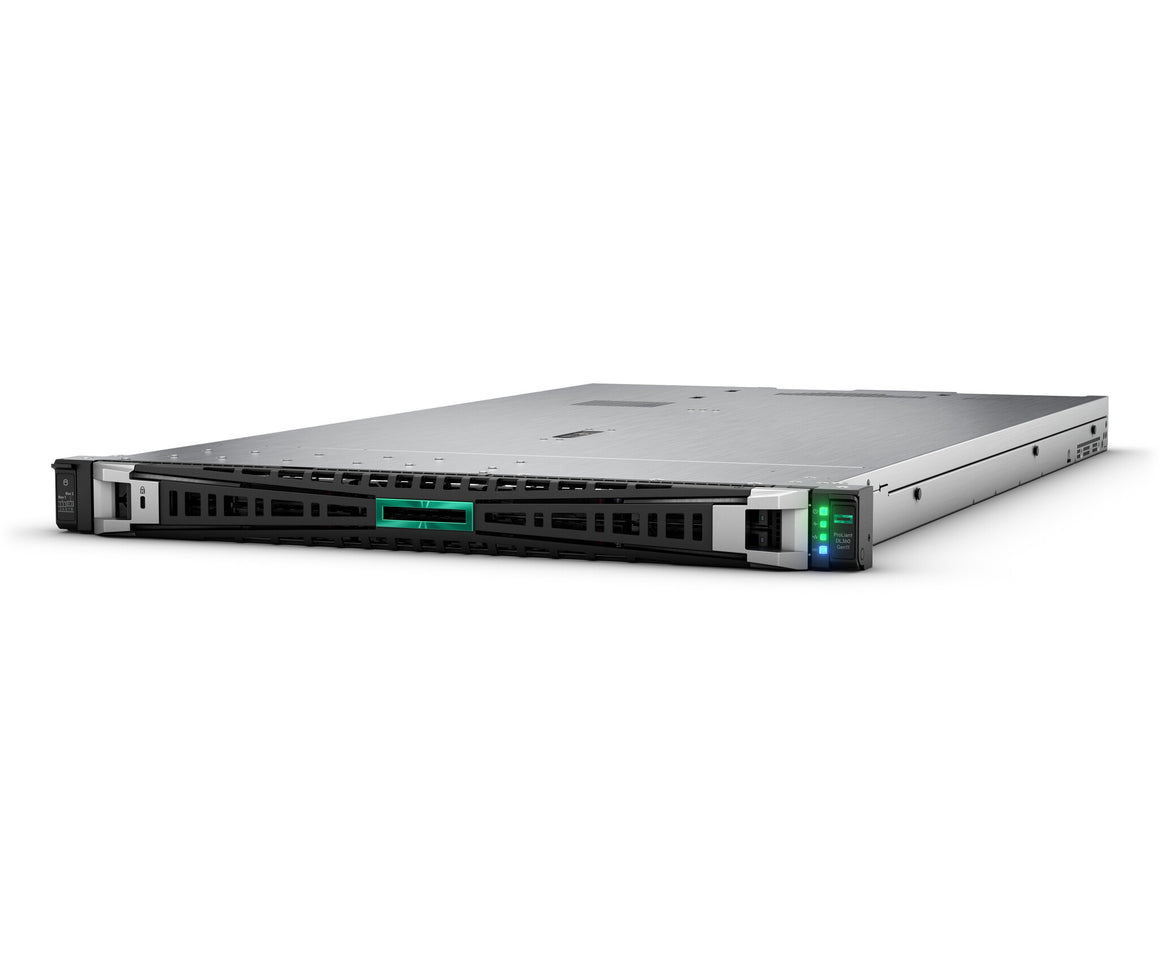

Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by 5th Gen Intel Xeon Scalable processors that supports up to 64 cores & 385W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 5600 MHz.
16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports up to three single wide (SW) GPUs[1] to accelerate graphic intense workloads.
Supports Liquid Cooling Modules for highest thermal design points (TDPs).
| Processor |
|---|
| Number of processors installed |
1 |
| Processor cache |
30 MB |
| Processor cores |
16 |
| Processor boost frequency |
3.4 GHz |
| Processor frequency |
2 GHz |
| Processor model |
4514Y |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Maximum internal memory |
4 TB |
| Memory slots |
16x DIMM |
| Memory clock speed |
5600 MHz |
| Memory layout (slots x size) |
2 x 32 GB |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
64 GB |
| Storage |
|---|
| Optical drive type |
No |
| Supported RAID controllers |
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| RAID support |
Yes |
| SSD interface |
SATA III |
| SSD capacity |
480 GB |
| Number of SSDs installed |
2 |
| Number of HDDs installed |
2 |
| Total storage capacity |
960 GB |
| Maximum storage capacity |
153.6 TB |
| Network |
|---|
| LAN controller |
Broadcom BCM57416 |
| Ethernet LAN |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Chassis type |
Rack (1U) |
| Performance |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Power |
|---|
| Number of main power supplies |
2 |
| Number of redundant power supplies installed |
1 |
| Power supply |
1000 W |
| Redundant power supply (RPS) support |
Yes |
| General |
|---|
| Product family |
ProLiant |
| Product series |
DL |
| Weight & dimensions |
|---|
| Depth |
434.6 mm |
| Height |
42.9 mm |
| Width |
753.1 mm |
