The ProDockEssential X1 Universal USB-C Docking Station offers an effective and straightforward solution for connecting video displays, transferring data, and charging USB-C devices.
With its user-friendly design, you can easily display, charge, and transfer data. The ProDockEssential X features a convenient stowable USB-C cable, along with a longer additional cable, making it both portable and versatile. It supports 8K video on a single display or 4K on two HDMI displays while delivering up to 100W of power to USB-C laptops, tablets, and smartphones. Data transfer is quick and efficient with two USB 3.0 ports, which are also backward compatible with USB 2.0 devices.

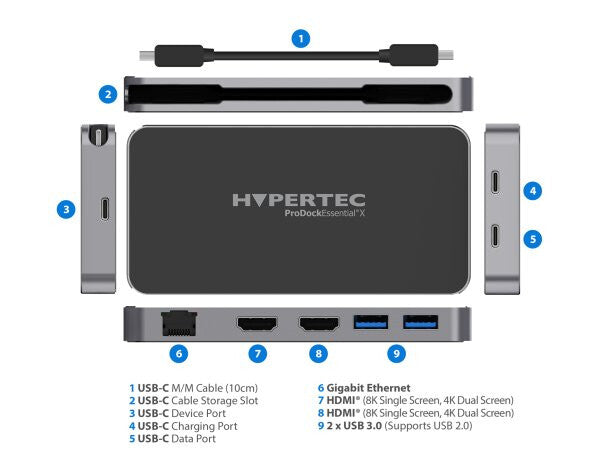

Lightweight and portable, the ProDockEssential X is perfect for charging, data transfer, and dual video display in any work environment. It includes a 10cm and a 30cm USB 3.1 Type-C cable with Emark. The 10cm cable can be conveniently stored inside the device, enhancing its portability. One side of the device features a dedicated USB-C port for either of the two included Type-C cables. The other side has two USB-C ports: one for 100W Power Delivery and the other for connecting USB-C laptops, tablets, mobile phones, and PCs. The two USB 3.0 ports offer speeds of up to 5Gbps (640MB/s).
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| DC-in jack |
No |
| Dual antenna pass-through |
No |
| HDCP |
No |
| USB Type-C DisplayPort Alternate Mode |
No |
| Combo headphone/mic port |
No |
| Microphone in |
No |
| HDMI ports quantity |
2 |
| USB Power Delivery up to |
85 W |
| USB Power Delivery (USB PD) |
Yes |
| PowerShare |
No |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE, FCC, RoHS, REACH |
| Brand compatibility |
Universal |
| Country of origin |
China |
| Charging function |
Yes |
| Reset button |
No |
| Plug and Play |
Yes |
| Housing material |
Plastic, Silicone, Aluminium |
| Display modes |
Single, Dual, SST mode, MST mode |
| On/off switch |
No |
| Cable lock slot |
No |
| Maximum refresh rate |
60 Hz |
| Number of displays supported |
2 |
| Maximum digital resolution |
7680 x 4320 pixels |
| NVMe |
No |
| SSD enclosure |
No |
| Built-in SSD |
No |
| Card reader integrated |
No |
| Product colour |
Silver |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Power |
|---|
| Wireless charging |
No |
| USB cable length |
0.1 m |
| Power supply |
100 W |
| Power source type |
USB |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Control unit |
|---|
| Remote control included |
No |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
96.6 g |
| Height |
63 mm |
| Depth |
135 mm |
| Width |
122 mm |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
150 x 133 x 20 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| AC adapter included |
No |
| General |
|---|
| Product family |
ProDock |
| Technical details |
|---|
| Warranty period |
1 year(s) |
| Other features |
|---|
| Maximum operating temperature |
40 °C |
| USB port |
Yes |
| USB ports quantity |
5 |
| USB data transfer rates |
5000 Mbit/s |
