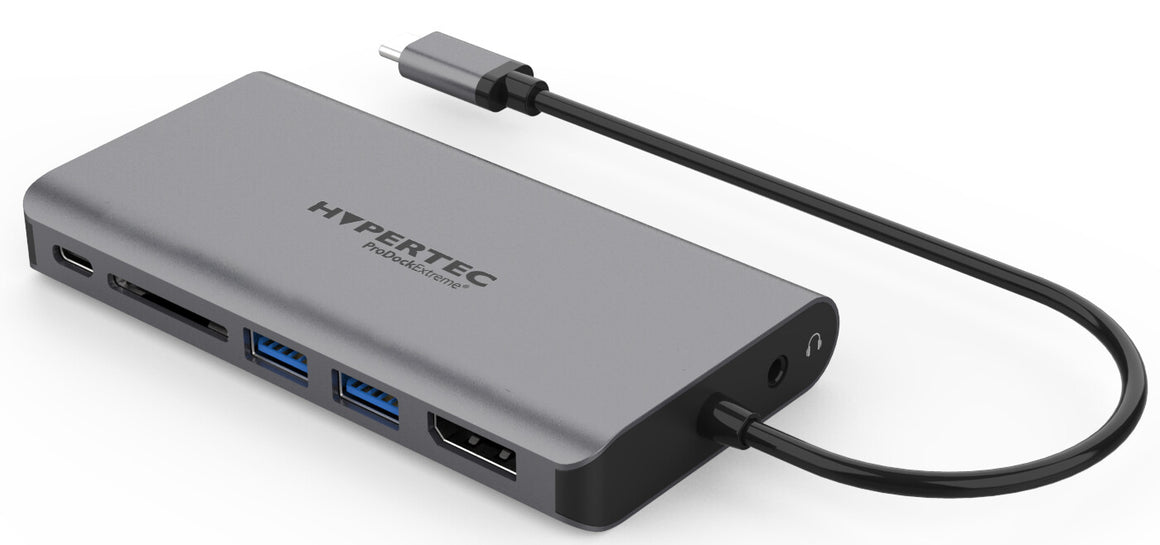

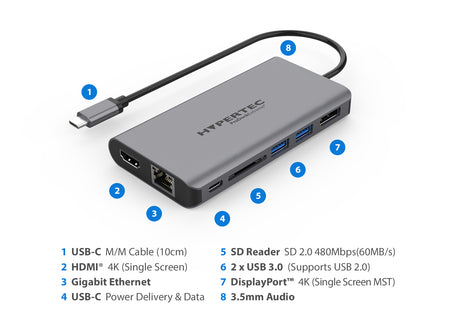

The ProDockExtreme Gen 2 Universal USB-C to HDMI & DisplayPort® Docking Station offers a streamlined solution for video output, data transfer, and device charging, supporting single 4K HDMI®, single 4K DisplayPort®, or dual HD display configurations (mirror or extend), making it ideal for professional environments. Its USB-C port delivers up to 85W Power Delivery (PD 3.0) for fast and efficient charging, while comprehensive connectivity includes a Gigabit Ethernet port for stable internet, dual USB-A ports for device connections, an SD card slot for quick media access, and a 3.5mm audio jack for stereo output and microphone input. Compact and lightweight, the ProDockExtreme Gen 2 is an all-in-one solution for high-resolution video, fast data transfer, and powerful charging, designed to enhance productivity whether working remotely, in the office, or on the go.
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Audio output |
3.5mm jacket |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 2.0 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE,FCC,RoHS, REACH |
| Brand compatibility |
Universal |
| Country of origin |
China |
| Charging function |
Yes |
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Display modes |
Dual, Duplicate, Extended, Single |
| Maximum refresh rate |
60 Hz |
| Number of displays supported |
2 |
| Maximum digital resolution |
3840 x 2160 pixels |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Product colour |
Silver |
| Power |
|---|
| Input current |
5 A |
| Power supply |
100 W |
| AC input voltage |
20 V |
| Power source type |
USB |
| Software |
|---|
| Mobile operating systems supported |
Android, iOS |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
114 g |
| Height |
16 mm |
| Depth |
116 mm |
| Width |
60 mm |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
133 x 20 x 150 mm |
| Quantity per pack |
1 pc(s) |
| General |
|---|
| Product family |
ProDock |
| Technical details |
|---|
| Warranty period |
1 year(s) |
| Other features |
|---|
| Maximum operating temperature |
40 °C |
| USB port |
Yes |
| USB ports quantity |
3 |
| USB data transfer rates |
5000 Mbit/s |
