Get simple and effective universal compatibility with a wide range of operating systems, the ProDockStation® provides a simple and effective connectivity solution for charging, data transfer and video display from USB-C and USB-A devices.

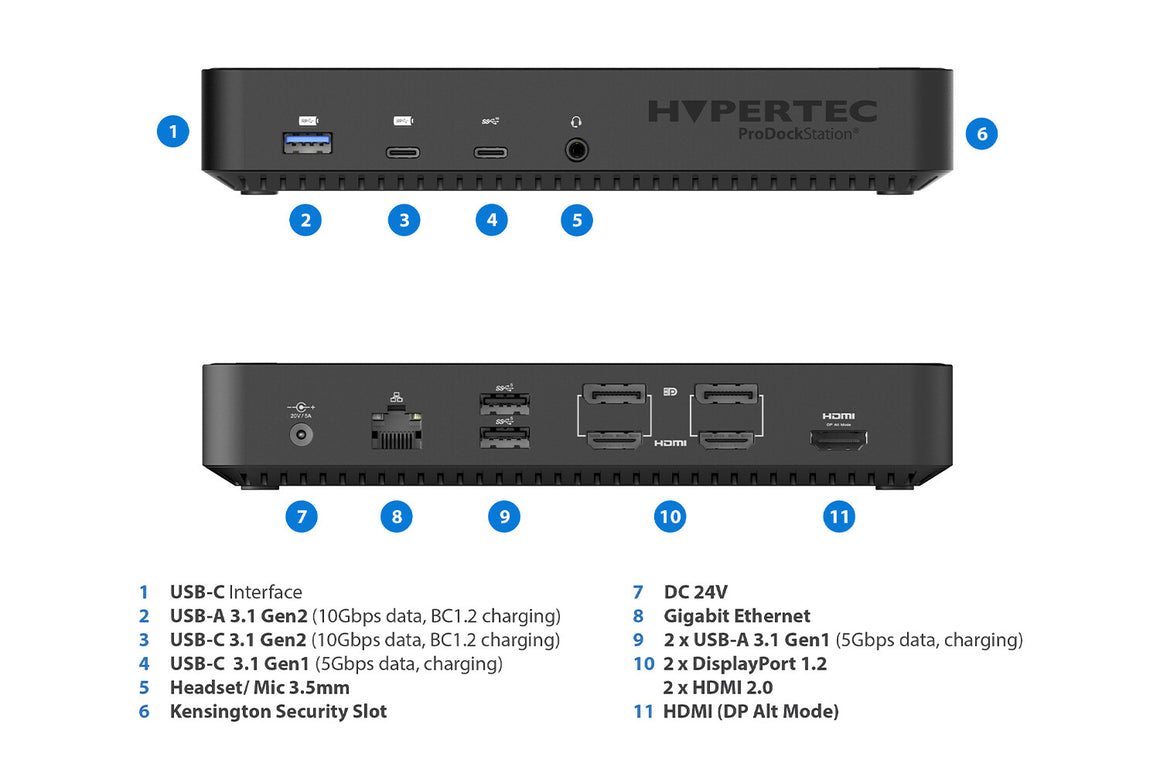

Display, charge, and transfer with ease. The ProDockStation is equipped with HDMI, DisplayPort, Gigabit Ethernet, USB-A, USB-C and a combo audio port, the ProDockStation transforms Windows, Apple OS (including M1, M1X), and Chrome OS devices into fully functioning workstations.

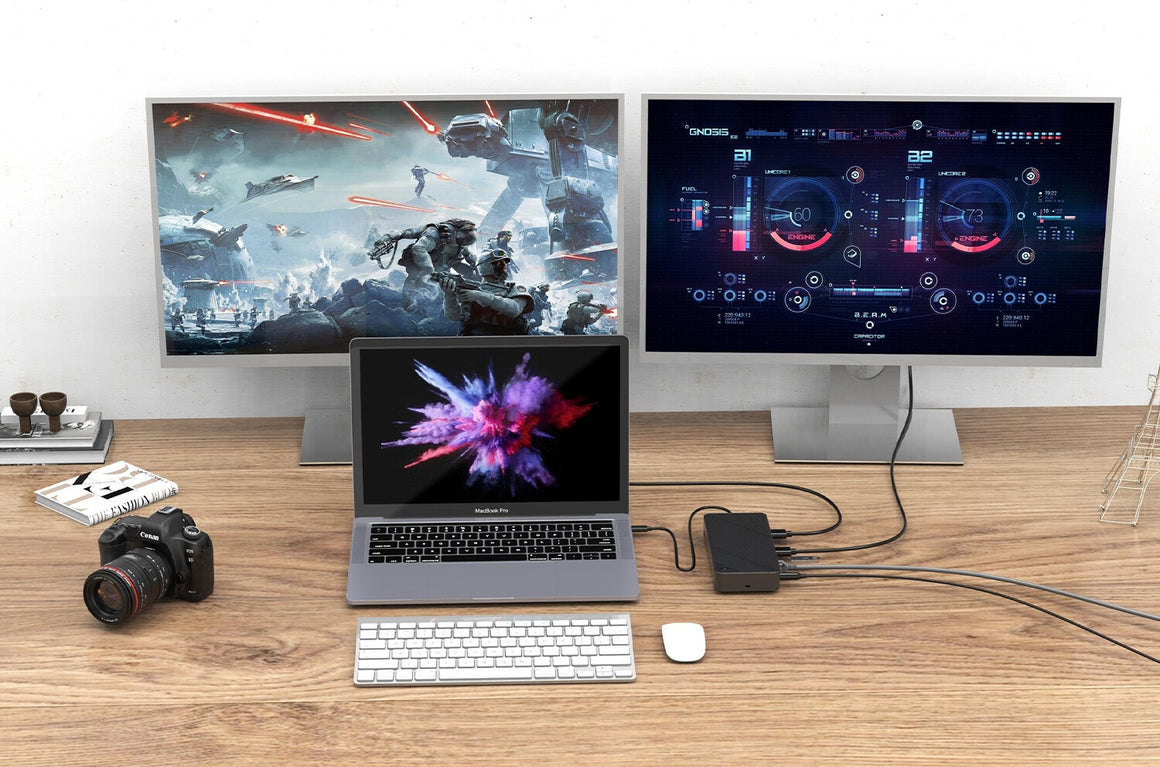

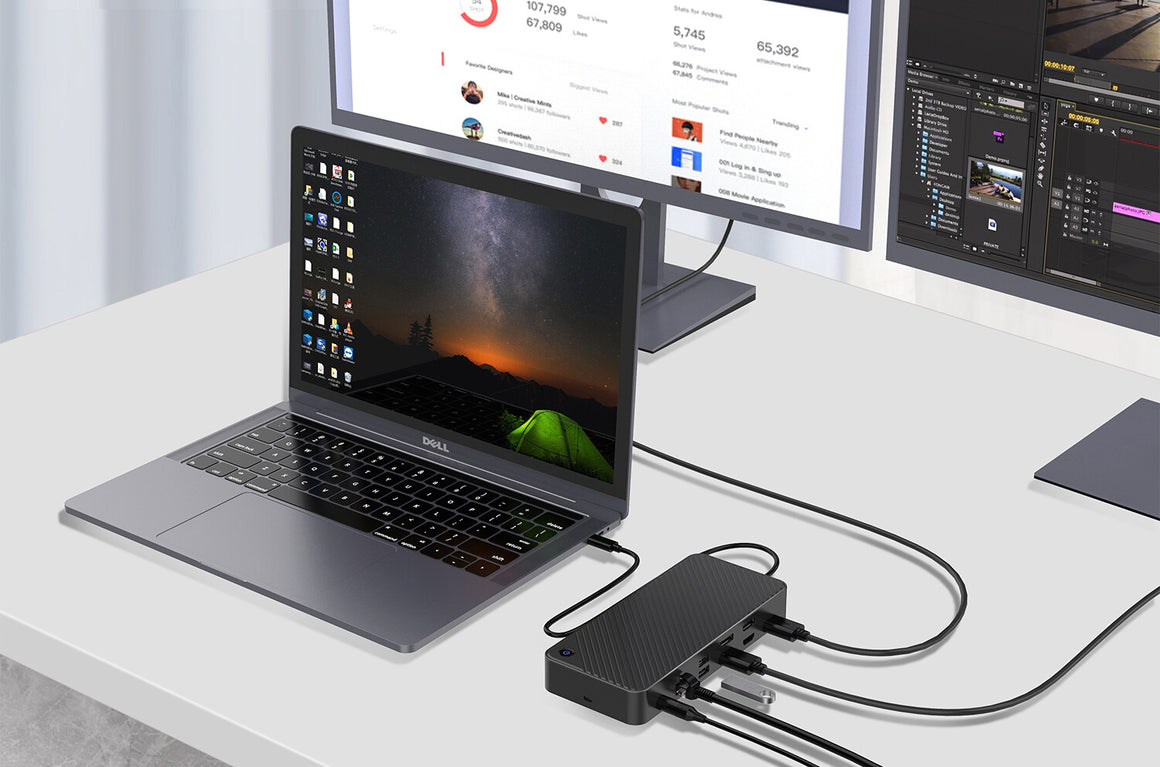

Connect up to three 4K displays simultaneously: whether working with demanding applications, multitasking, or watching videos and films, the ProDockStation allows you to enjoy crisp 4K resolution across up to three additional monitors with Windows, Apple and Chrome devices. * To connect to third HDMI monitor, the connected device must support either DP alt mode or Thunderbolt.
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| DC-in jack |
Yes |
| Dual antenna pass-through |
No |
| HDCP |
No |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| Microphone in |
No |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
3 |
| Audio output |
3.5mm jacket |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| PowerShare |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Networking standards |
IEEE 802.3 |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
RoHS, REACH, Prop65, CE, FCC |
| Brand compatibility |
Universal |
| Country of origin |
China |
| Charging function |
Yes |
| Rubber feet |
Yes |
| Reset button |
No |
| Plug and Play |
Yes |
| Housing material |
Plastic, Silicone |
| Display modes |
Double, Duplicate, Extended, Single, Triple |
| On/off switch |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Maximum refresh rate |
60 Hz |
| Number of displays supported |
3 |
| Maximum digital resolution |
3840 x 2160 pixels |
| NVMe |
No |
| SSD enclosure |
No |
| Built-in SSD |
No |
| Card reader integrated |
No |
| Product colour |
Black |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Power |
|---|
| Wireless charging |
No |
| USB cable length |
0.5 m |
| Input current |
5.41 A |
| Power supply |
130 W |
| AC input voltage |
24 V |
| Power source type |
AC, DC |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Control unit |
|---|
| Remote control included |
No |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-10 - 55 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
850 g |
| Height |
31.8 mm |
| Depth |
191 mm |
| Width |
85 mm |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
280 x 210 x 42 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
USB Type-A to USB Type-C, USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
| General |
|---|
| Product family |
ProDock |
| Technical details |
|---|
| Warranty period |
1 year(s) |
| Other features |
|---|
| Maximum operating temperature |
70 °C |
| USB port |
Yes |
| USB ports quantity |
6 |
| USB data transfer rates |
10000 Mbit/s |
