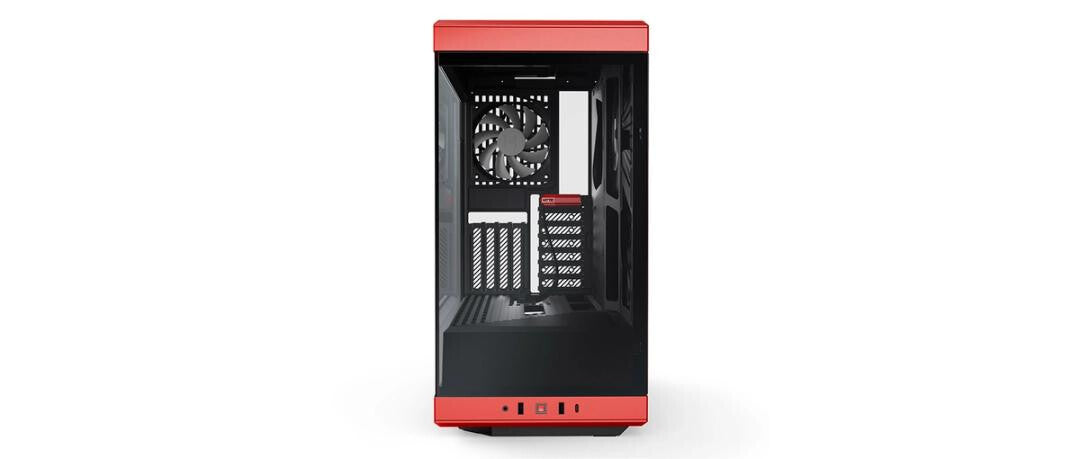

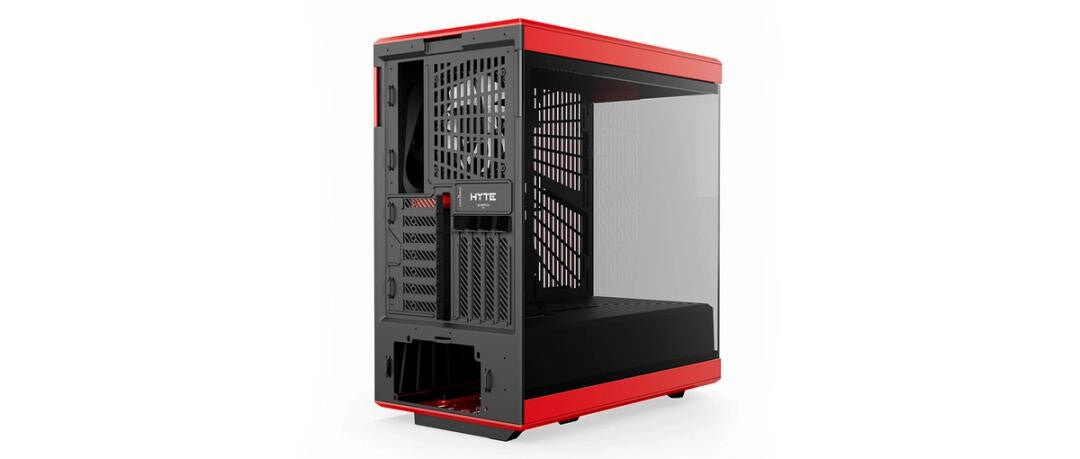

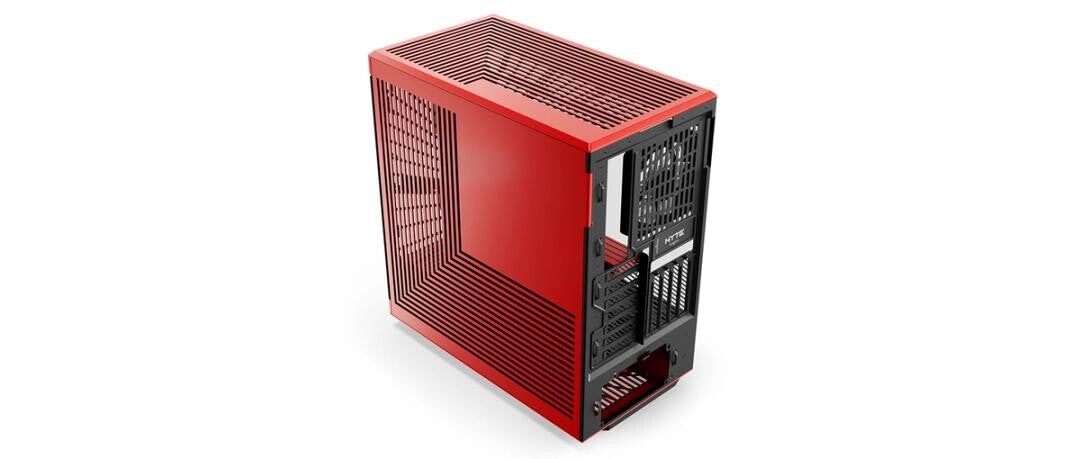

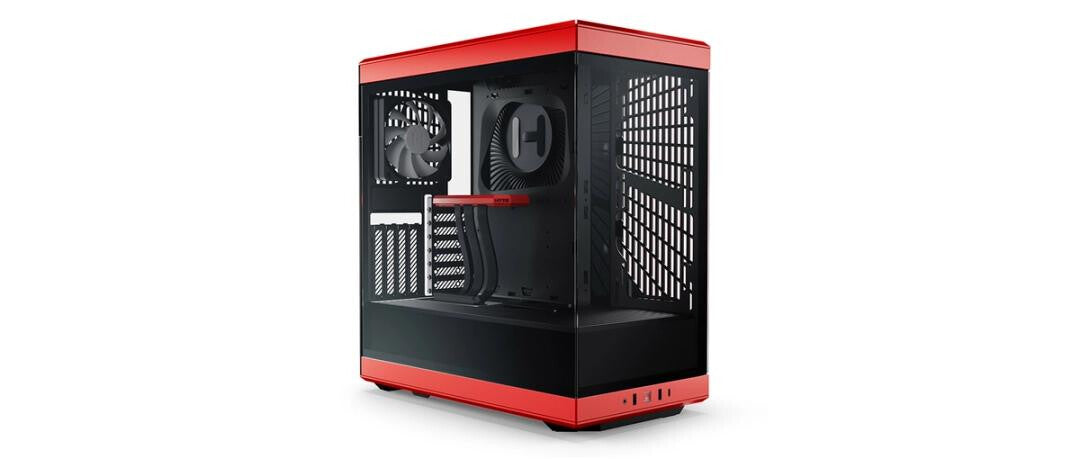

Y40
S-Tier Aesthetic Case
Designed From Every Dimension
The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.

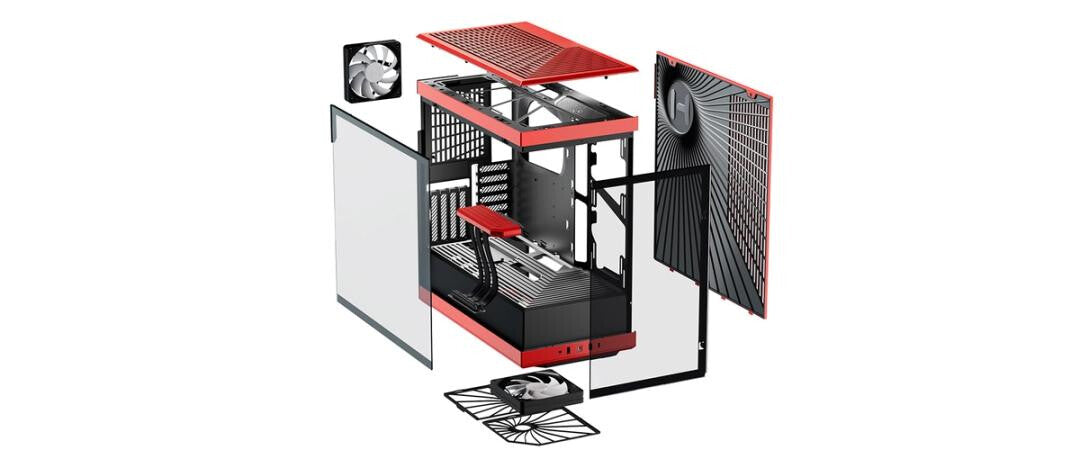

Multi-Dimensional Design
Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.

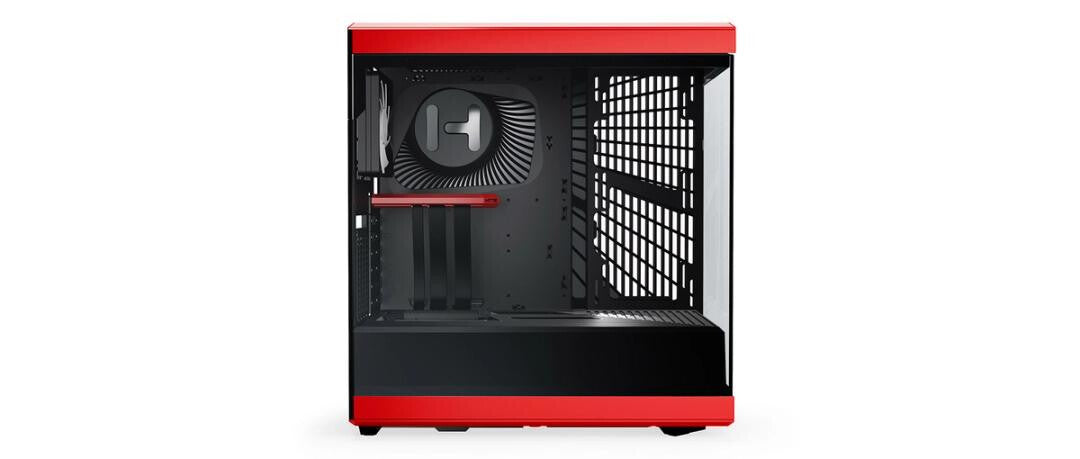

Ginormous Vertical Graphics Support
Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.

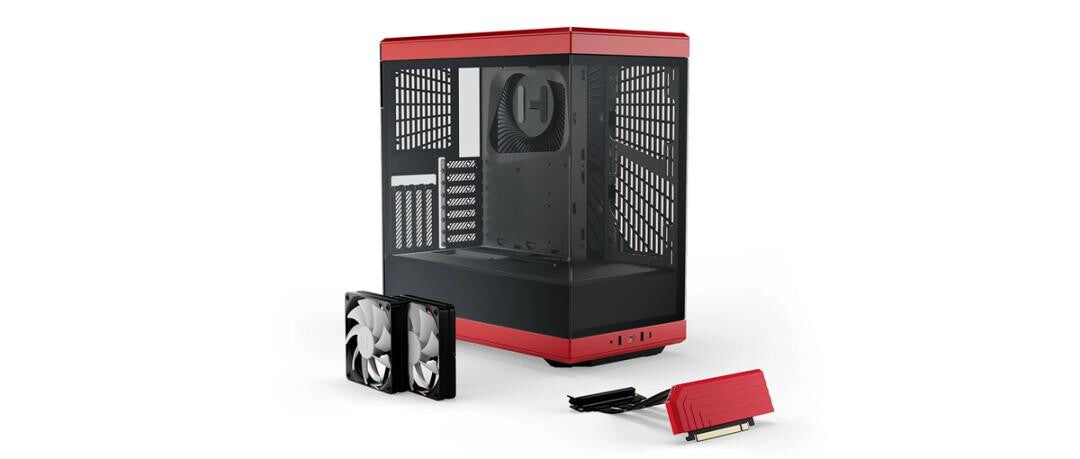

Included Luxury PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
Cooling
Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
| Design |
|---|
| Maximum PSU length |
22.4 cm |
| Maximum graphics card length |
42.2 cm |
| Maximum CPU cooler height |
18.3 cm |
| On/off button |
Yes |
| Anti-dust filter |
Yes |
| Side window |
Yes |
| Number of expansion slots |
10 |
| Full-Height expansion slots |
4 |
| Half-Height expansion slots |
6 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
1 |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Product colour |
Black, Red |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Power supply included |
No |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
|---|
| Top radiator sizes supported |
120,240,360 mm |
| Rear radiator sizes supported |
120 mm |
| Side radiator sizes supported |
120,140,240,280 mm |
| Fan speed |
0 - 1300 RPM |
| Bottom fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
1 |
| Bottom fans installed |
1x 120 mm |
| Top fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
2 |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Height |
472 mm |
| Depth |
439 mm |
| Width |
240 mm |
| Packaging data |
|---|
| Cables included |
PCIe |
