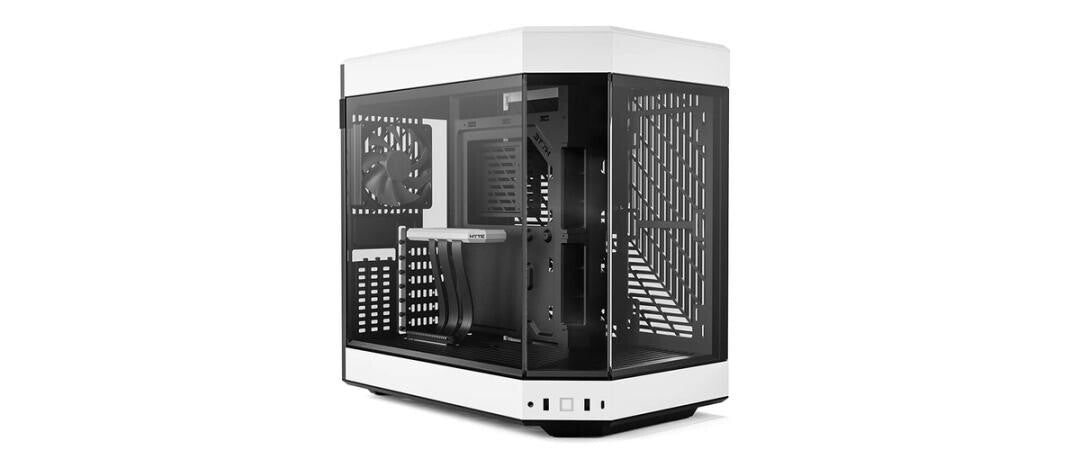

Panoramic Views

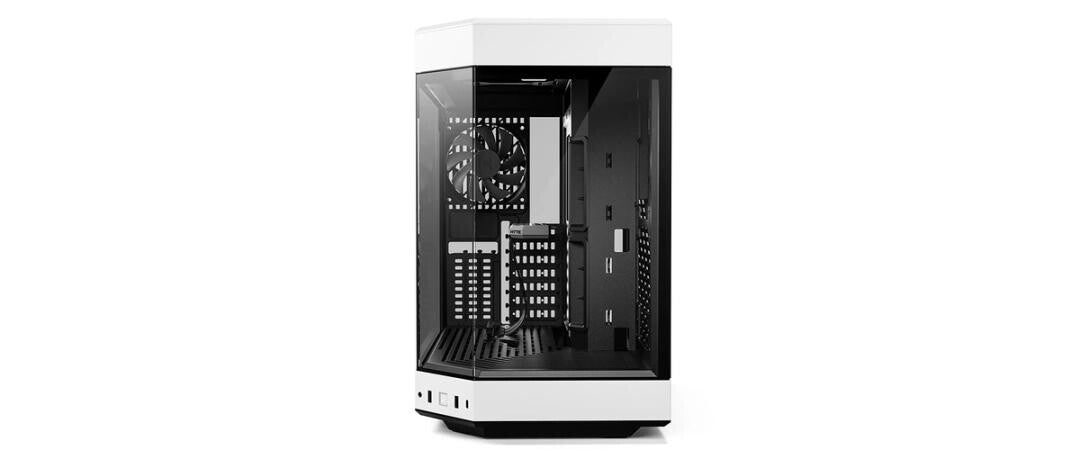

No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.

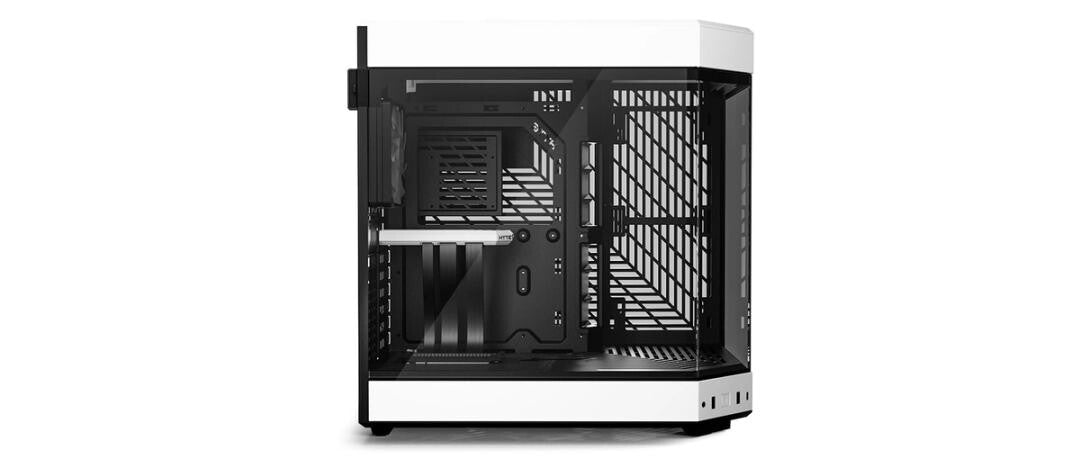

Exclusively Vertical GPU Mounted
Why would you want to see your graphics card any other way?
Included PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.

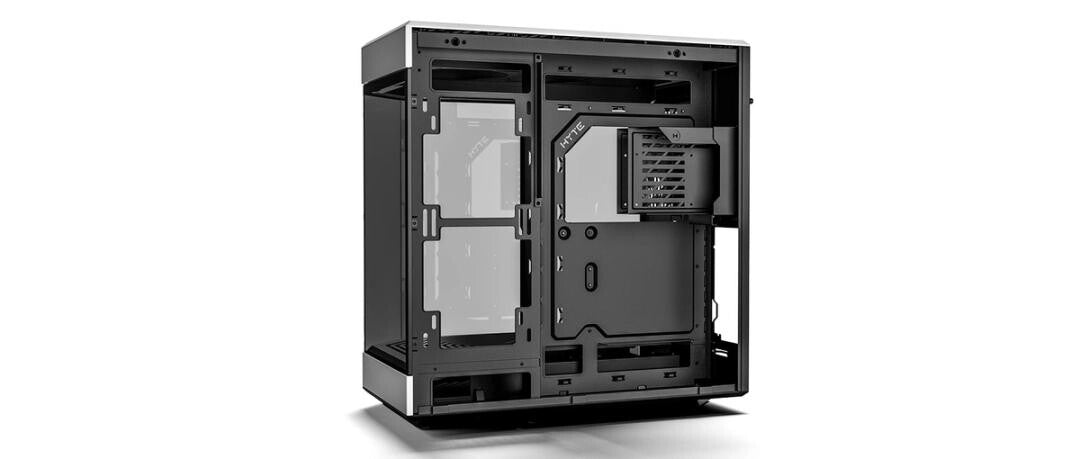

Antechamber Construction
Segment cables from thermal components and turn your PC into a work of art.
Cold Floor Cooling
Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.

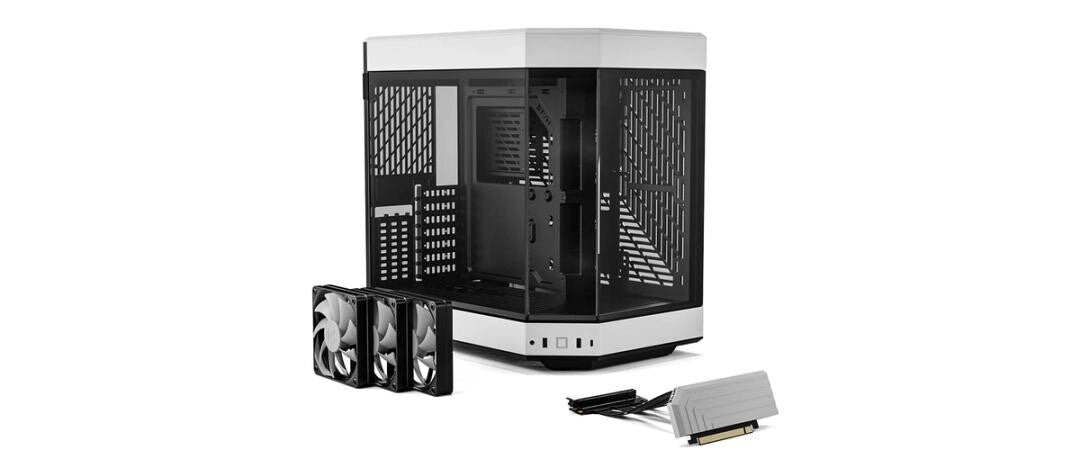

Included Fans
The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.
| Design |
|---|
| Maximum PSU length |
23.5 cm |
| Maximum graphics card length |
37.5 cm |
| Maximum CPU cooler height |
16 cm |
| Anti-dust filter |
Yes |
| Number of expansion slots |
9 |
| Number of 2.5" bays |
4 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, ITX, micro ATX |
| Product colour |
Black, White |
| Material |
ABS, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
|---|
| Top radiator sizes supported |
120,140,360 mm |
| Rear radiator sizes supported |
120 mm |
| Side radiator sizes supported |
120,140,240,280 mm |
| Fan speed |
0 - 1300 RPM |
| Bottom fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
2 |
| Bottom fans installed |
2x 120 mm |
| Top fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
2 |
| Storage |
|---|
| Number of HDDs supported |
2 |
| SSD form factor |
2.5" |
| Supported HDD sizes |
3.5" |
| Packaging content |
|---|
| Riser cable included |
Yes |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Weight |
9.6 kg |
| Height |
462 mm |
| Depth |
456 mm |
| Width |
285 mm |
| Packaging data |
|---|
| Package weight |
11.3 kg |
| Package height |
540 mm |
| Package depth |
535 mm |
| Package width |
372 mm |
