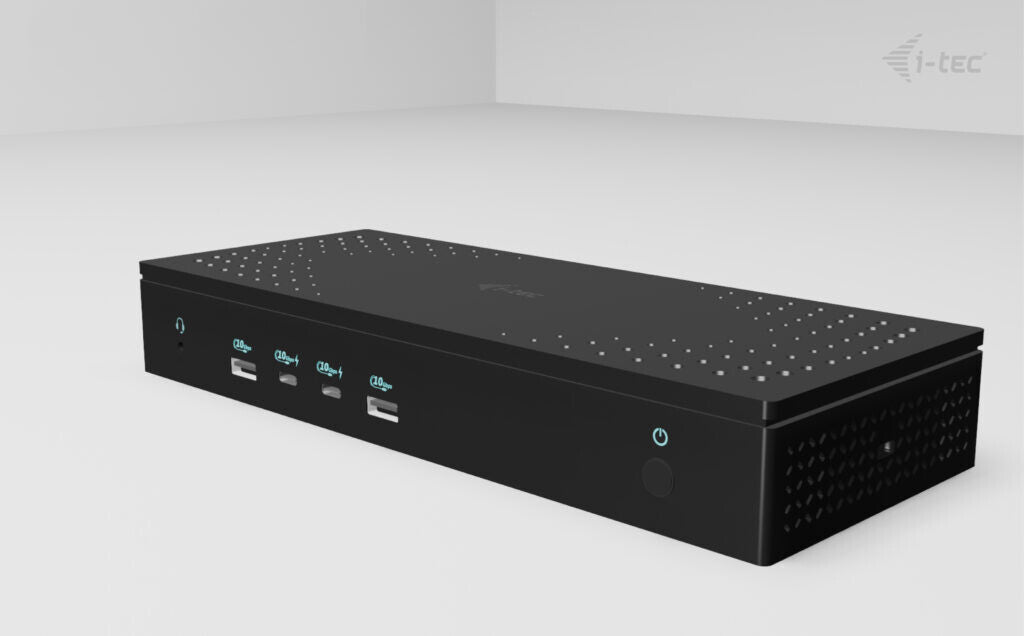

The highest performance docking station possible! Supports up to five external monitors* with 4K/60Hz resolution. And one monitor can even run at 8K/60Hz! The ideal dock product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features two USB-C fast charging ports (with up to 15W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5Gbps LAN port, and other peripherals.
The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.

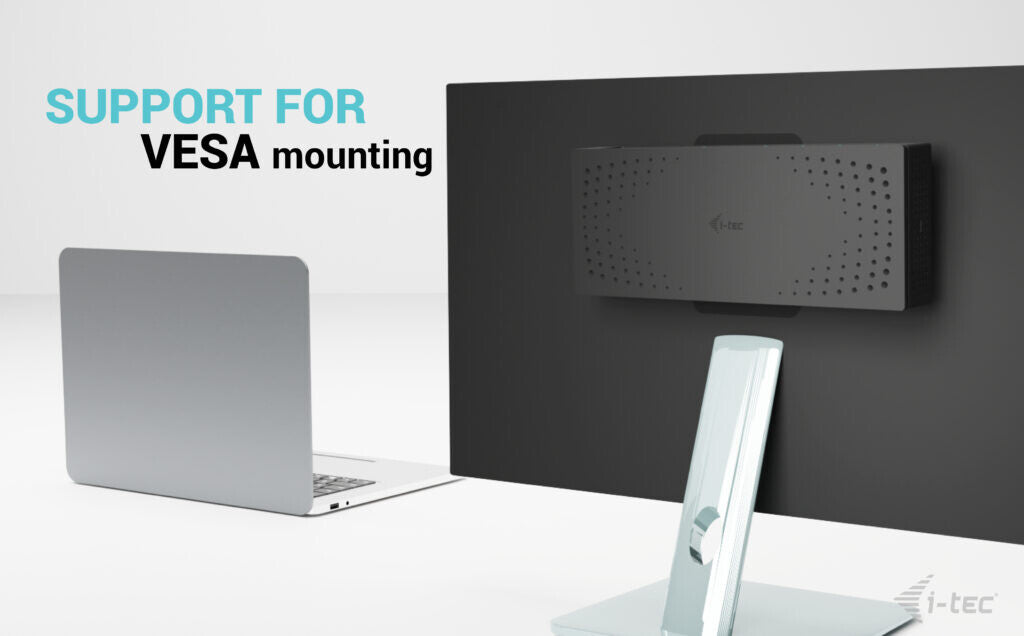

The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

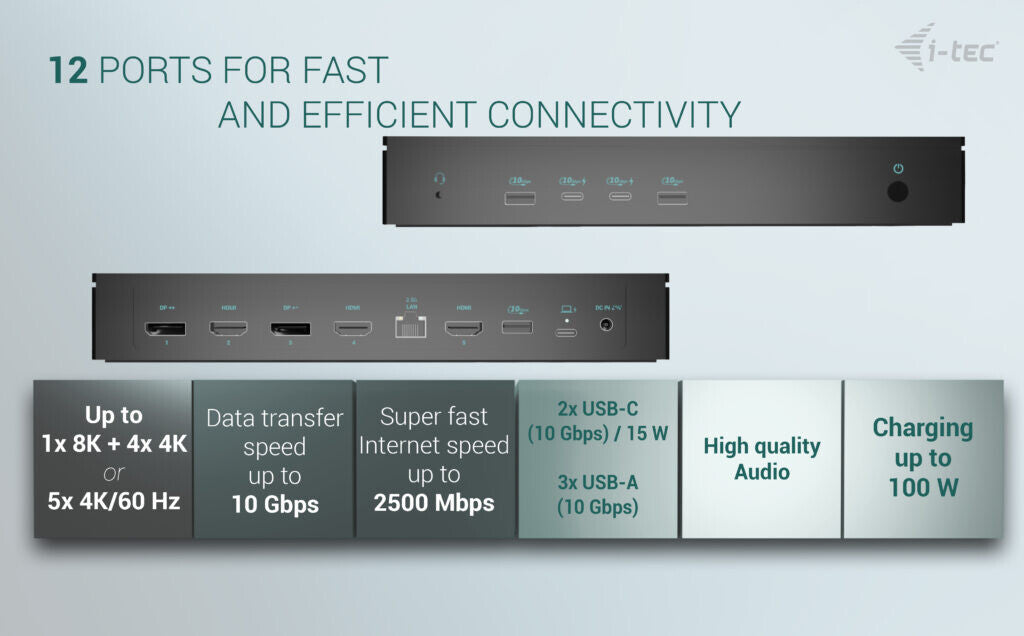

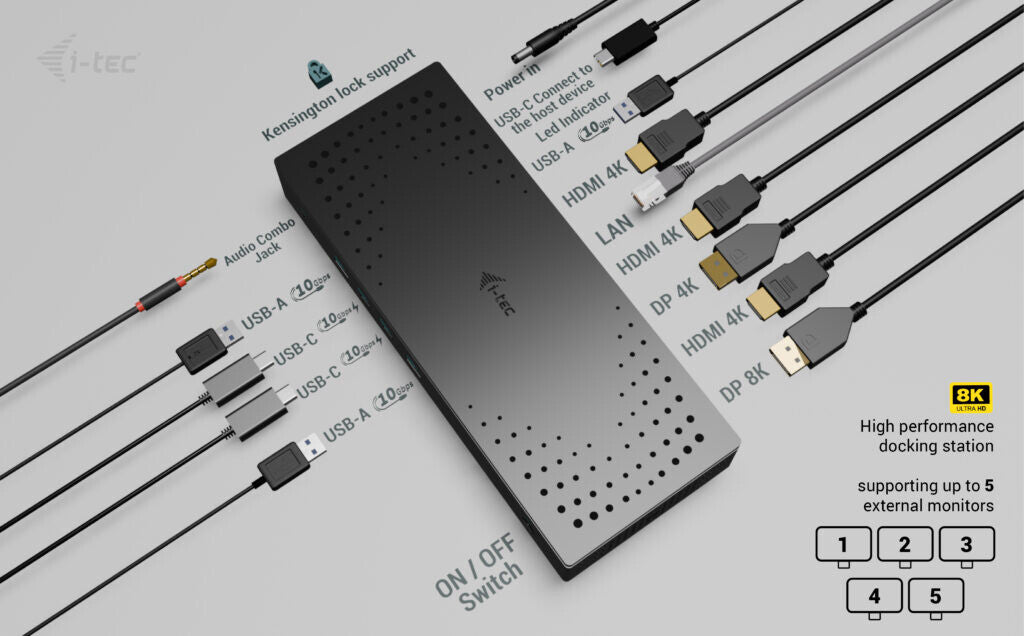

- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution

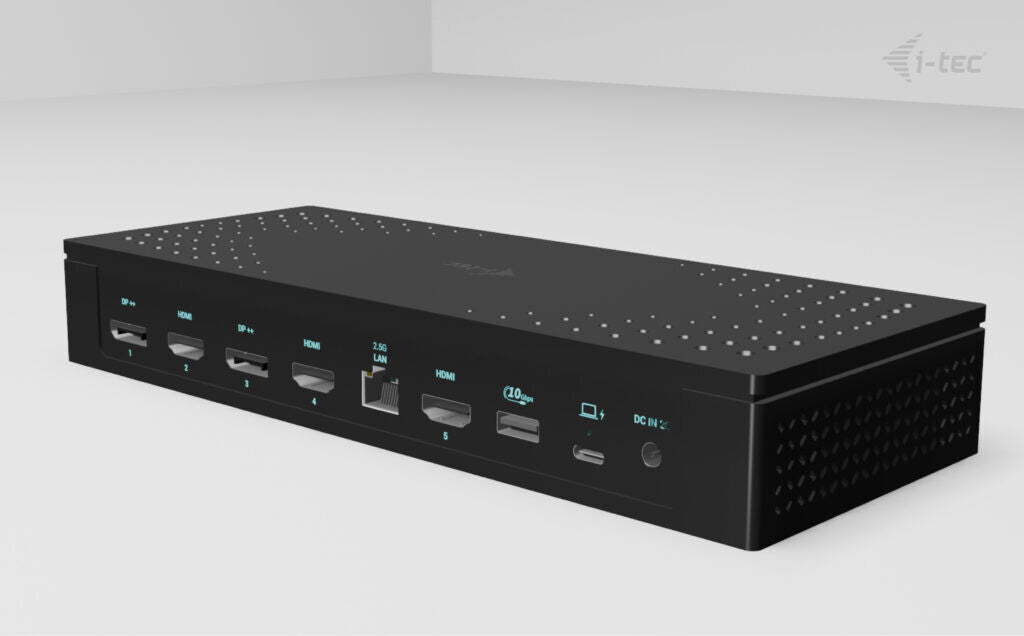

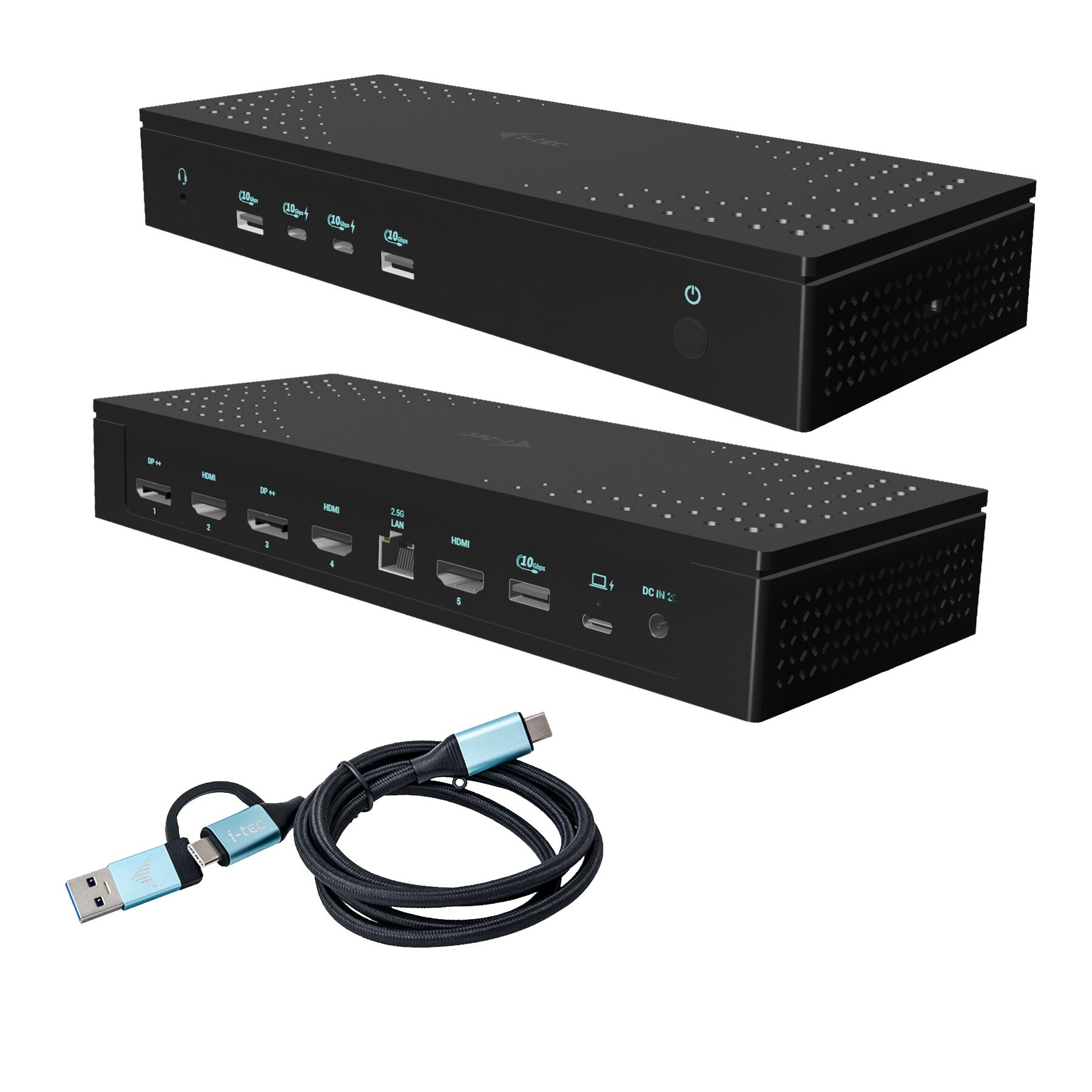

- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor

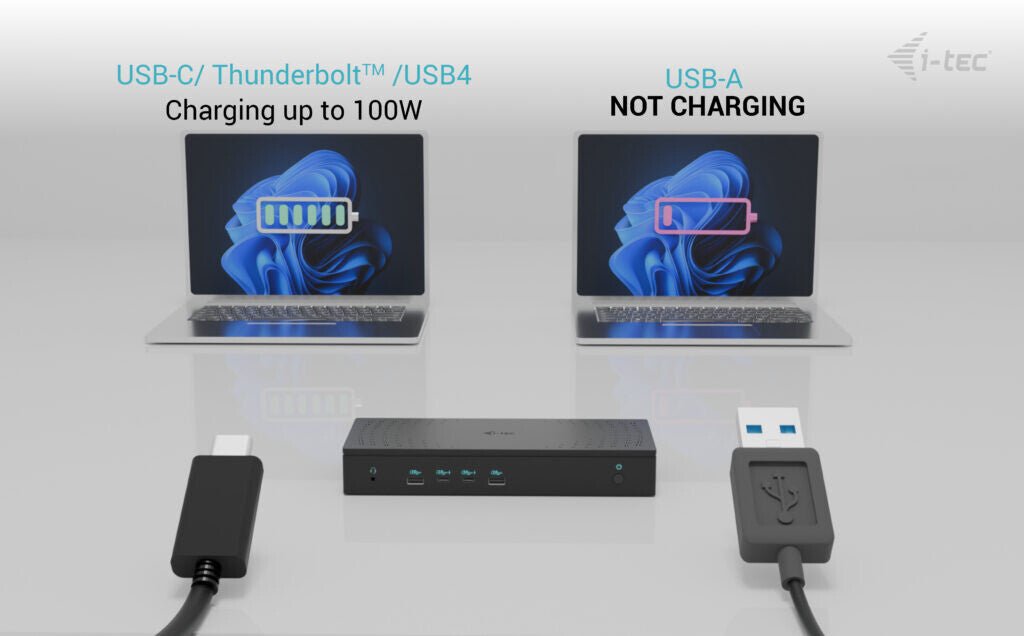

* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
3 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| LED indicators |
Yes |
| On/off switch |
Yes |
| VESA mounting |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Maximum refresh rate |
60 Hz |
| Number of displays supported |
5 |
| Maximum digital resolution |
7680 x 4320 pixels |
| HD type |
8K Ultra HD |
| Data transfer rate |
10 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| USB cable length |
1 m |
| Compatible power plug types |
UK |
| Output voltage |
20 V |
| Output current |
6.5 A |
| Power supply |
130 W |
| Software |
|---|
| Other operating systems supported |
Android, ChromeOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
495 g |
| Height |
37 mm |
| Depth |
98 mm |
| Width |
245 mm |
| Packaging data |
|---|
| Package weight |
1.28 kg |
| Package height |
89 mm |
| Package depth |
142 mm |
| Package width |
259 mm |

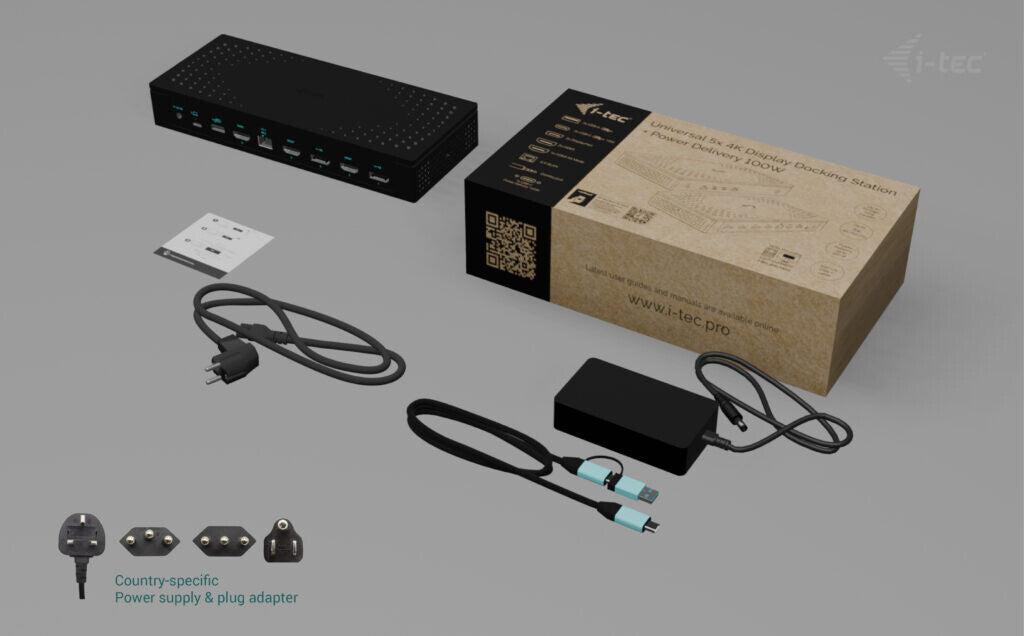

| Packaging content |
|---|
| Cables included |
USB Type-A to USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
