The ultimate performance docking station. Supports up to six external monitors* at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals.
The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

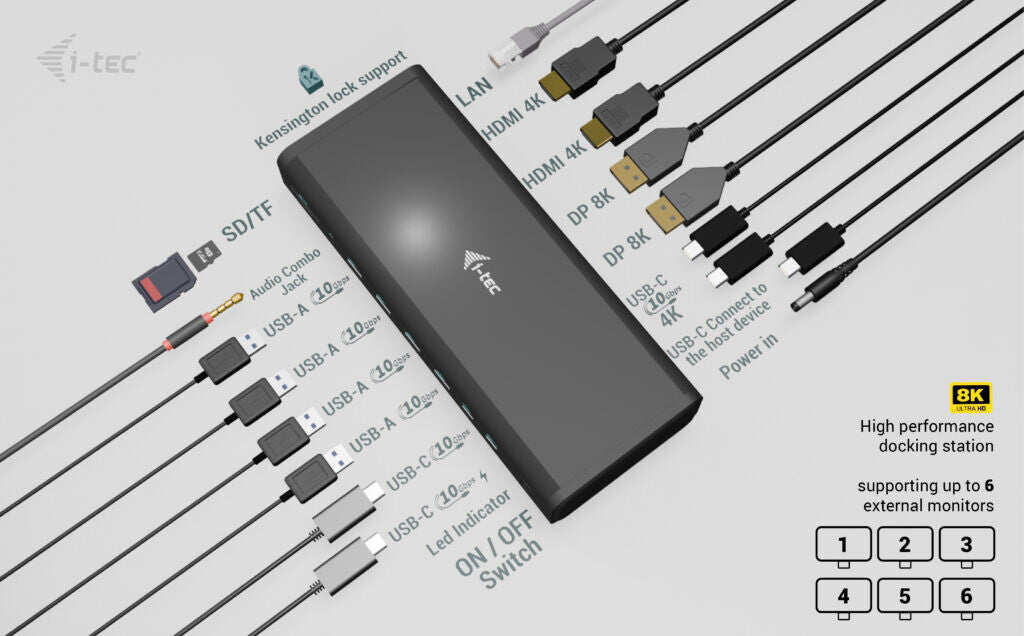

- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz

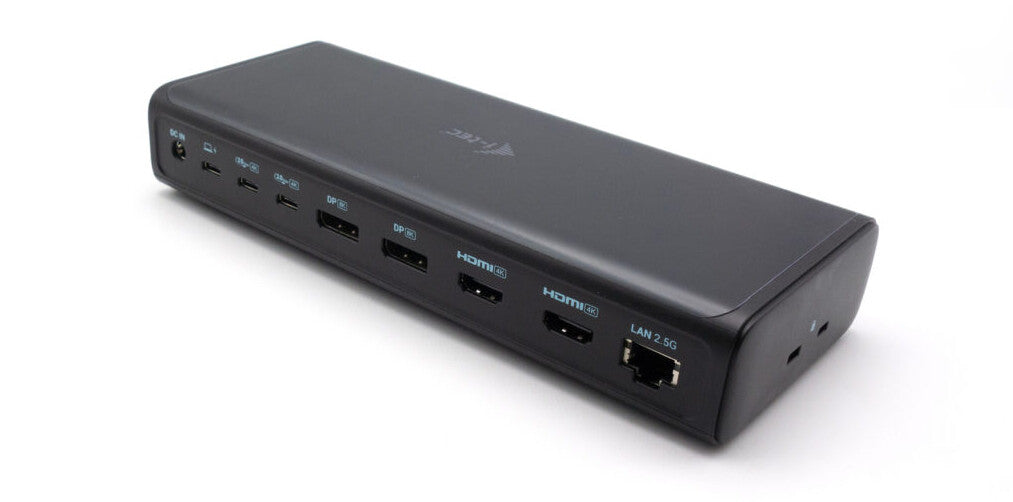

- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)
- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Headphone connectivity |
3.5 mm |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| USB Power Delivery up to |
140 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| LED indicators |
Yes |
| On/off switch |
Yes |
| VESA mounting |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Maximum refresh rate |
144 Hz |
| Number of displays supported |
6 |
| Maximum digital resolution |
7680 x 4320 pixels |
| Data transfer rate |
10 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Card reader integrated |
Yes |
| Product colour |
Black |
| Power |
|---|
| USB cable length |
1 m |
| Compatible power plug types |
UK |
| Power consumption (max) |
240 W |
| Output voltage |
24 V |
| Output current |
10 A |
| Software |
|---|
| Other operating systems supported |
Android, ChromeOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
546 g |
| Height |
37 mm |
| Depth |
88 mm |
| Width |
218 mm |
| Packaging data |
|---|
| Package height |
90 mm |
| Package depth |
181 mm |
| Package width |
270 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, USB Type-A to USB Type-C, USB Type-C |
| AC adapter included |
Yes |
