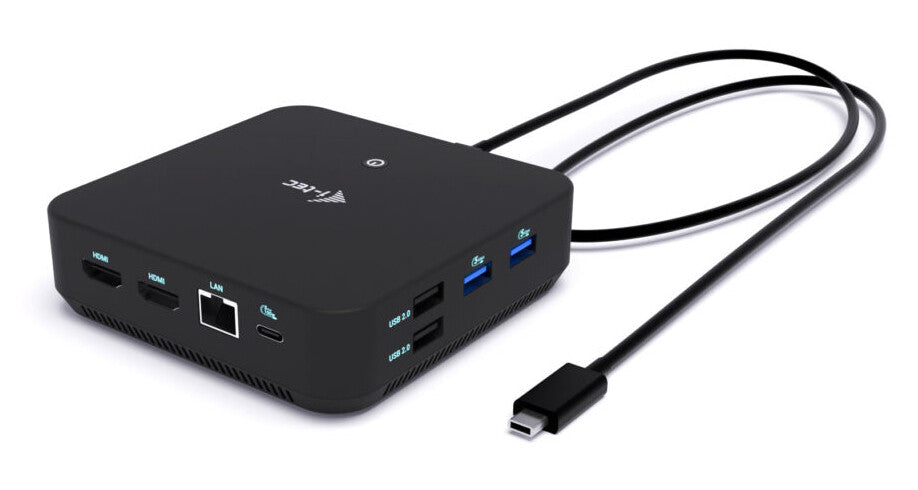

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4/5 port. Of course, it supports charging of your laptop or tablet, up to 100 W.
The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.

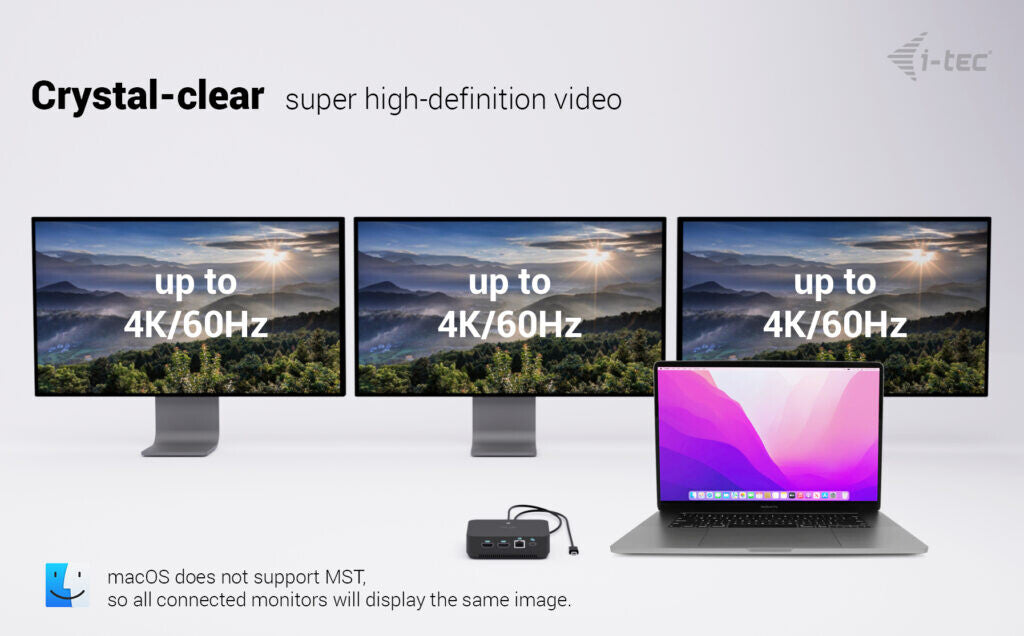

Note: macOS operating system does not support Multi Stream Transport (MST) video transmission technology, which means that if connected to macOS, the same image will be projected on all connected monitors.

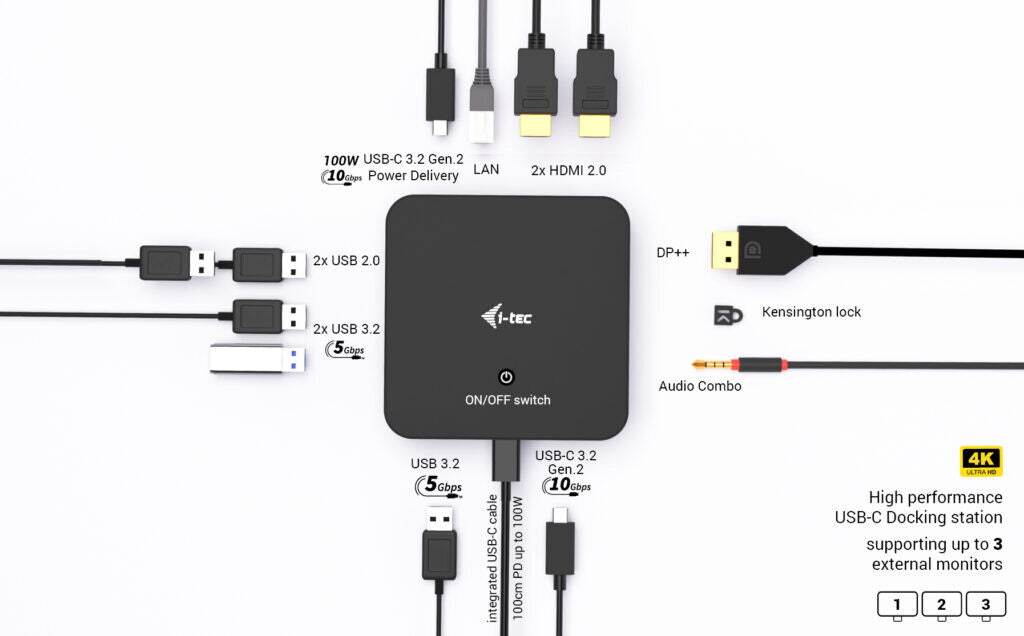

- Connect up to three external 4K monitors
- Refresh rate up to 240Hz (when connected to a single 1440p monitor)

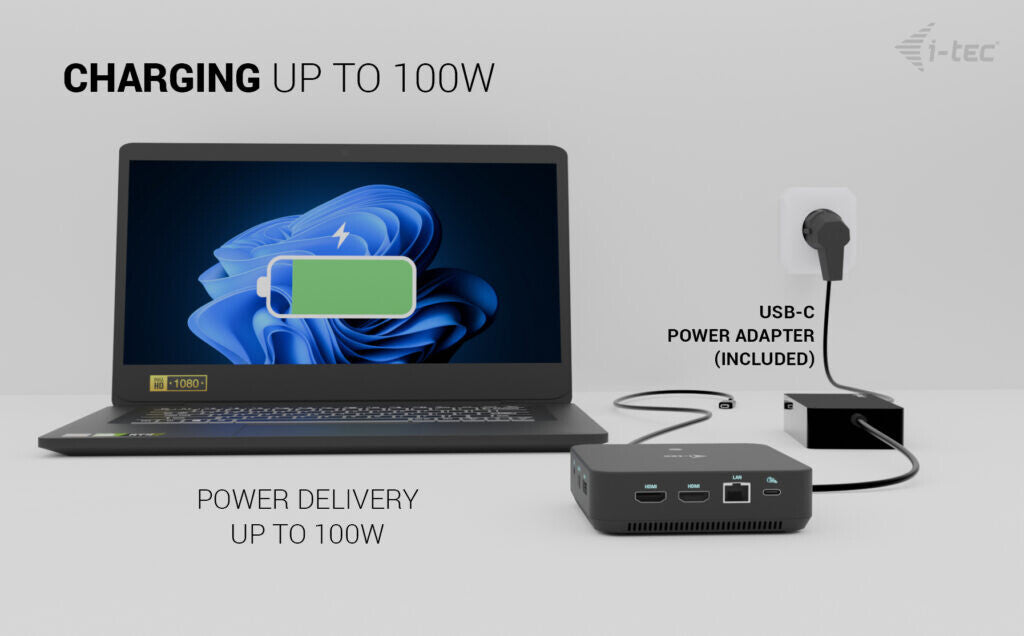

- Power delivery: up to 100W

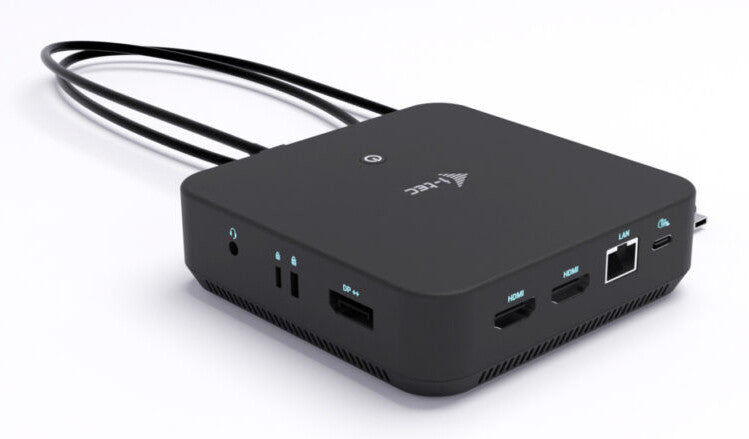

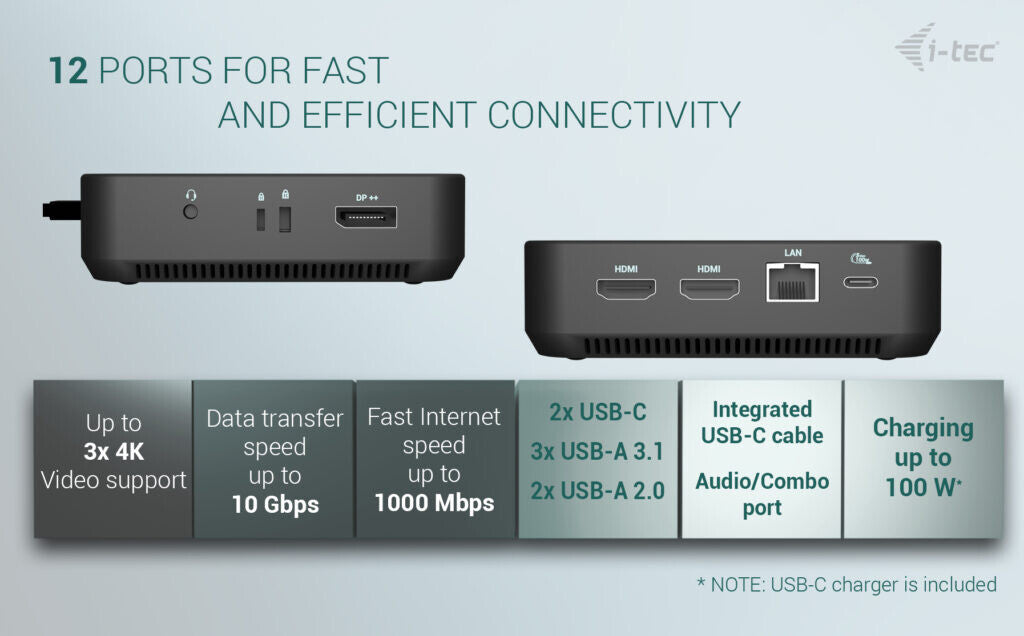

- 2x HDMI, 1x DisplayPort++

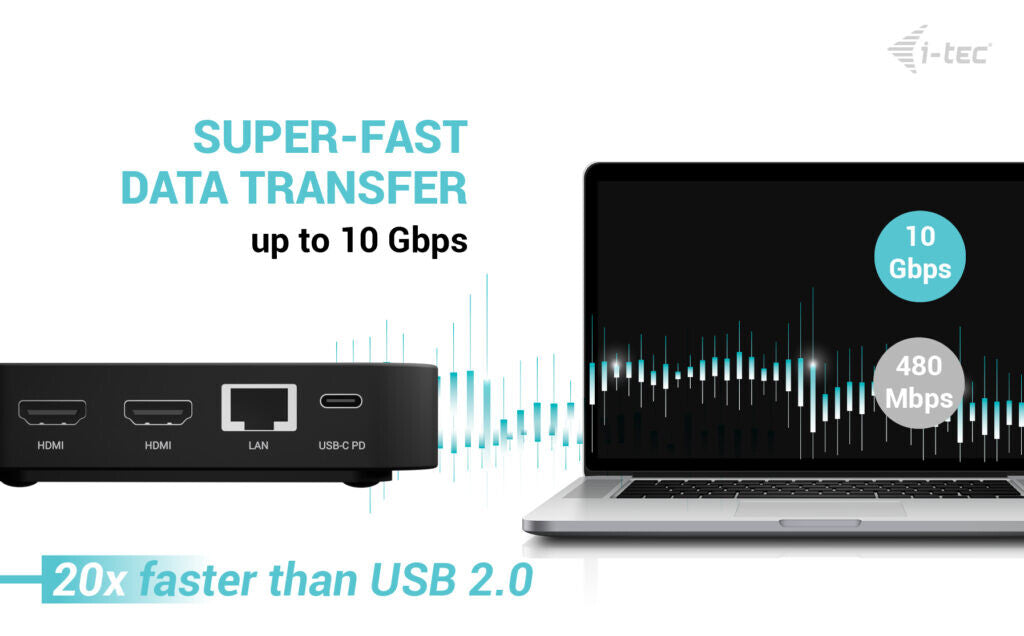

- 3x USB 3.2 (5 Gbps), 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
- Audio and microphone combo jack on the front panel
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android, iPadOS, ChromeOS and Linux

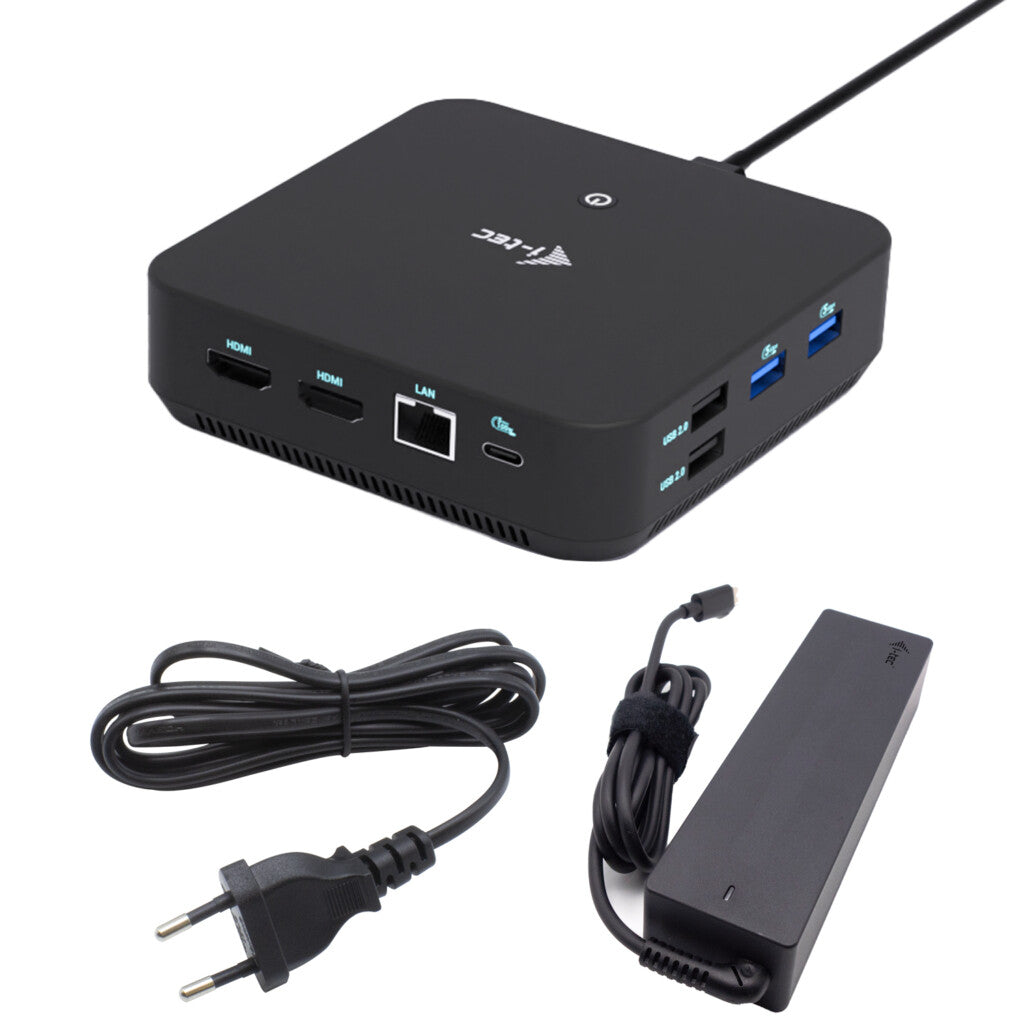

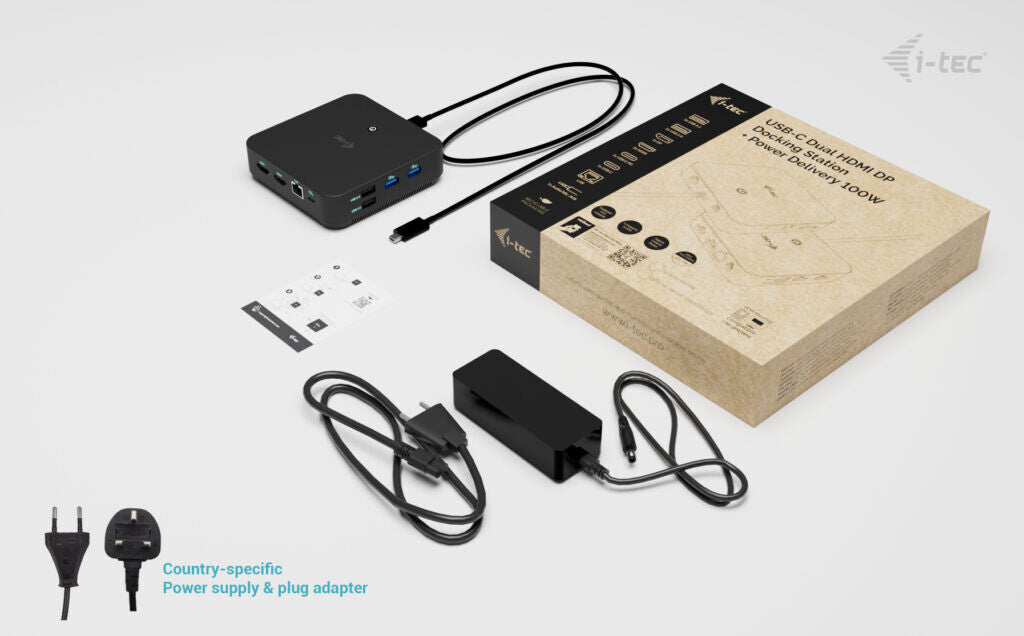

NOTE: USB-C 100W charger included.
| Ports & interfaces |
|---|
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Brand compatibility |
Universal |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| On/off switch |
Yes |
| VESA mounting |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Maximum refresh rate |
240 Hz |
| Number of displays supported |
3 |
| Maximum digital resolution |
3840 x 2160 pixels |
| Data transfer rate |
10 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| USB cable length |
1 m |
| Power consumption (typical) |
10 W |
| Power consumption (max) |
100 W |
| Output voltage |
5 - 20 V |
| Output current |
5 A |
| Input current |
2.3 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power connector |
USB Type-C |
| Power source type |
USB |
| Software |
|---|
| Other operating systems supported |
Android, ChromeOS, iPadOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Weight & dimensions |
|---|
| Weight |
340 g |
| Height |
31.2 mm |
| Depth |
113 mm |
| Width |
113 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Short circuit protection |
Yes |
| Overload protection |
Yes |
