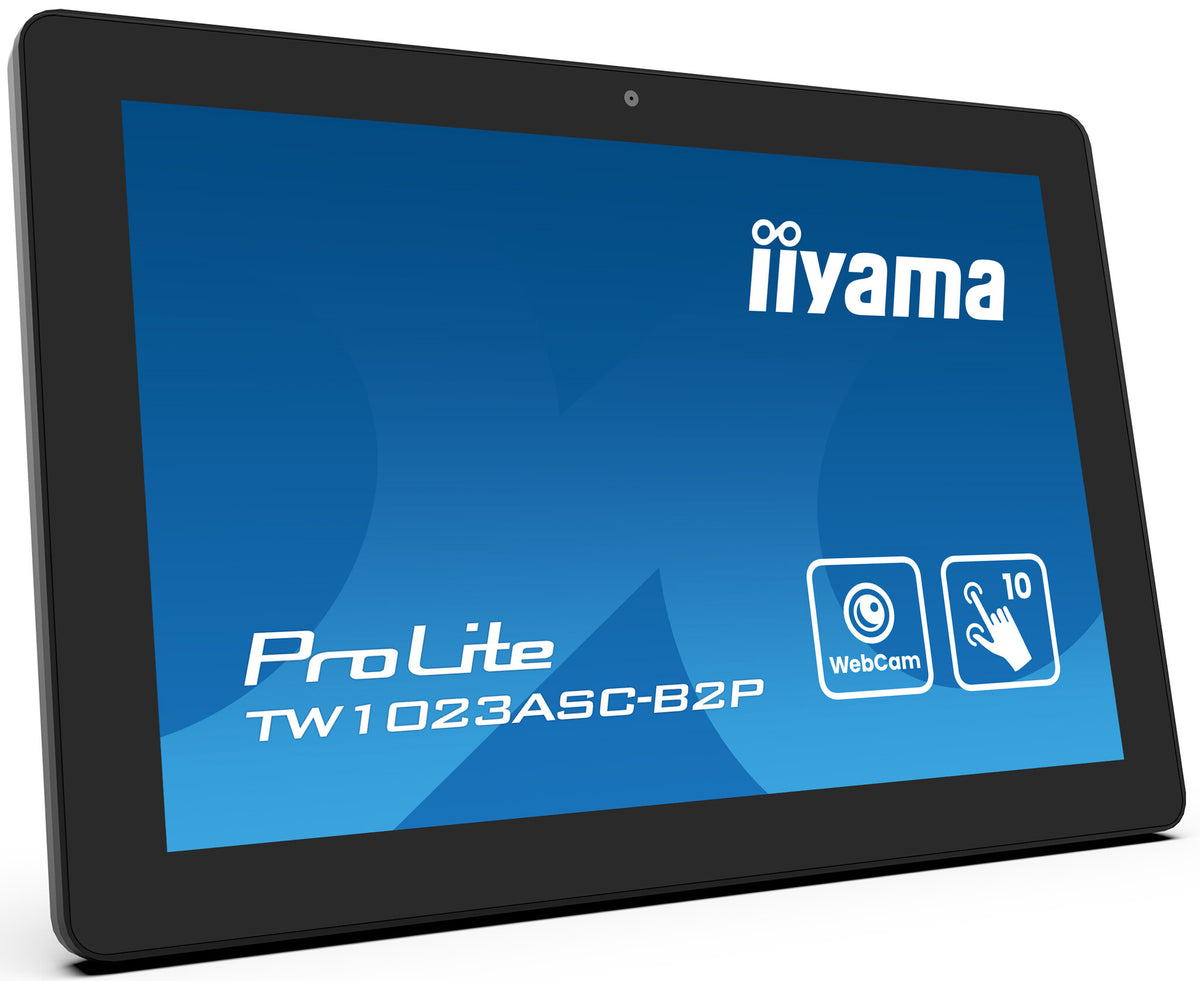

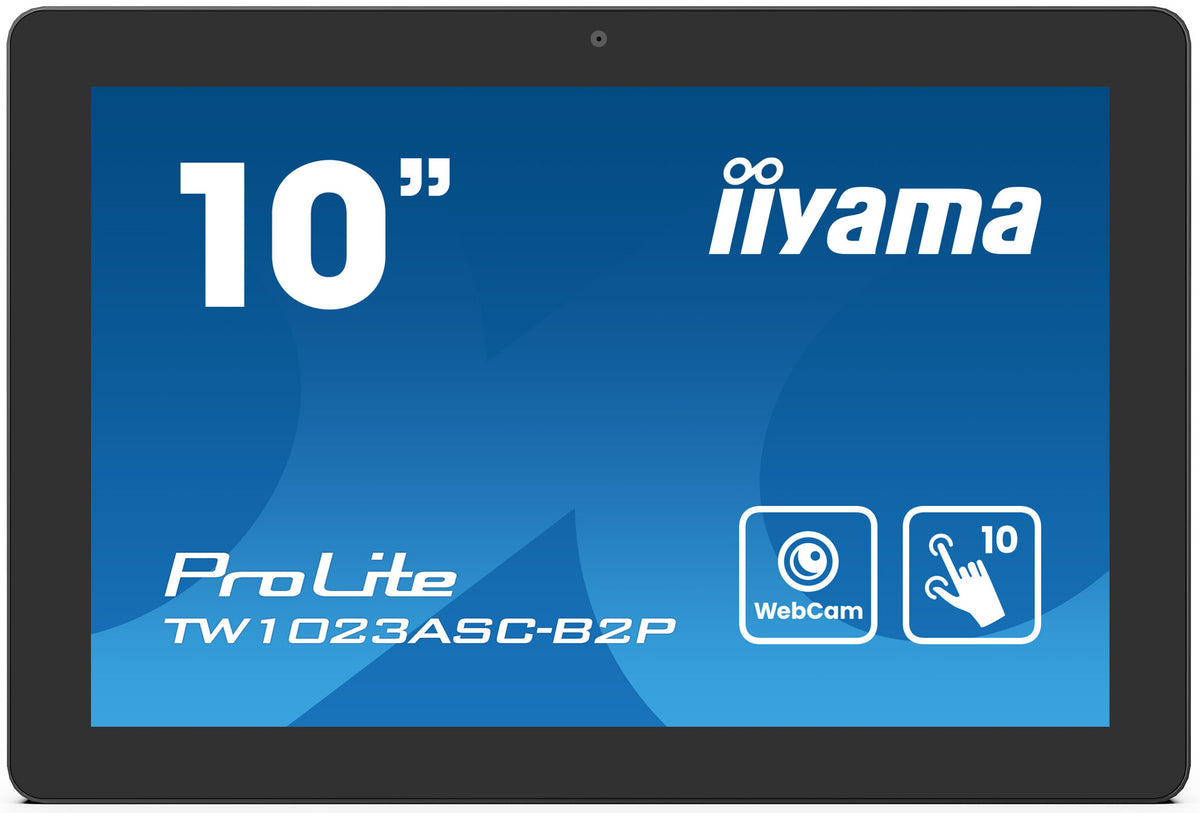

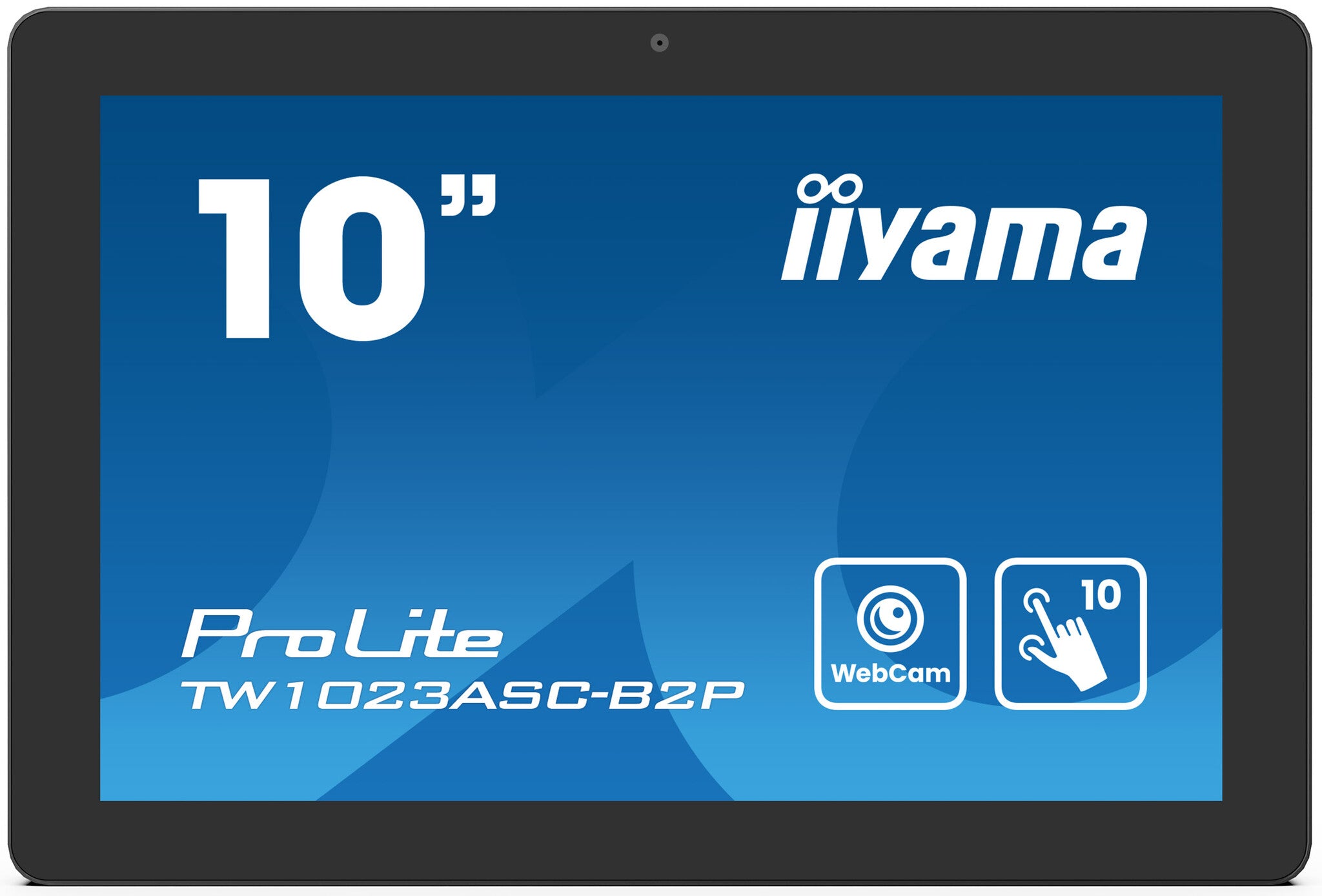

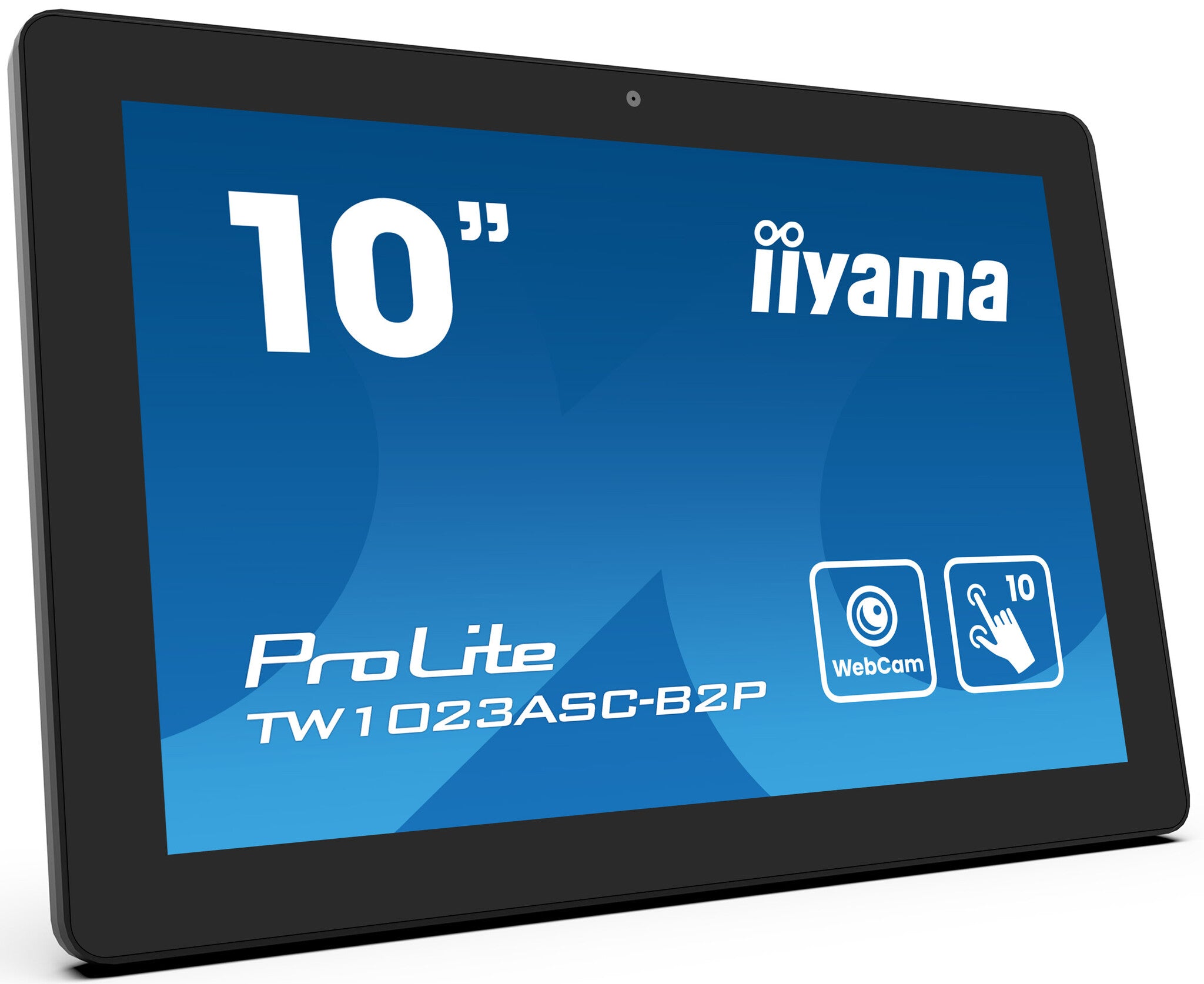

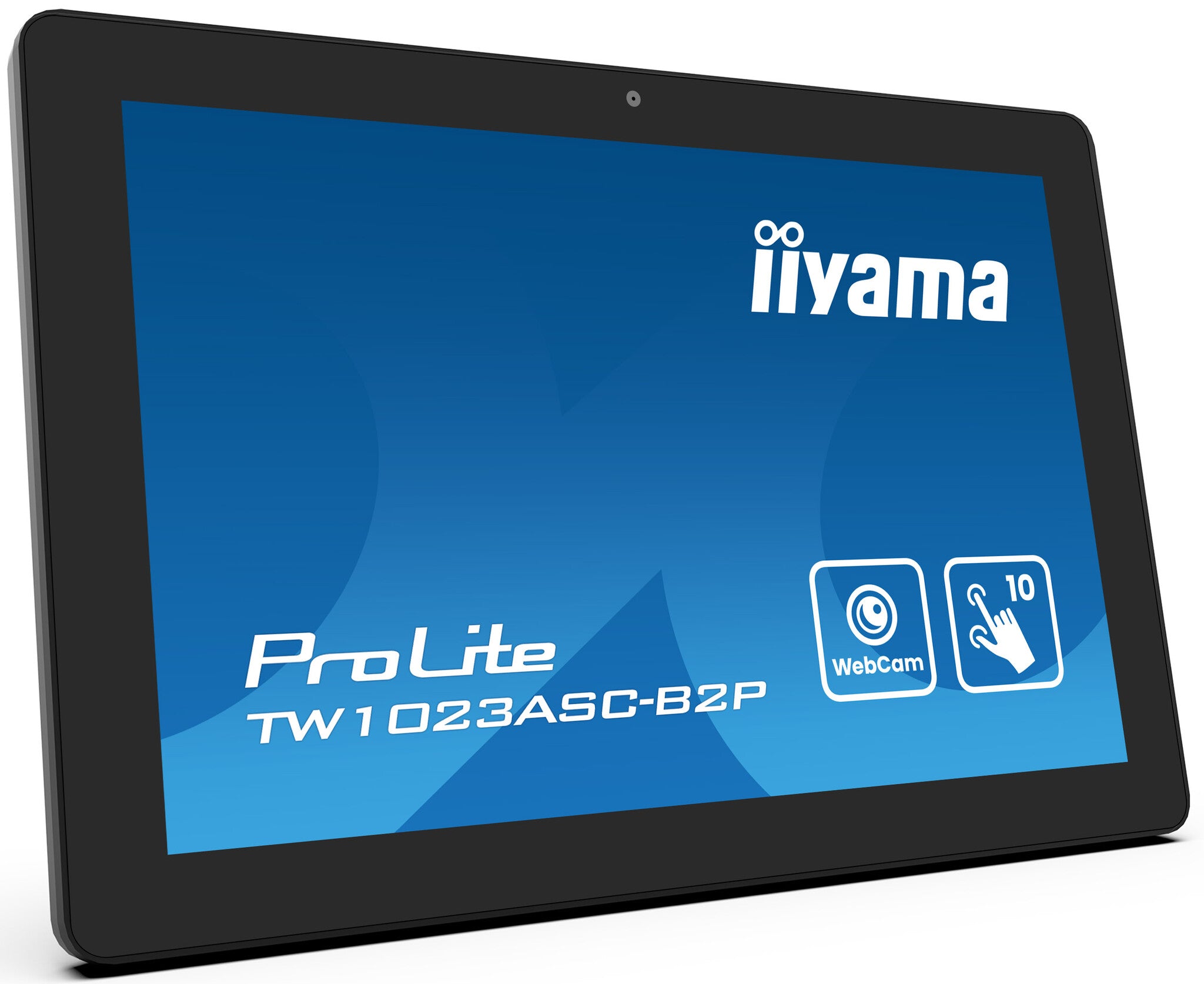

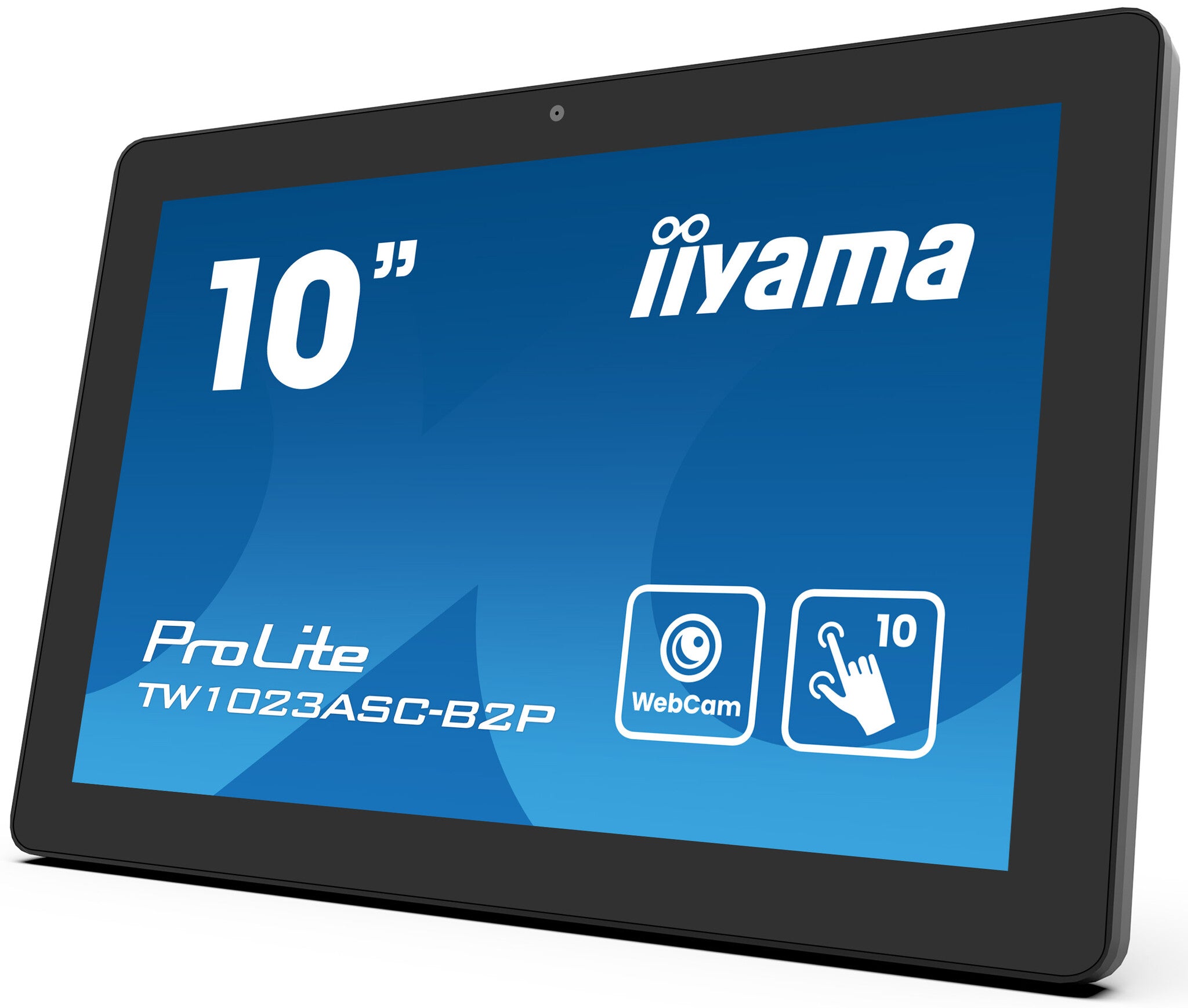

The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display |
|---|
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
160° |
| Contrast ratio |
1000:1 |
| Colour depth |
16.7 bit |
| Native aspect ratio |
16:10 |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Display brightness |
387 cd/m² |
| Display resolution |
1280 x 800 pixels |
| Panel type |
IPS |
| Display diagonal |
25.6 cm (10.1") |
| Performance |
|---|
| Operating system installed |
Android |

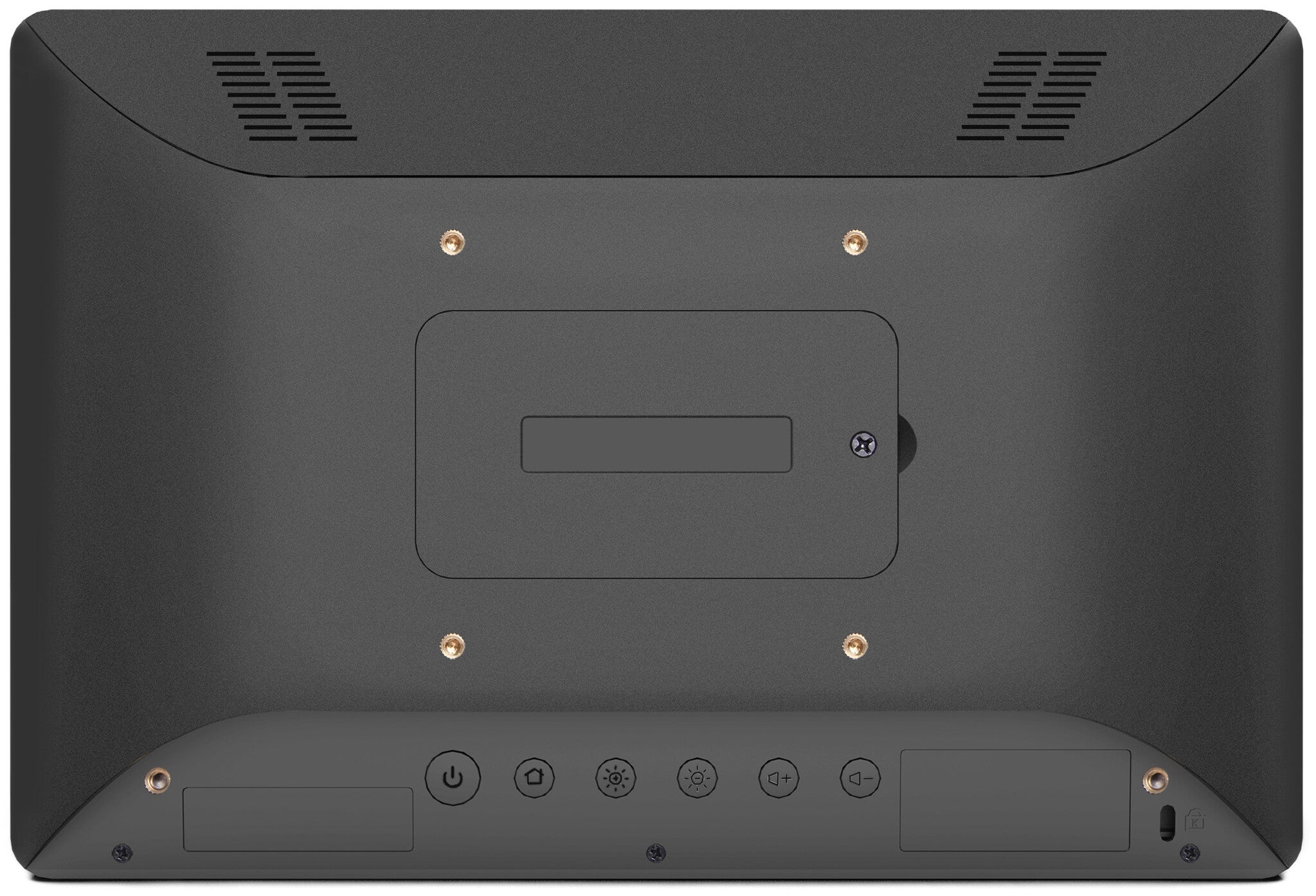

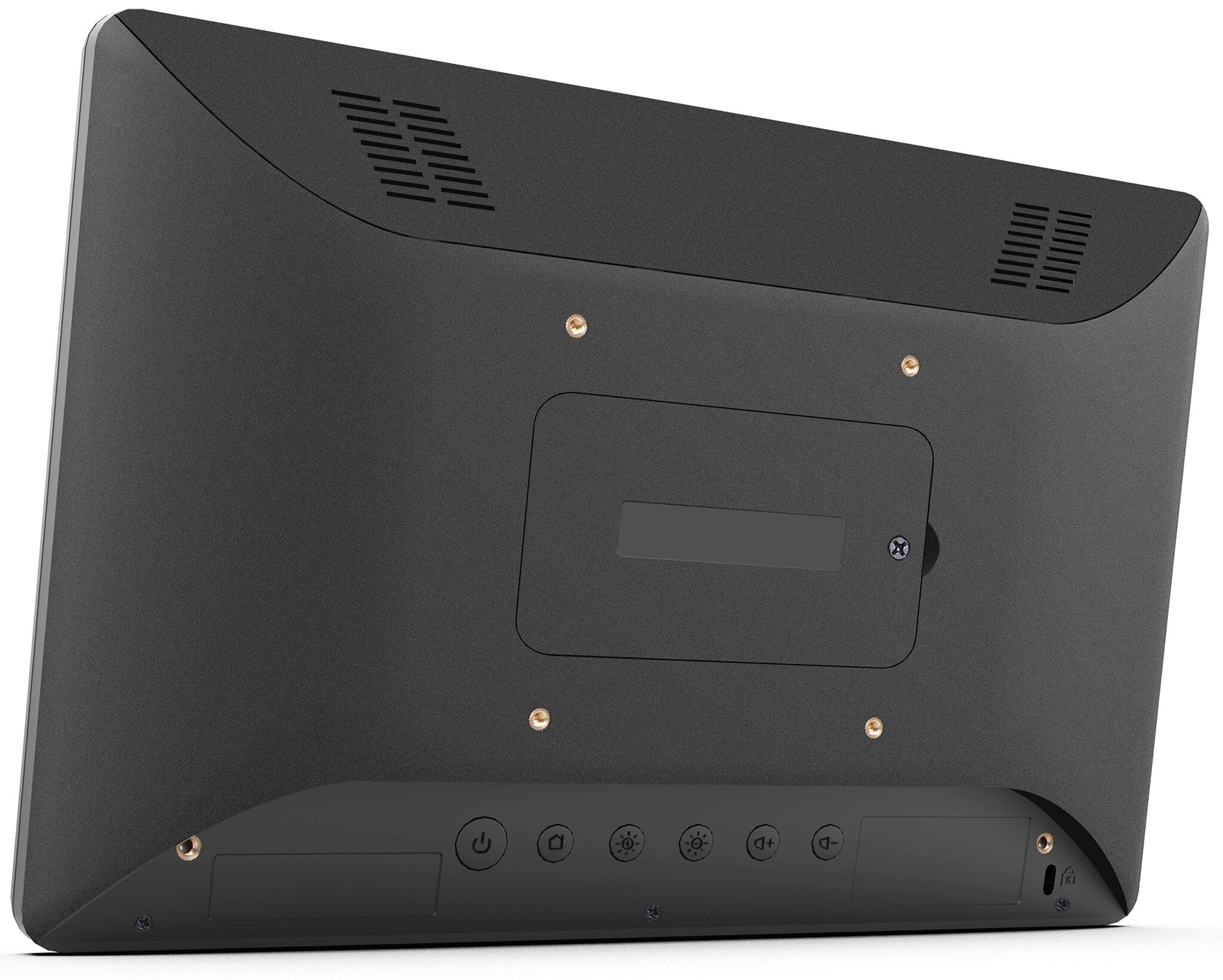

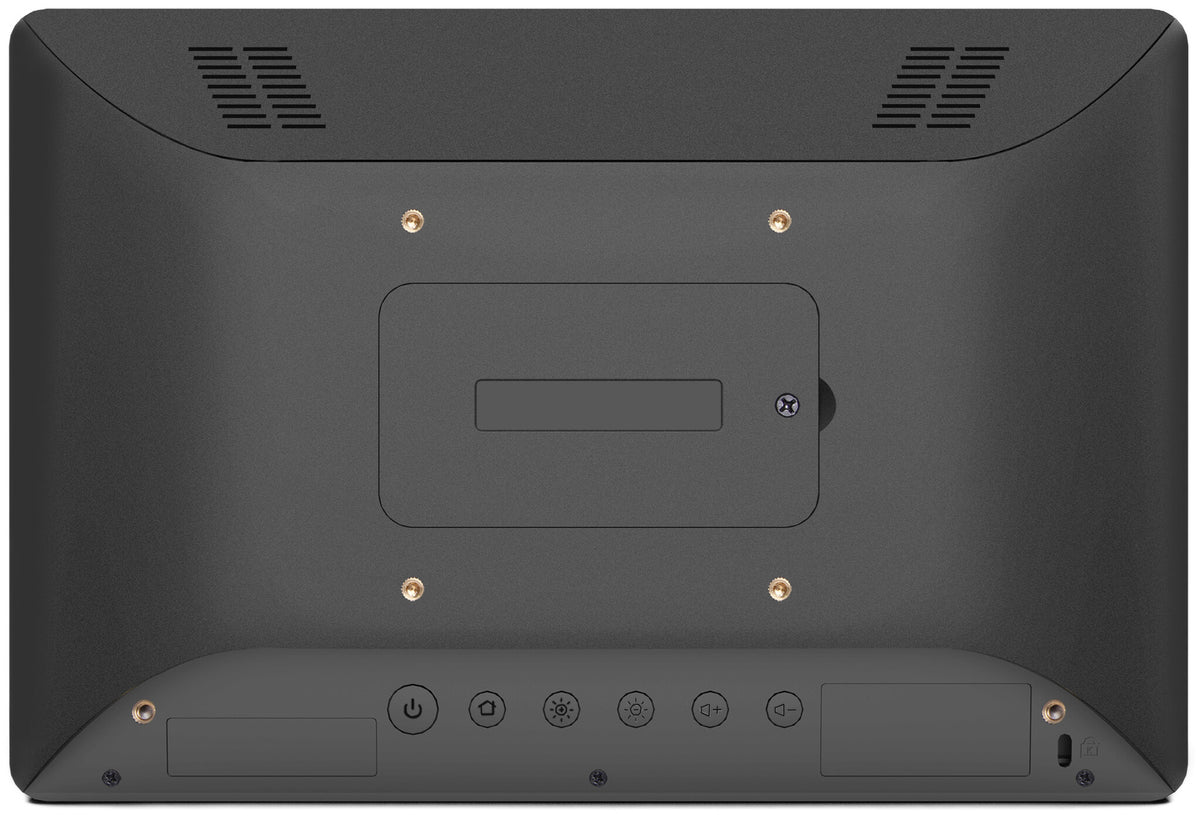

| VESA mounting |
Yes |
| Product colour |
Black |
| RAM capacity |
32000 MB |
| Internal memory |
4000 MB |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Audio |
|---|
| Number of microphone arrays |
1 |
| Built-in microphone |
Yes |
| Speaker power |
3 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |

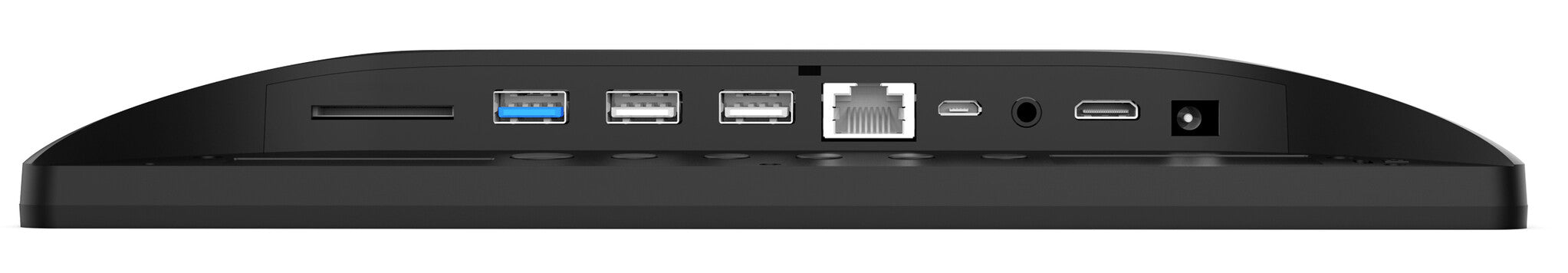

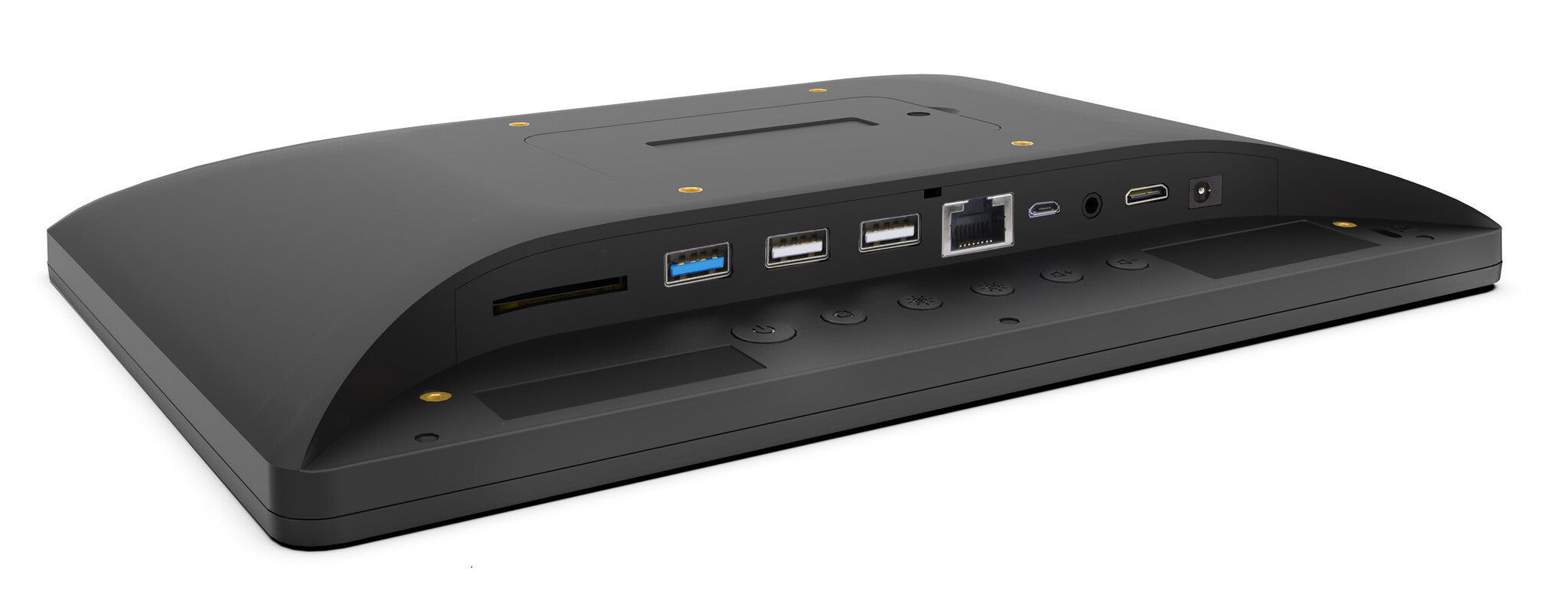

| Ports & interfaces |
|---|
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| RJ-45 ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| USB Type-C ports quantity |
4 |
| Power |
|---|
| Power consumption (typical) |
18 W |
| Power supply location |
External |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Weight |
800 g |
| Height |
172 mm |
| Depth |
30.5 mm |
| Width |
255 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.36 kg |
| Package depth |
398 mm |
| Package width |
68 mm |
| Package height |
223 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |
