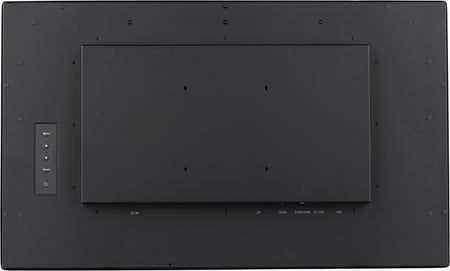

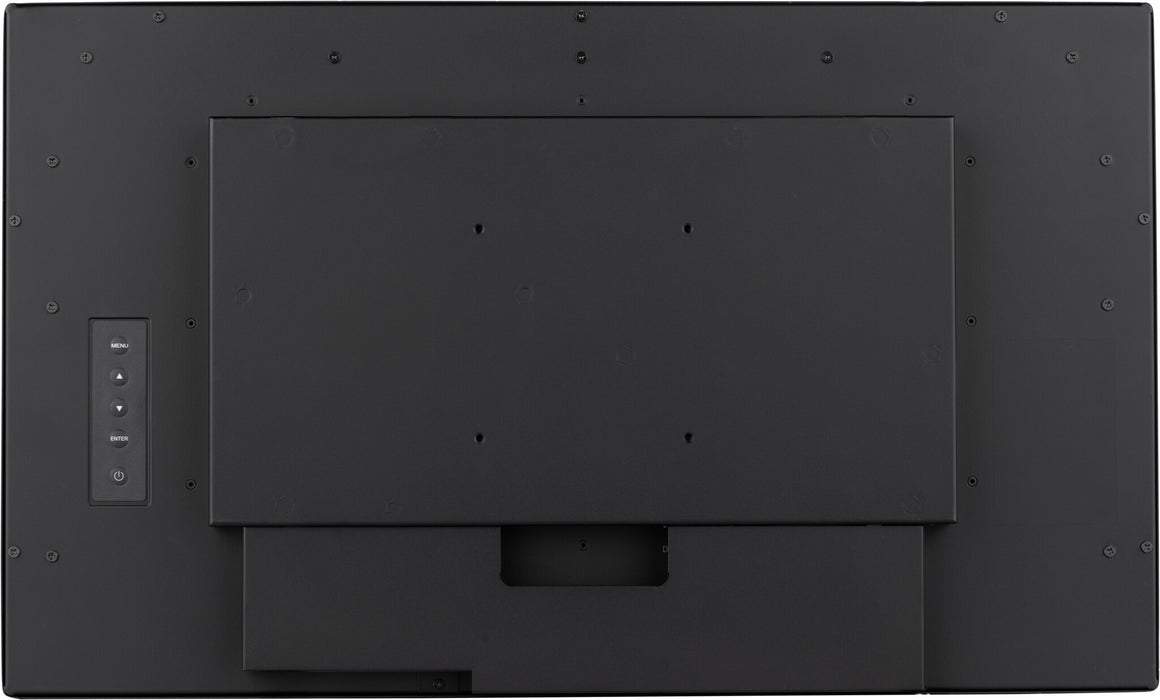

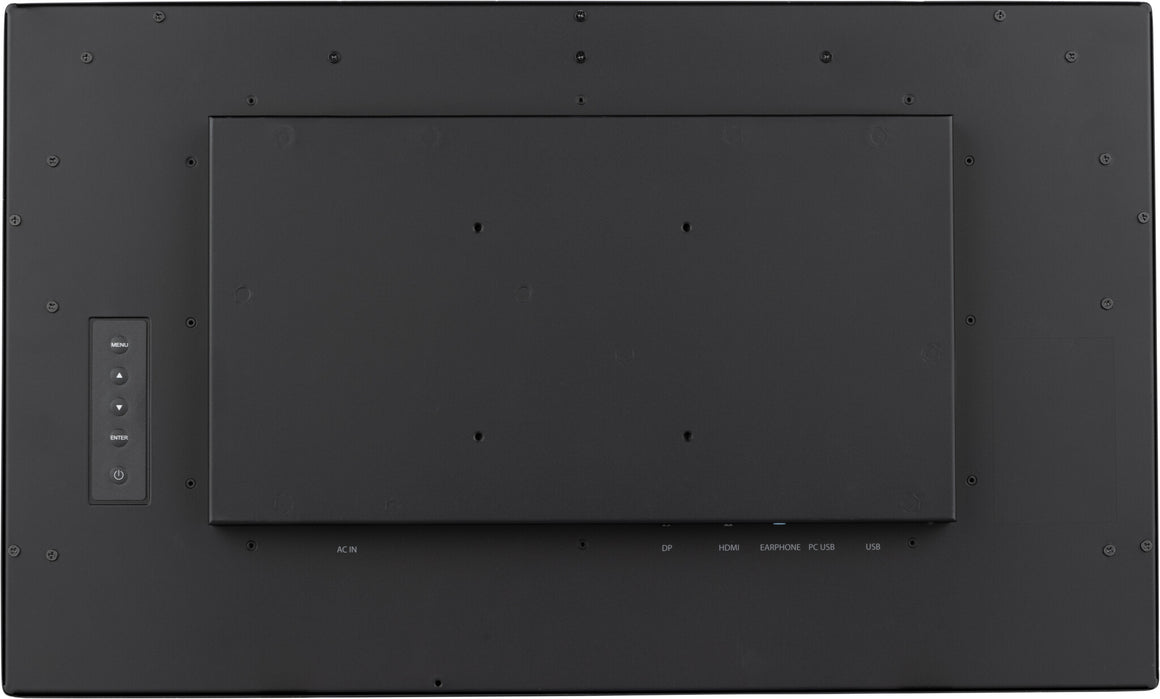

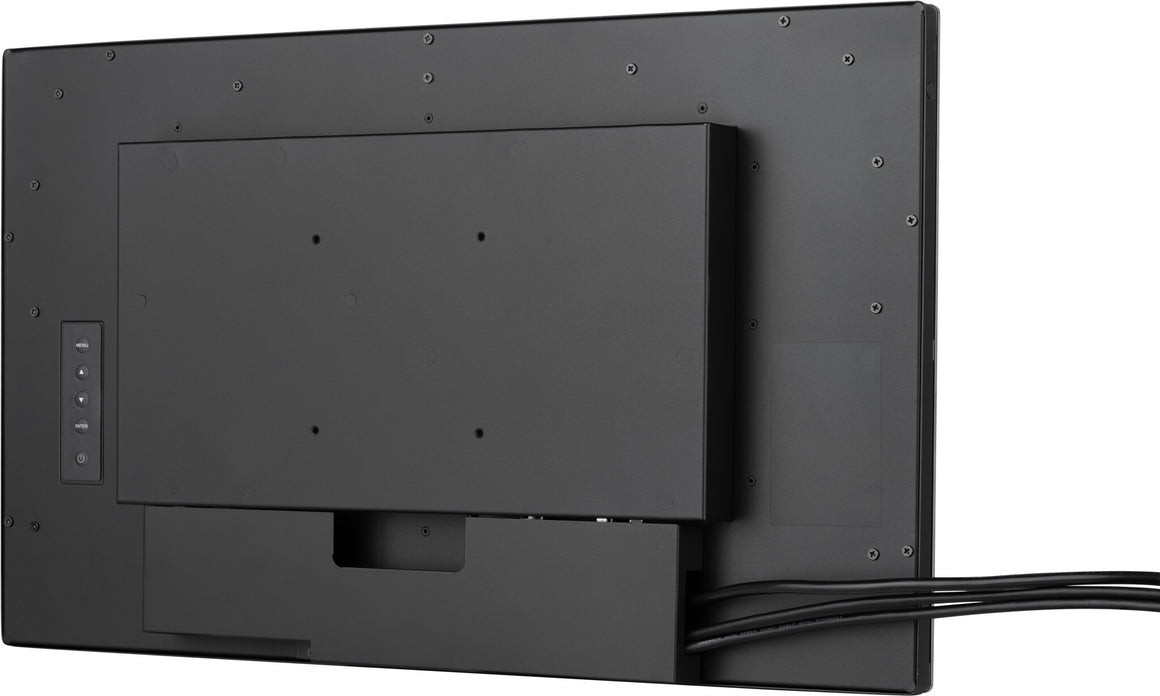

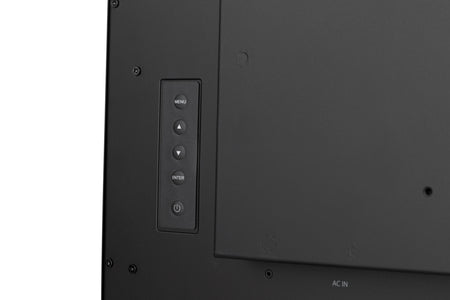

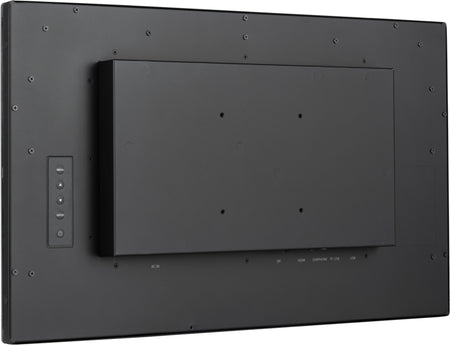

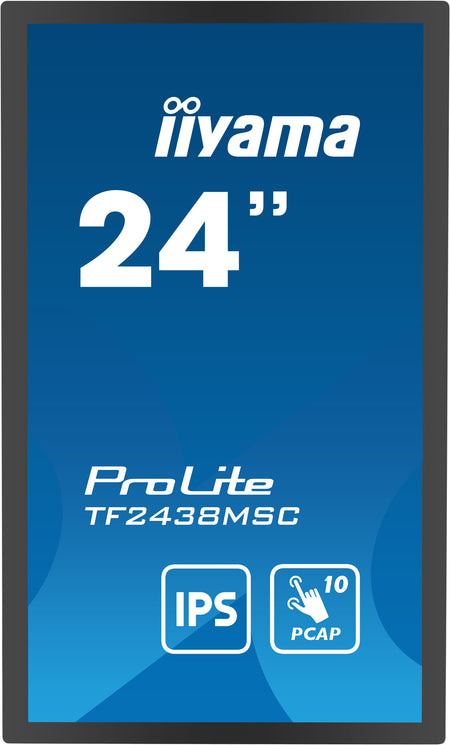

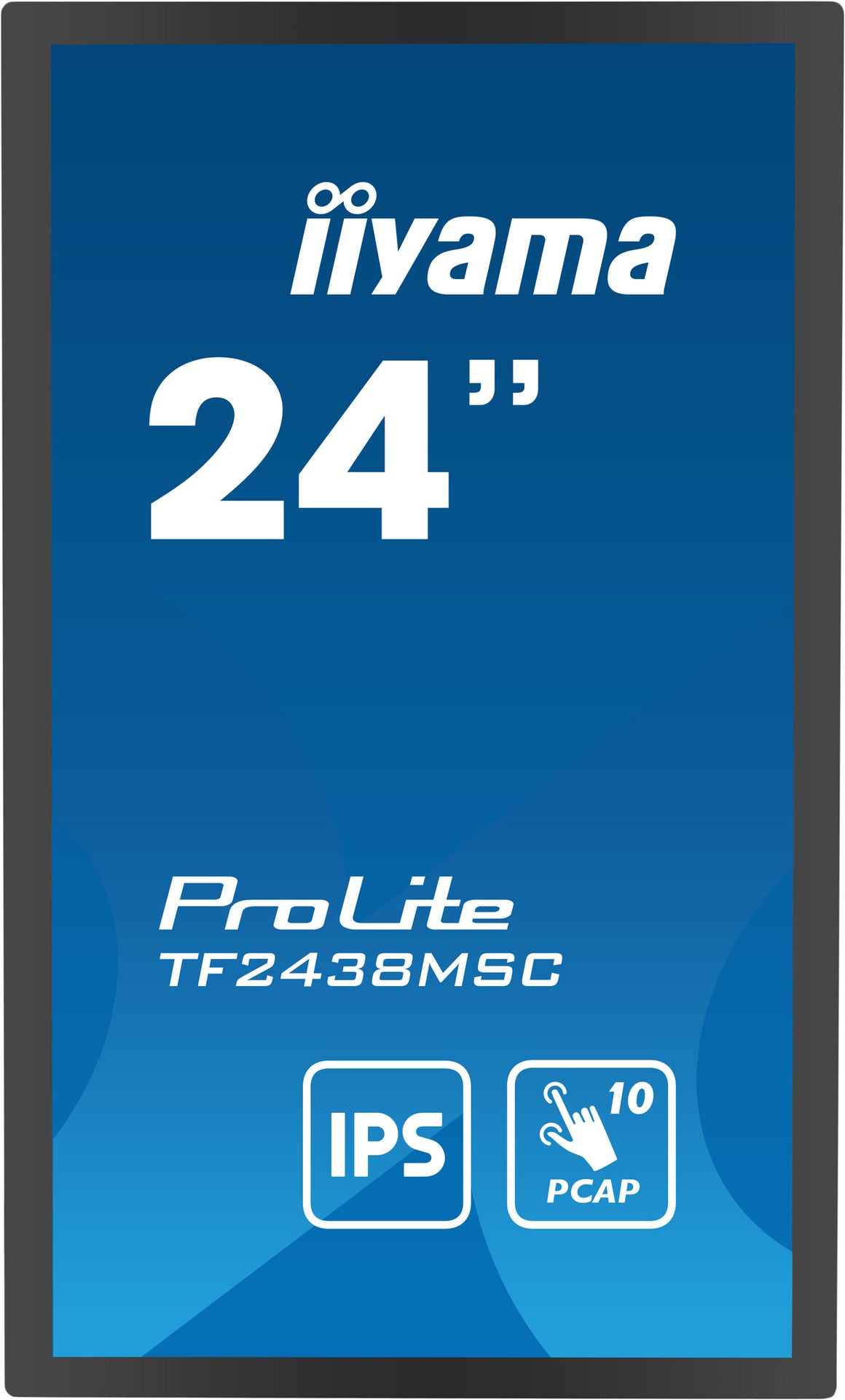

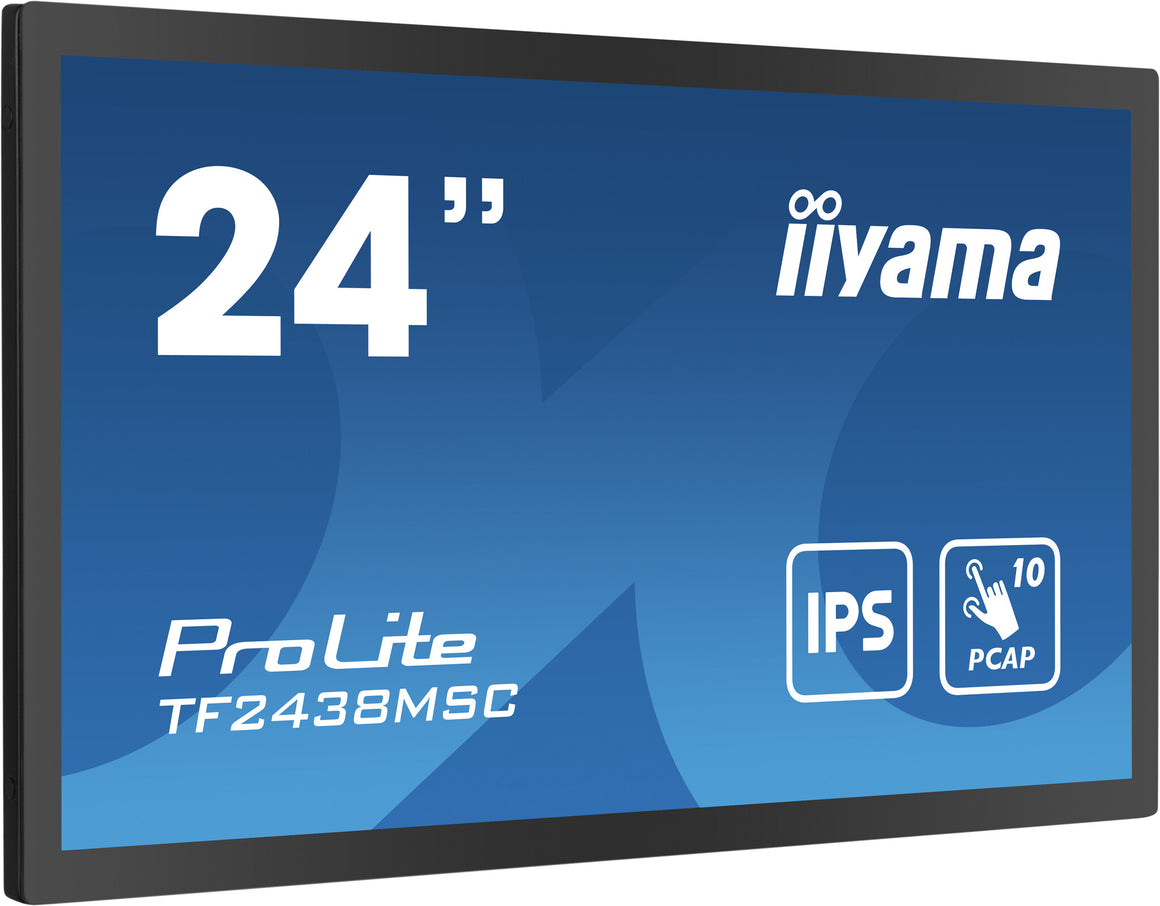

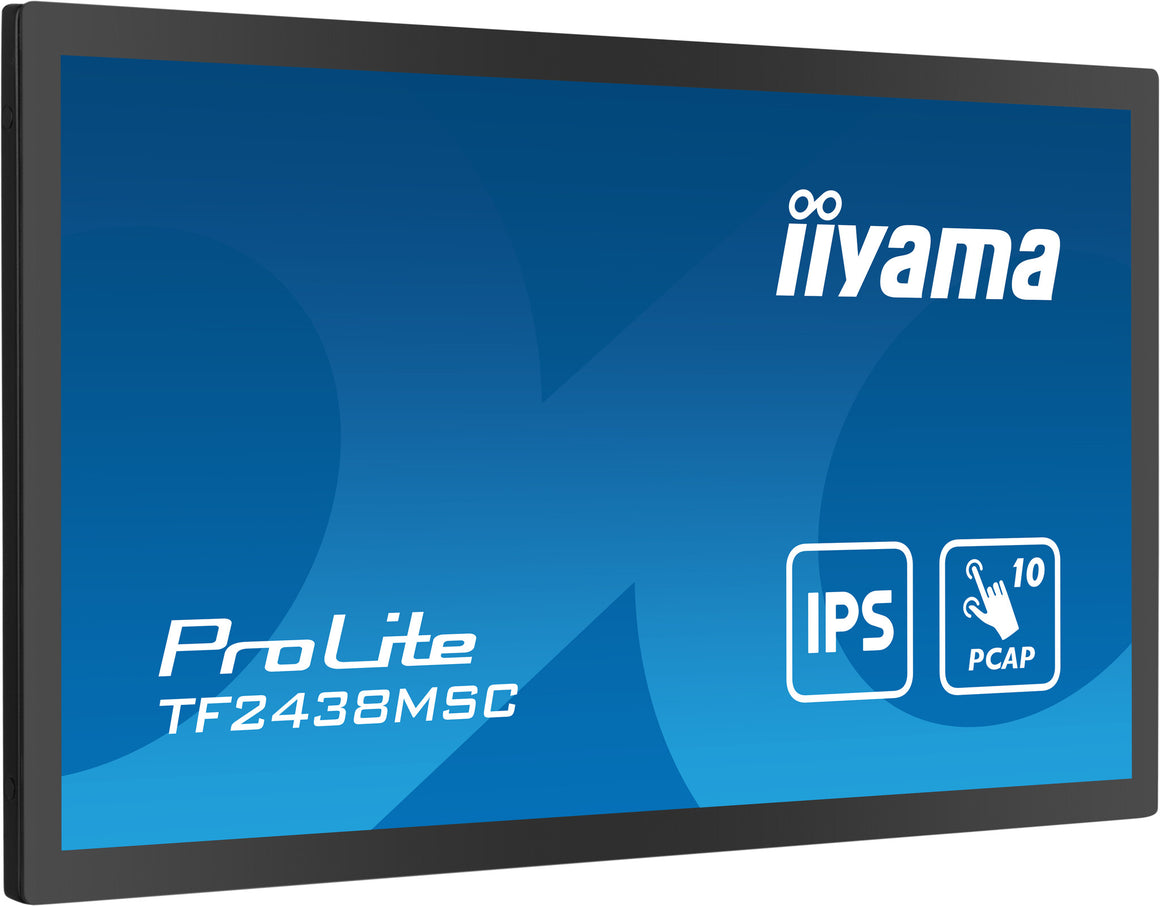

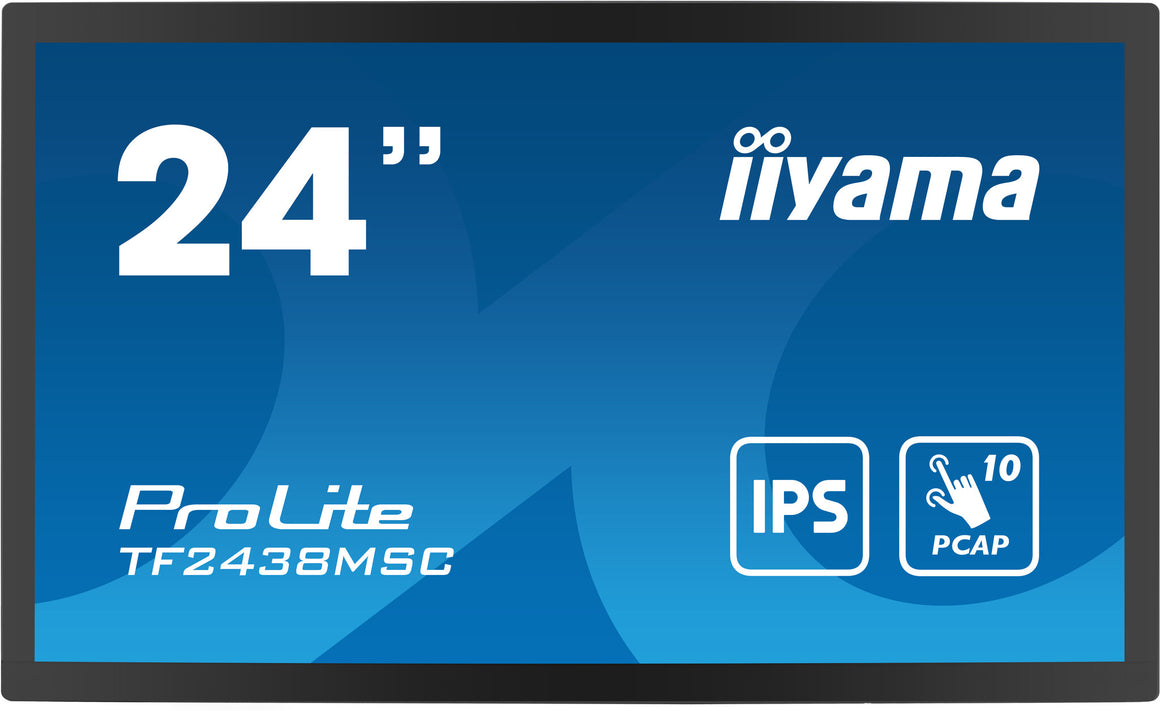

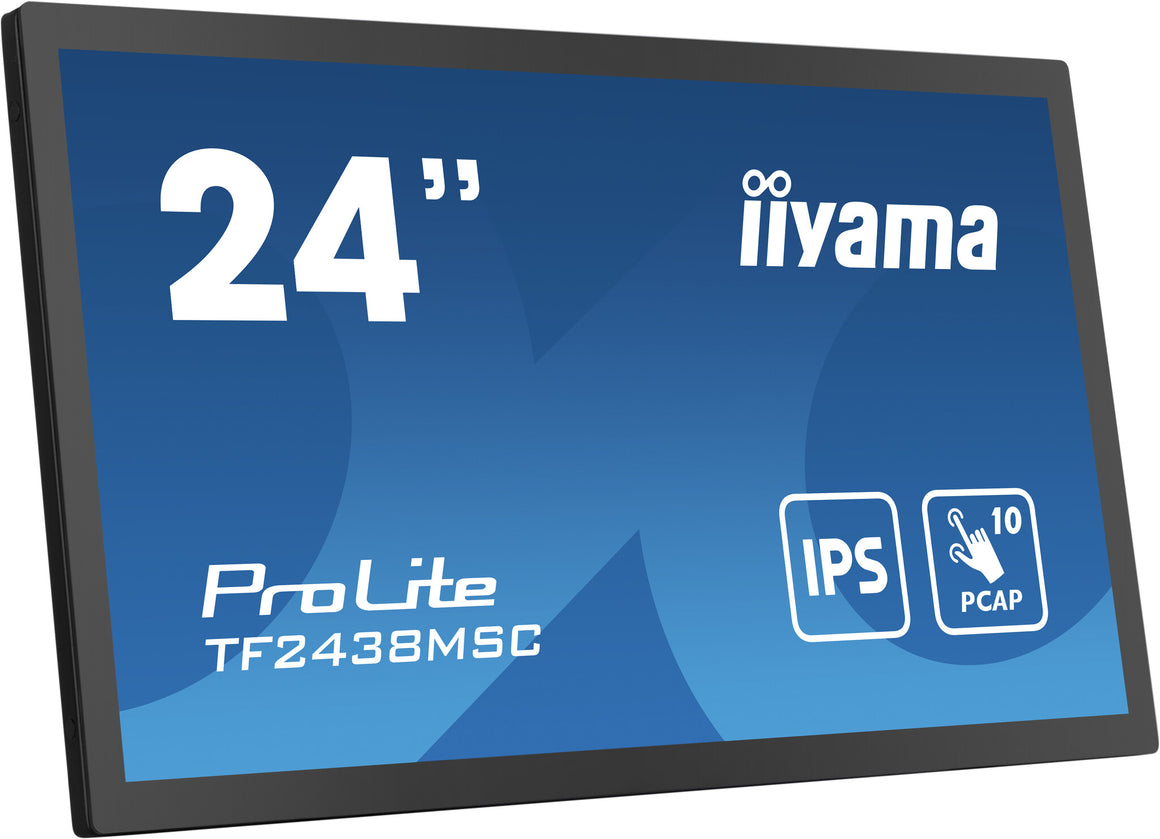

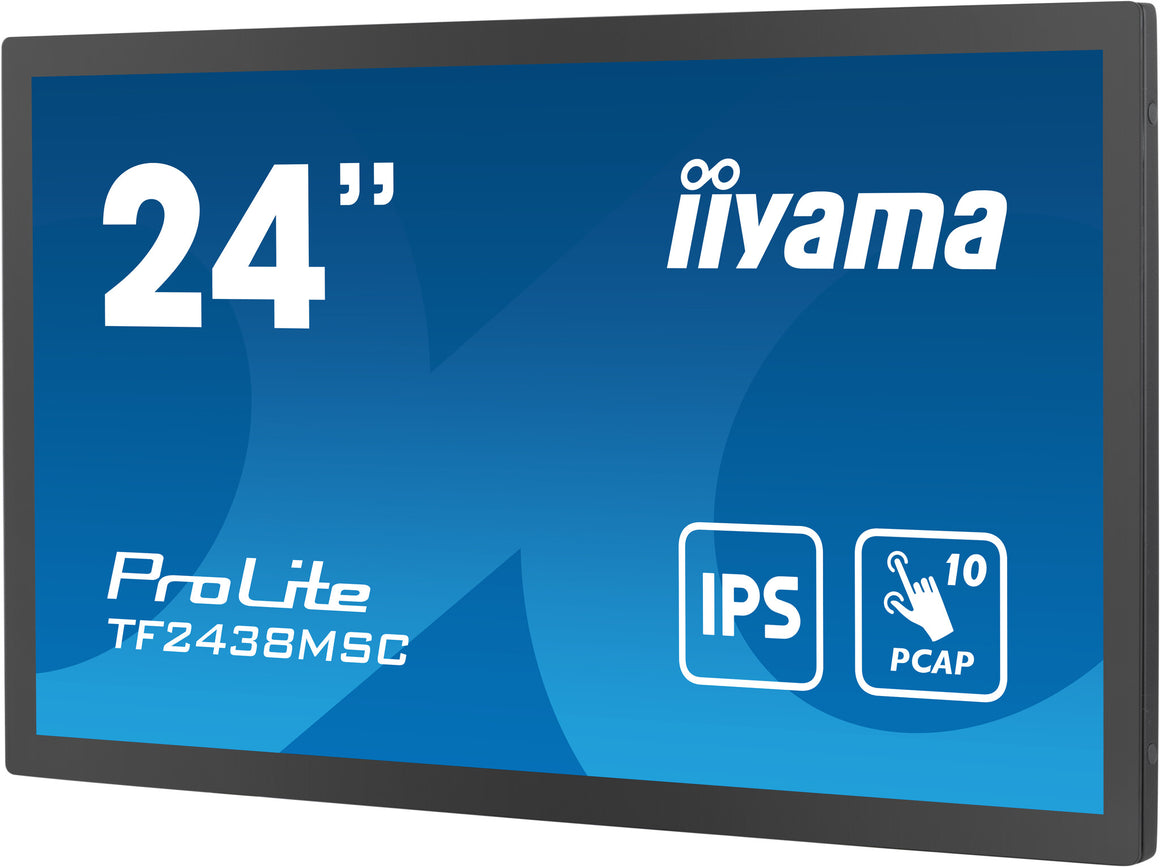

The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
| Display |
|---|
| Native refresh rate |
60 Hz |
| Surface hardness |
7H |
| Glass thickness |
3.6 mm |
| Horizontal scan range |
30 - 83 kHz |
| Display diagonal (metric) |
60.5 cm |
| Active display area (W x H) |
527 x 296.5 mm |
| Pixel pitch |
0.275 x 0.275 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Response time |
5 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Display brightness |
600 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
60.5 cm (23.8") |

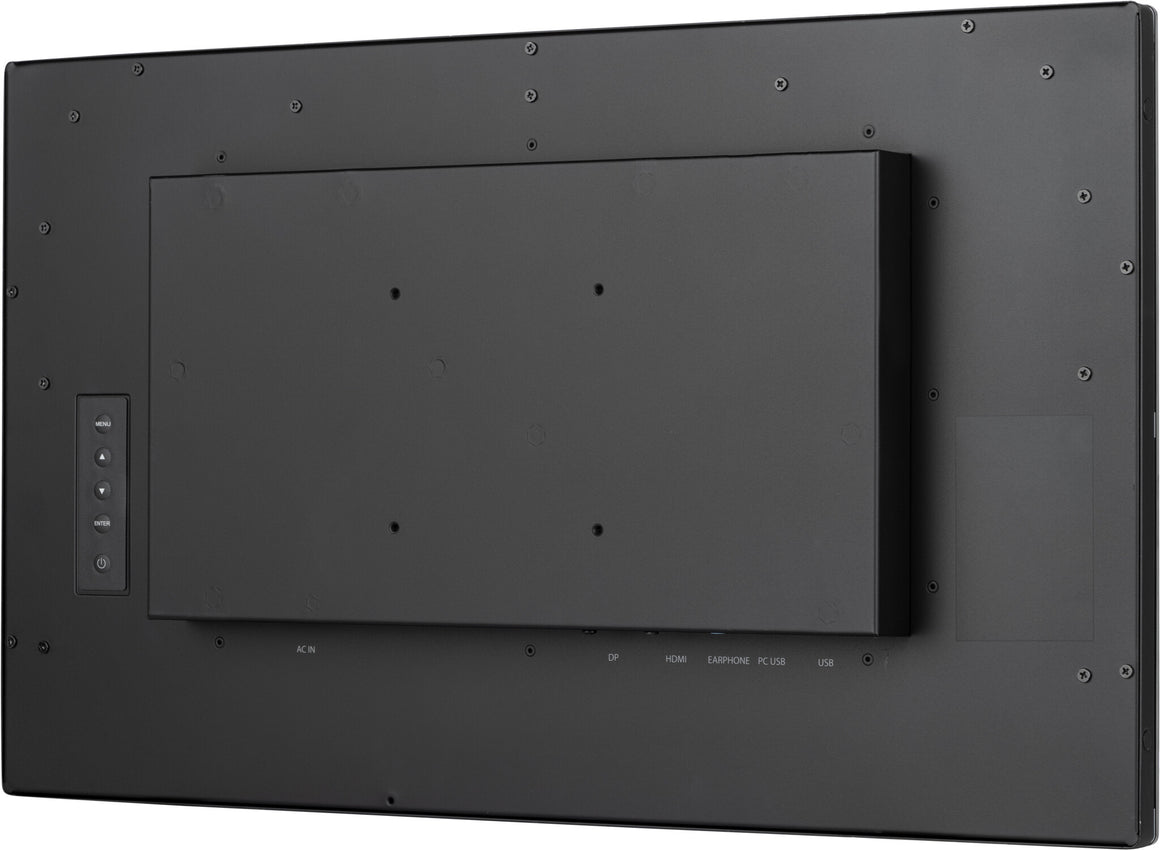

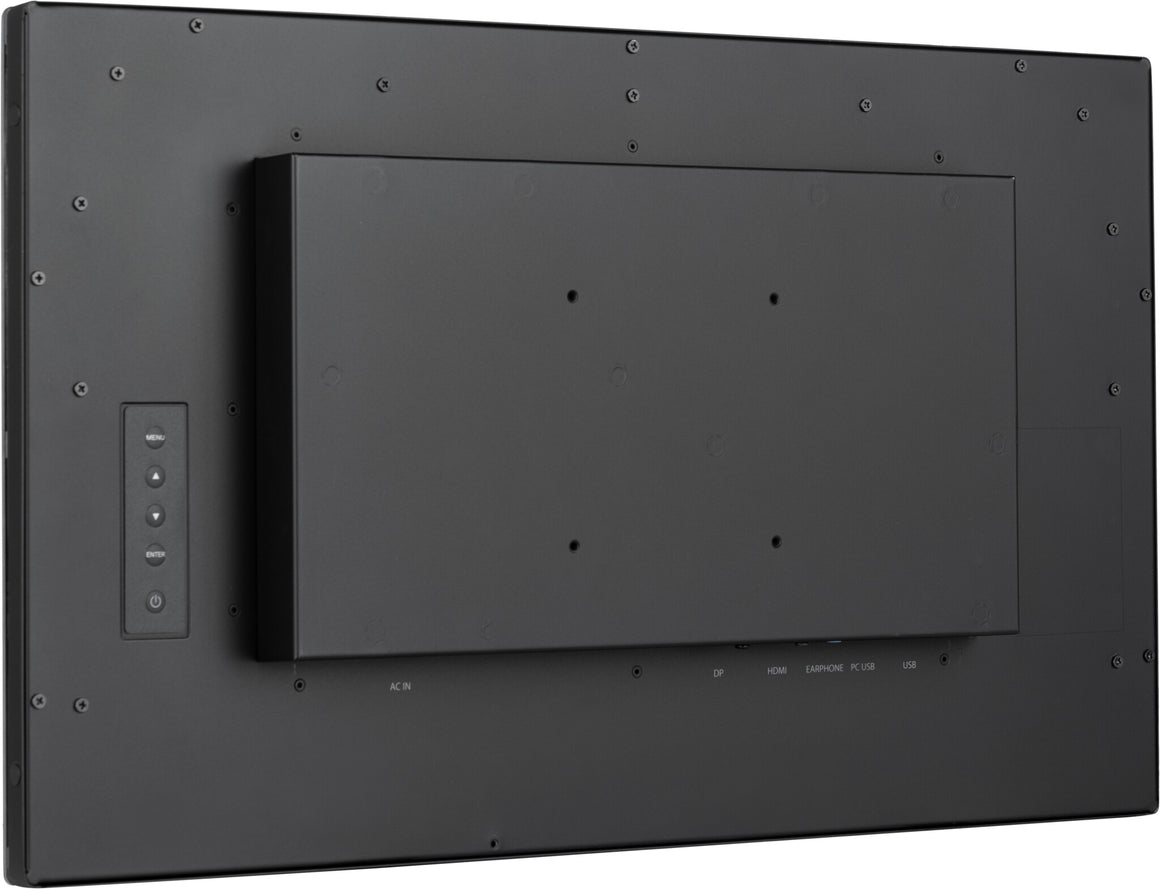

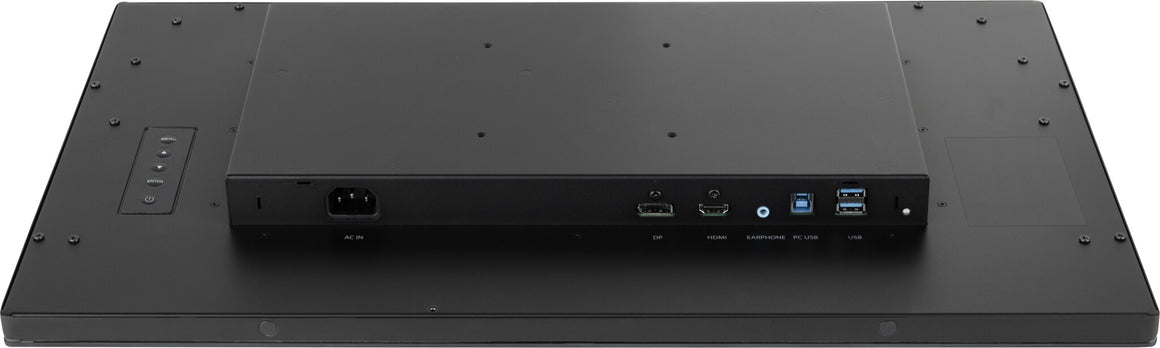

| Ports & interfaces |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
No |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
4 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel width (top) |
2.03 cm |
| Bezel width (side) |
1.73 cm |
| Bezel width (bottom) |
2.03 cm |

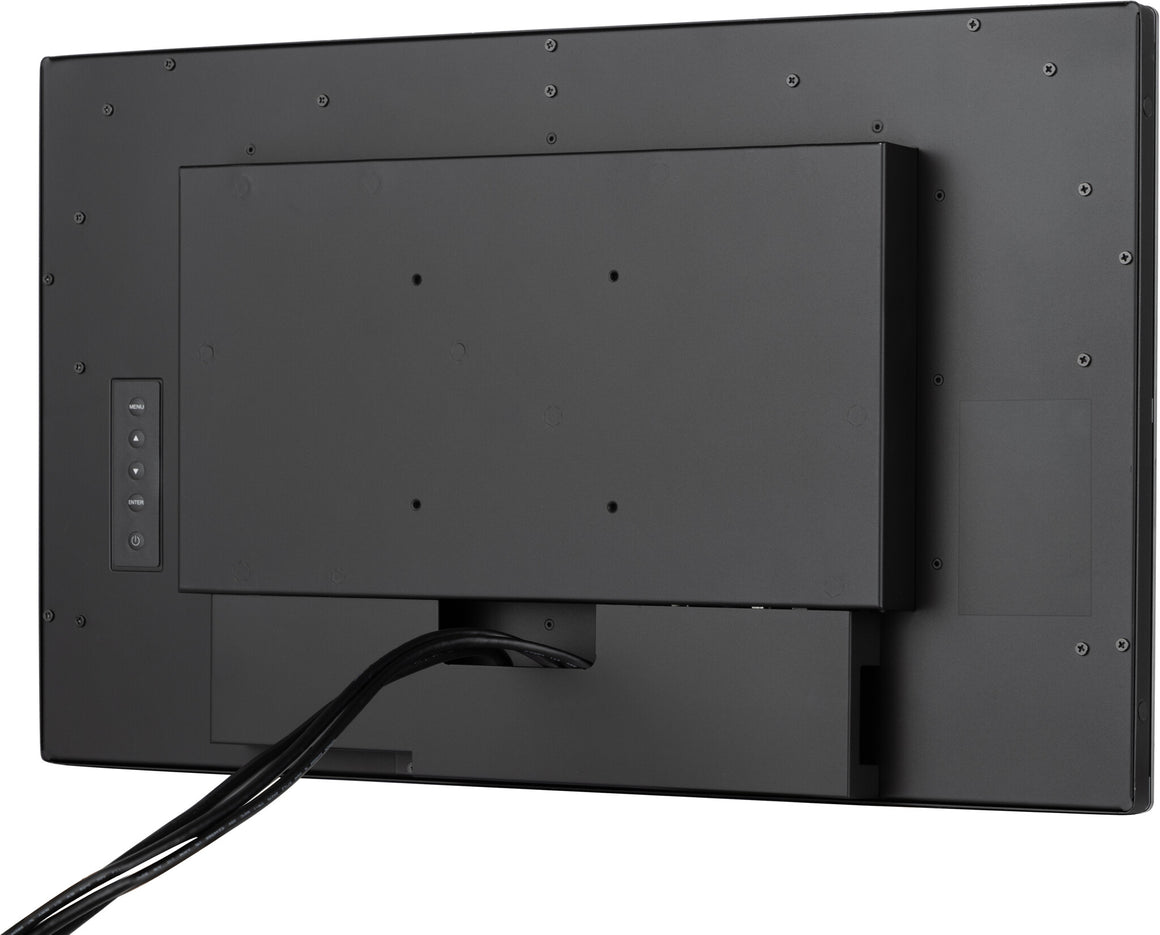

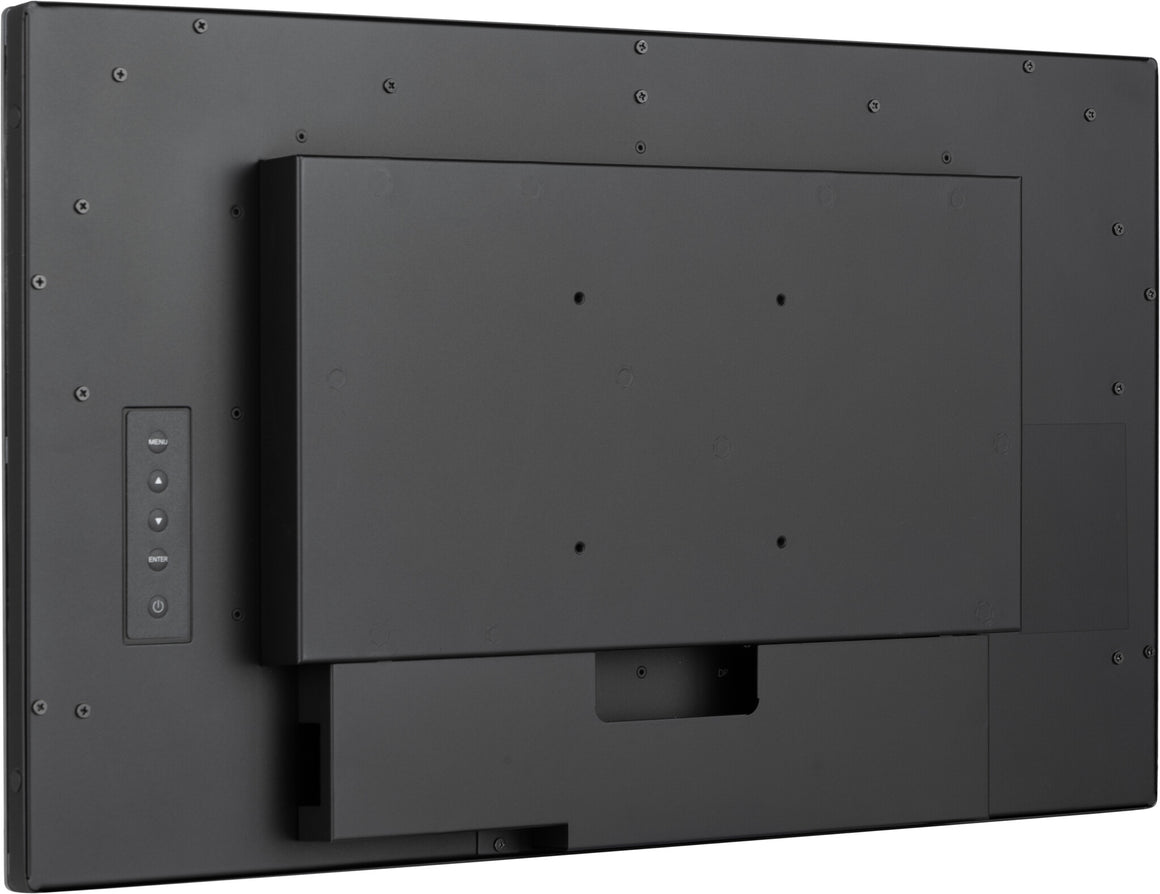

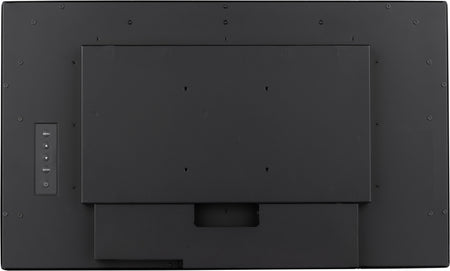

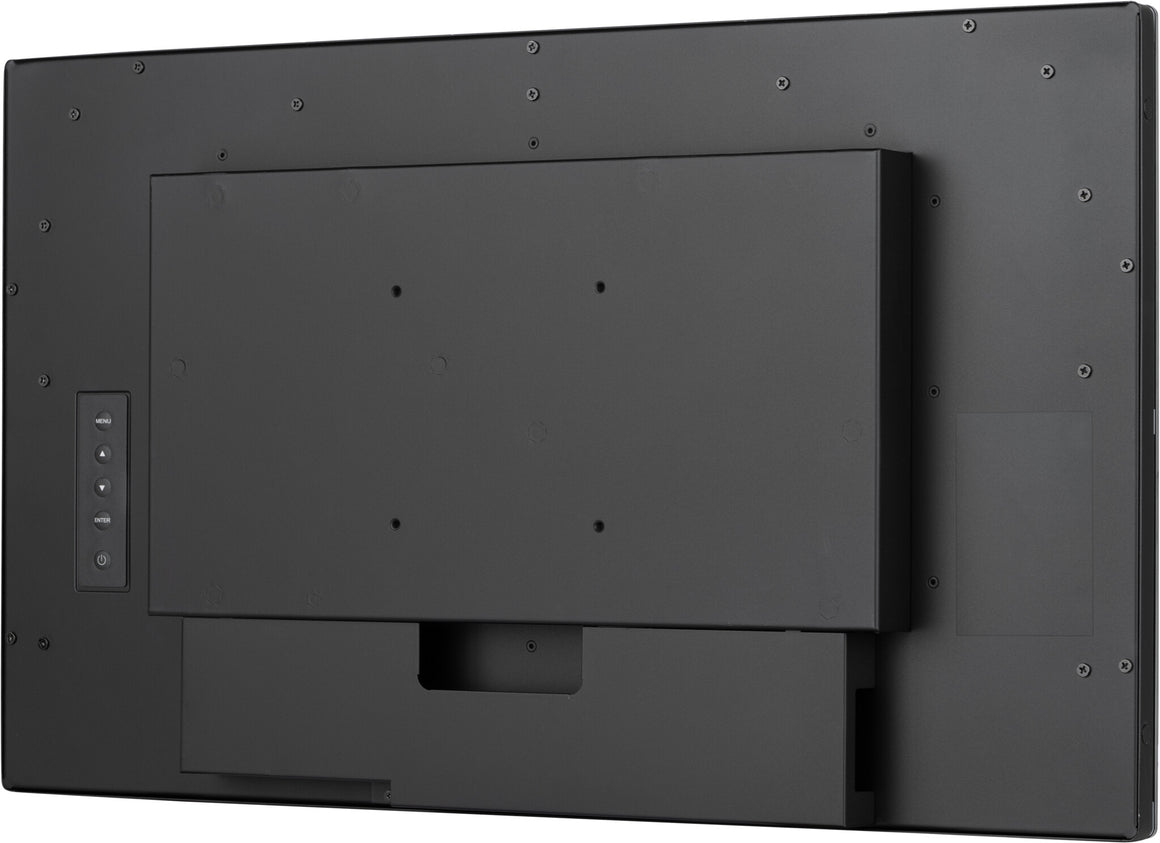

| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |

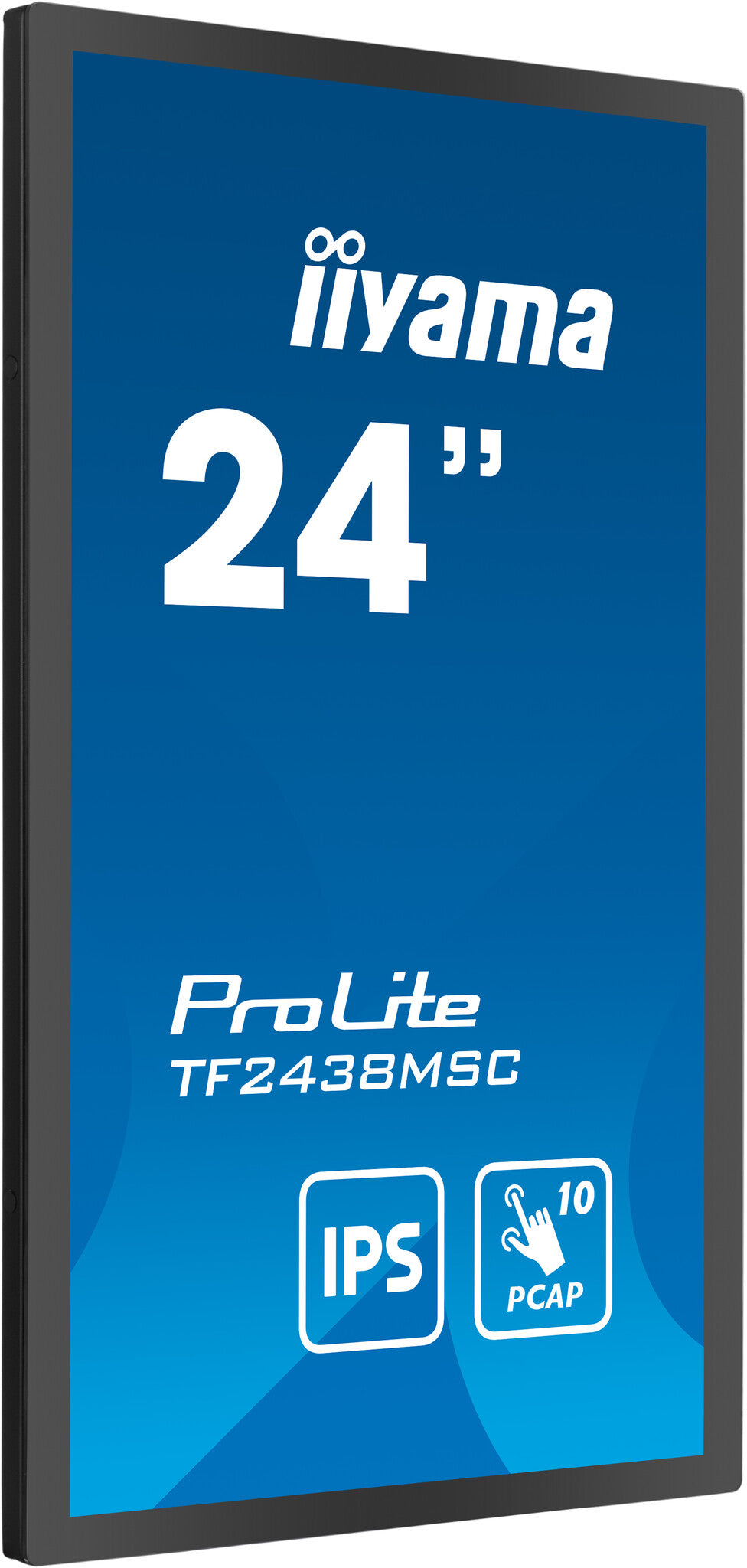

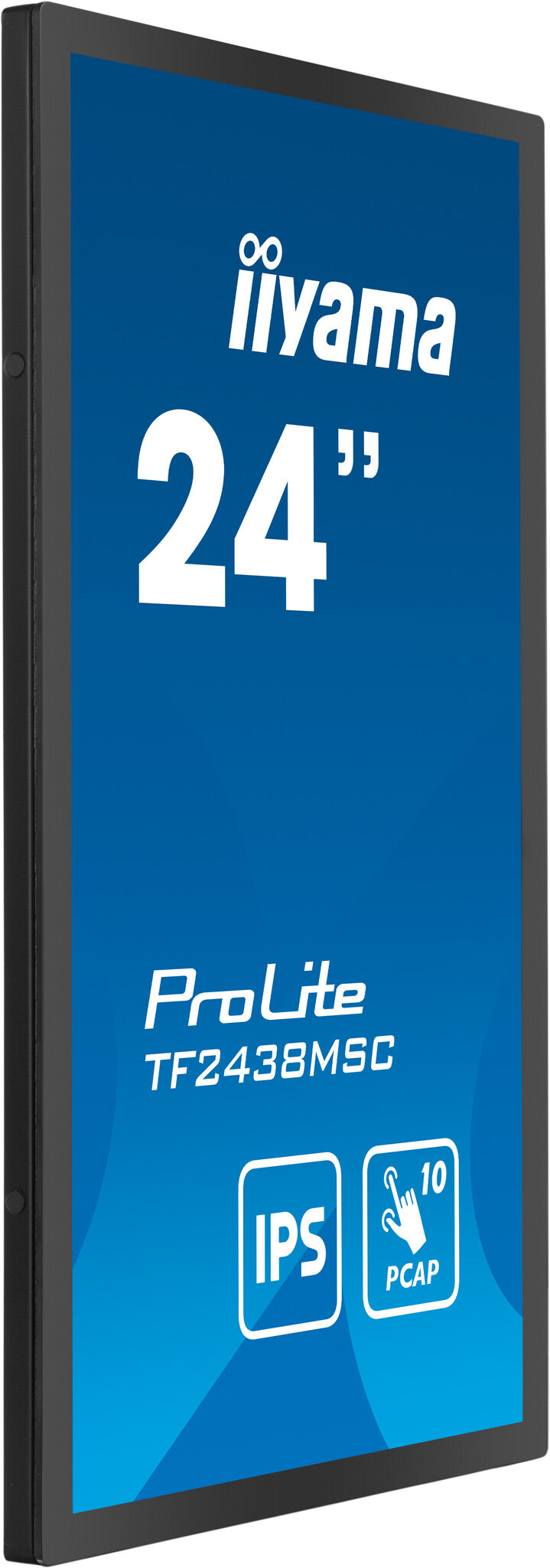

| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital A-board |
| Performance |
|---|
| International Protection (IP) code |
IP1X |
| HDCP |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, German, English, French, Japanese, Polish, Russian |
| Purpose |
Universal |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy efficiency class (SDR) |
E |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
22 W |
| Computer system |
|---|
| Built-in processor |
No |
| Computer system |
No |
| Weight & dimensions |
|---|
| Weight (with stand) |
6.5 kg |
| Height (with stand) |
337 mm |
| Depth (with stand) |
47.5 mm |
| Width (with stand) |
561.5 mm |
| Display weight |
6.5 kg |
| Display height |
337 mm |
| Display depth |
47.5 mm |
| Display width |
561.5 mm |
| Packaging data |
|---|
| Package weight |
8.1 kg |
| Package height |
409 mm |
| Package depth |
635 mm |
| Package width |
635 mm |
| Packaging content |
|---|

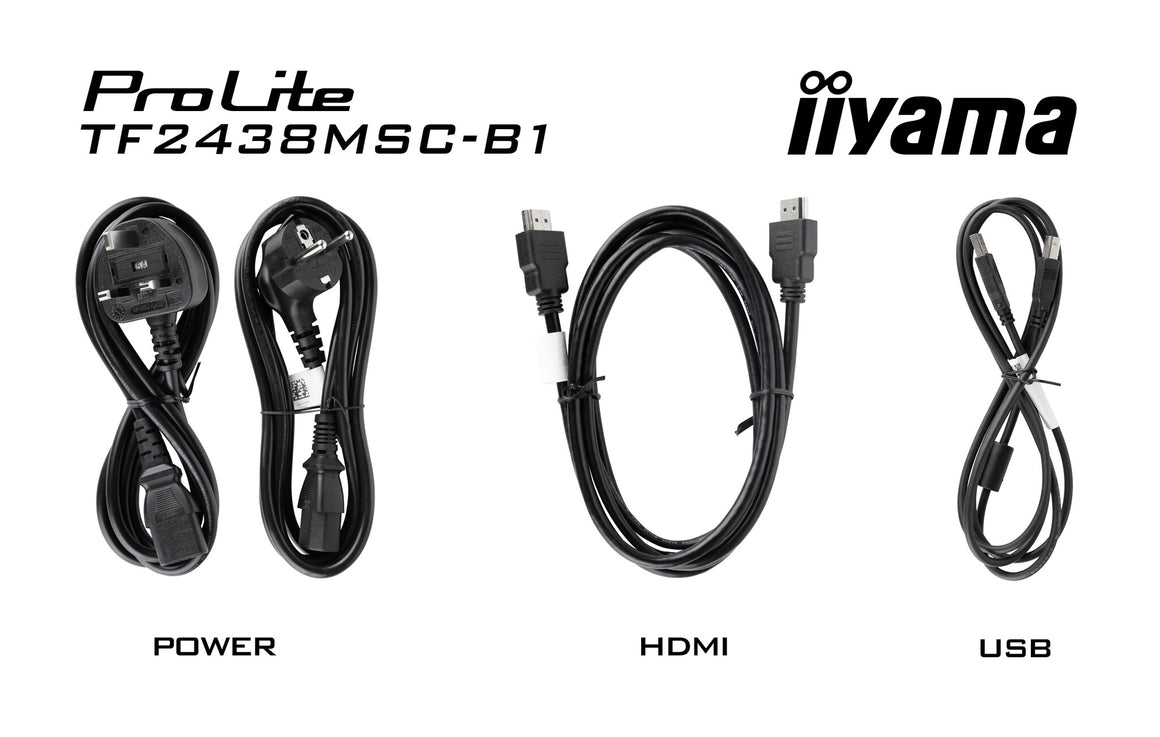

| Cables included |
HDMI, Power, USB |
| Certificates |
|---|
| Certification |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Other features |
|---|
| Quick start guide |
Yes |
| Power supply type |
Internal |
| Viewable size, horizontal |
52.7 cm |
| Viewable size, vertical |
29.6 cm |
